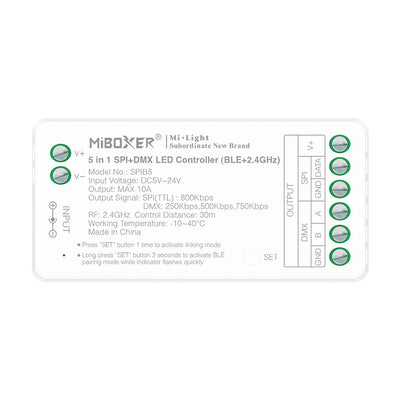

MiBoxer 5 in 1 SPI+DMX LED Controller (BLE+2.4G)

Model: SPIB5 | Protocol: Bluetooth + 2.4GHz RF | Input Voltage: DC5–24V | Warranty: 5 Years

Take full creative control of your lighting with the 5 in 1 SPI + DMX LED Controller – designed for installers, designers, and businesses who want powerful effects without complicated setups. Whether you're building dynamic feature lighting, signage, architectural installs, or event displays, this controller gives you the flexibility to bring your vision to life.

Seamlessly bridging SPI pixel lighting and DMX control, this unit is perfect for everything from pixel LED strips and digital neon through to commercial lighting systems and entertainment setups. It’s a go-to solution for projects that demand movement, colour transitions, and custom lighting effects.

With built-in Bluetooth (BLE) and 2.4GHz wireless control, you can easily manage your lighting via app or remote—making installation faster and user control simple. Create stunning colour chases, flowing effects, music-reactive lighting, or clean static scenes, all without needing complex programming.

Ideal for:

• Pixel LED strip installations (SPI)
• DMX lighting control systems
• Custom neon signage with dynamic effects
• Bars, restaurants, and venue lighting
• Event and stage lighting setups
• Architectural and feature lighting projects
• Smart home and commercial automation lighting


This controller is all about versatility and ease of use—giving you professional-grade lighting control without the headache. From simple installs to advanced lighting designs, it adapts to your project and grows with your needs.

If you're looking to create high-impact, dynamic LED lighting, this is the controller that makes it happen.

Overview:
Product Name: 5 in 1 SPI+DMX LED Controller (BLE + 2.4G)
Model No.: SPIB5
Warranty: 5 Years

Electrical Specifications:
Input Voltage: DC 5–24V
Total Output: Max 10A
Standby Current: 20mA

Compatiable Controllers: C9 SPI Remote & B9 SPI Panel Remote

Output Signal Specifications:
SPI: TTL 800Kbps (Max 1024 pixels)
DMX: 250Kbps (Max 256 pixels)
DMX: 500Kbps (Max 512 pixels)
DMX: 750Kbps (Max 768 pixels)

Communication Specifications:
Protocol: BLE + 2.4GHz RF
Control Distance: RF 30m

Environmental Specifications:
Working Temperature: -10°C to 40°C

Safety & Protection:
IP Rating: IP20
Dimension: 74.5 × 36 × 17mm

Certifications:
CE, EMC, LVD, RED
EMC Standard: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
Safety Standard: EN 62368-1:2020+A11:2020
Radio Equipment Standard: ETSI EN 300 440 V2.2.1
