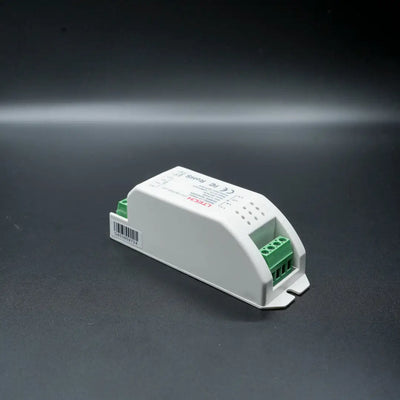

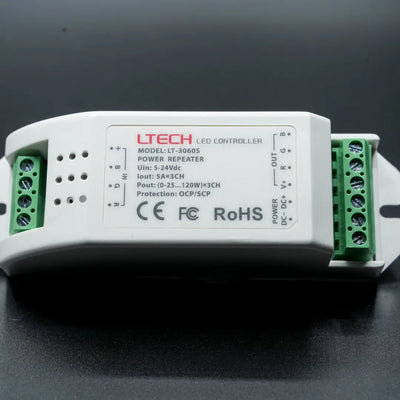

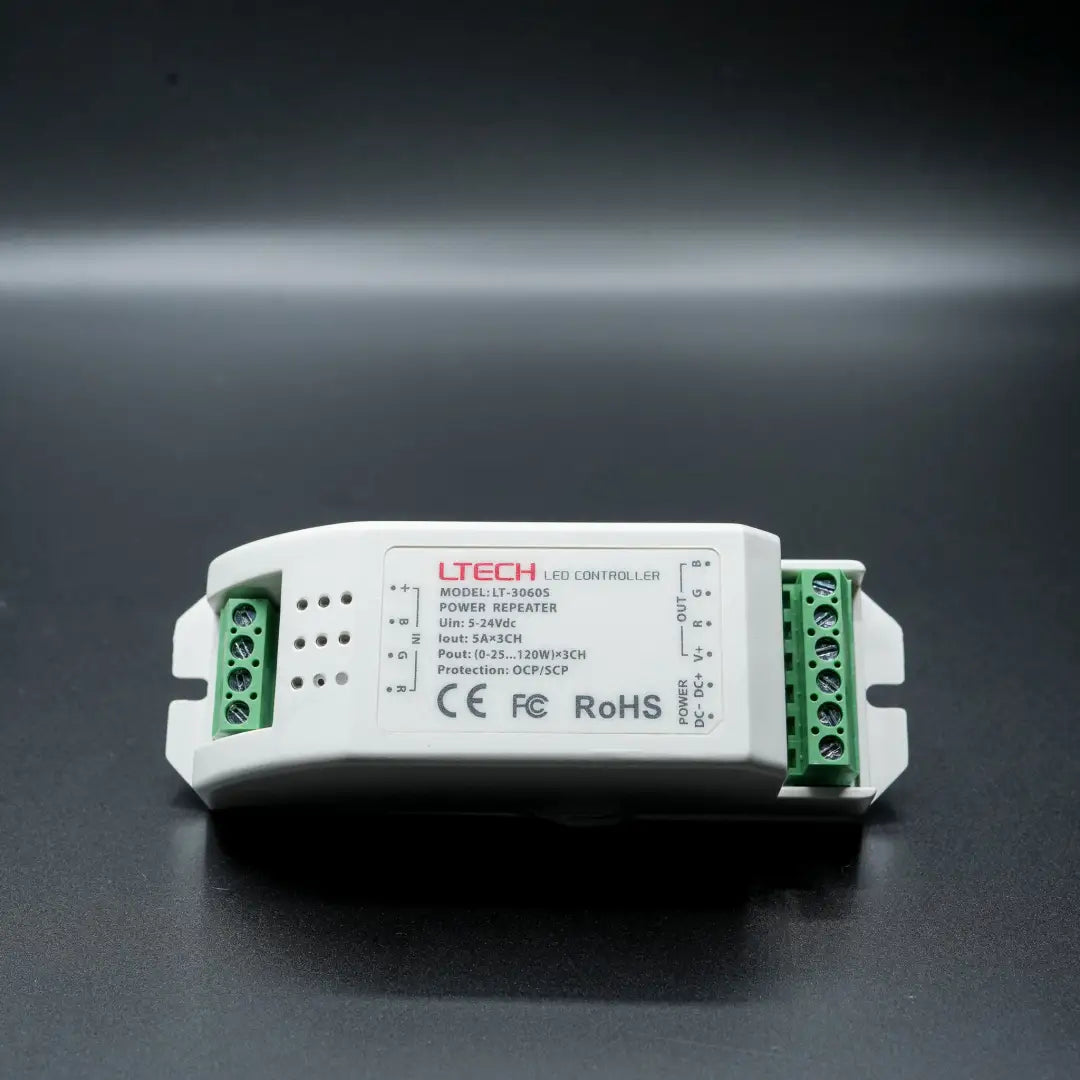

Ltech Power Reapeater -3060S

The LED Power Repeater is a powerful and versatile device designed to expand the power output of our company's controllers. It accepts PWM control and can be used to double the control quantity of LED lights by adding an additional power repeater. Theoretically, there is no limit to the number of power repeaters that can be connected.

This makes the LED Power Repeater an ideal choice for anyone looking to expand their LED lighting setup without having to invest in additional controllers. With its reliable performance and ease of use, it's perfect for a variety of applications, from home and office lighting to large-scale commercial installations.

Thanks to its advanced technology and high-quality construction, the LED Power Repeater delivers reliable and consistent performance, even under the most demanding conditions. So if you're looking for a powerful and versatile LED lighting solution, the LED Power Repeater is the perfect choice.

Overview:
Input Signal: PWM (200Hz–2000Hz)
Input Voltage: 5–24V DC
Current Load: 5A × 3CH, Max. 15A
Output Power: (0–25W … 120W) × 3CH, Max. 360W
RF Remote Distance: —
Connection Protection: Over current / Short Circuit / Reverse

Performance:
Working Temperature: -30°C ~ 55°C

Physical:
Dimensions: L121 × W39 × H39 mm
Package Size: L123 × W42 × H42 mm
Weight: 210g
