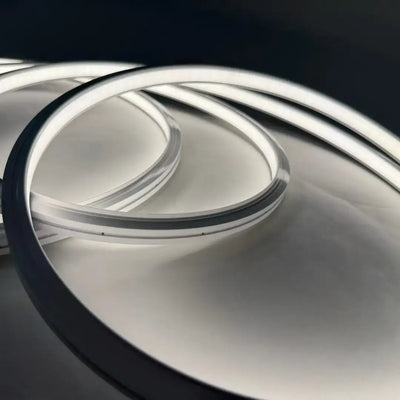

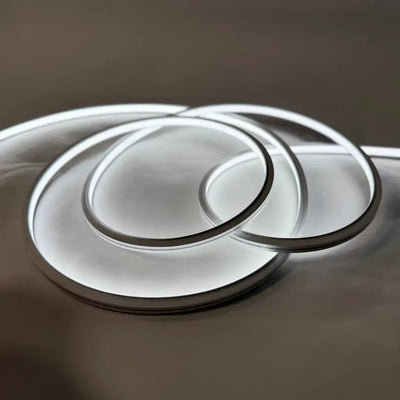

10x10mm Recessed Flex Neon - Per Meter (24V)

Qty = Length in Meters (e.g. 10 qty = 10m continuous)

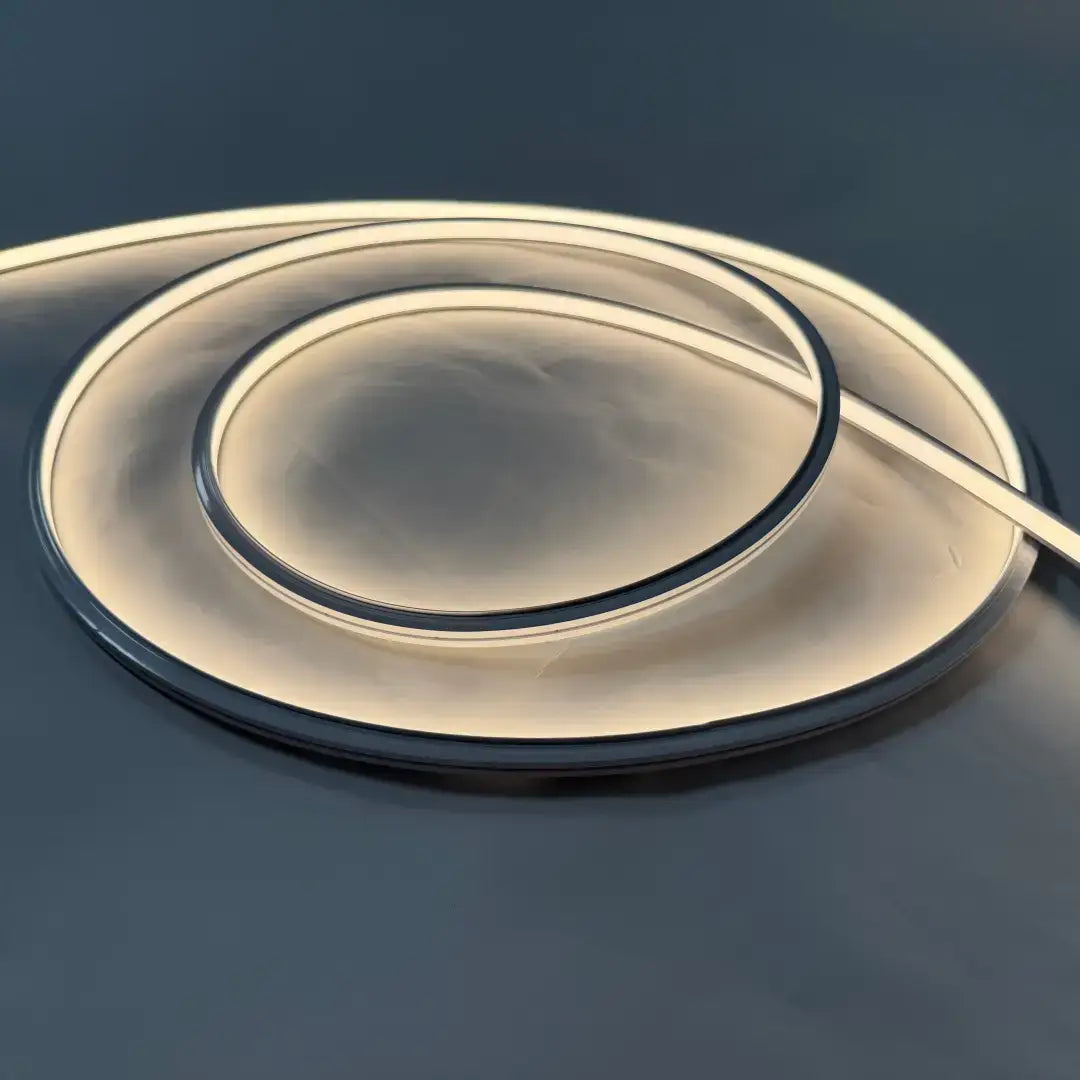

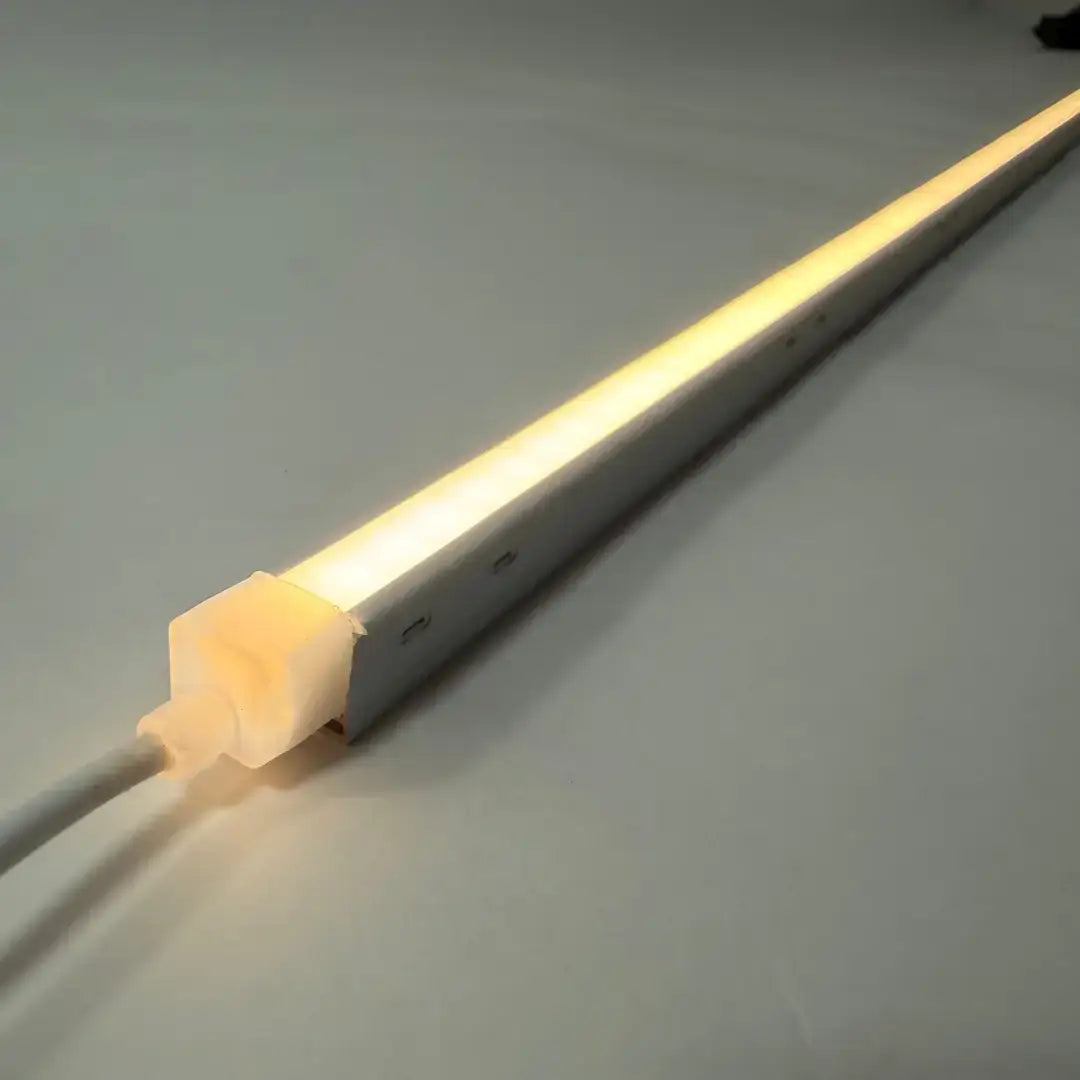

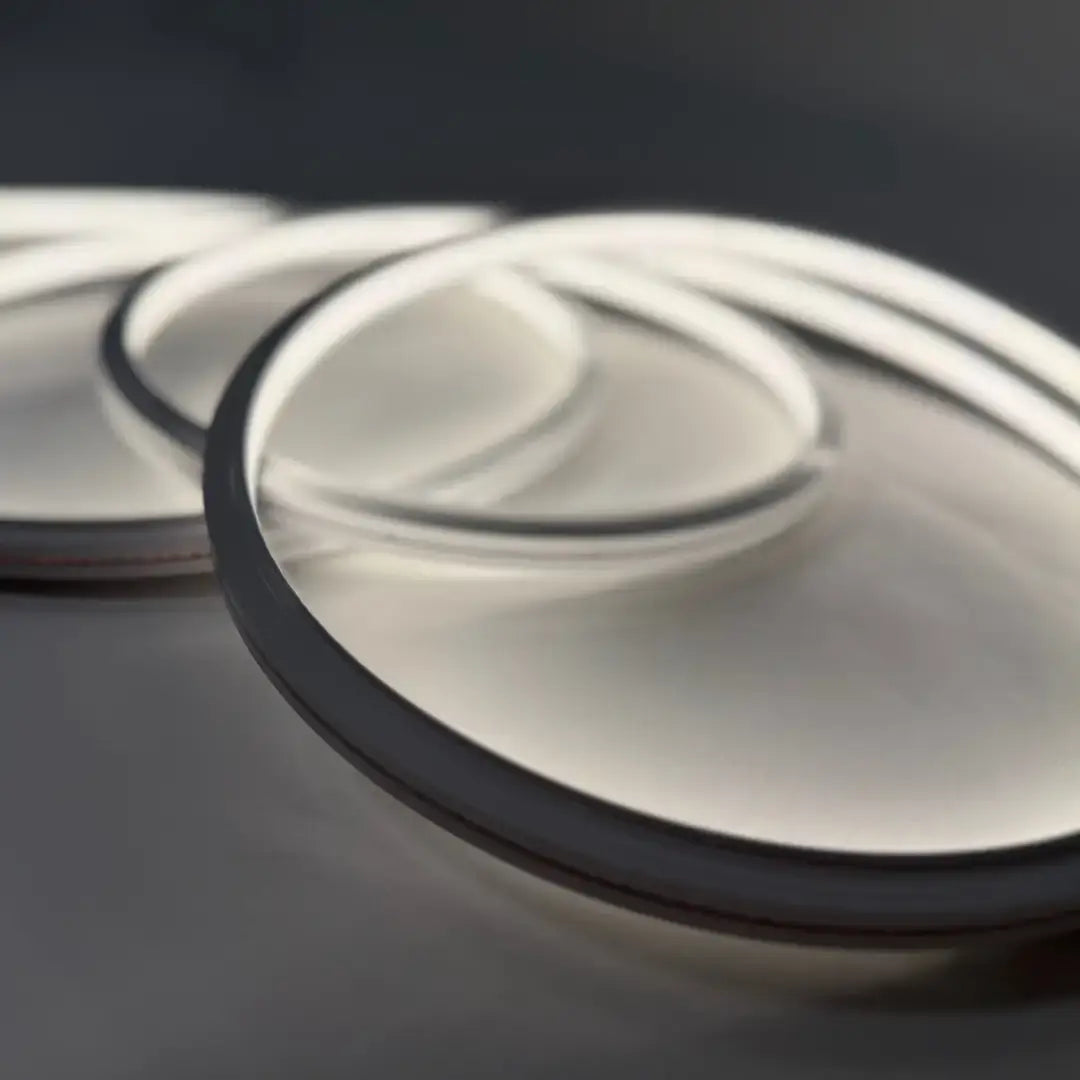

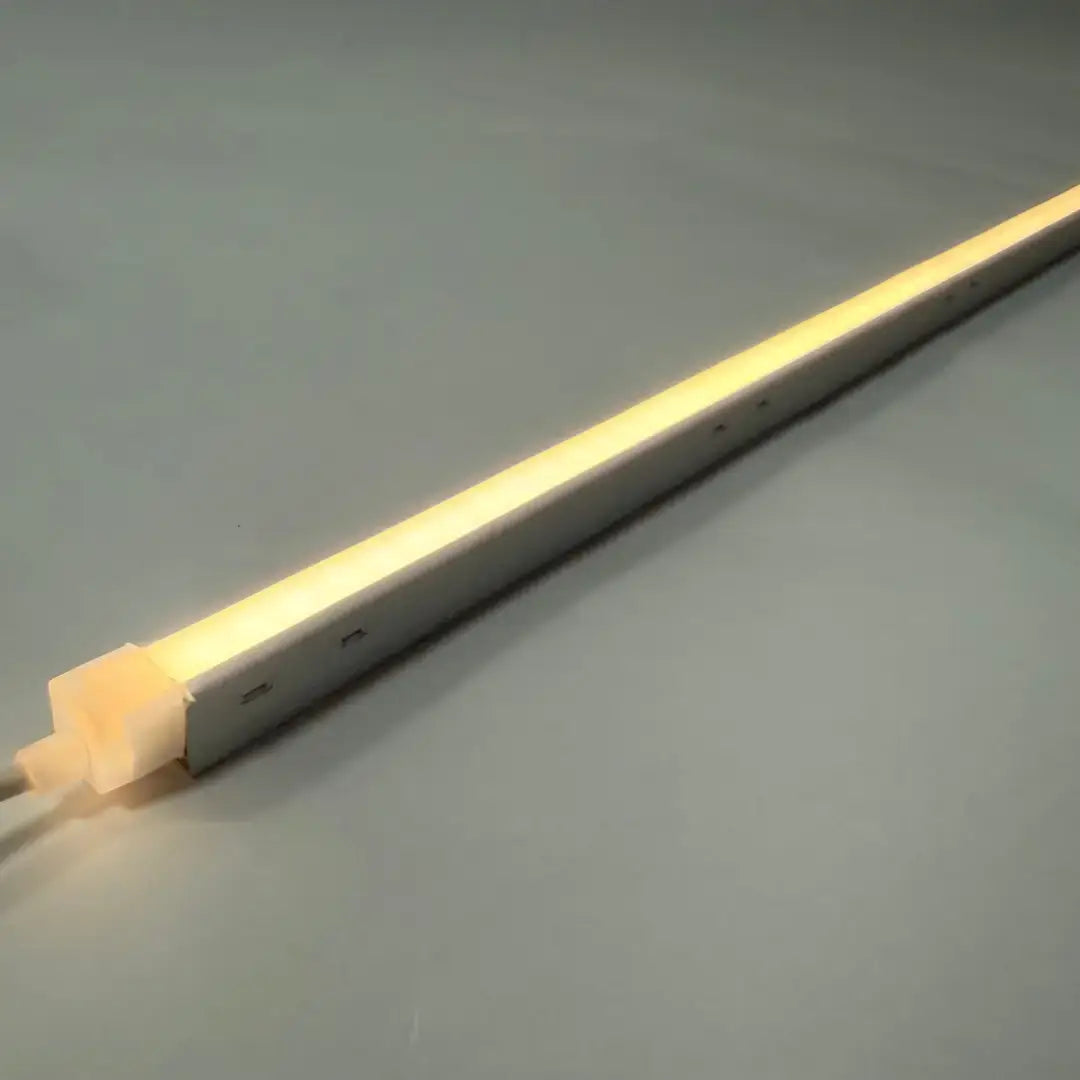

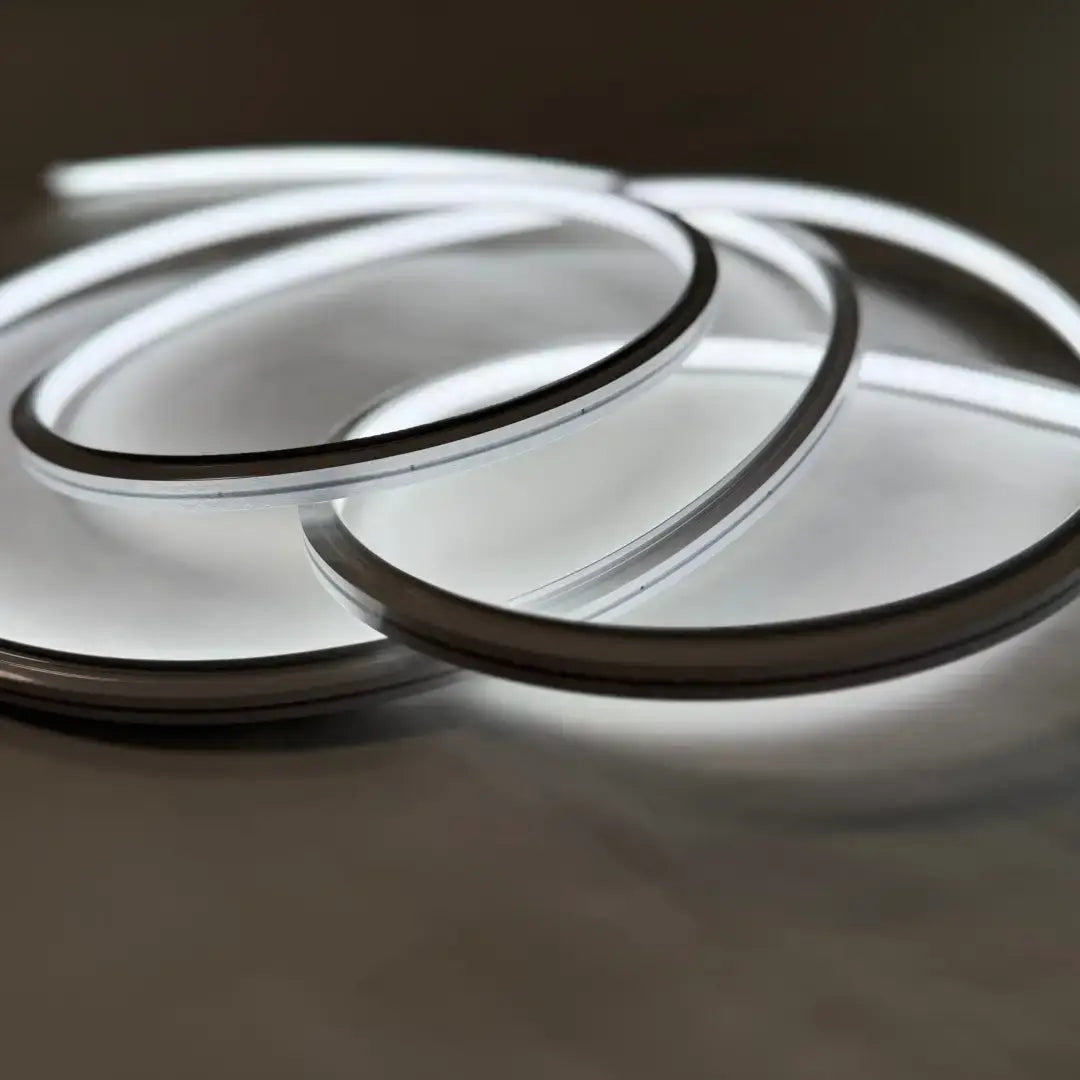

Our 10x10mm Recessed Flex Neon – per meter (24V) is a premium Commercial Grade Lighting solution designed for clean, flush integration into modern Architectural Lighting projects. Engineered with a smart winged profile, this recessed Flexible Neon sits neatly into channels, covering rough edges and delivering a seamless, professional finish ideal for cabinetry, retail fit-outs, signage, and Building Exterior Neon applications.

Sold per meter, it allows precise ordering for efficient, tailored installations — perfect for Custom Architectural Lighting and detailed Architectural lighting design. The wide top lip creates a smooth, refined appearance while projecting bold, even illumination without visible spotting. With 120 LEDs per meter and a high CRI >90, this neon led strip ensures accurate colour rendering for premium architectural lighting fixtures across hospitality, commercial and residential spaces.

Manufactured from durable silicone, this IP67-rated waterproof LED strip is UV-resistant, flame retardant and built to withstand Australian conditions. Operating on 24V DC at 8W per meter, it supports runs up to 10 meters on a single feed, making it a reliable 24 volt LED strip solution for larger installations. The vertical bending design allows smooth curves while maintaining a consistent, dot-free glow.

Please Note:
This product is sold per meter. Soldering is required unless pre-soldered ends are selected. A compatible 24V DC driver is required.

Overview:

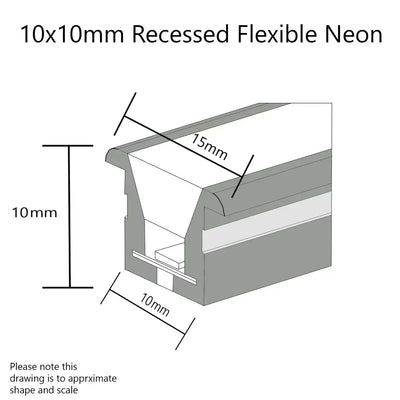

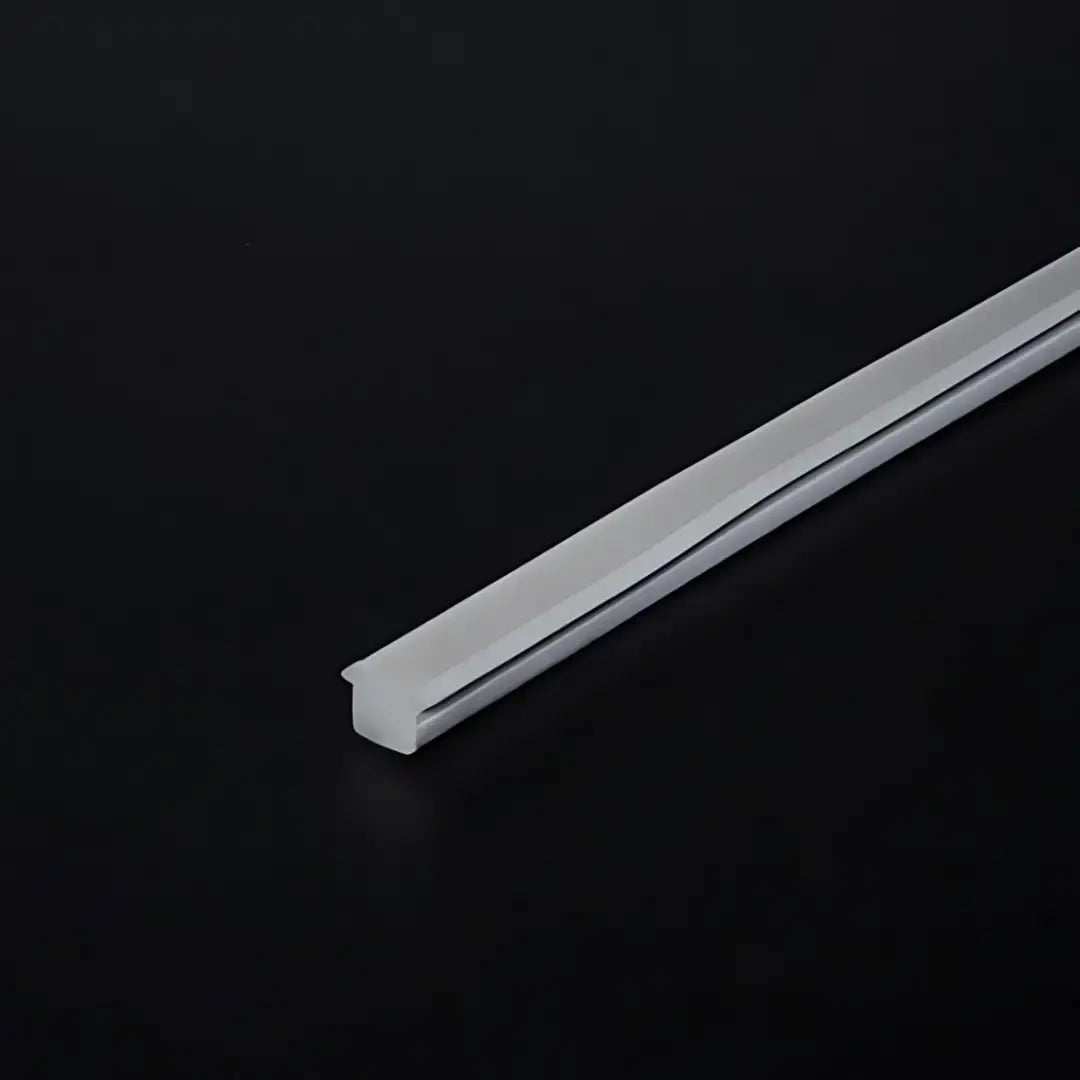

Flexible Neon Dimensions (L x H): 10mm x 10mm Recessed (15mm total wings)
Material: Silicone
Warranty: 3 Years

Max Run Lengths:
- Single Feed: 5m @ 12V DC
- Double Feed: 10m @ 12V DC
Lumen Maintenance:
- 50,000 hours @25°C
- 35,000 hours @50°C

Electrical:
Voltage: 12V DC
Power Consumption: 8W/m (High Brightness)

Physical:
Length: Per Metre
LED Type: SMD2835
Bend Type: Top Bending
LED Quantity: 120 LEDs/m

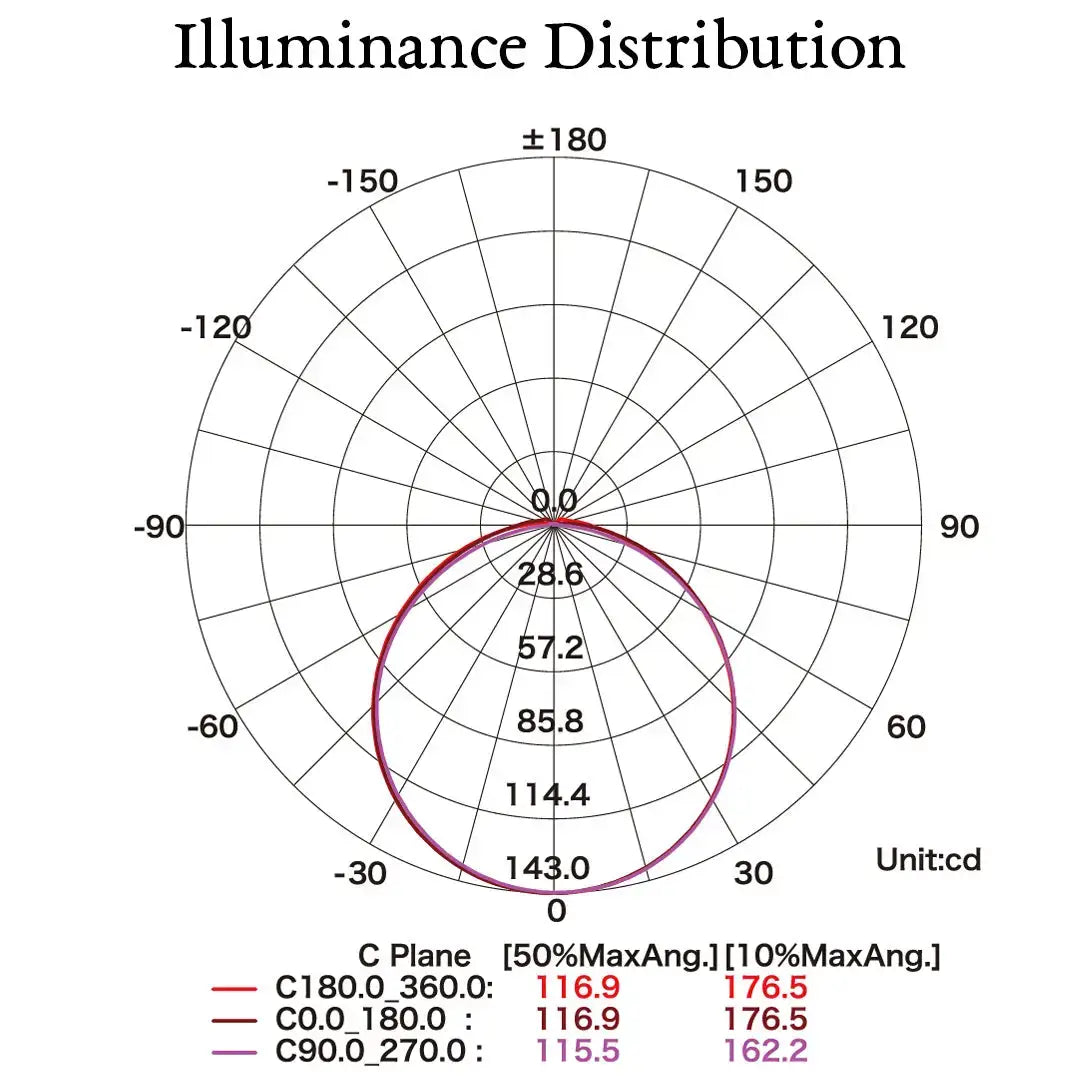

Light Surface: Round Fixture 270°
Cutting Intervals: 50mm
Minimum Bend Diameter: 100mm (Top Bending Only)
Dimmable: Yes

Temperature Ranges:
Installation Temperature: 0°C to 50°C
Operating Temperature: -40°C to 55°C
Humidity: 0–95% Non-Condensing

Safety:
IP Rating: IP67 (with appropriately rated accessories)
CRI: >90Ra
Features:
- Flame Resistant, Solvent Resistant, Anti-yellowing, Dirt/Saltwater/Solvent/UV Resistant, IK08 Security
Certifications:
Strictly according to the testing standard of CE & ROHS.

Colour Specifications:
Colour | CCT Wavelength | LM/M
Warm White (3000K): 3045K ±175K | 500lm
Natural White (4000K): 3985±275k | 500lm
Pure White (6500K): 6532K ±510K | 500lm
