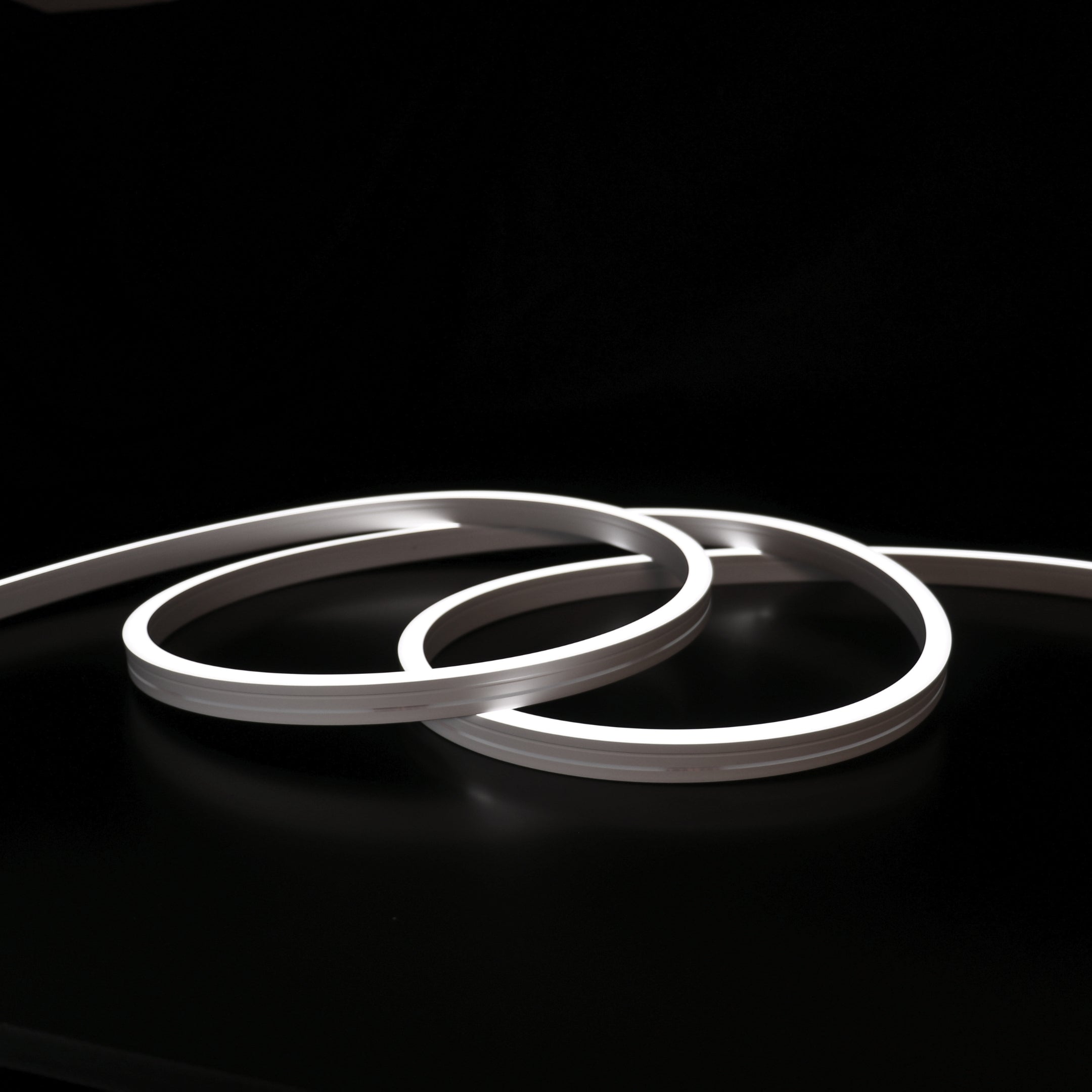

12x20mm Long Distance Neon - single Colour Per Meter (48V)

Qty = Length in Meters (e.g. 10 qty = 10m continuous)

Built for long, uninterrupted lighting applications, this 48V Flexible Neon provides smooth, consistent illumination across extended distances with fewer power injection points.

Perfect for architectural outlines, commercial spaces and large-scale projects where reliability and clean installations matter.

.......

Please Note:
This product is sold per meter. Soldering is required unless pre-soldered ends are selected. A compatible 48V DC driver is required.

Overview:

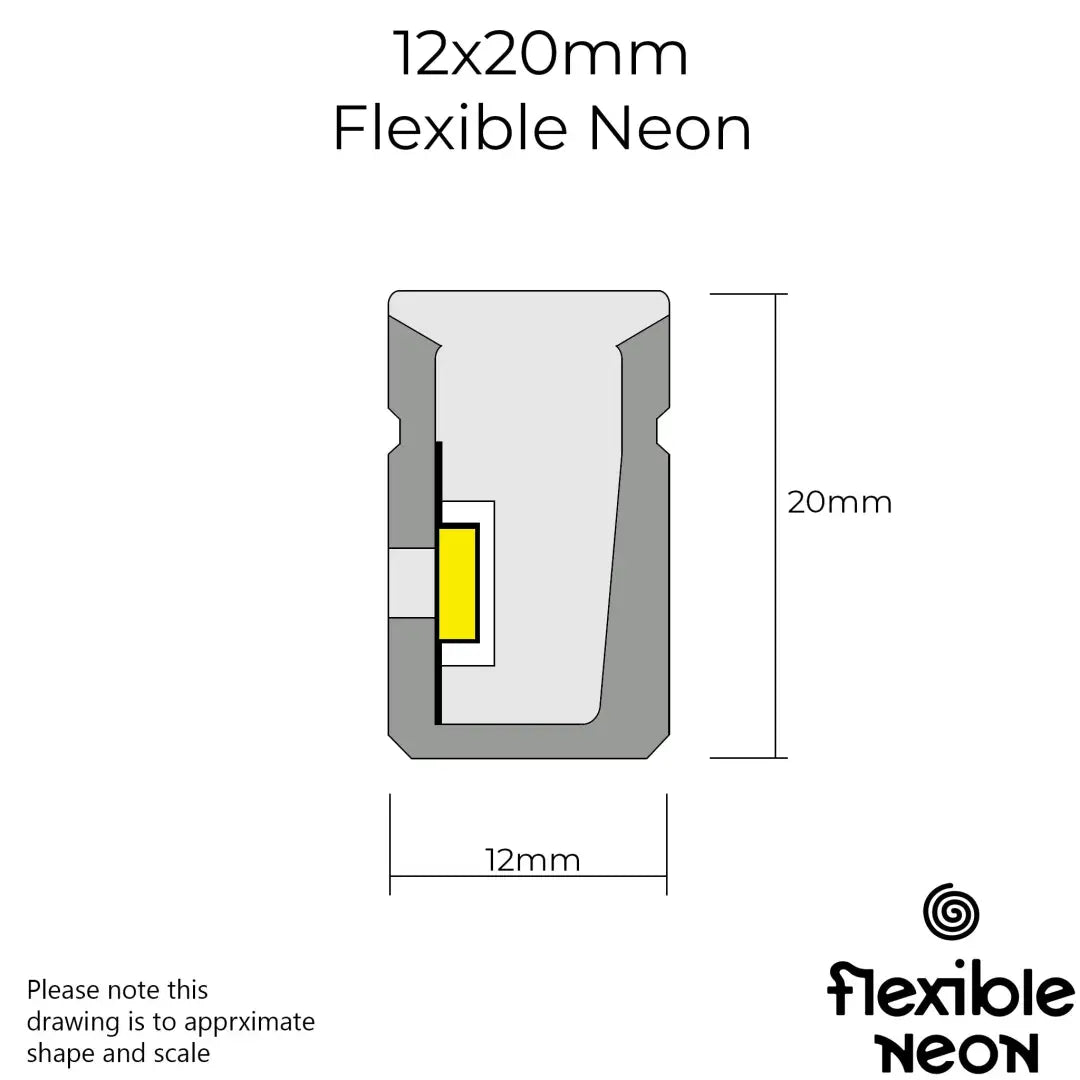

Flexible Neon Dimensions (W x H): 12mm x 20mm
Material: Silicone
Warranty: 5 Years
Max Run Lengths:

• Single Feed: 23 meters @ 48V DC
• Double Feed (Power coming in from both sides): 46 meters @ 48V DC

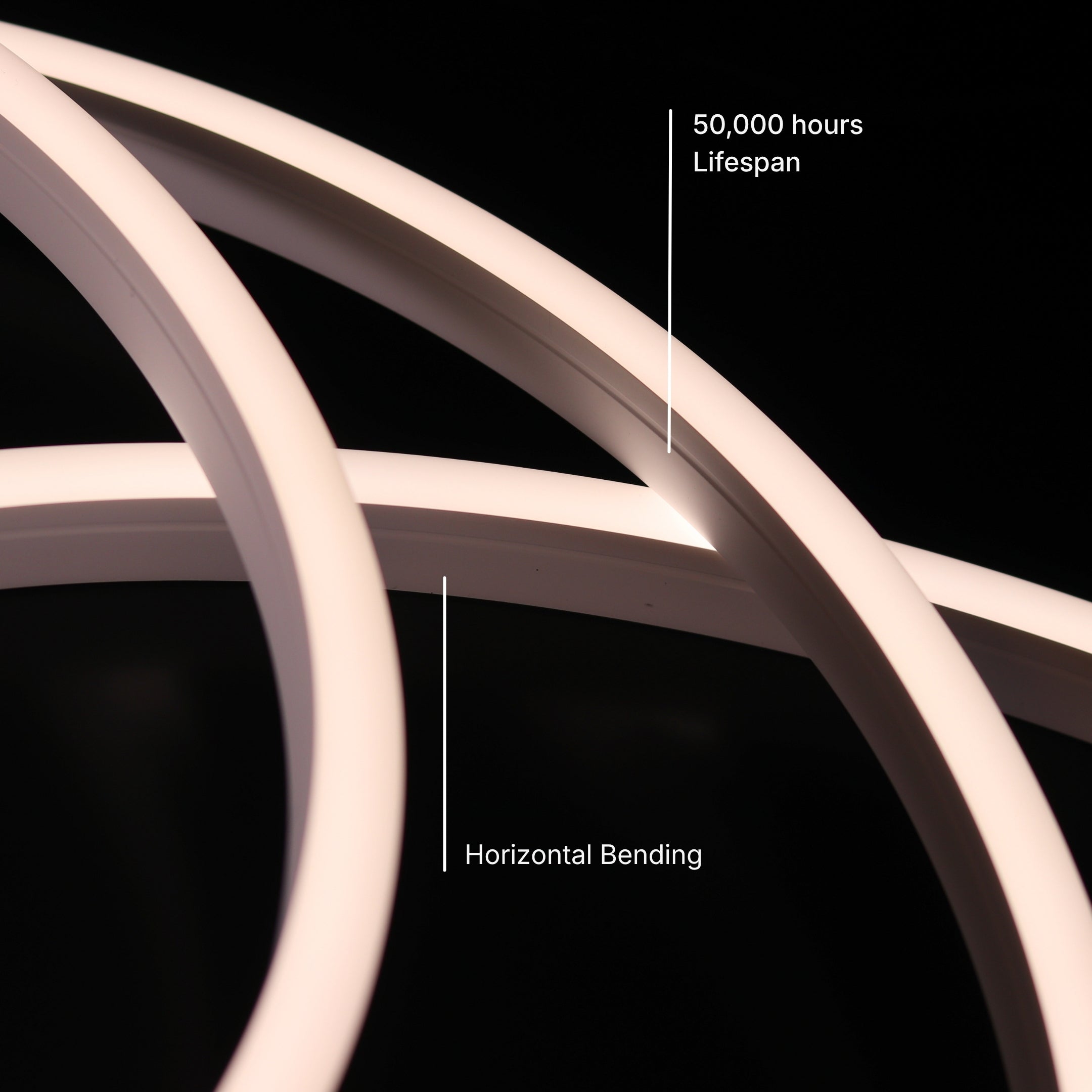

  Lumen Maintenance (approx.): 50,000 hours
  Lumens: Warm White (3000K) - 307.2lm/m, Pure White (6500K) - 328.3lm/m

Electrical:
Voltage: 48V DC

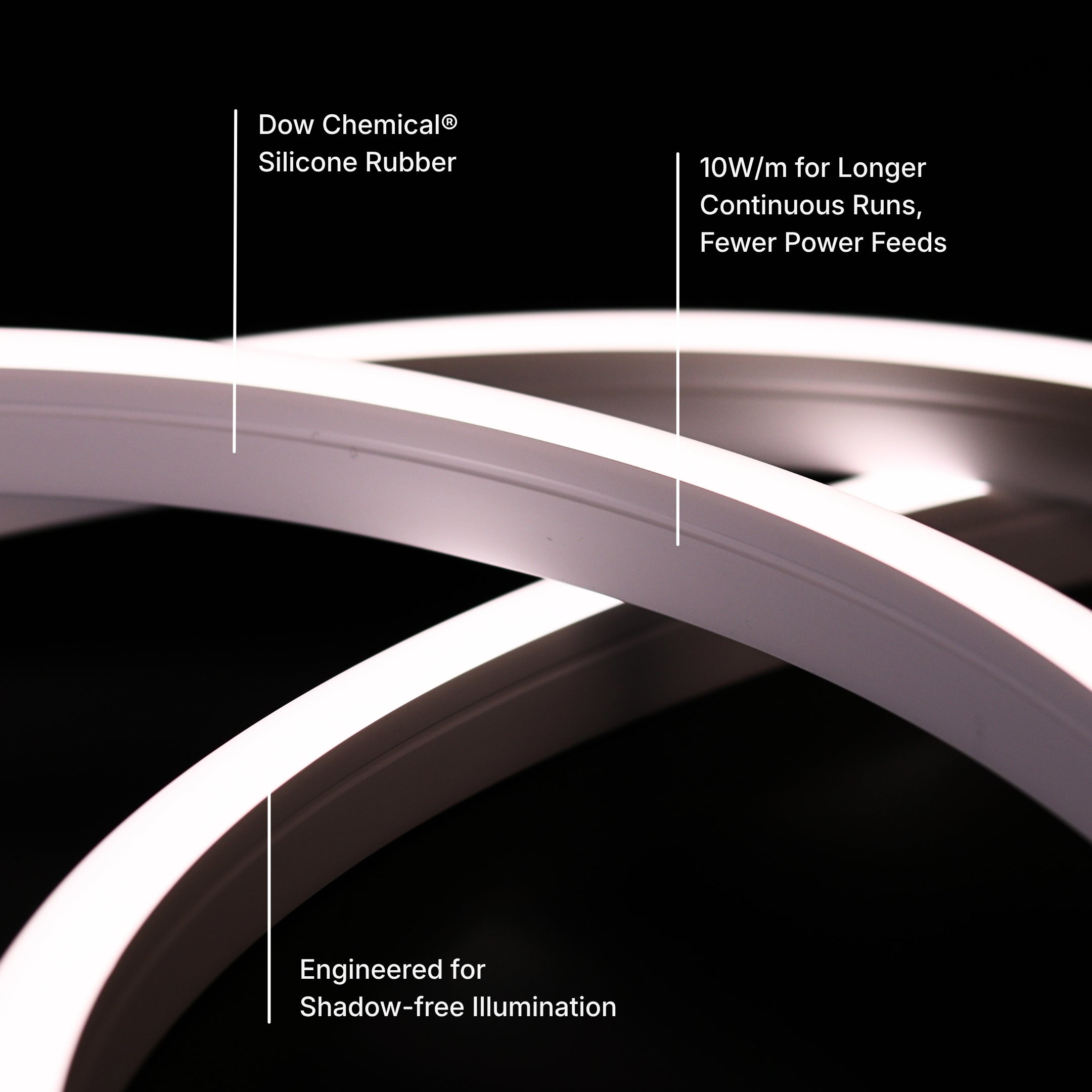

Power Consumption: 10W/m
Dimmable: Yes

Physical:
Length: Per Meter
Bend Type: Side Bending
Cutting Intervals: 100mm
Beam Angle: Round Fixture 110°
Minimum Bend Diameter: Side Bend - 150mm

Temperature Ranges:
Installation: 0° to 45°C
Operating: -40° to 60°C
Humidity: 0-95% non-condensing

Safety:

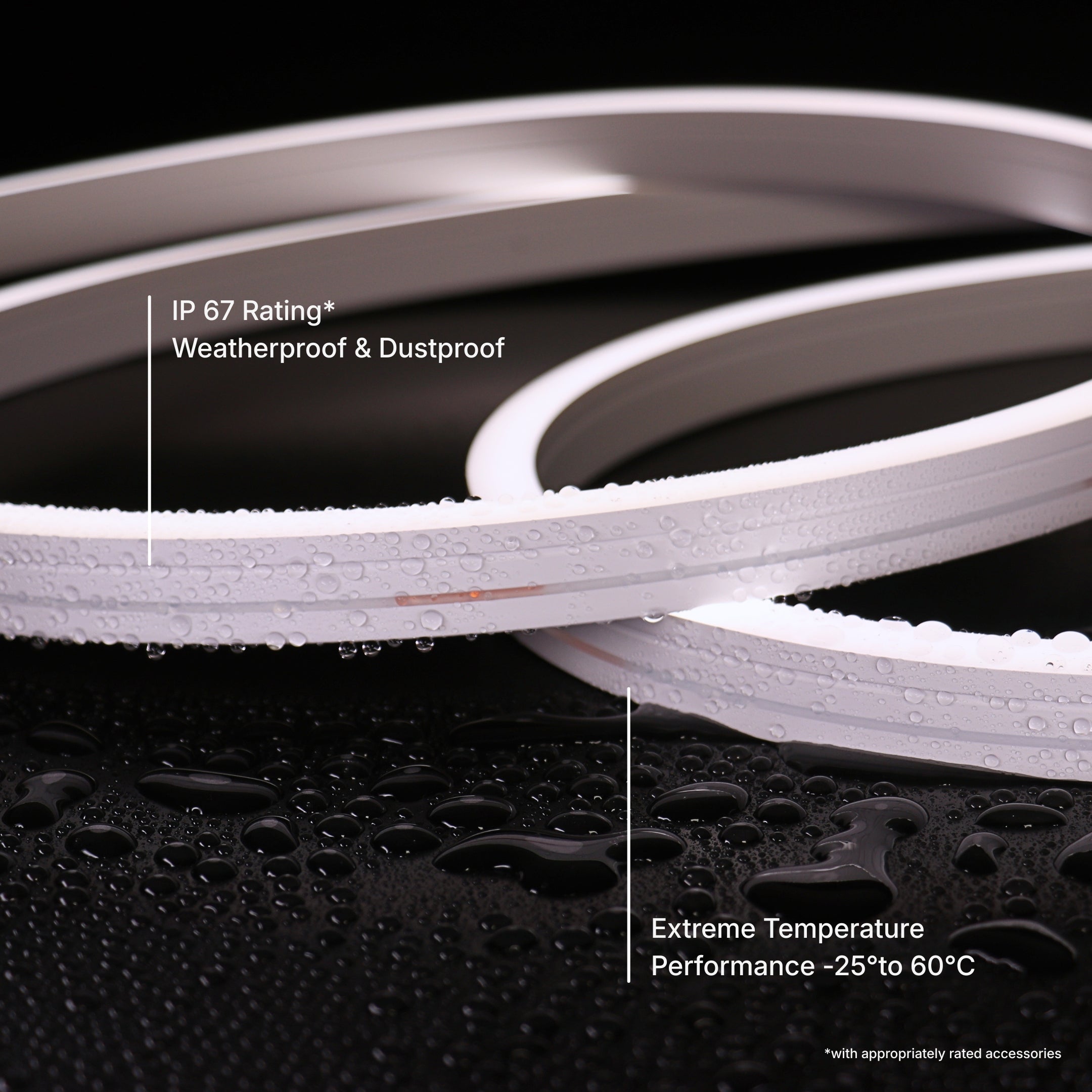

IP Rating: IP67 with appropriately rated accessories
CRI: >90Ra

Features:

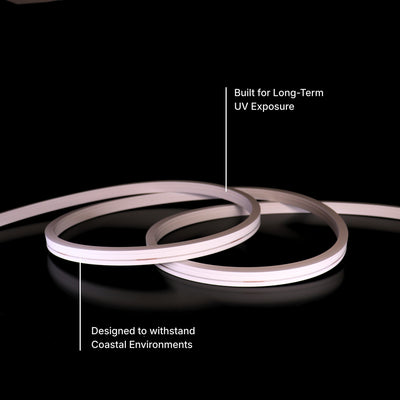

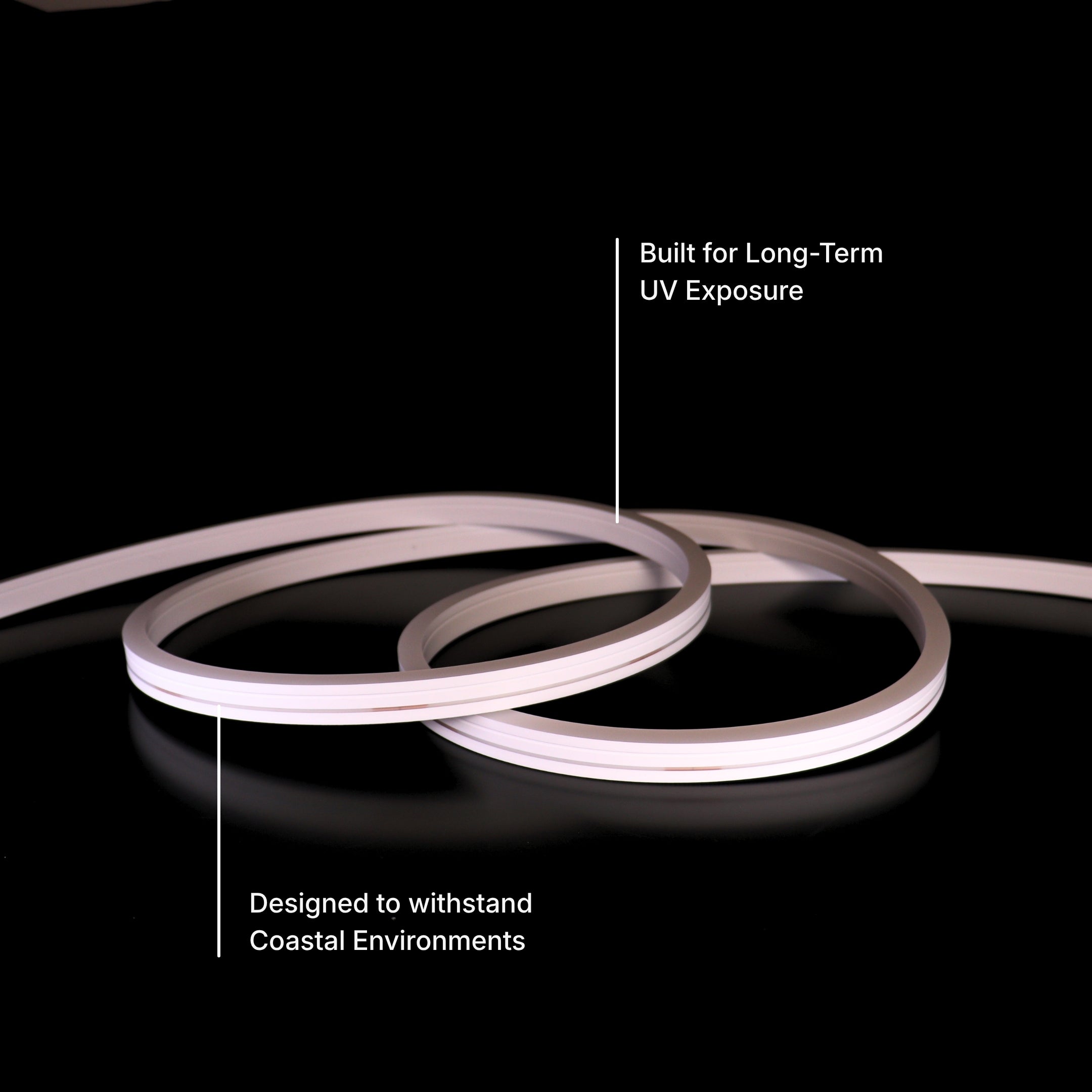

Matt Finish Surface, High quality silicone, yellowing resistance, UV resistance, salt and alkali resistance, high temperature resistance, flame retardant.
