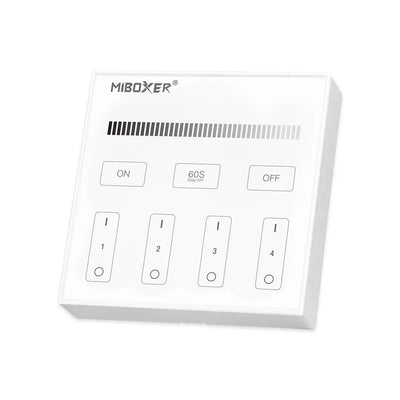

4-Zone Dimmer Panel Remote

Model: B1 (White) | Control Signal: 2.4GHz RF | Control Distance: 30m

The B1 4-Zone Dimming Panel Remote offers sleek, intuitive control for single-colour LED lighting systems. Featuring advanced capacitive touch technology and 2.4GHz RF wireless transmission, it provides effortless dimming and precise control across up to four lighting zones.

Key Features:

•
  ⚙️ High-Precision Touch Control


  Built with a high-sensitivity capacitive touch IC for smooth, accurate brightness adjustment.


  Intuitive touch slider for quick dimming response.



•
  🧩 4-Zone Individual or Group Control


  Manage up to four separate lighting zones independently or simultaneously.


  Ideal for multi-area installations in homes, offices, and commercial spaces.



•
  📡 2.4GHz RF Wireless Transmission


  Reliable signal with up to 30m control range and strong anti-interference performance.


  Fully compatible with MiBoxer/Mi-Light 2.4GHz series and all Flexible Neon dimmable LED controllers.



•

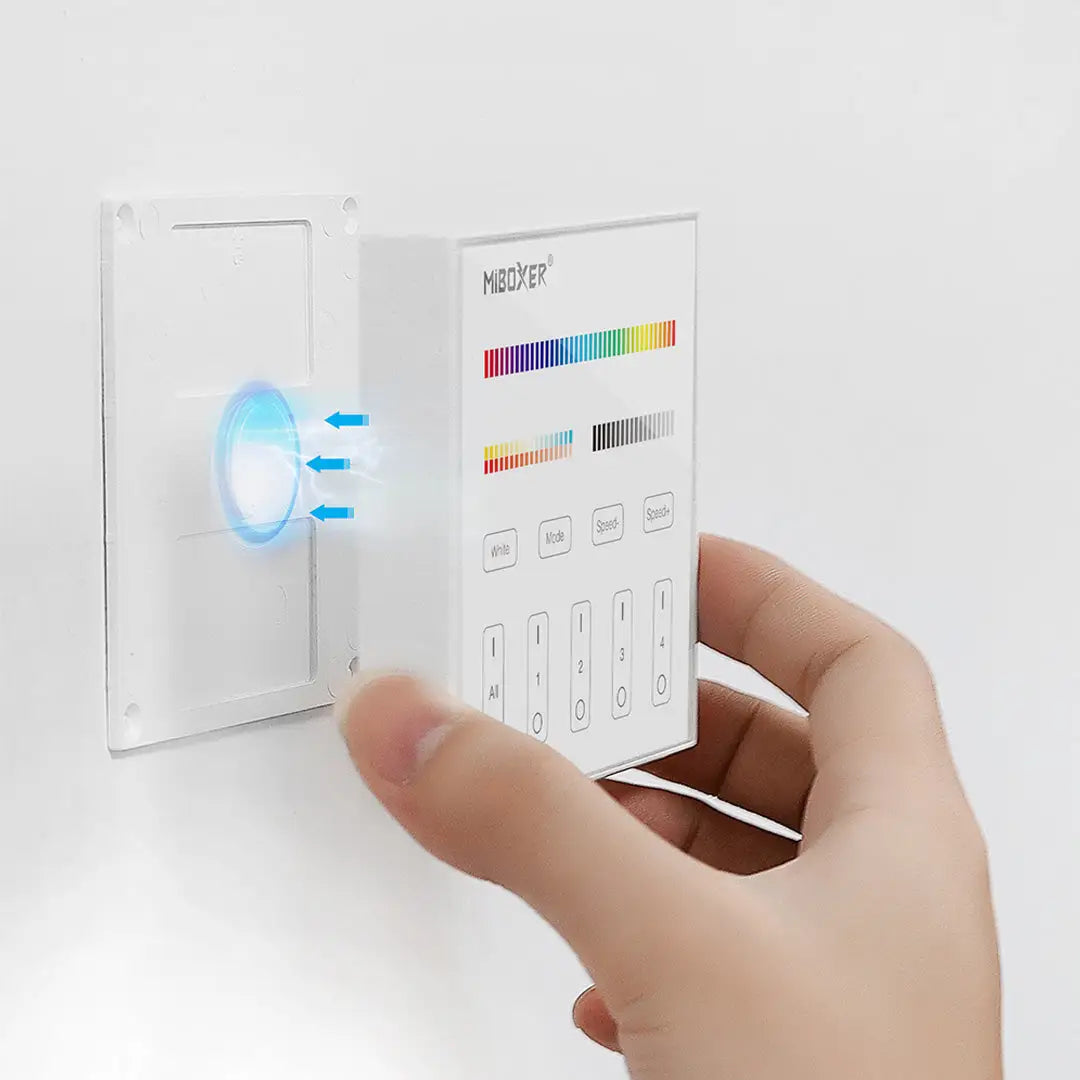

  🧲 Magnetic Wall-Mount Design


  Simple and stylish magnetic installation for easy setup and removal.


  Sleek, modern design suits any interior environment.



•
  💡 Wide System Compatibility
  Works seamlessly with:


  30A 5-in-1 LED Controller IP20 – WiFi


  20A 5-in-1 LED Controller IP20 – WiFi


  Waterproof 12A 5-in-1 LED Controller IP67 – WiFi


  Waterproof 20A 5-in-1 LED Controller IP67 – WiFi




Overview:
Product Name: 4-Zone Dimmer Panel Remote
Model No.: B1

Electrical Specifications:
Working Voltage: 3V (AAA × 2)
Standby Power Consumption: 20μA
Transmitting Power: 6dBm

Communication Specifications:
RF: 2.4GHz
Transmission Frequency: 2400–2483.5MHz
Modulation Method: GFSK
Control Distance: 30m

Environmental Specifications:
Working Temperature: -10°C to 40°C

Certifications:
CE, EMC, RED
