Qty = Length in Meters (e.g. 6 qty = 6m continuous)

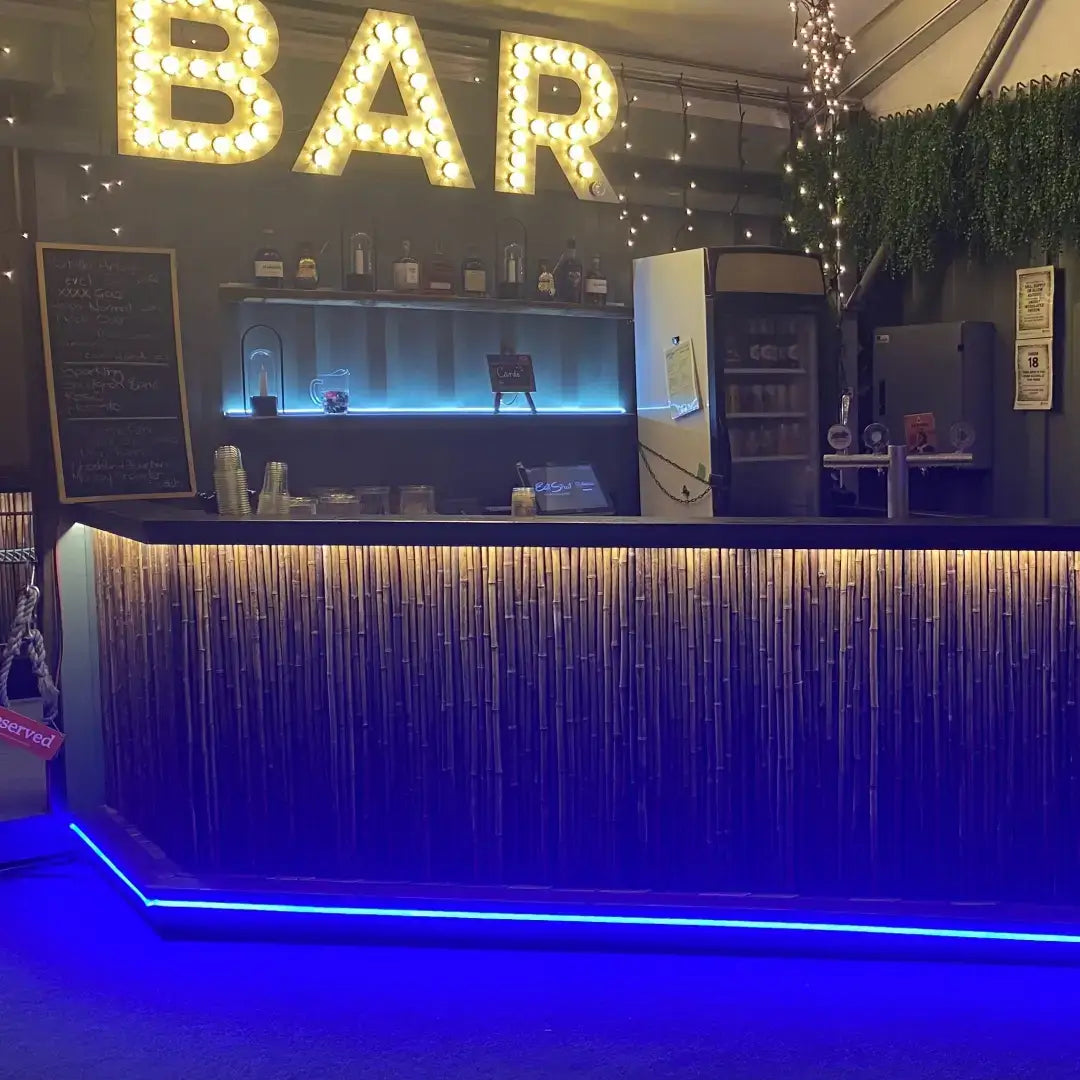

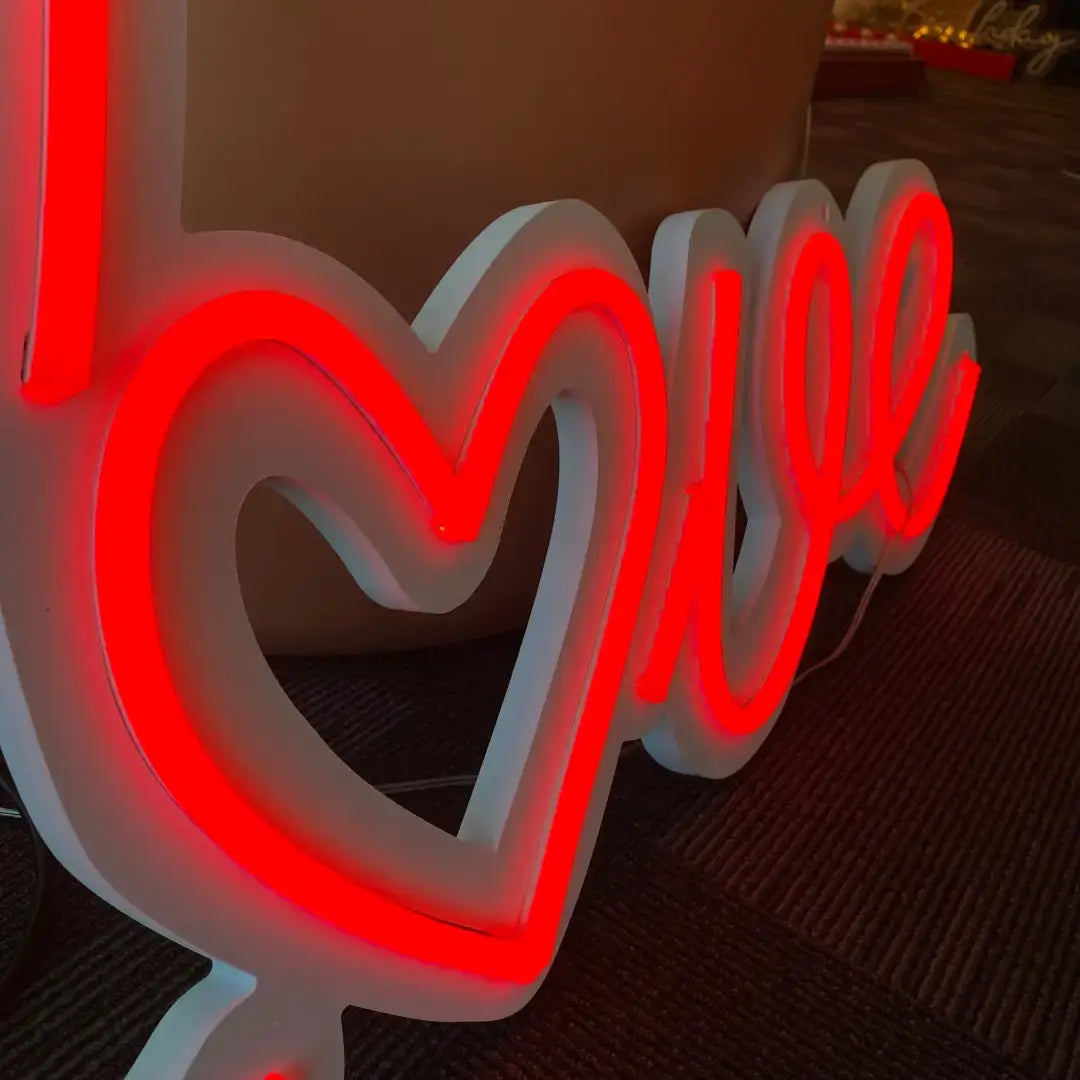

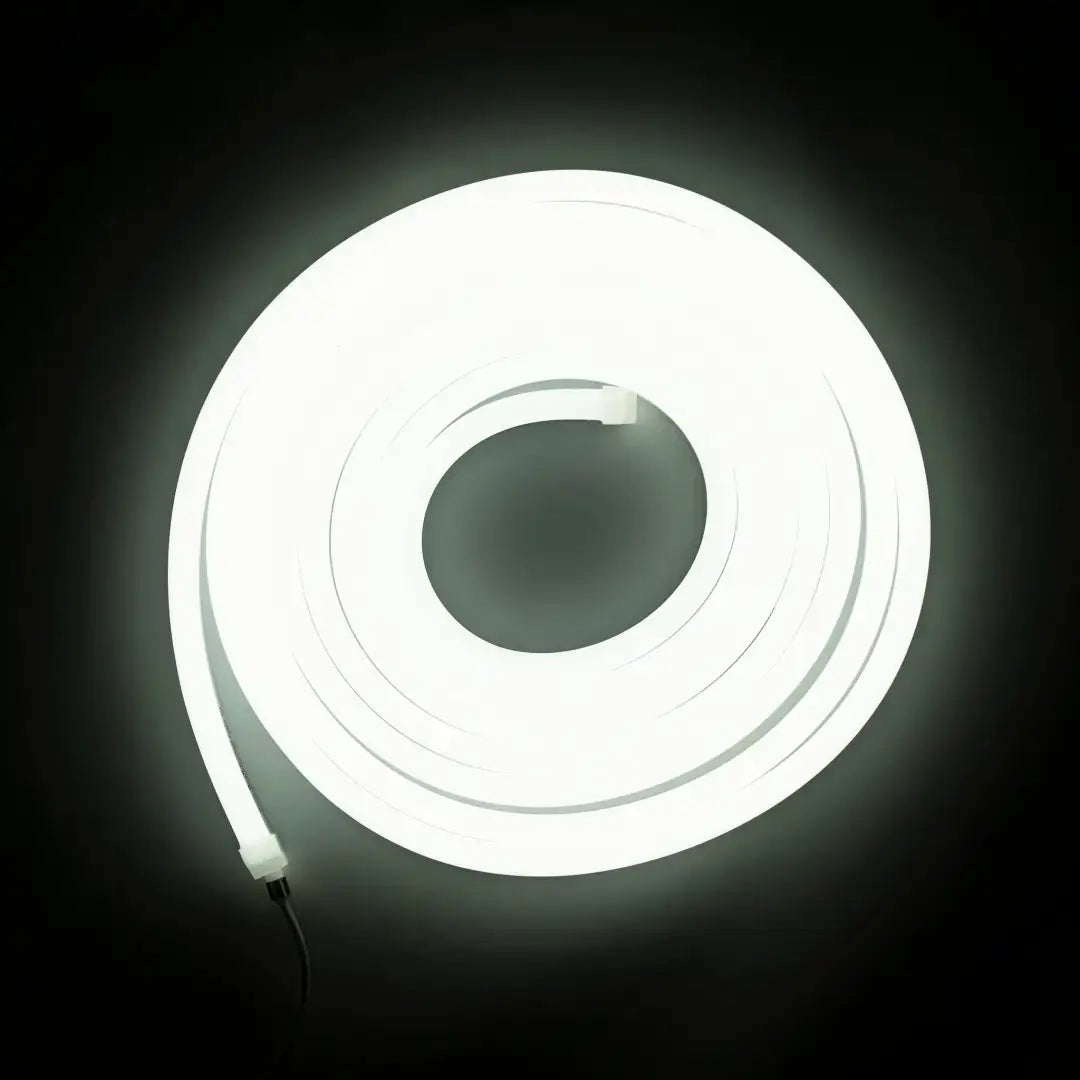

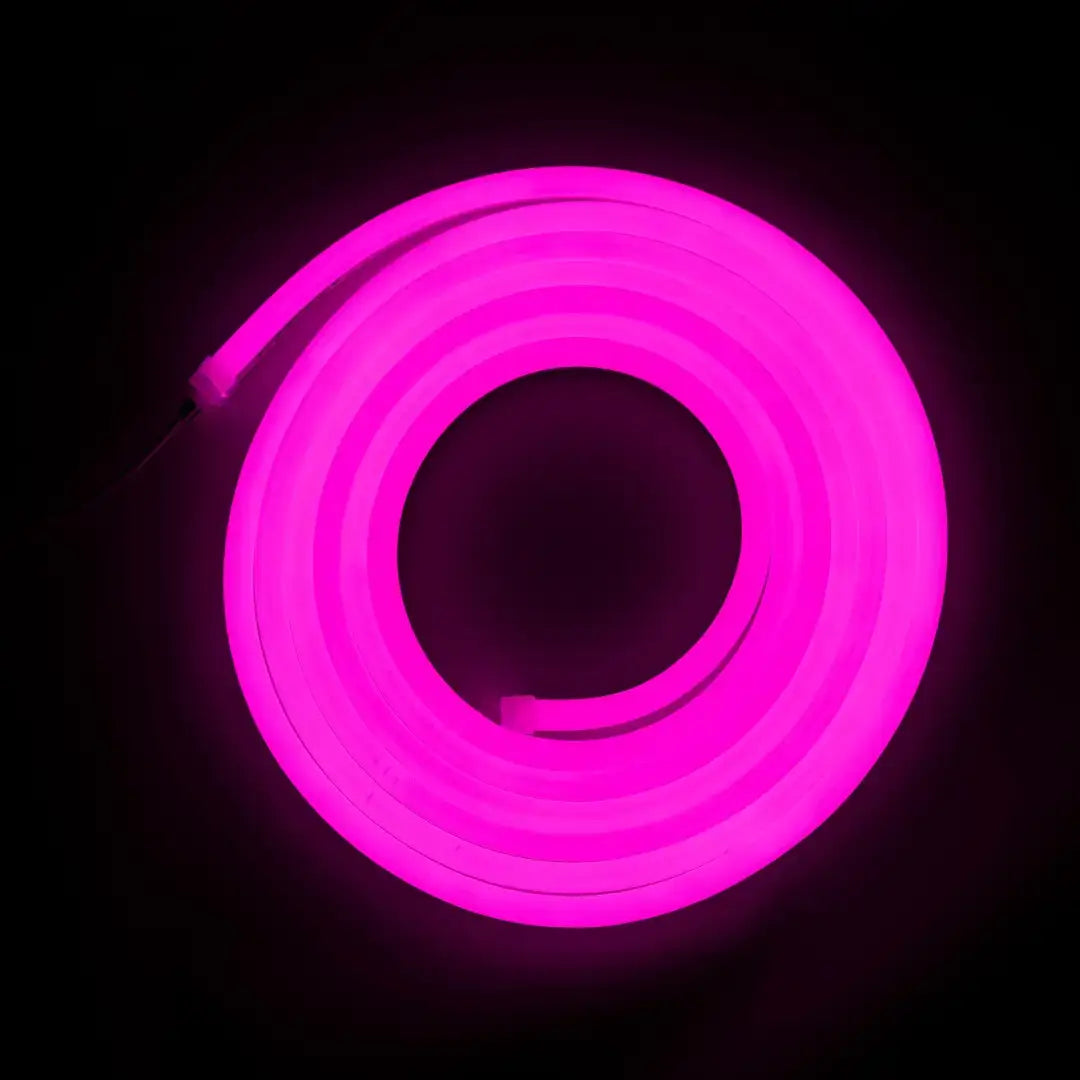

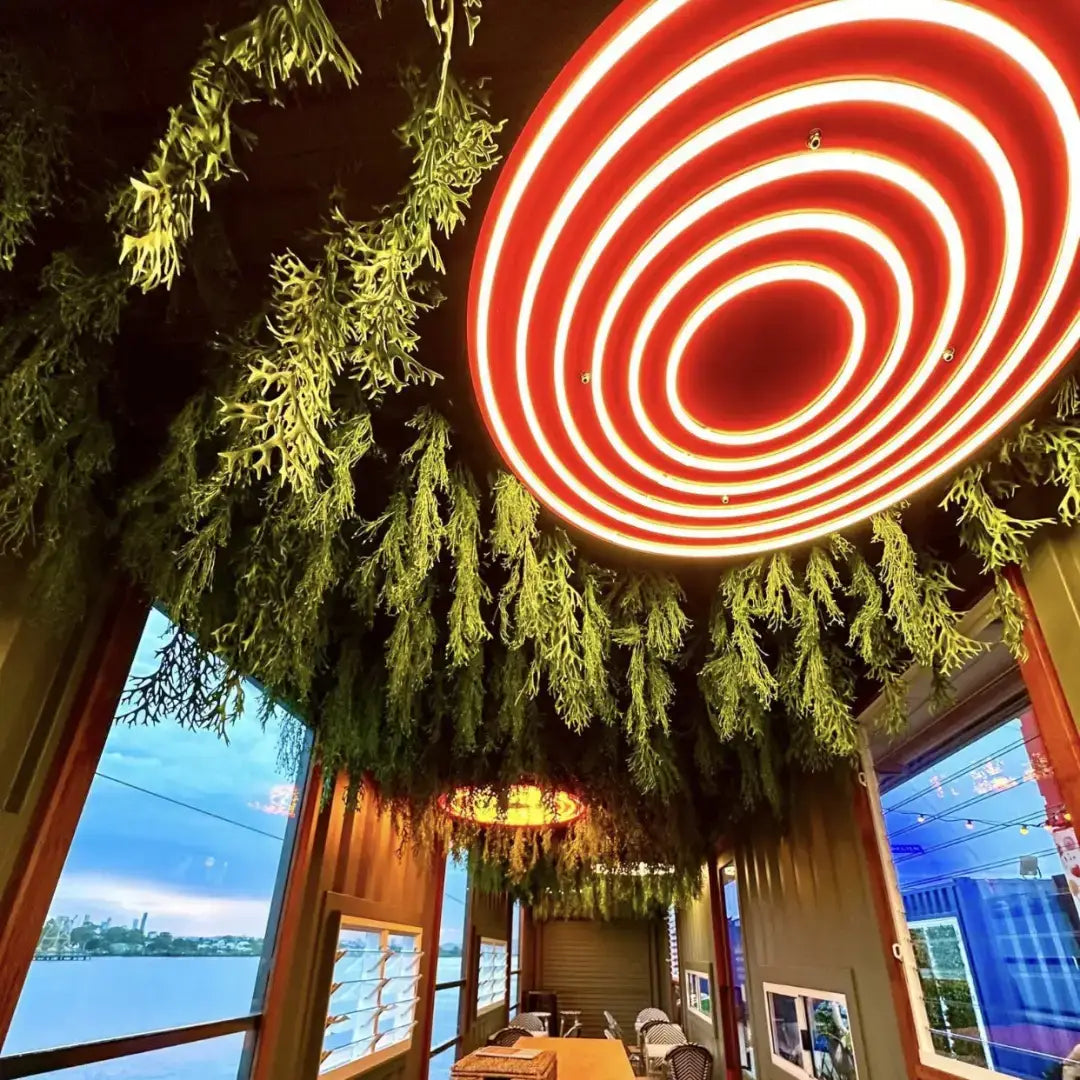

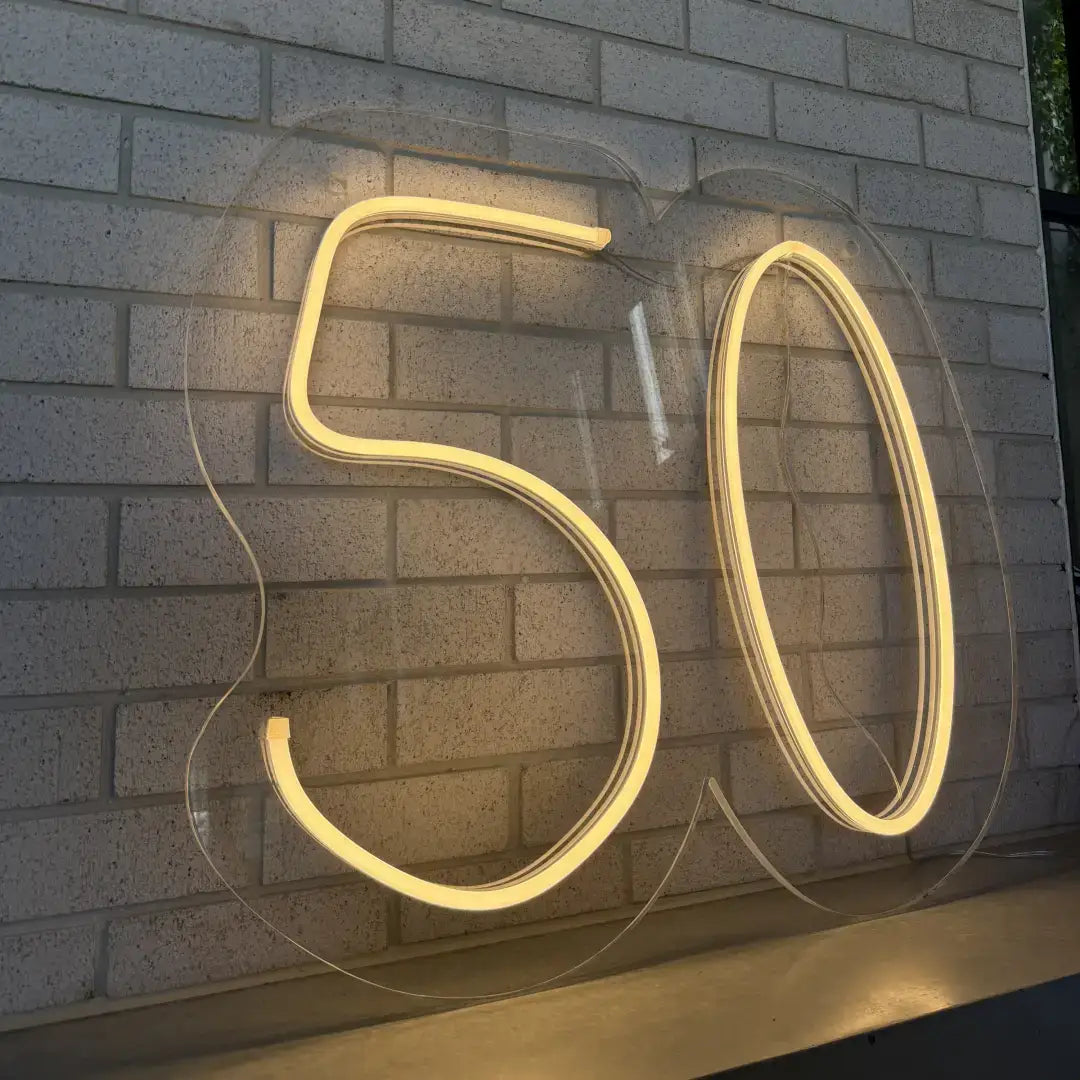

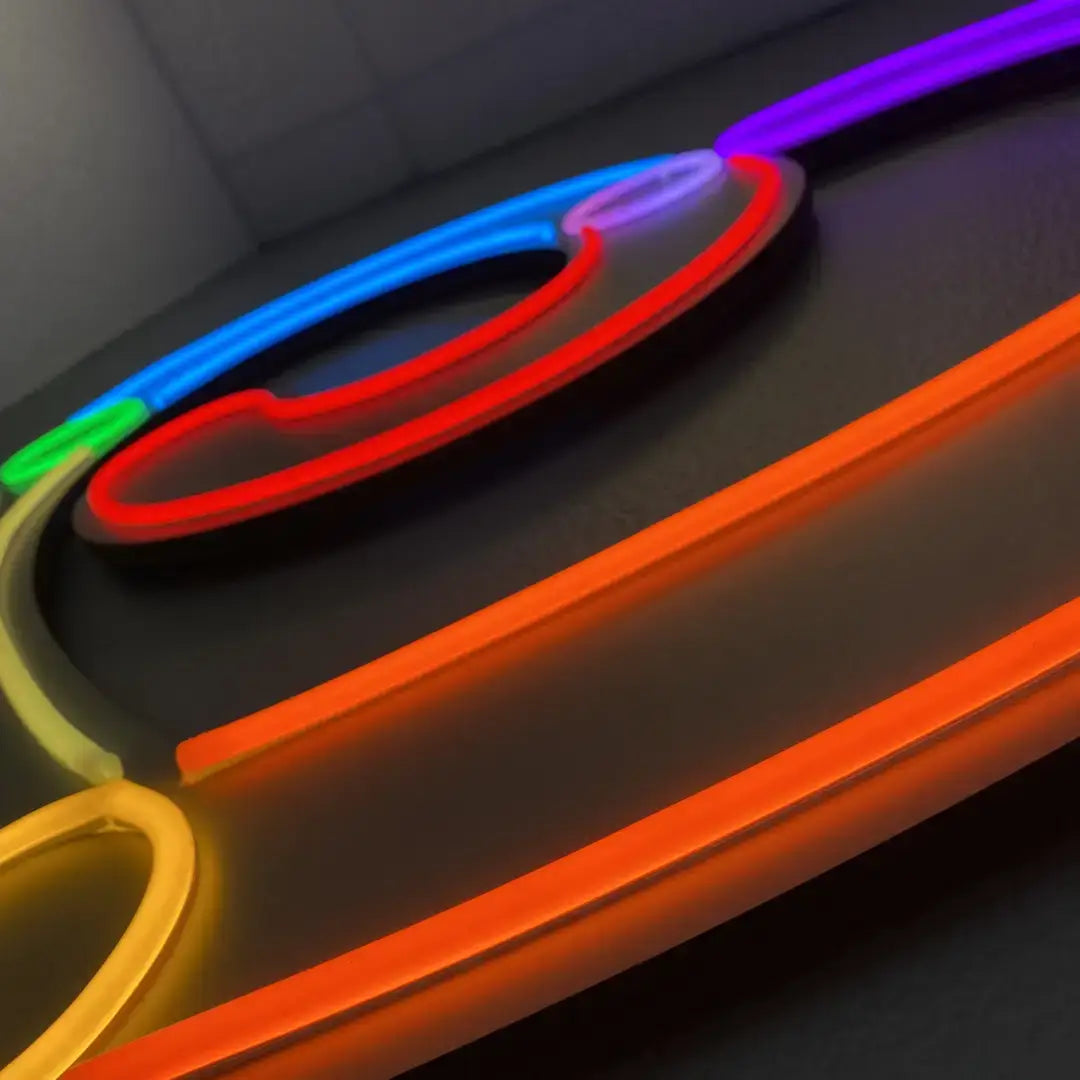

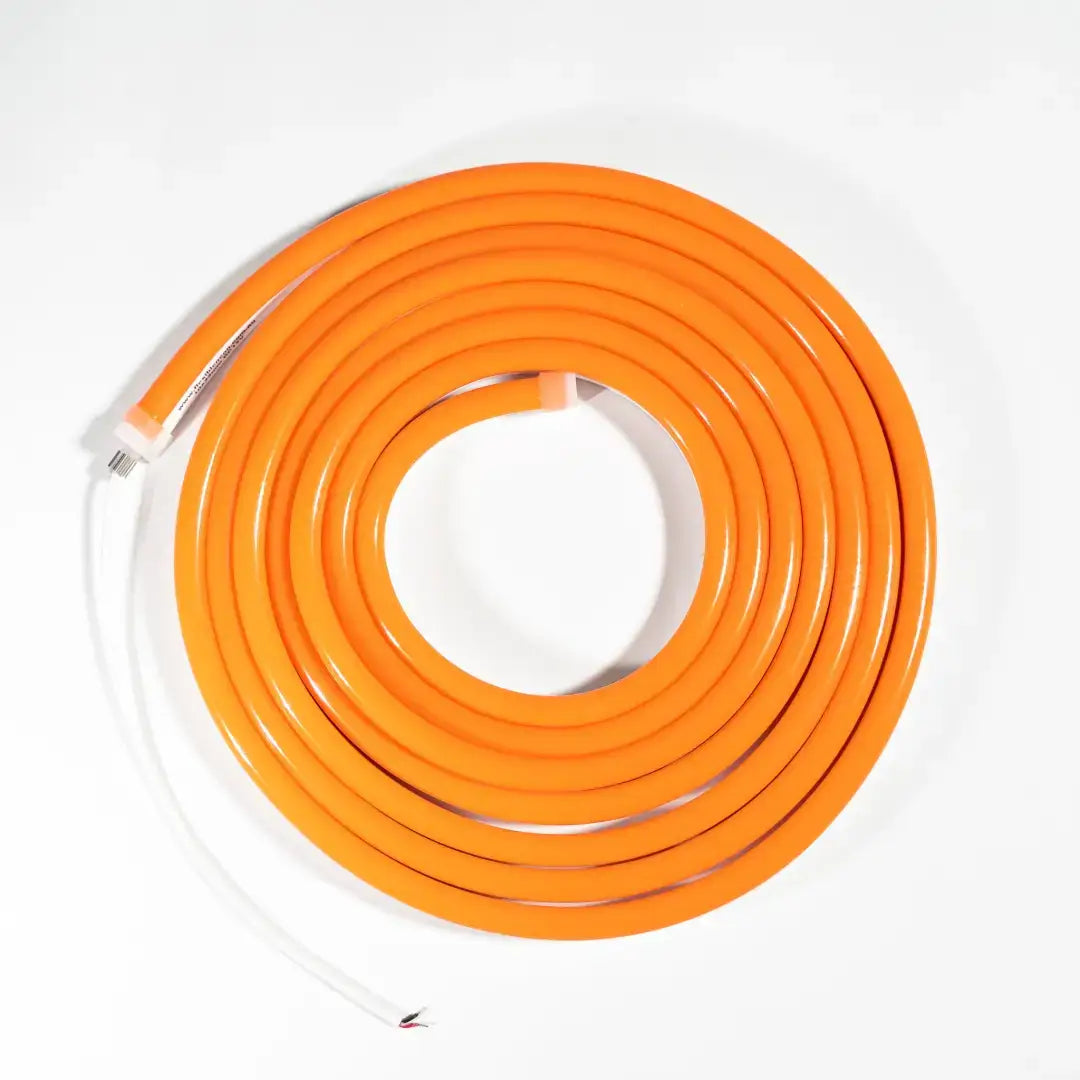

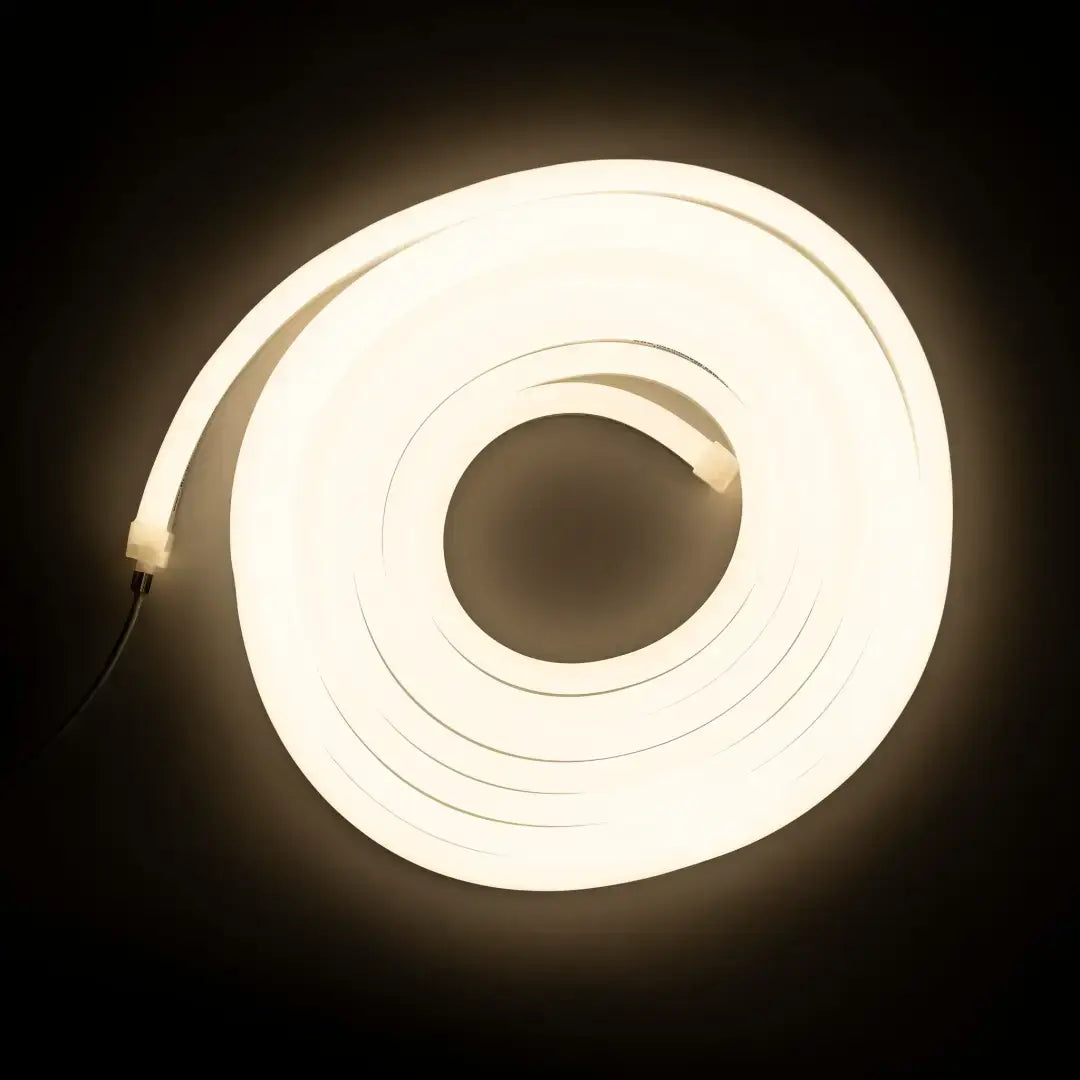

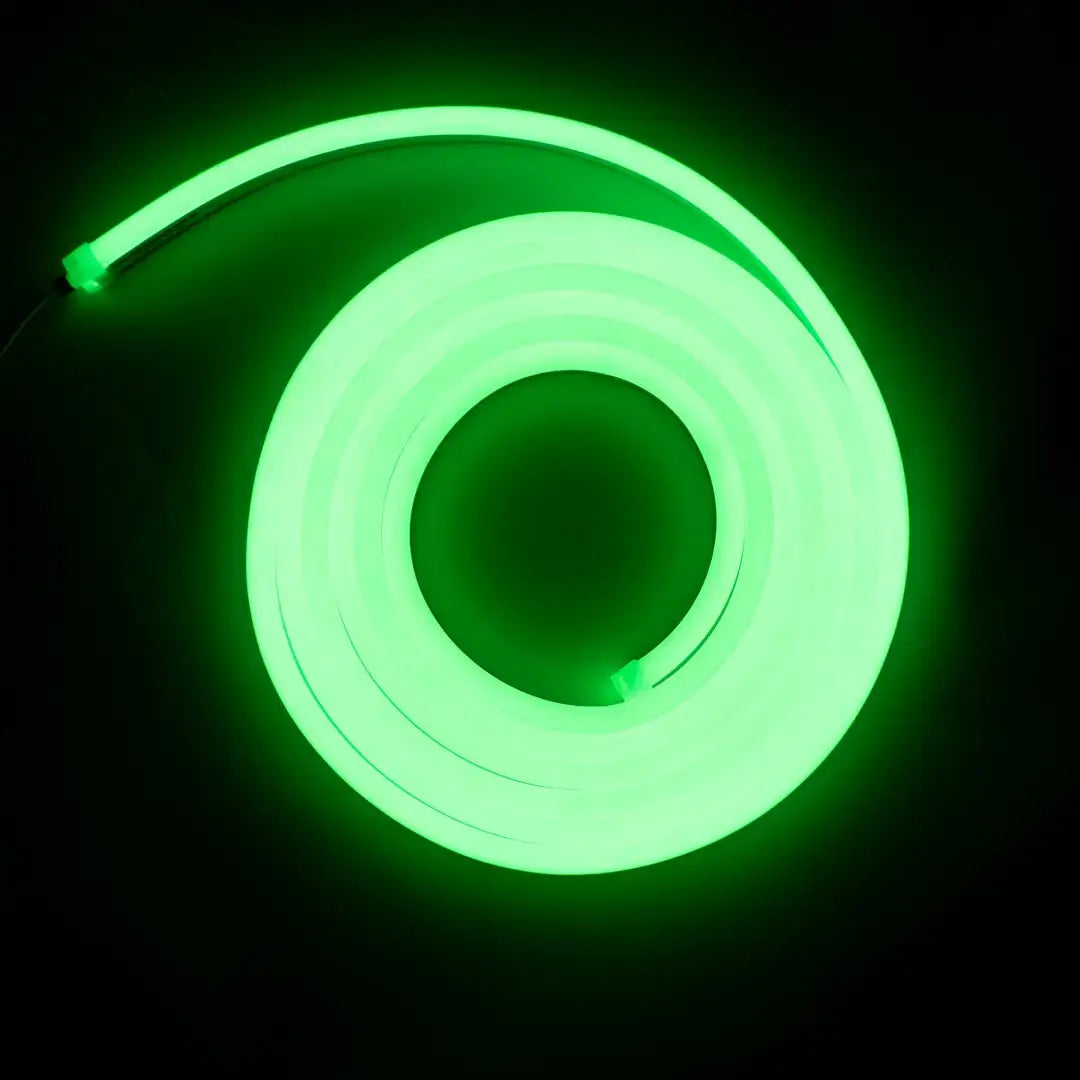

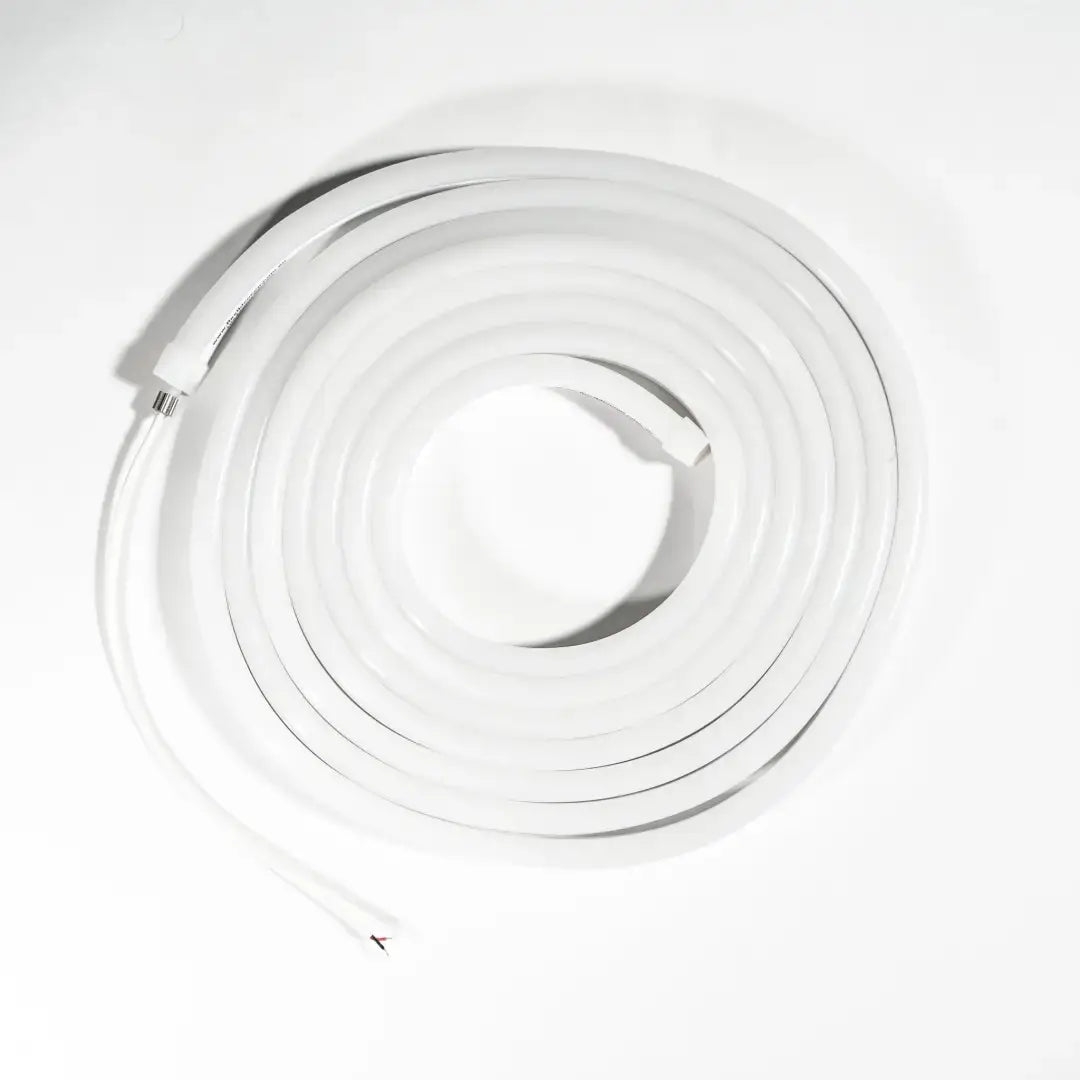

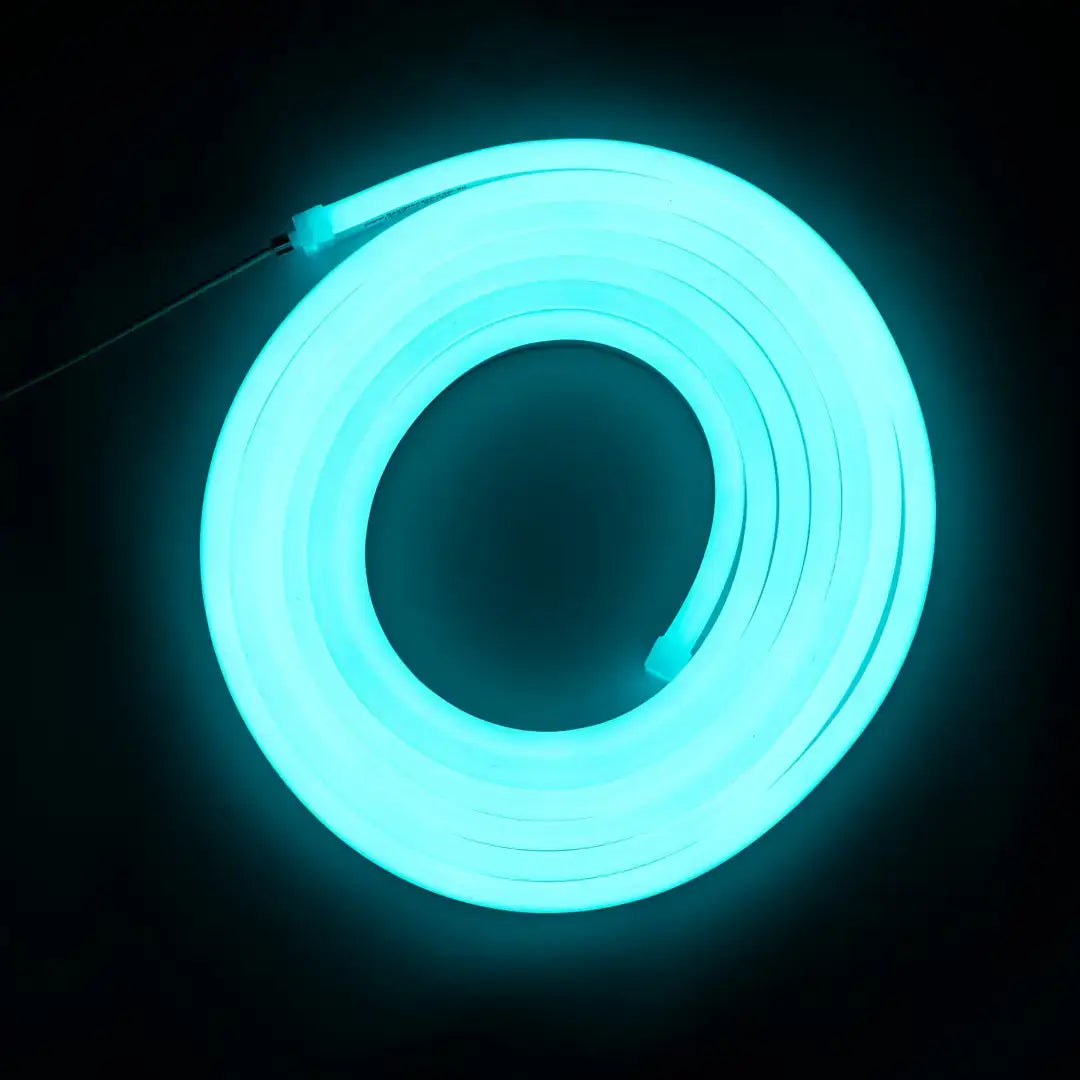

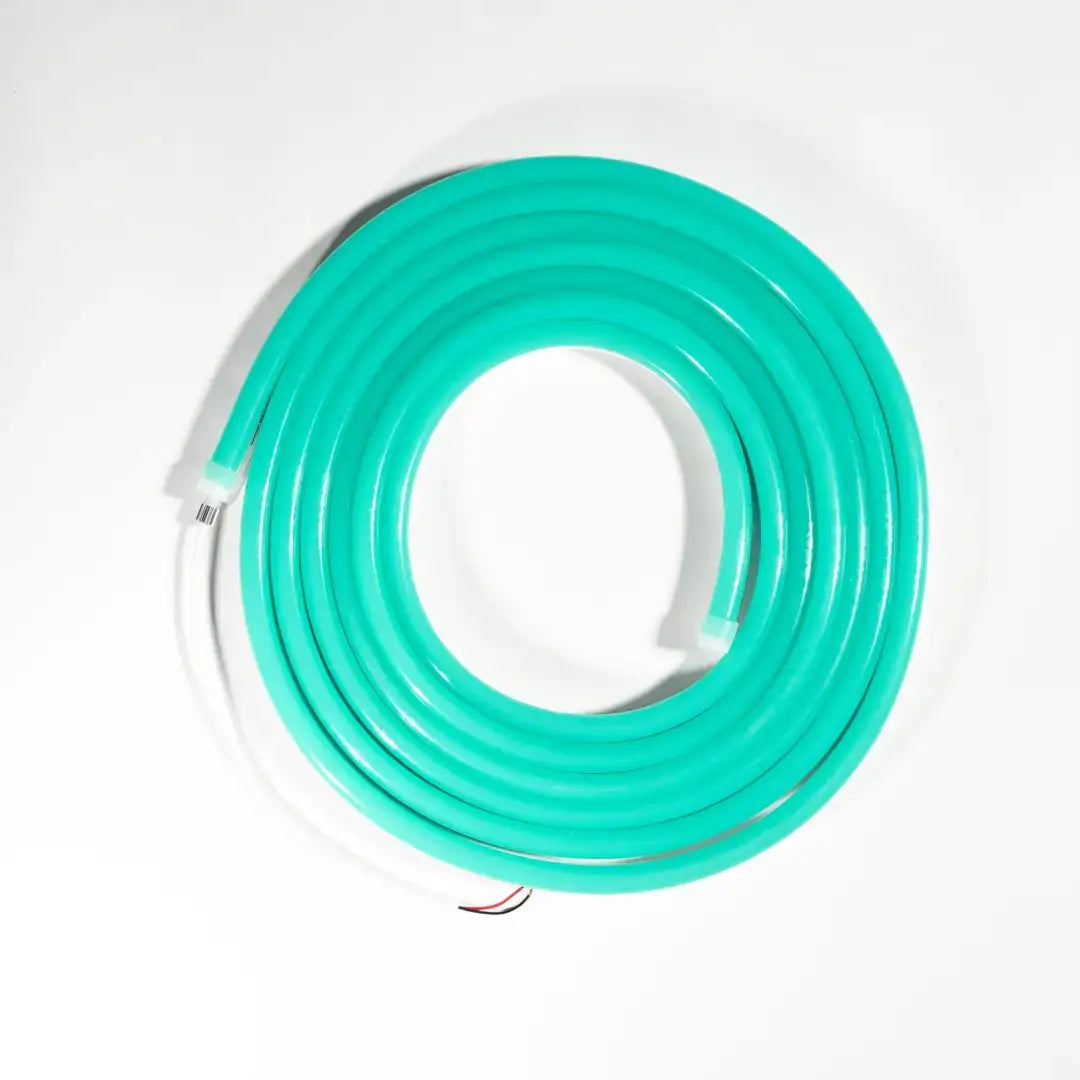

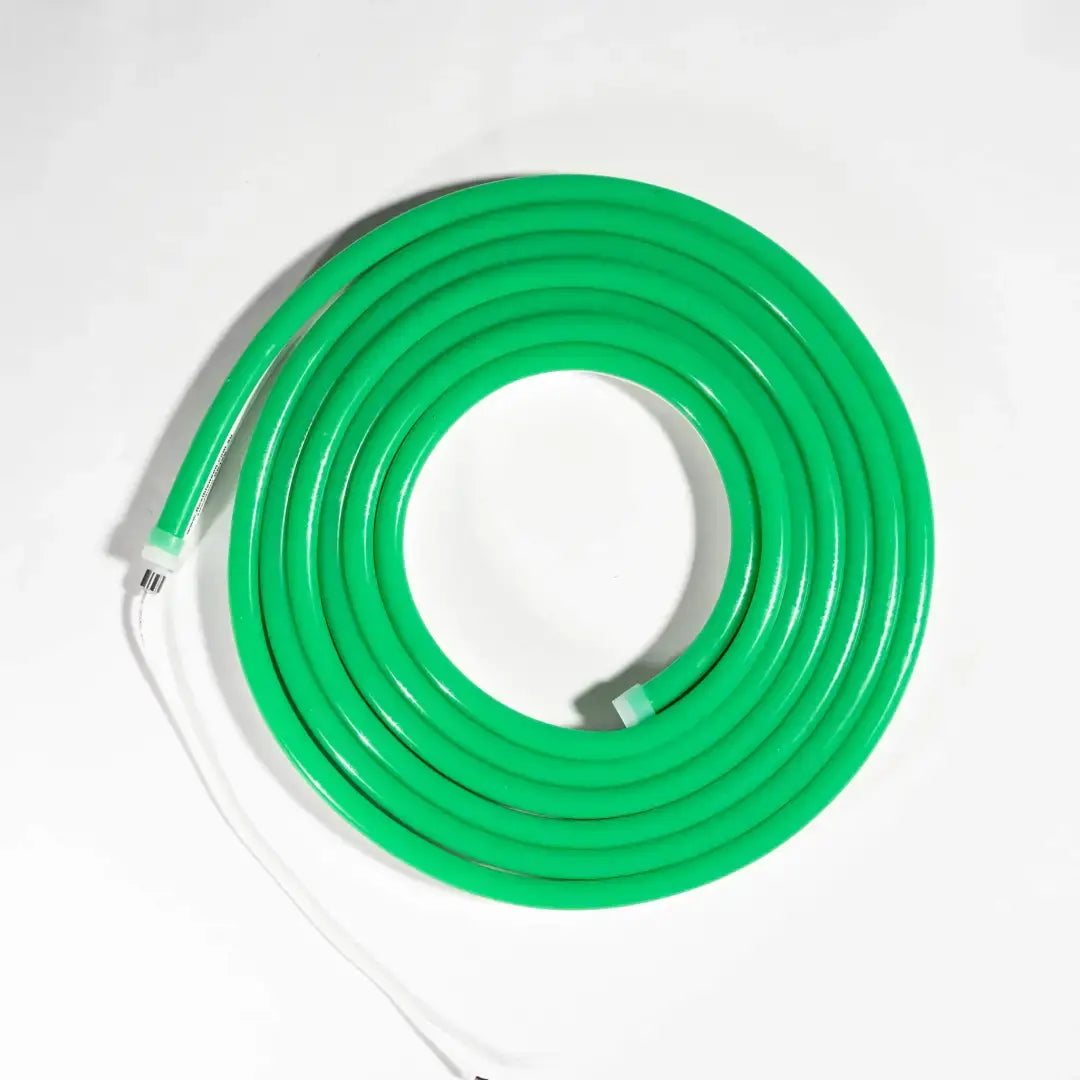

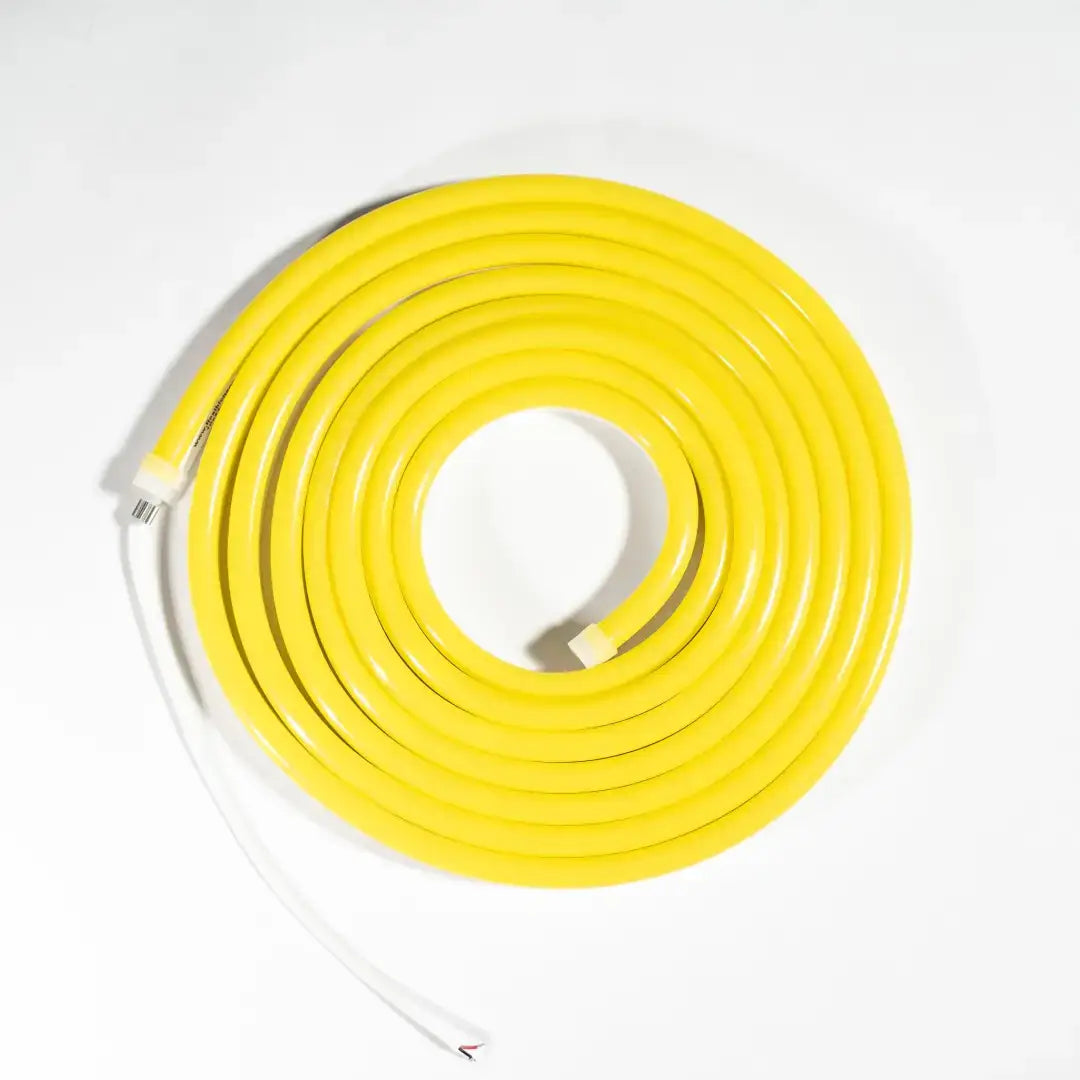

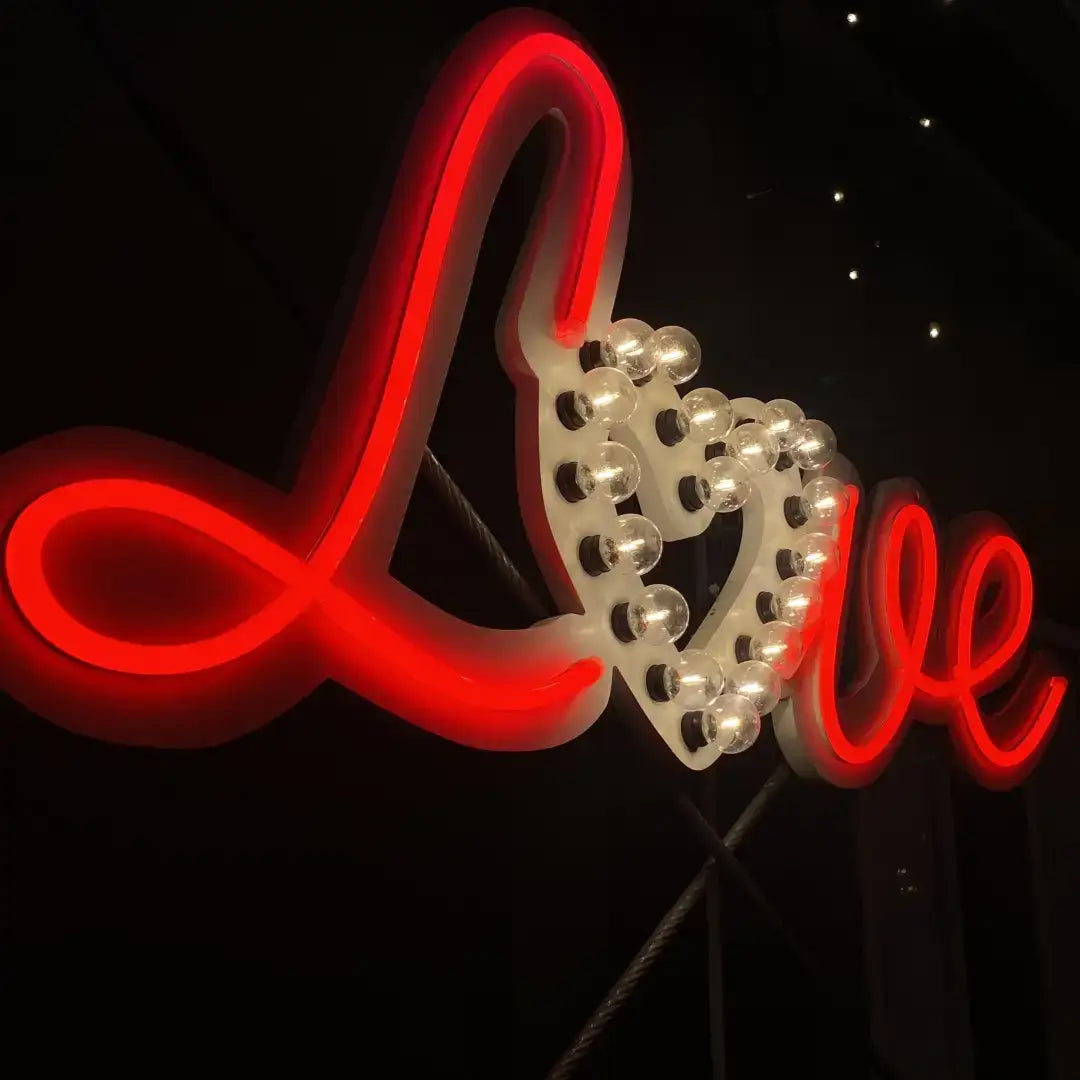

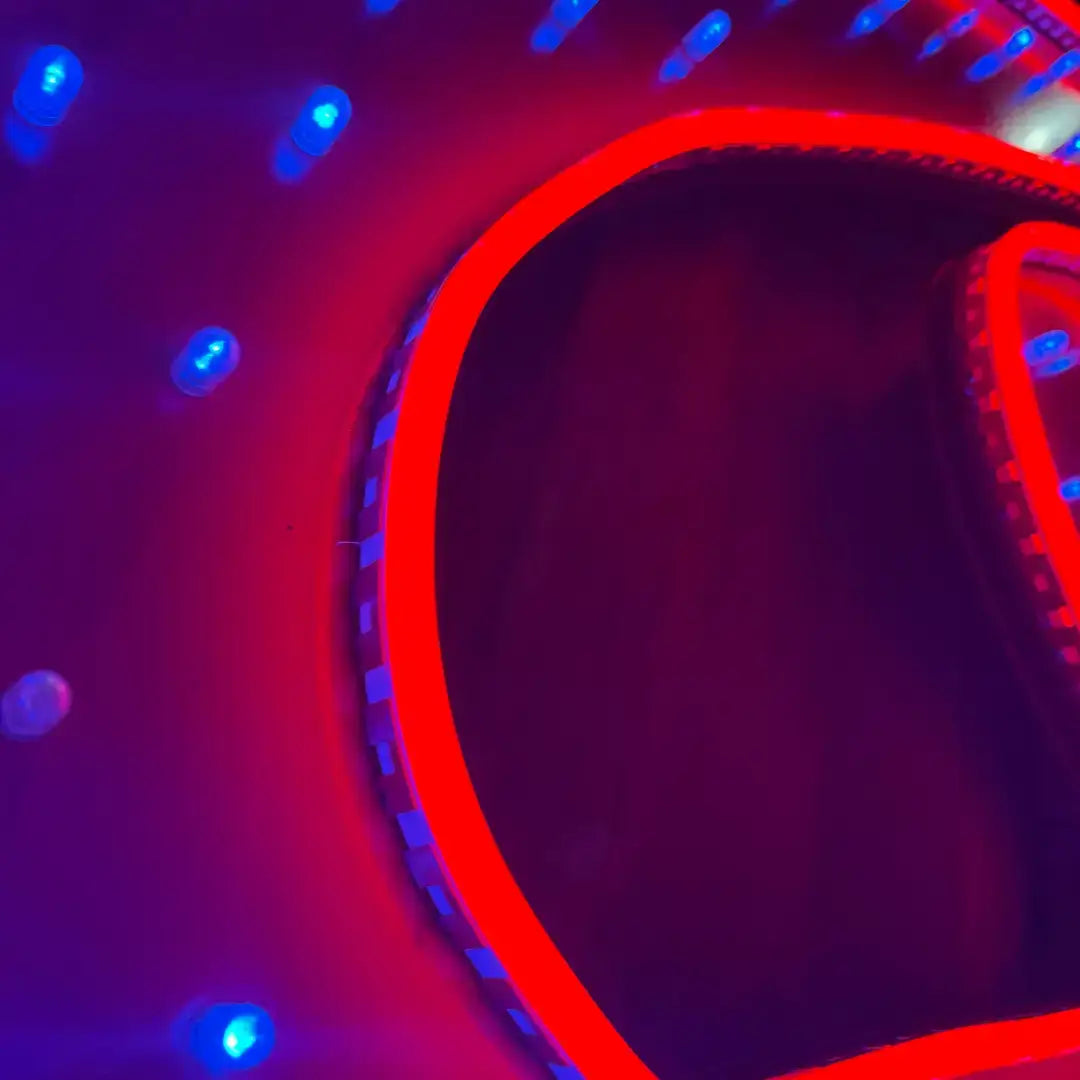

Our 10x13x22mm Flex Neon – per meter (12V) is a high-output Commercial Grade Lighting solution designed for bold signage, feature outlines, and detailed Architectural Lighting applications. As our brightest 12V option, this premium Flexible Neon delivers intense, even illumination, making it ideal for statement Neon Wall Lights, retail displays, and creative installations.

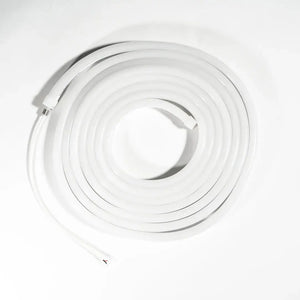

Sold per metre, it allows precise custom lengths for efficient project planning and seamless Architectural lighting design. Designed for horizontal bending, this neon led strip is perfect for flowing script, intricate shapes, and custom signage where flexibility and brightness matter most. With 120 LEDs per metre and a powerful 12W per metre output, it creates vibrant, high-impact results suitable for both interior features and Building Exterior Neon applications.
Manufactured from durable silicone, this IP67-rated waterproof LED strip is flame, UV, solvent and saltwater resistant (IK08 rated), ensuring long-term reliability in demanding Australian conditions. Operating on 12V DC, this efficient 12V LED strip supports runs up to 5 meters single feed or 10 meters double feed, maintaining consistent performance throughout.
Cuttable every 25mm for precise customisation, this versatile neon flex solution is ideal for designers seeking powerful, professional-grade led strip lights Australia wide.
Please Note:
This product is sold per metre and requires a compatible 12V DC LED driver (sold separately). Custom-cut lengths may have a tolerance of ±25mm.
Specs
|

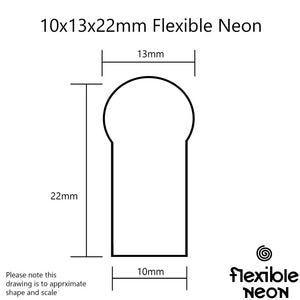

Flexible Neon Dimensions (L x H x Dome Size) |
10mm x 22mm x 13mm |
|
Material |
Silicone |
|
Warranty |
2 years |
|
Max Run Lengths |
|
|
Single Feed |
5 meters @ 12V DC |
|
Double Feed (Power coming in from both sides) |
10 meters @ 12V DC |
|
Lumen Maintenance (approx.) |
30,000 hours @45°celsuis |
|
Electrical |
|
|
Voltage |
12V DC |
|
Power Consumption |
12W/m (High Brightness) |
|
Physical |
|
|
Length |
Per Meter |
|
LED Type |
SMD5050 |
|
Bend Type |
Side Bending |
|
LED Qty/m |
120LED/m |
|
Dimmable |
Yes |
|
Cutting Intervals |
25mm |
|
Light Surface |
Round Fixture 270° |
|
Minimum Bend Diameter |
80mm (Side Bending Only) |
|
Temperature Ranges |
|
|
Installation |
0°to 60°C |
|
Operating |
-25°to 60°C |
|
Humidity |
0-95% non-condensing |
|
Safety |
|
|
IP Rating |
Ip67 with appropriately rated accessories |
|
CRI |
RA>80 |
|
Features |
Flame Resistant (Fire rating = FV-1), Solvent Resistant, Saltwater Resistant, IK08 Security |
|
Certifications |
Strictly according to the testing standard of CE, ROHS, REACH and UL. |
Colour Specs
| Colour | CCT Wavelength | LM/M |
| Red | 620-630nm | >85lm |
| Green | 520-530nm | >168lm |
| Blue | 465-475nm | >48lm |
| Amber | 585-595nm | >96lm |
| Warm White - 3000k | 3045±175K | >432lm |
| Pure White - 6500k | 6532±510K | >432lm |
The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.
For further details, please read the data sheet.
