MiBoxer 4-Zone Panel RGB+CCT Remote

Model: B4 (White) | Control Signal: 2.4GHz RF | Control Distance: 30m

Requires compatiable LED Controller:

• RF Wireless LED Dimmer Controller(2.4G)–12A
• Waterproof 5-in-1 LED Controller (2.4G)– 12A
• Indoor 5-in-1 LED Controller (WiFi+2.4G)– 30A
• Waterproof 5-in-1 LED Controller (WiFi+2.4G)– 20A

Indoor 5-in-1 LED Controller (WiFi+2.4G)– 20AThe B4 4-Zone Panel Remote (RGB+CCT) is a sleek, high-precision touch control panel designed for intuitive management of RGB+CCT LED lighting. Featuring 2.4GHz RF wireless transmission, four-zone control, and advanced touch sensitivity, it’s the perfect companion for both residential and commercial smart lighting systems.

Key Features:

•
  ⚙️ High-Precision Capacitive Touch Control


  Built with a high-sensitivity capacitive touch IC for smooth, accurate operation.


  Provides responsive and effortless adjustment of brightness, colour, saturation, and colour temperature.



•
  🌈 Full RGB+CCT Colour Control


  Access 16 million colours and fine-tune warm to cool white lighting.


  Adjust saturation and brightness with precision for custom ambience in any environment.



•
  🧩 4-Zone Individual or Group Control


  Manage up to four separate lighting zones independently or in sync.


  Ideal for multi-area installations such as garden zones, rooms, or feature areas.



•
  📡 2.4GHz RF Wireless Transmission


  Stable, interference-resistant connection with up to 30m control distance.


  Supports MiBoxer/Mi-Light 2.4GHz product range and all Flexible Neon 2.4GHz-compatible controllers and fixtures.



•

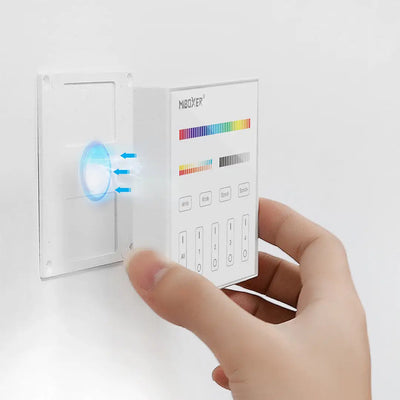

  🧲 Magnetic Wall-Mount Design


  Easy installation with a magnetic backplate for quick setup and removal.


  Clean, modern panel design complements both residential and commercial interiors.



•
  💡 Wide System Compatibility
  Works seamlessly with:


  6W RGB+CCT Garden Light (DC24V)


  9W RGB+CCT Garden Light (DC24V)


  30A 5-in-1 LED Controller IP20 – WiFi


  20A 5-in-1 LED Controller IP20 – WiFi


  Waterproof 12A 5-in-1 LED Controller IP67 – WiFi


  Waterproof 20A 5-in-1 LED Controller IP67 – WiFi




Overview:
Product Name: 4-Zone Panel Remote (RGB + CCT)
Model No.: B4

Electrical Specifications:
Working Voltage: 3V (AAA × 2)
Standby Power Consumption: 20μA
Transmitting Power: 6dBm

Communication Specifications:
RF: 2.4GHz
Transmission Frequency: 2400–2483.5MHz
Modulation Method: GFSK
Control Distance: 30m

Environmental Specifications:
Working Temperature: -10°C to 40°C

Certifications:
CE, EMC, RED
