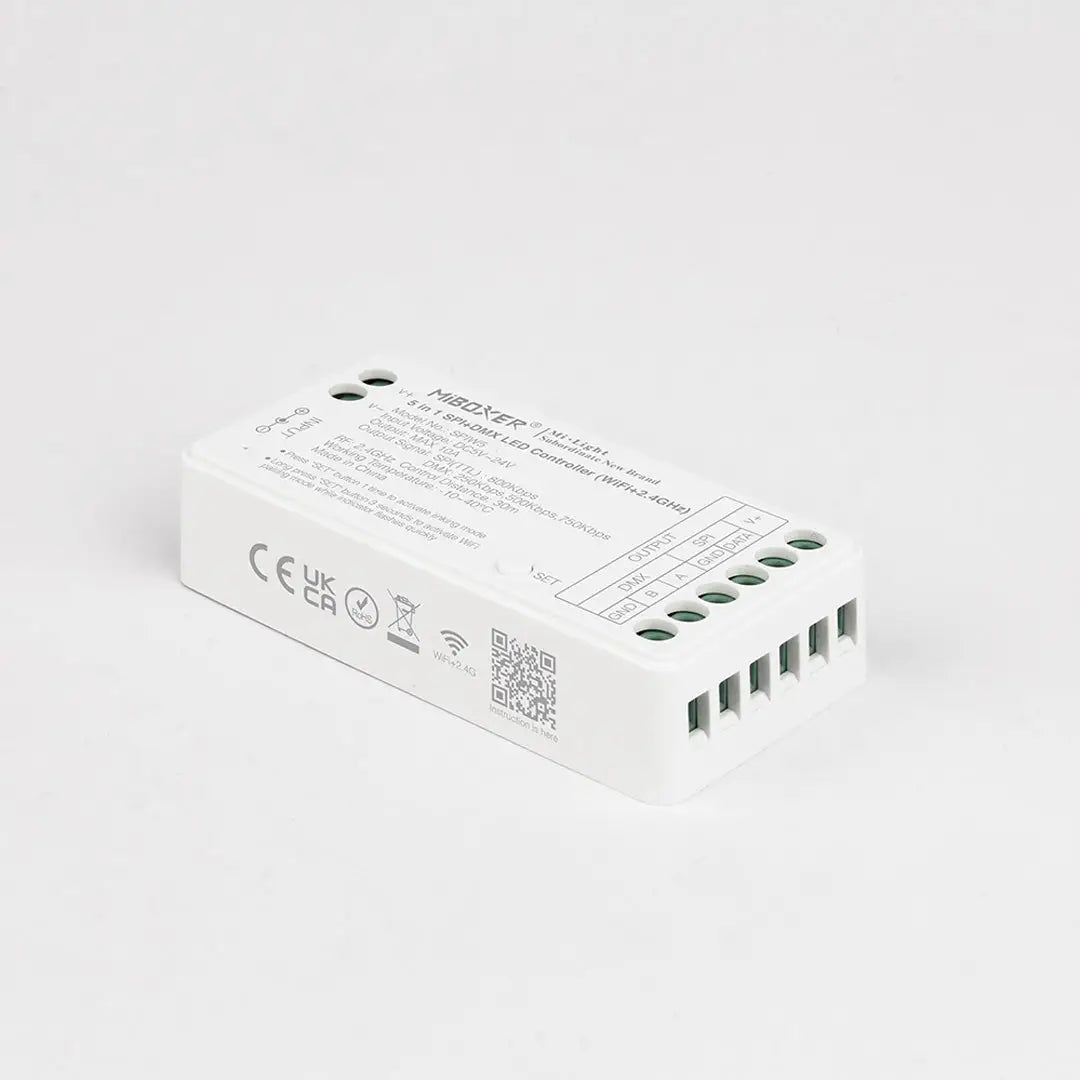

5 in 1 SPI+DMX LED Controller (WiFi+2.4G)

Model: SPIW5 | Protocol: WiFi + 2.4GHz RF | Input Voltage: DC5–24V | Warranty: 5 Years

The SPIW5 5-in-1 SPI+DMX LED Controller is an advanced control system designed for professional lighting installations that demand versatility, precision, and smart integration. Featuring dual SPI and DMX communication protocols, this controller supports a wide range of LED types, dynamic effects, and wireless control options — making it ideal for architectural, entertainment, and commercial lighting projects.

Key Features:

•
  Dual Communication Protocol (SPI + DMX)


  Built-in SPI (TTL) and DMX output protocols for flexible system integration.


  Compatible with single colour, CCT, RGB, RGBW, and RGB+CCT LED configurations.


  Perfect for SPI pixel strips, addressable LEDs, and DMX lighting fixtures.



•
  WiFi + 2.4GHz Wireless Control


  Supports WiFi + 2.4G RF transmission for stable, interference-resistant communication.


  Operates via TUYA Smart App or MiBoxer C9/B9 remote for wireless colour and mode control.


  Control distance up to 30 metres.



•
  Dynamic & Customisable Lighting Effects


  Adjust colour, brightness, speed, pixel count, and dynamic effects directly from the app.


  Includes 28 white dynamic modes and 80 RGB colour modes, all fully adjustable in colour, brightness, and transition speed.


  Supports boot animation settings via TUYA Smart App for tailored start-up effects.



•
  Music Reactive Modes


  8 music modes available, compatible with both the built-in microphone and smartphone microphone.


  Lights pulse and react in sync with sound for immersive, rhythm-based displays.



•
  Smart Functions & Automation


  Full app-based automation, scene setting, and scheduling.


  Do Not Disturb (DND) mode prevents automatic activation during power interruptions — ideal for energy-saving applications.



•
  Professional-Grade Performance


  Strong anti-interference capability for stable signal transmission.


  Complies with CE, EMC, LVD, and RED standards for safety and reliability.




Overview:

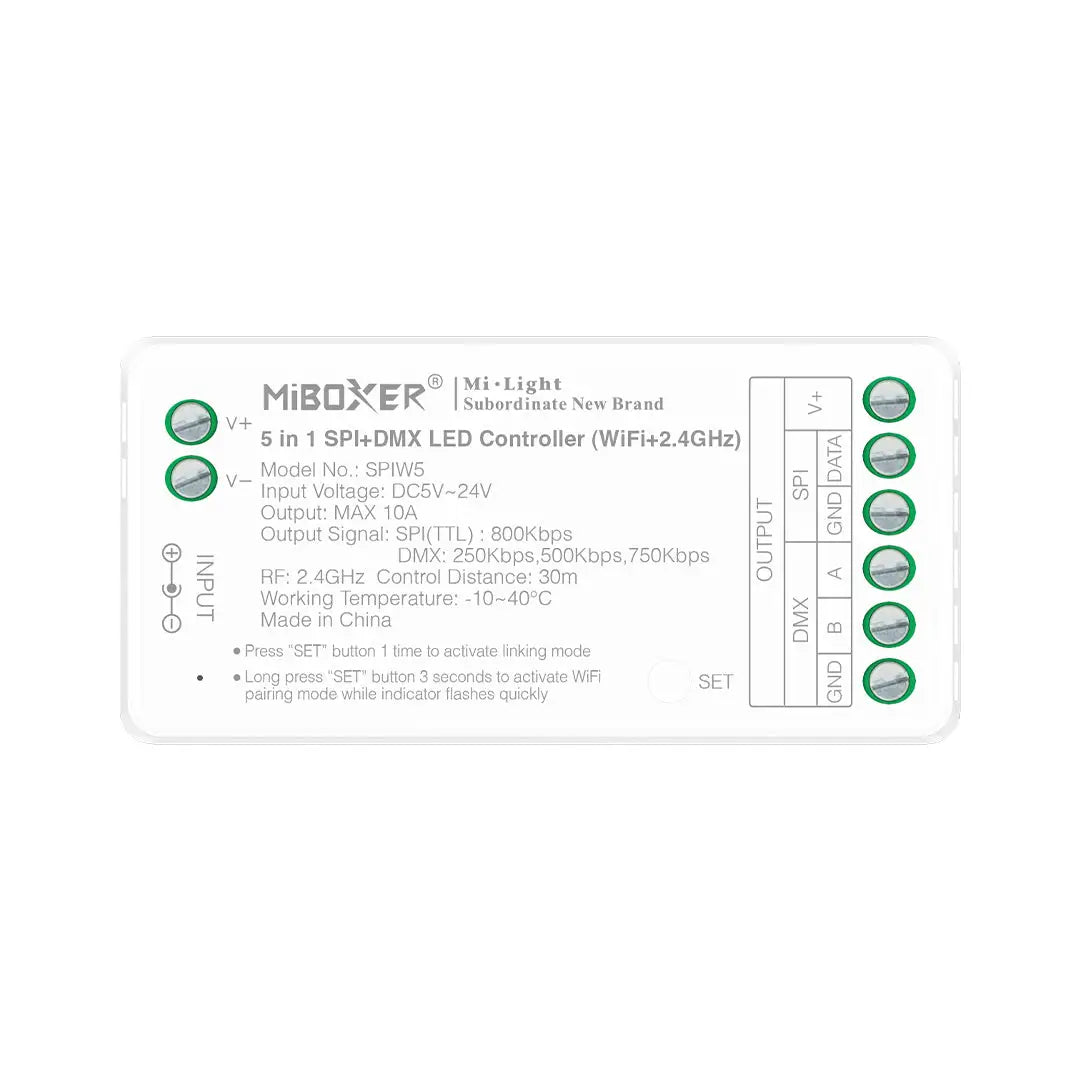

Product Name: 5 in 1 SPI+DMX LED Controller (WiFi + 2.4G)
Model No.: SPIW5
Warranty: 4 Years

Electrical Specifications:
Input Voltage: DC 5–24V
Total Output: Max 10A
Standby Current: 20mA

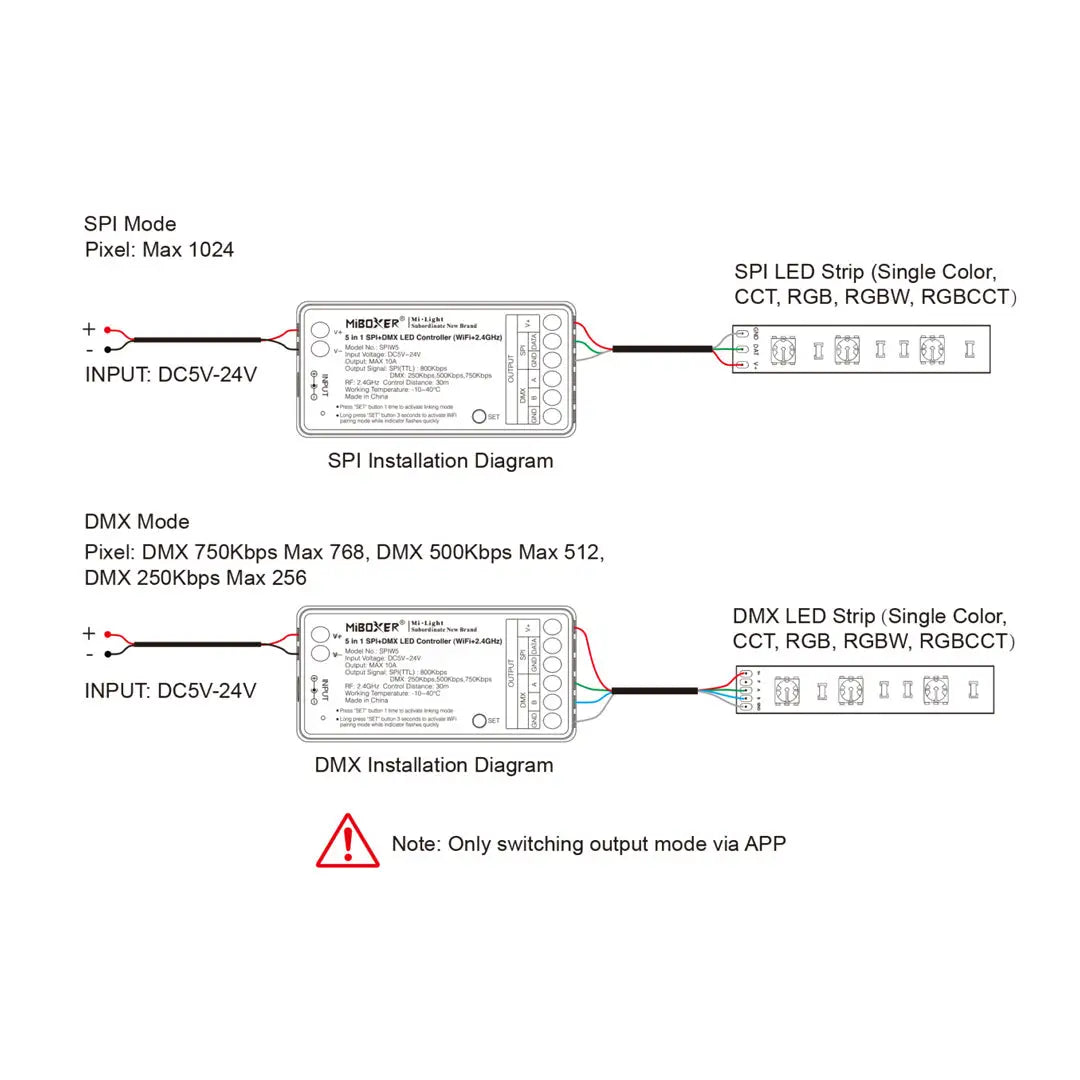

Output Signal Specifications:
SPI: TTL 800Kbps (Max 1024 pixels)
DMX: 250Kbps (Max 256 pixels)
DMX: 500Kbps (Max 512 pixels)
DMX: 750Kbps (Max 768 pixels)

Communication Specifications:
Protocol: WiFi + 2.4GHz RF
Control Distance: RF 30m

Environmental Specifications:
Working Temperature: -10°C to 40°C

Safety & Protection:
IP Rating: IP20
Dimension: 74.5 × 36 × 17mm

Certifications:
CE, EMC, LVD, RED
EMC Standard: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
Safety Standard: EN 62368-1:2020+A11:2020
Radio Equipment Standard: ETSI EN 300 440 V2.2.1
