Product Description

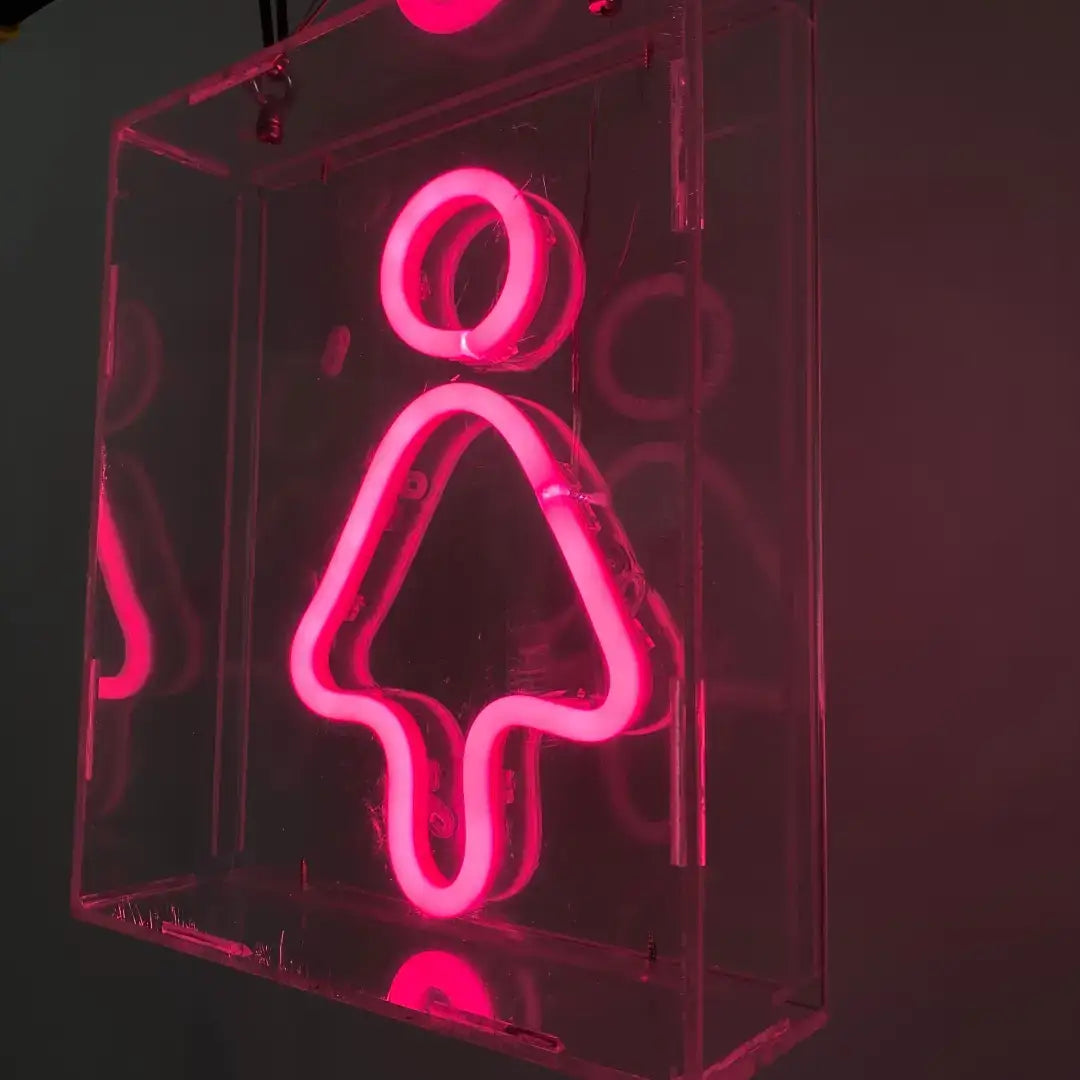

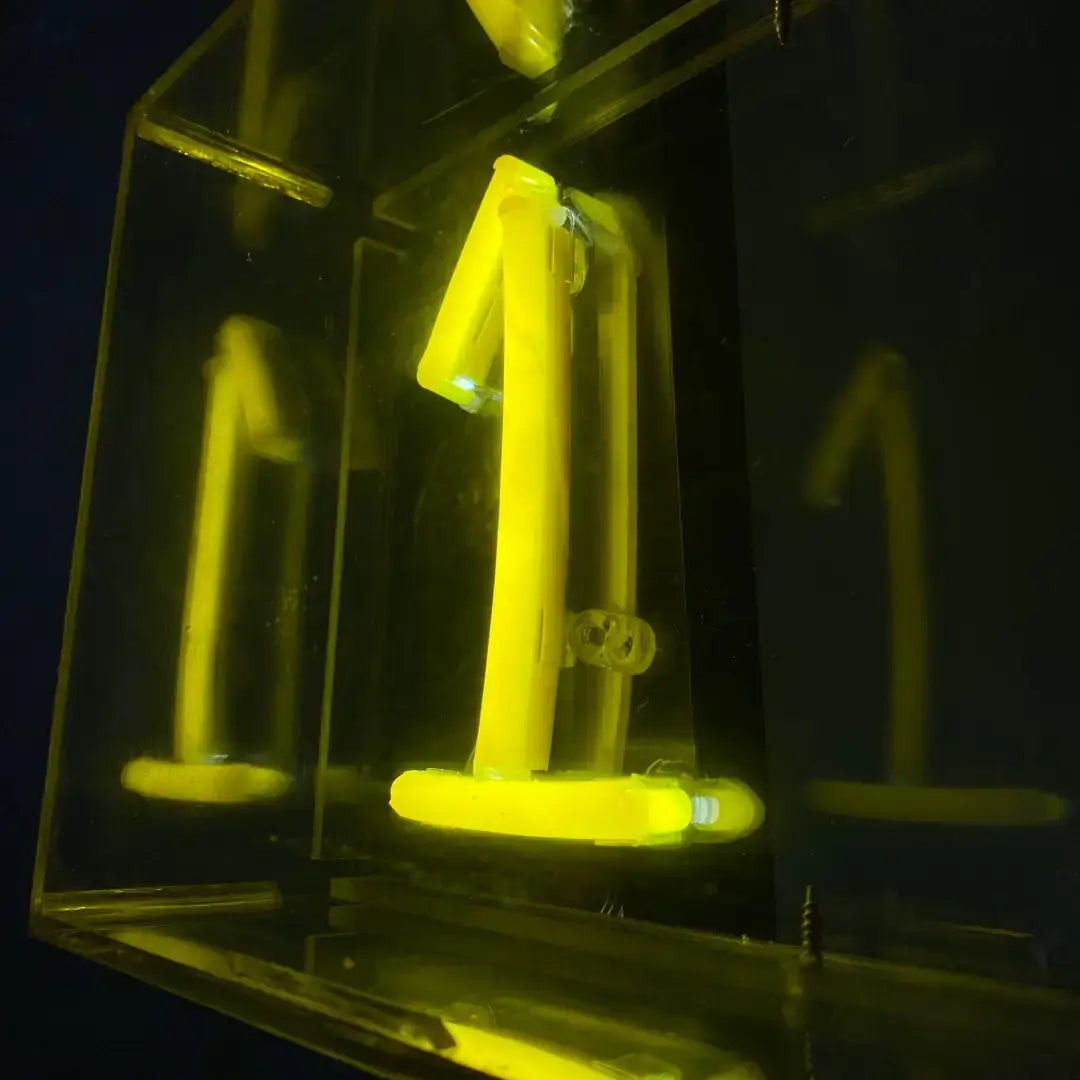

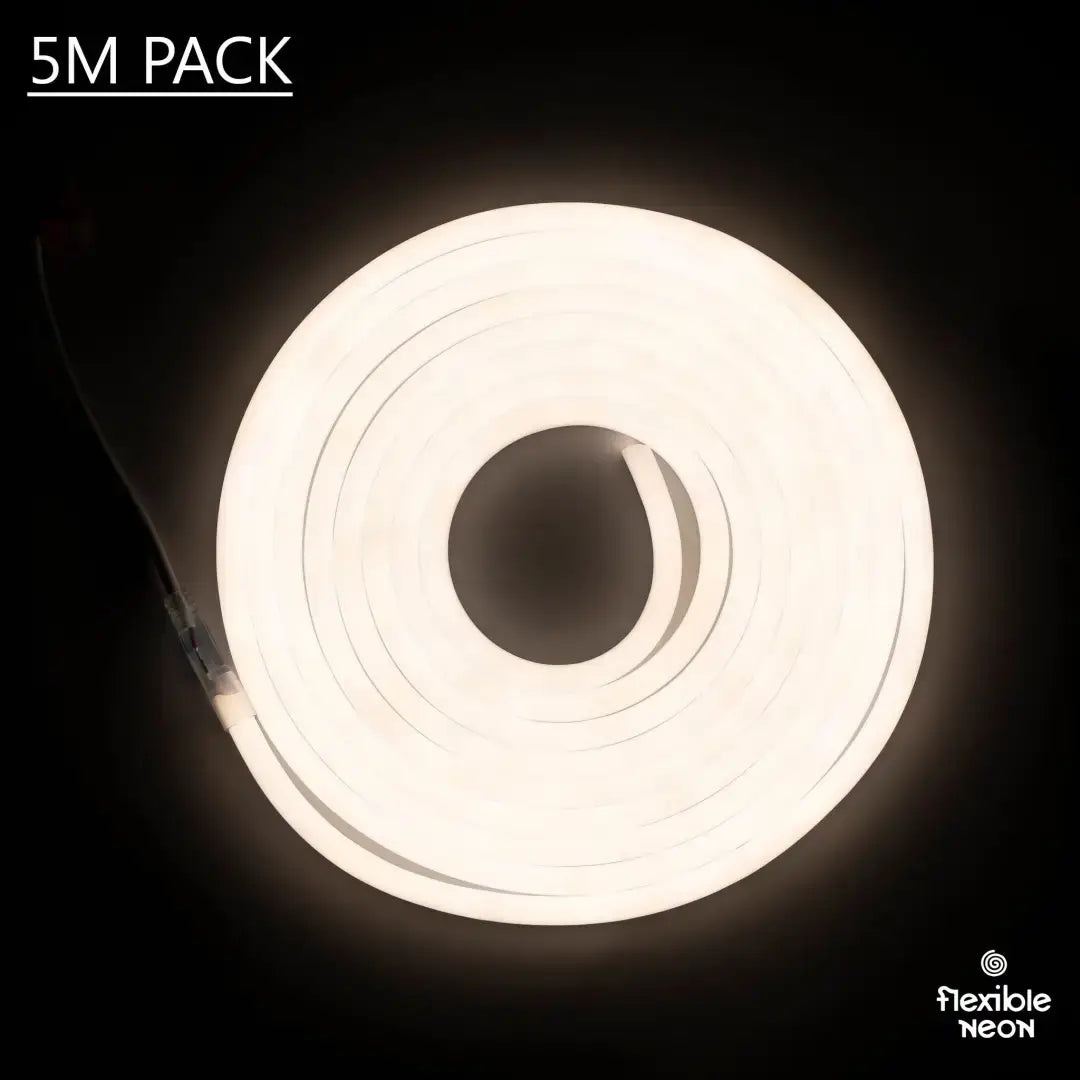

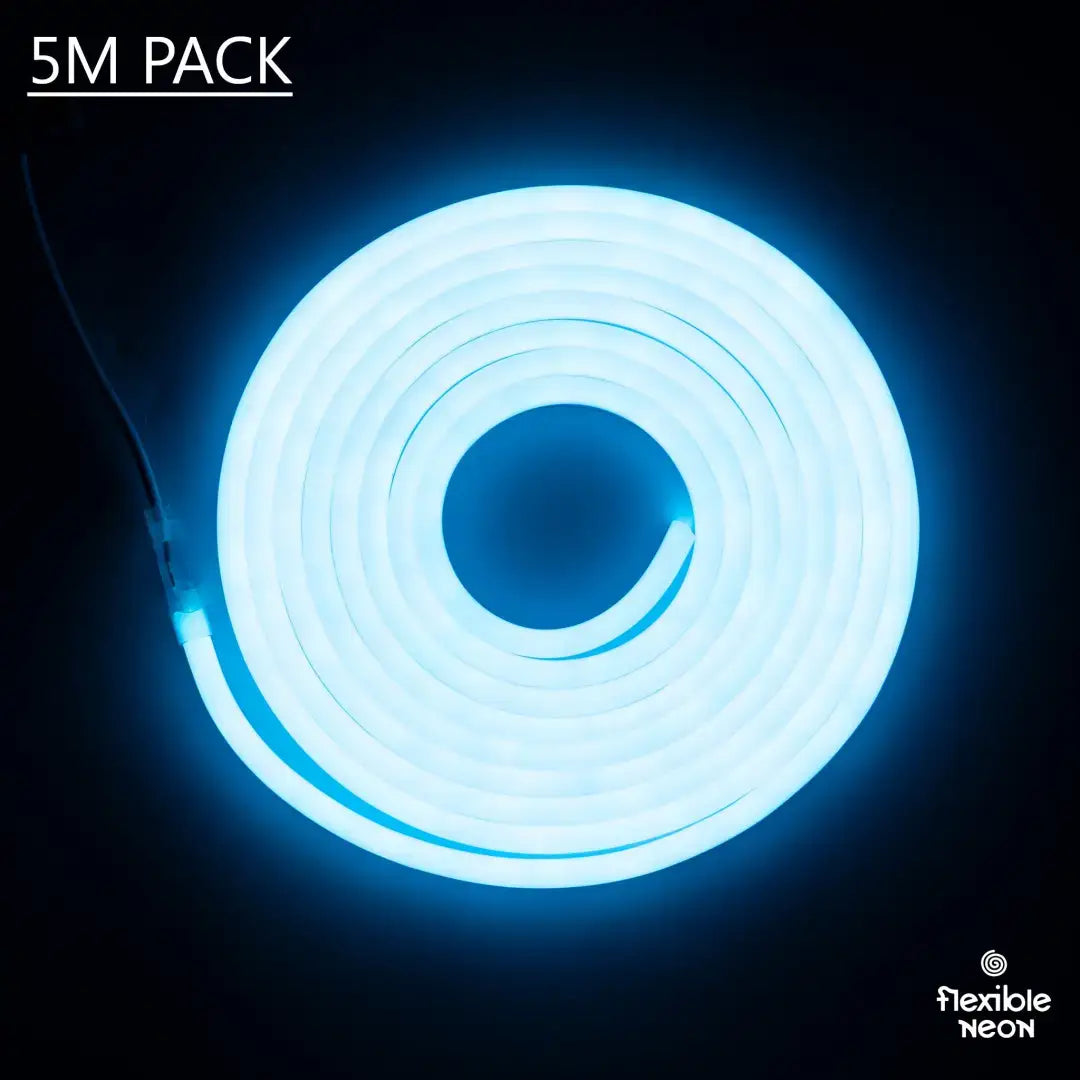

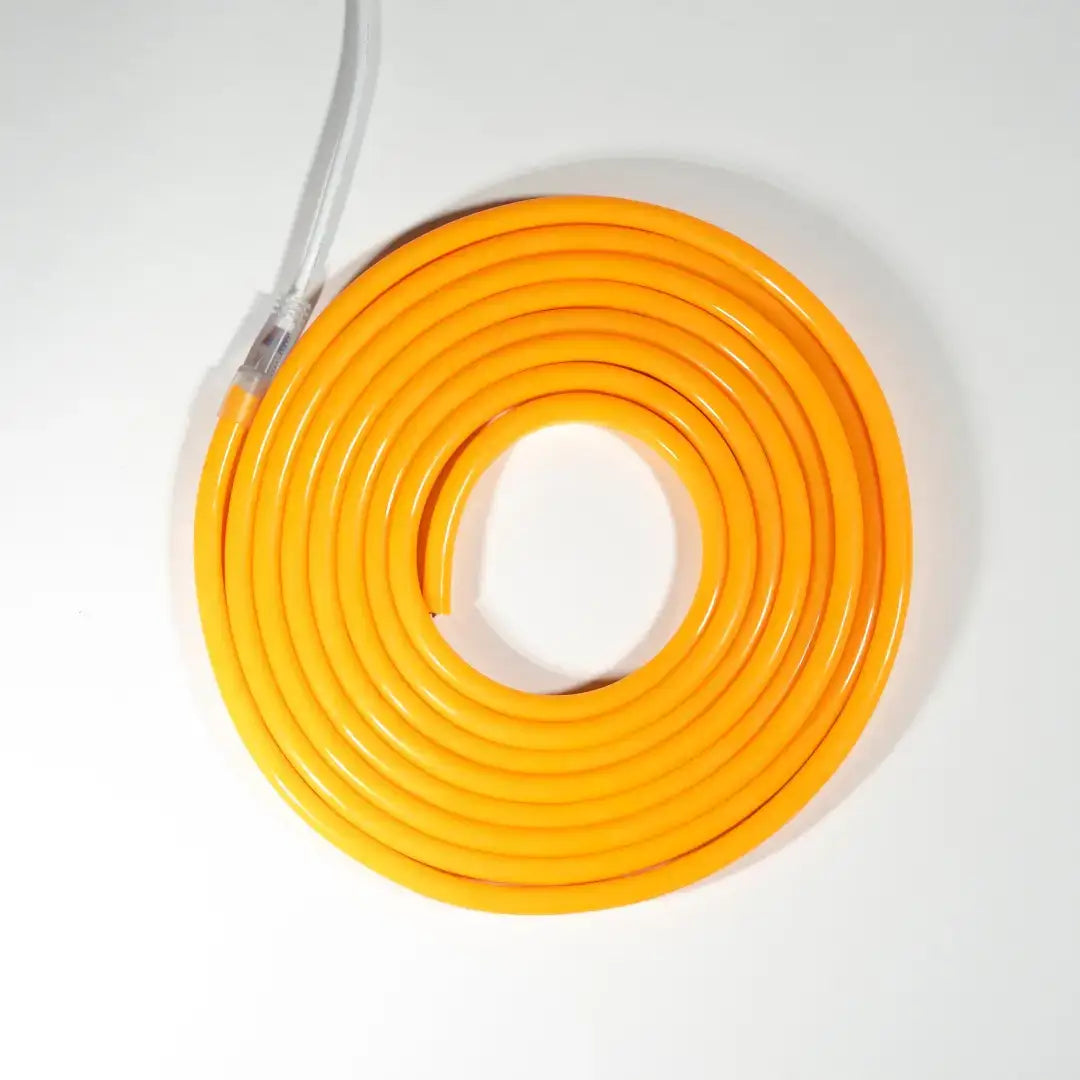

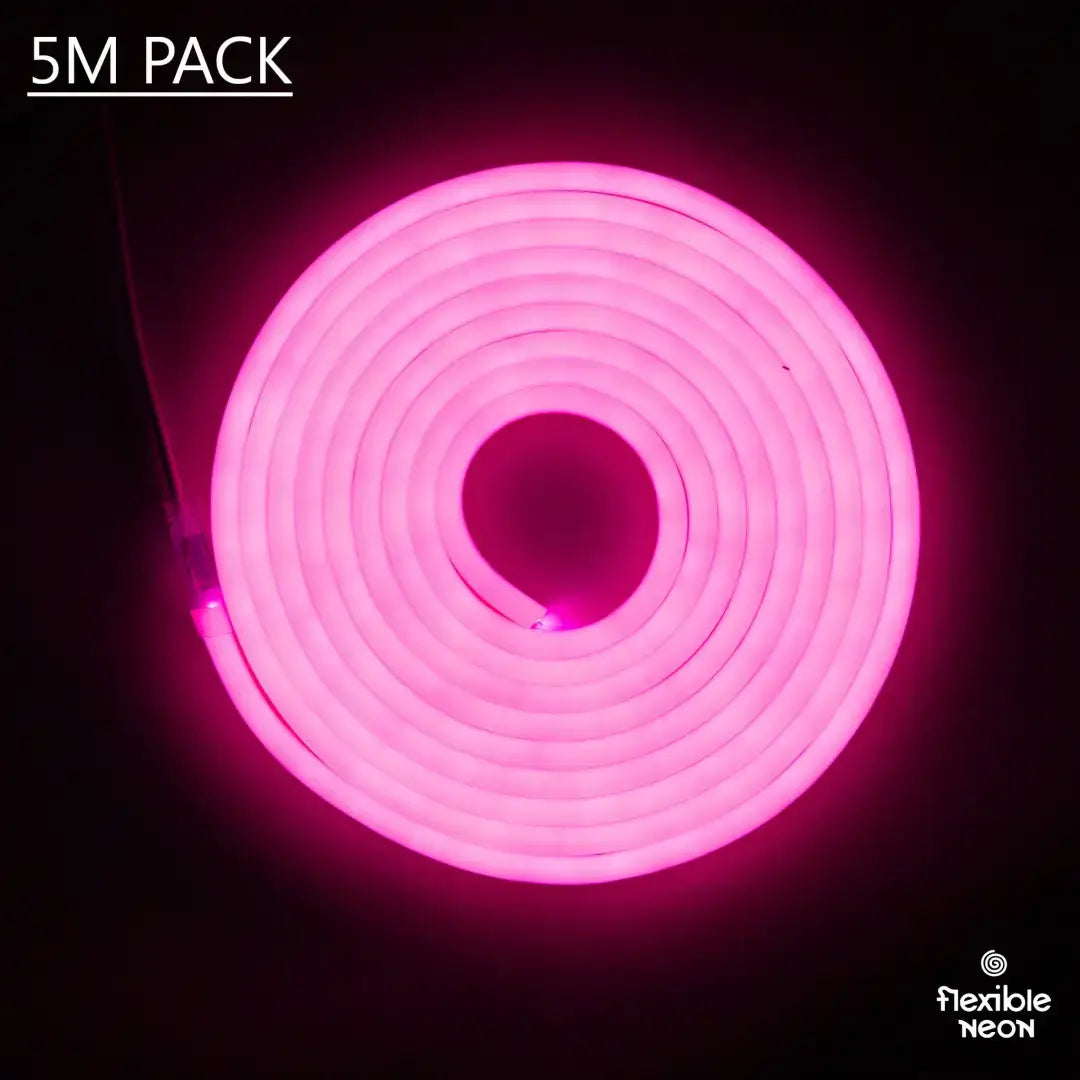

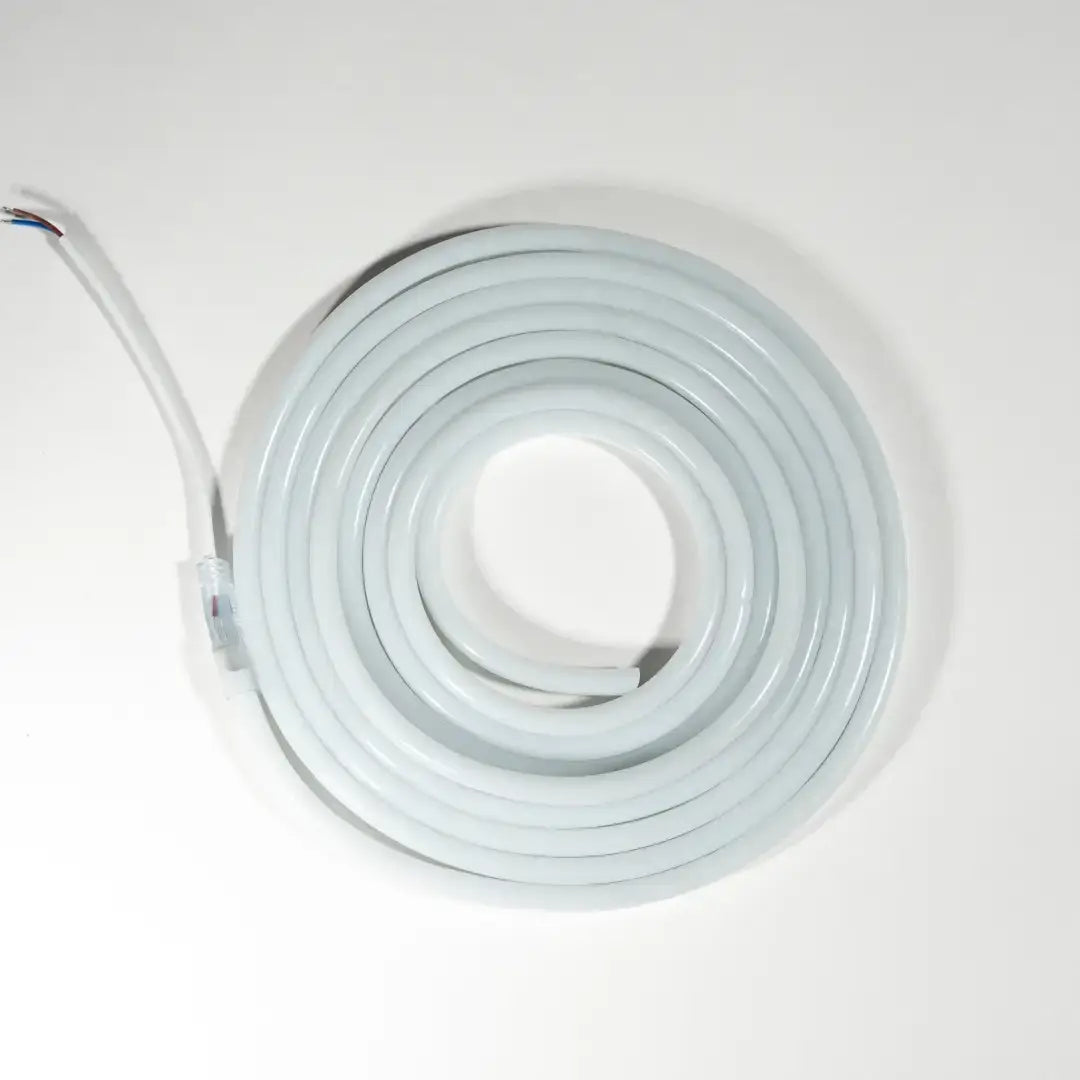

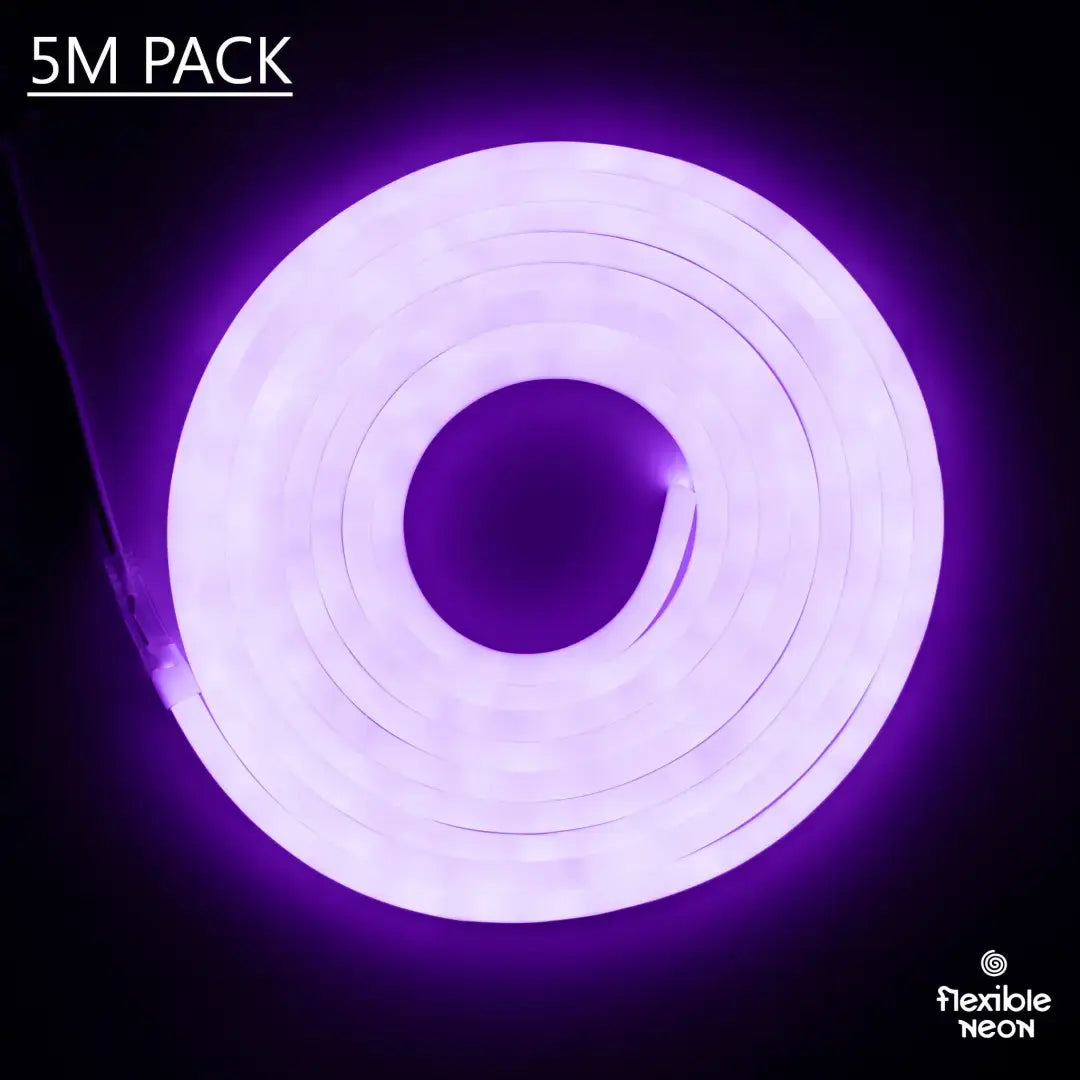

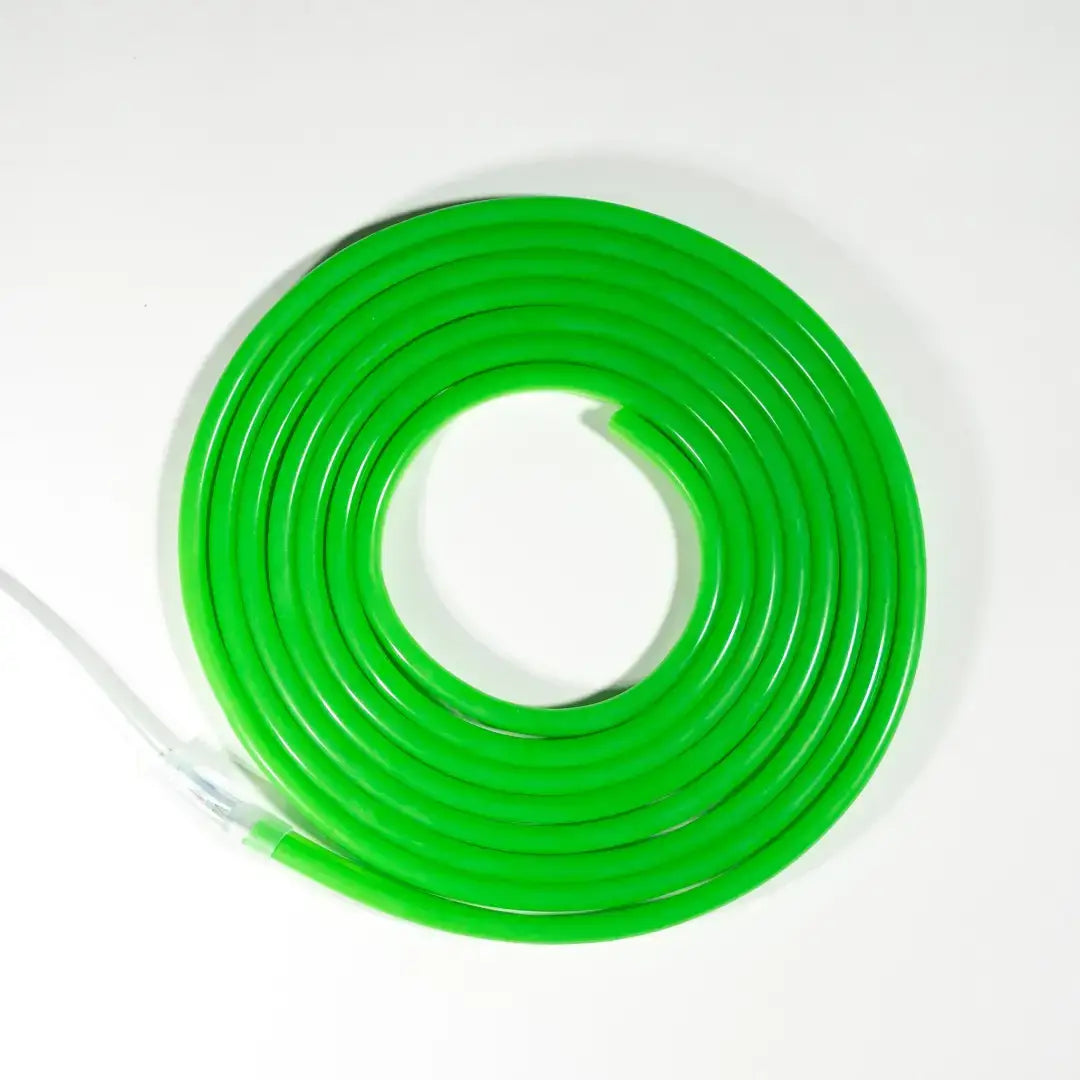

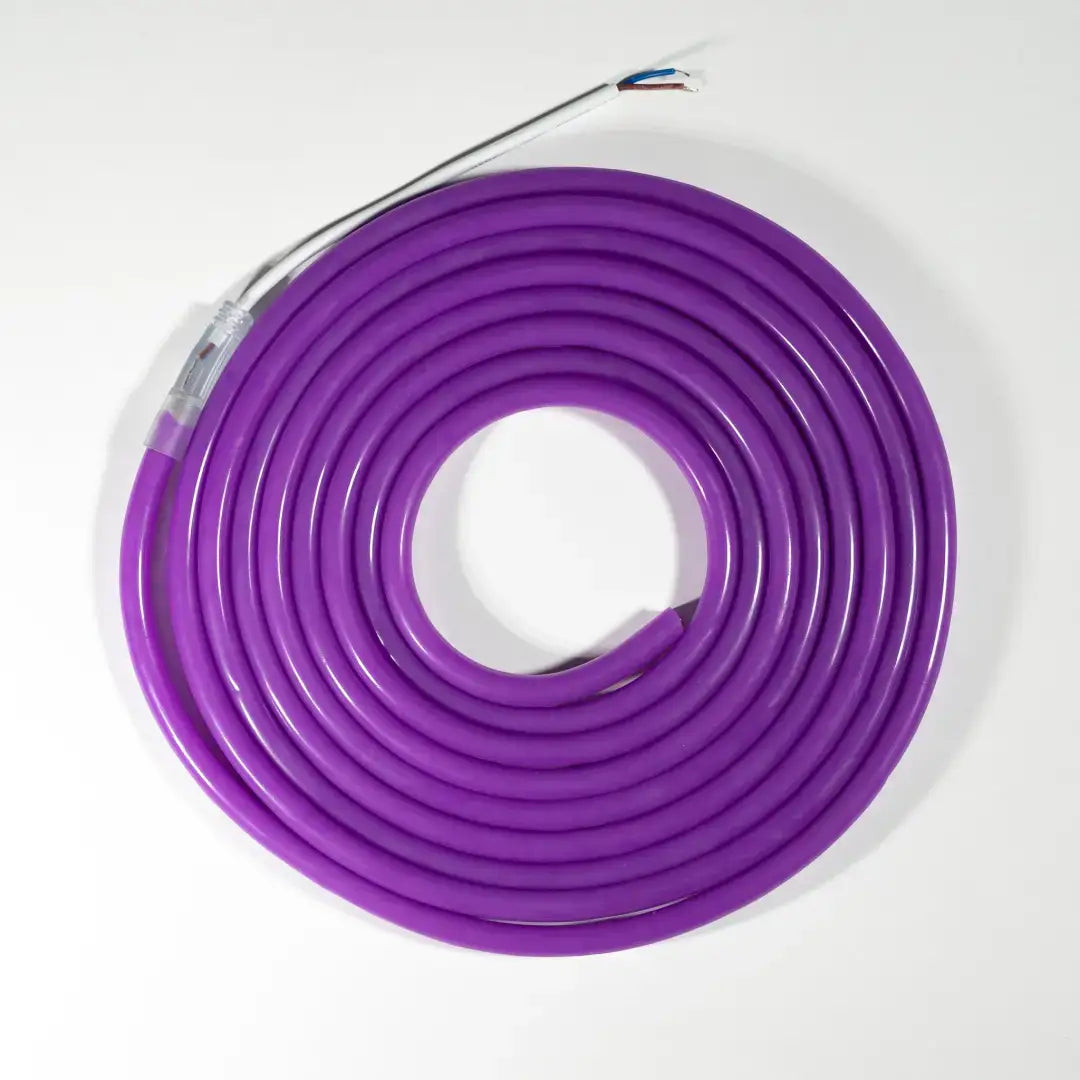

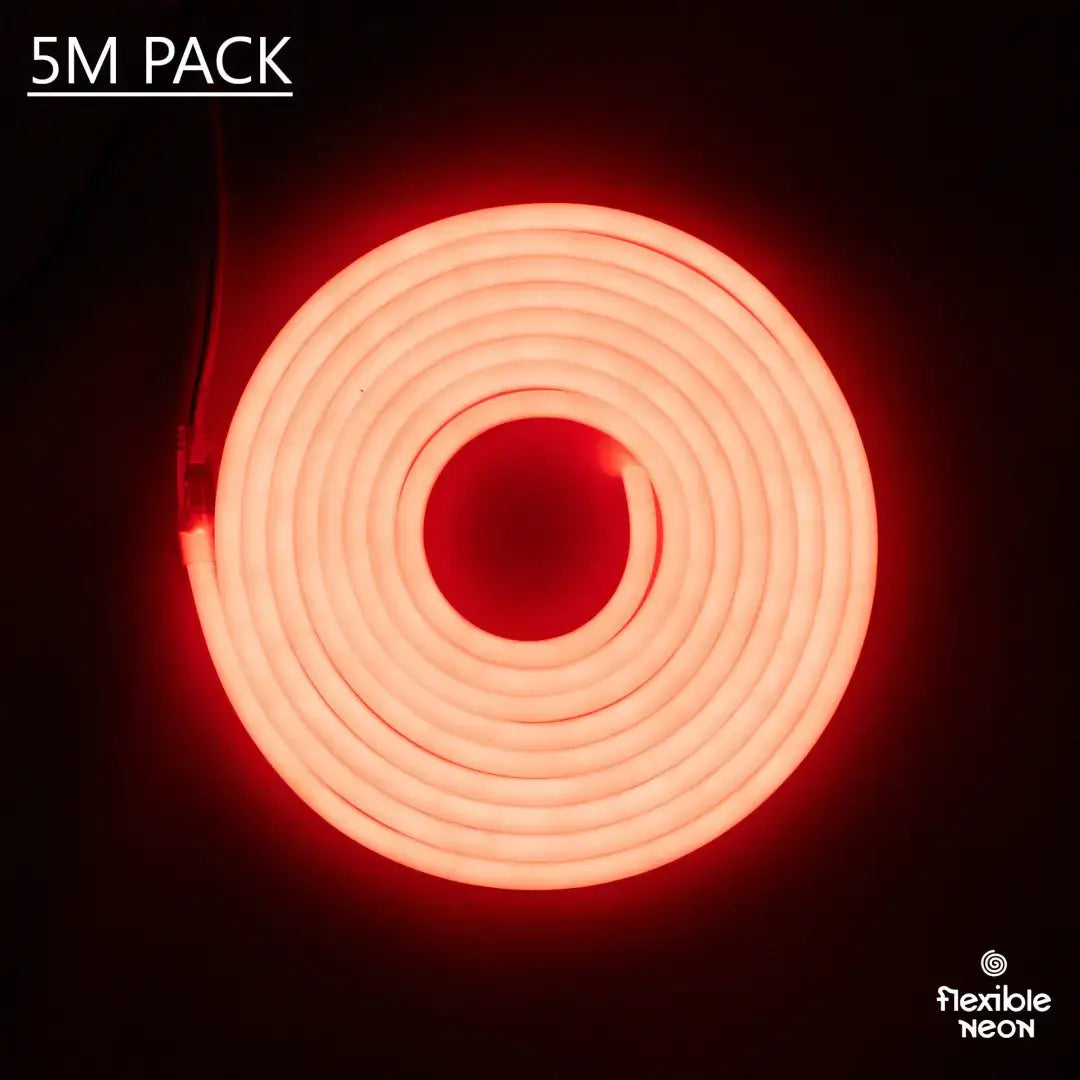

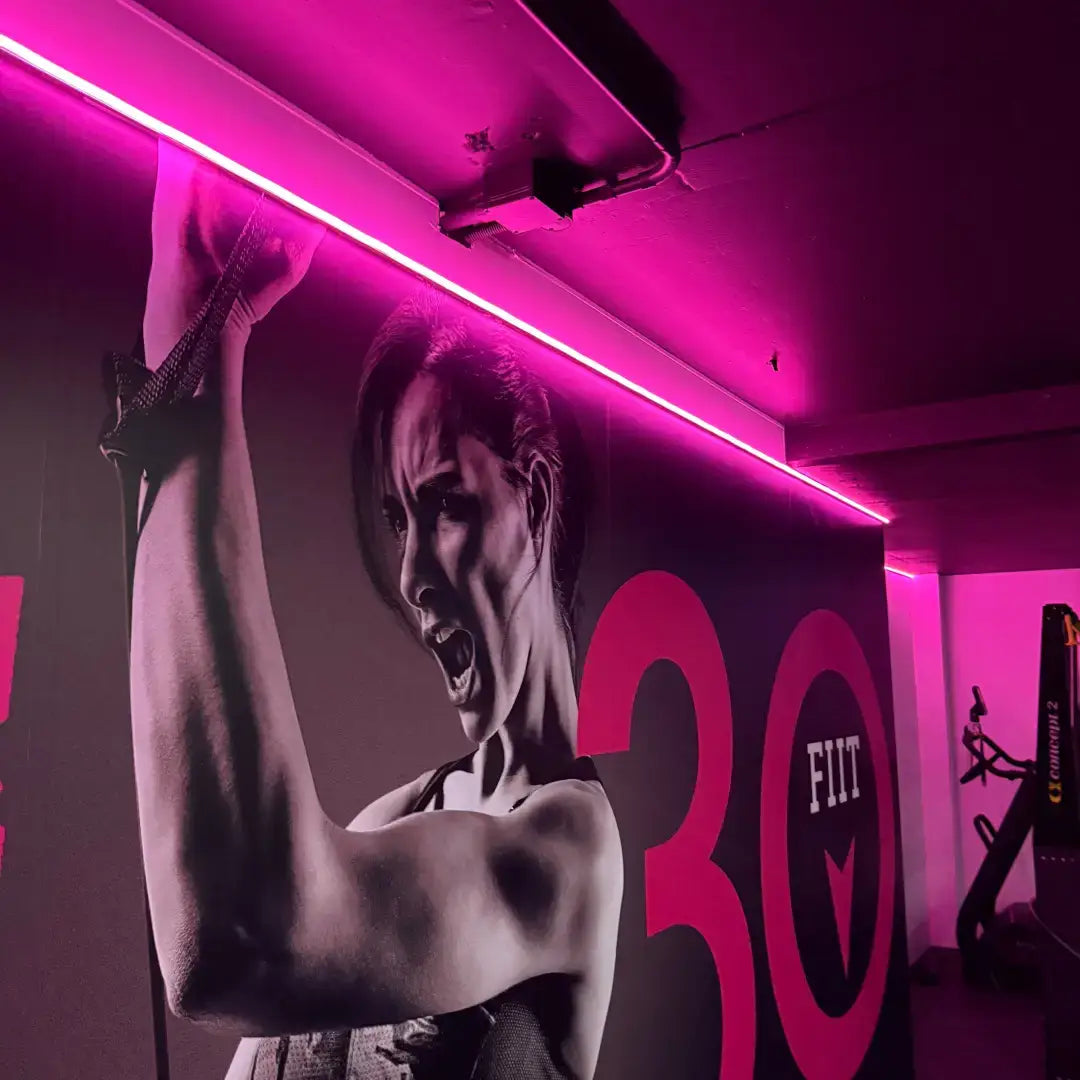

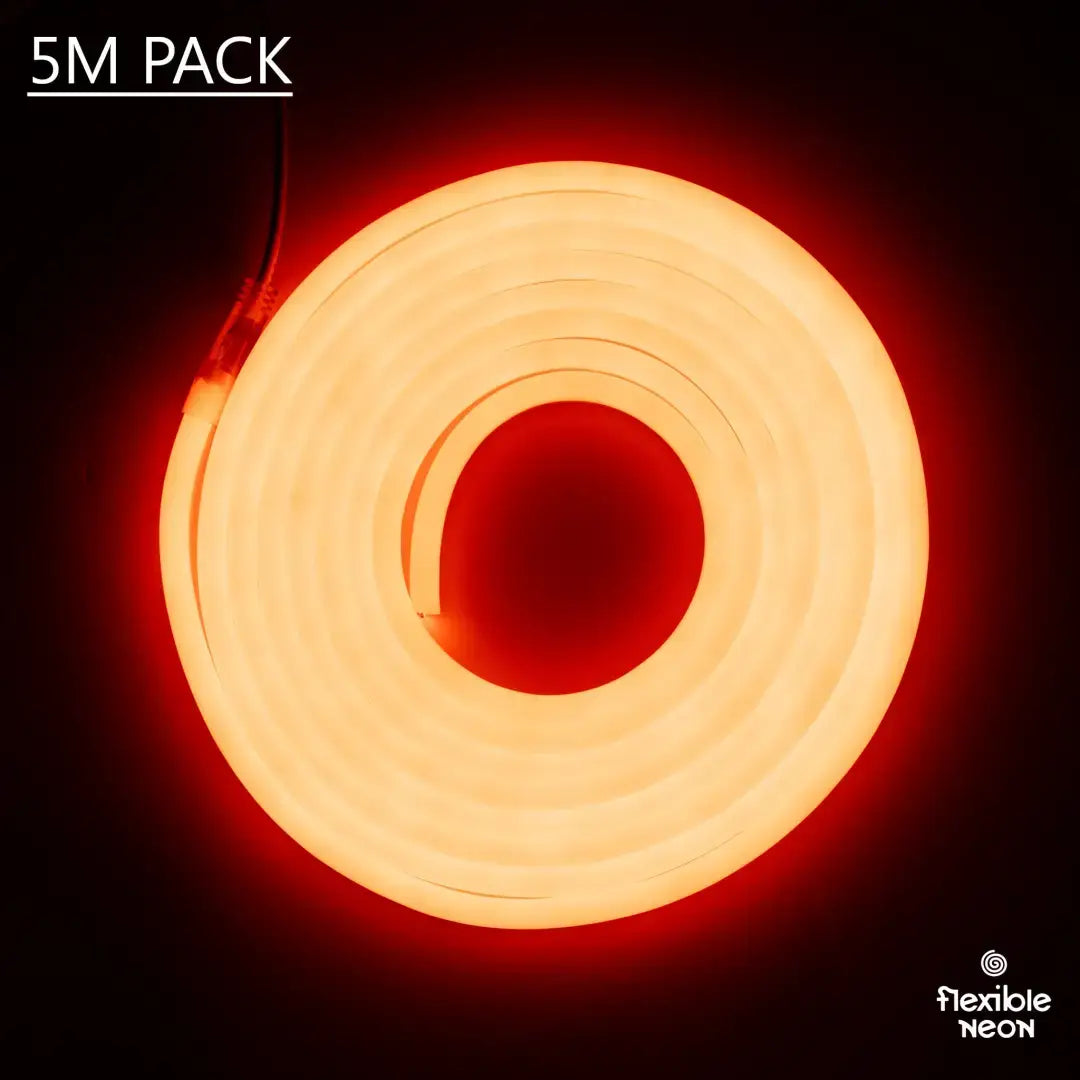

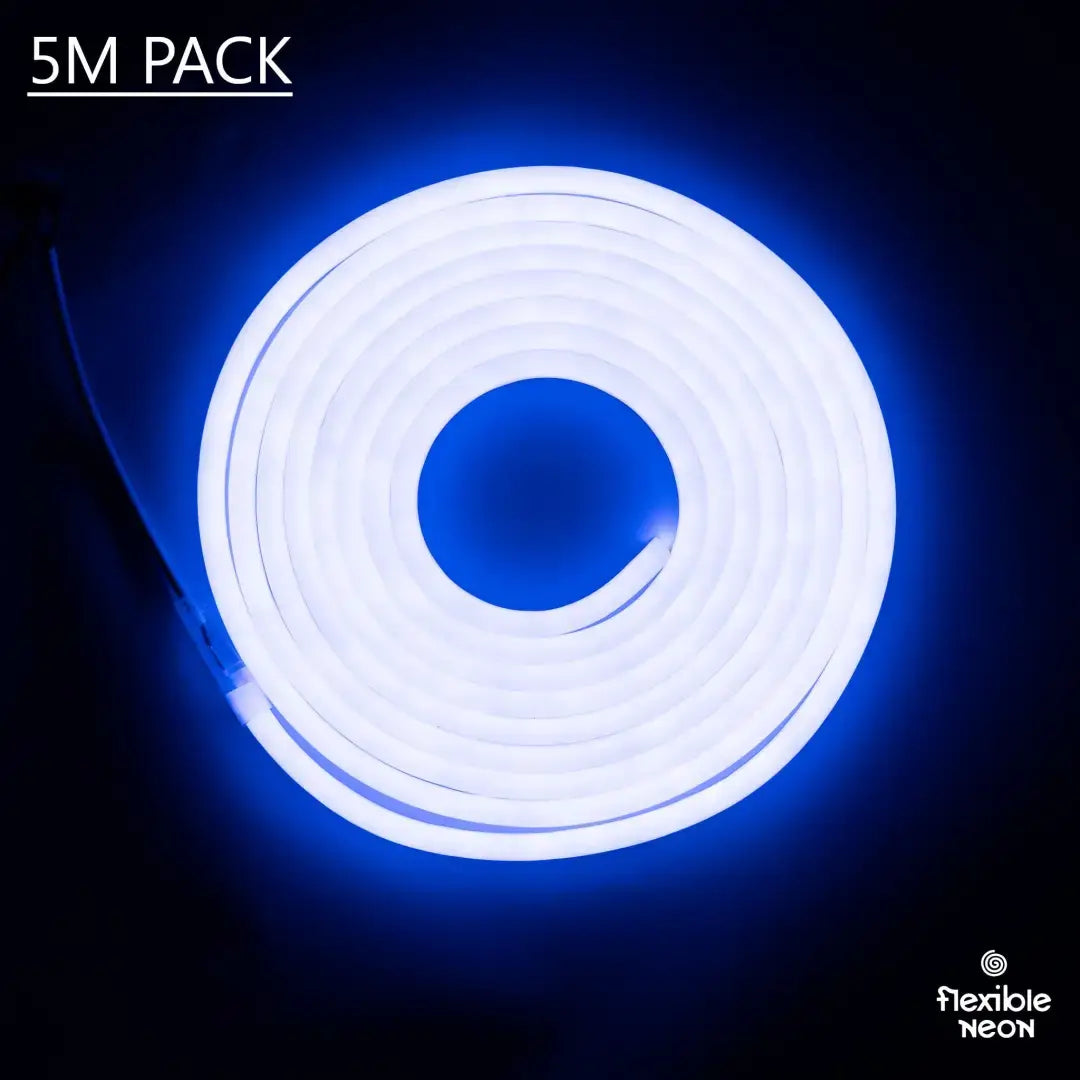

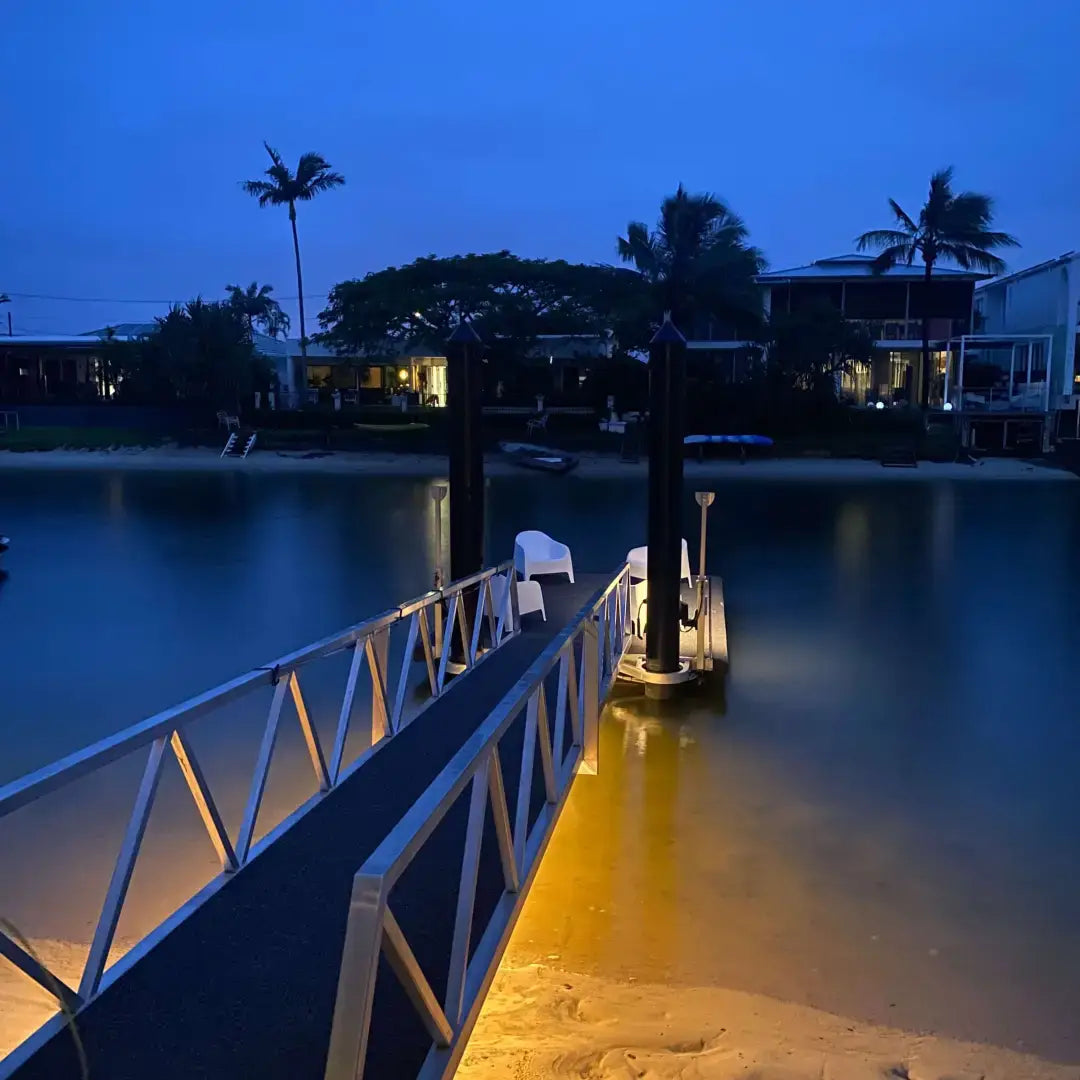

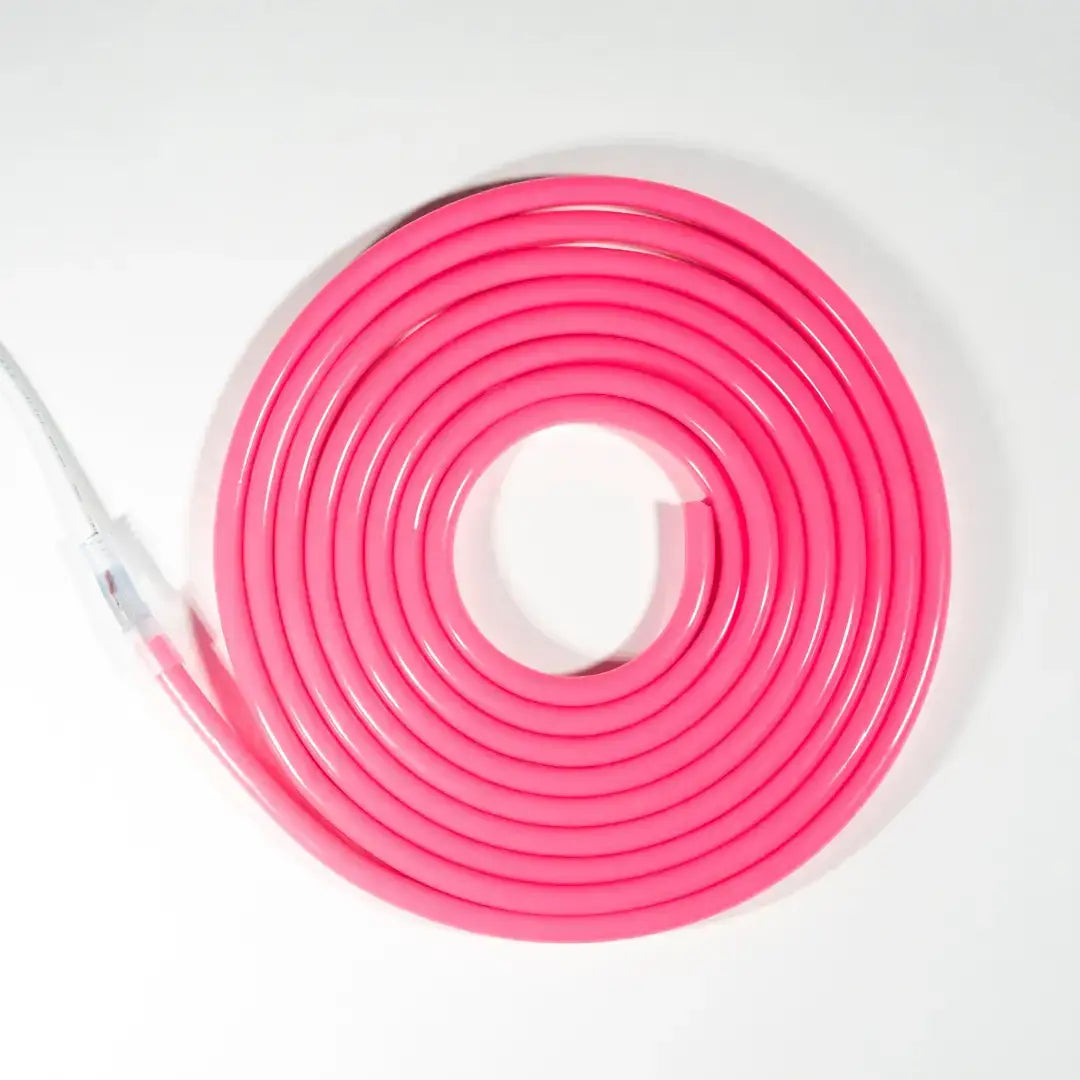

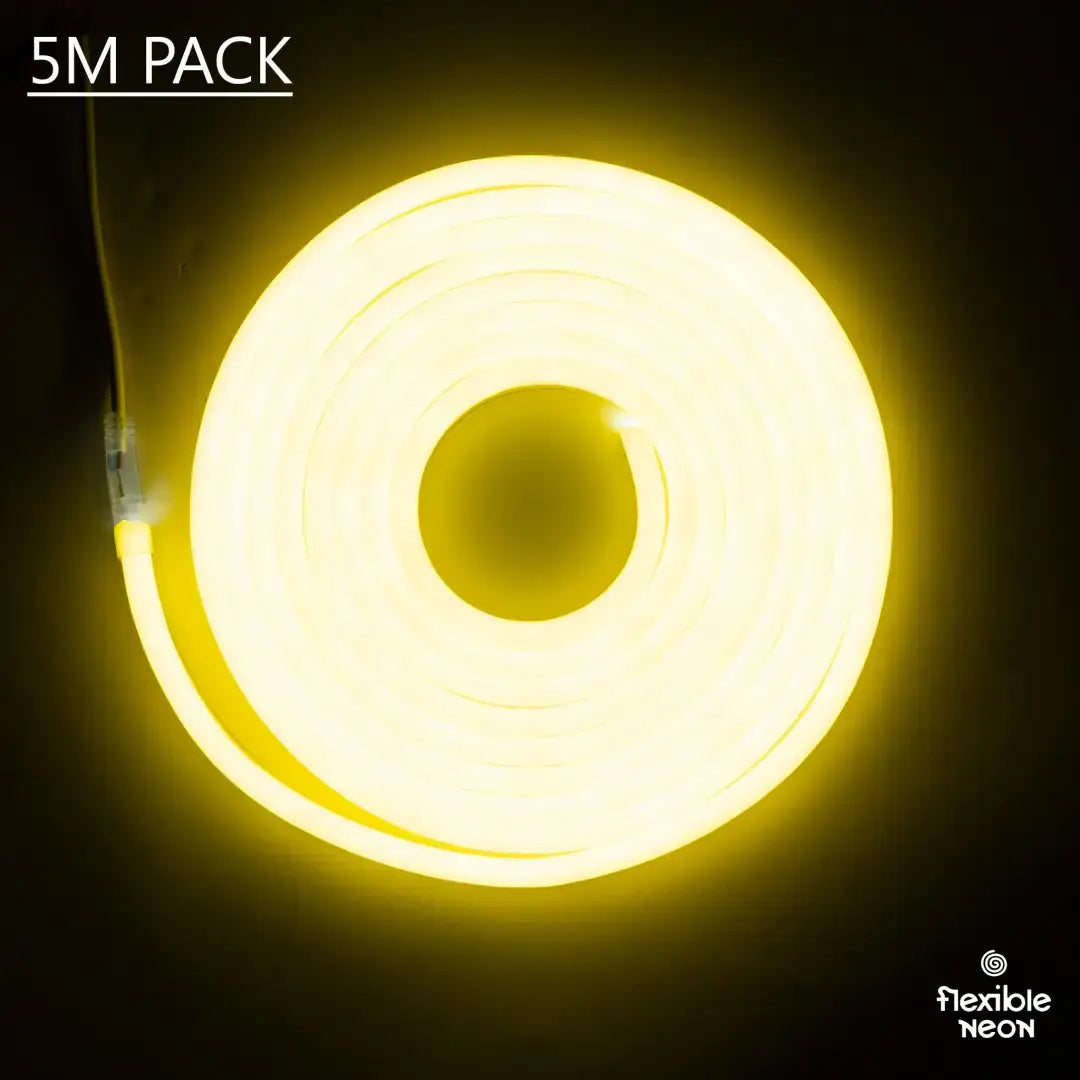

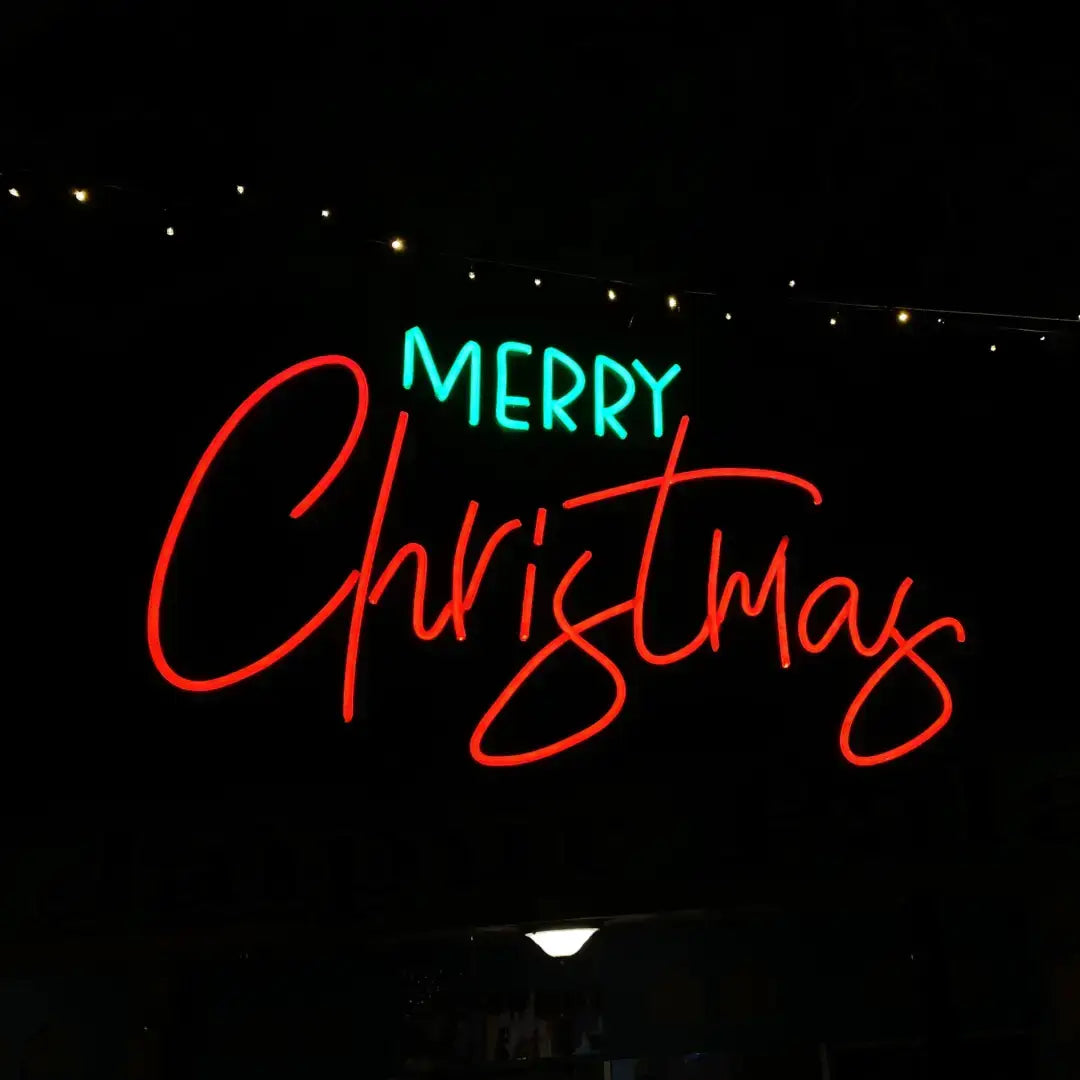

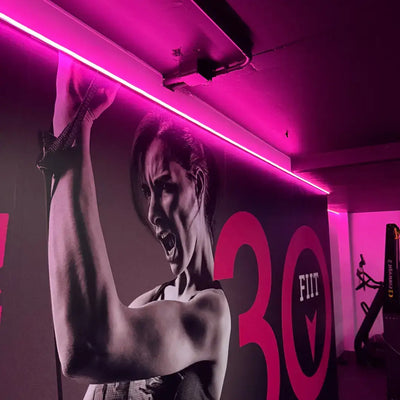

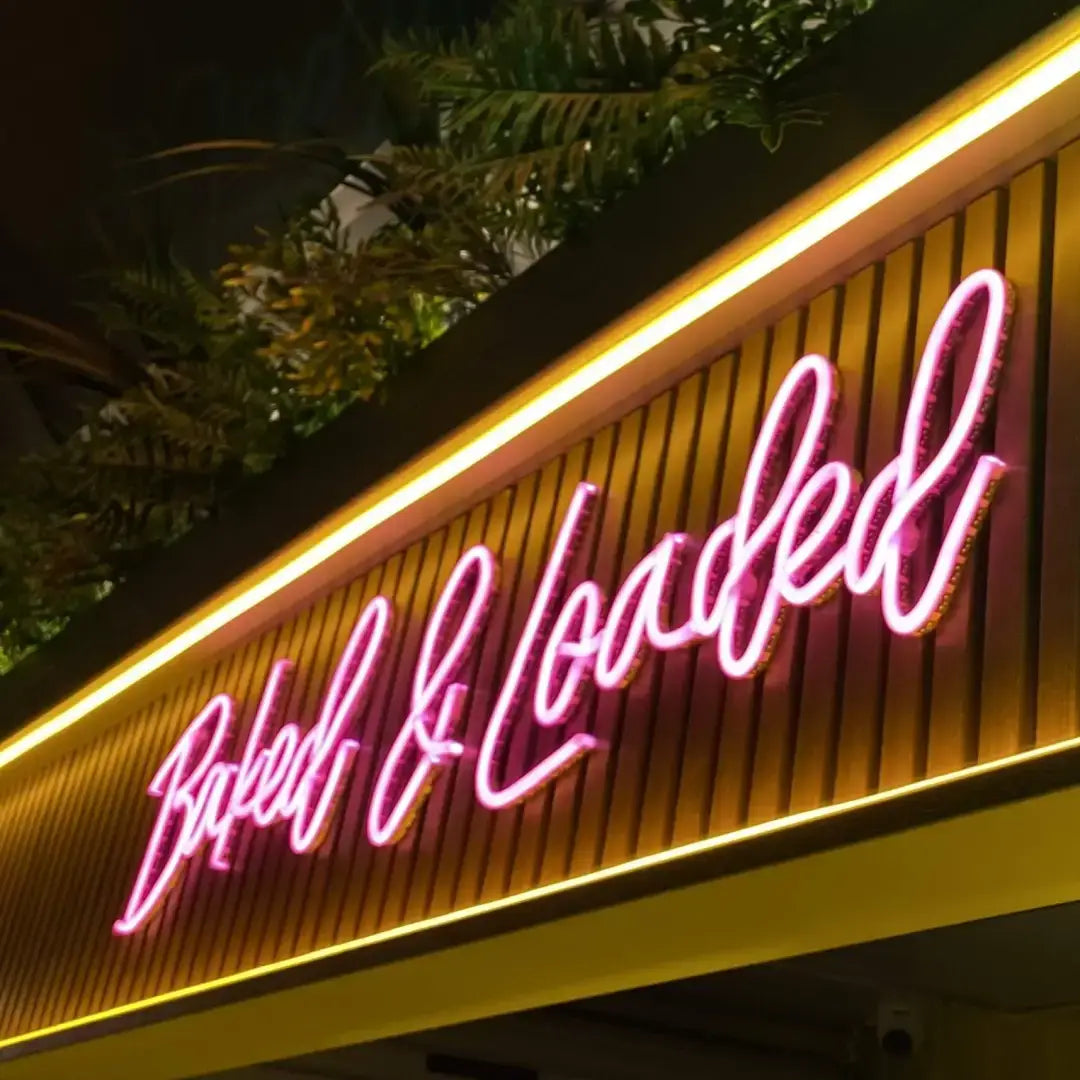

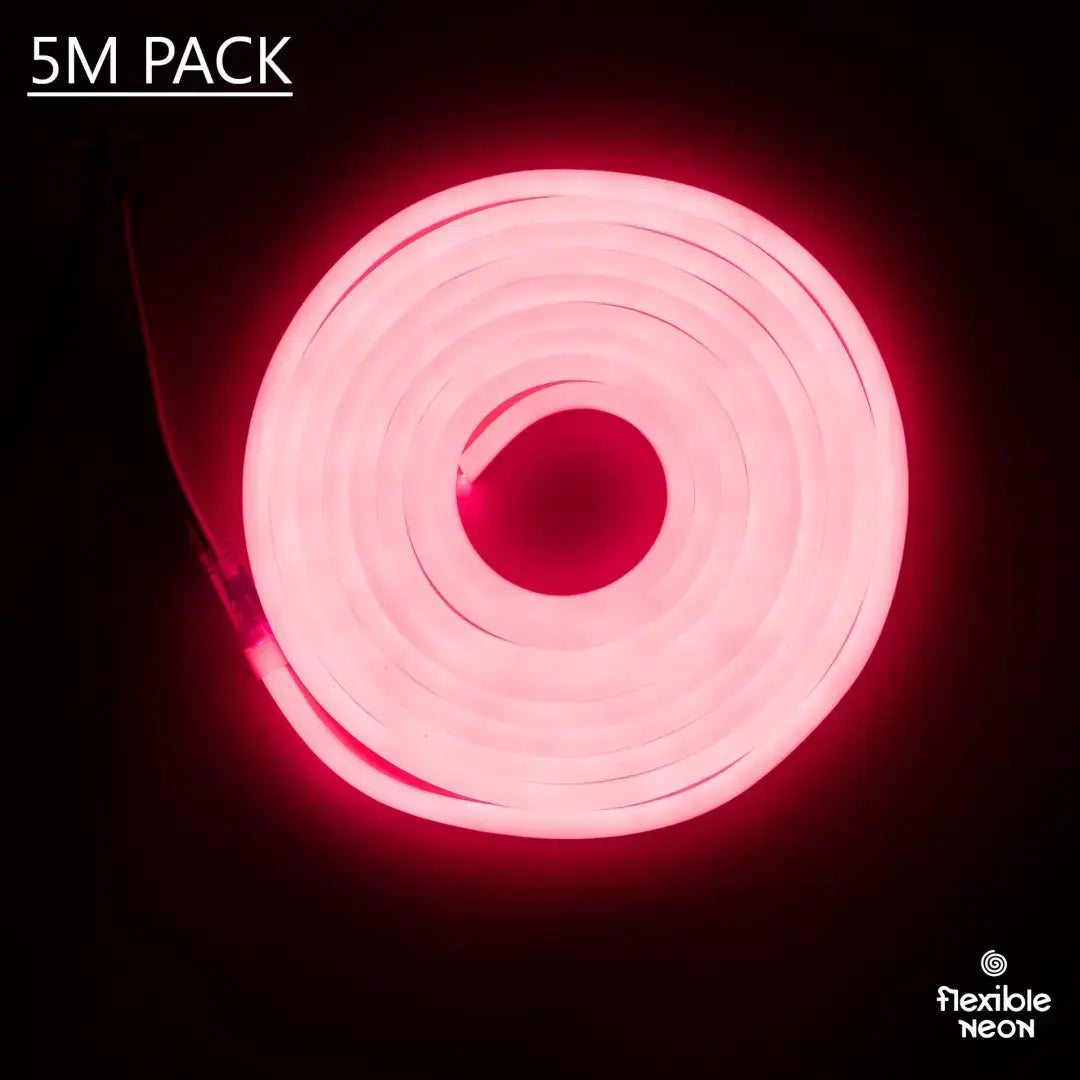

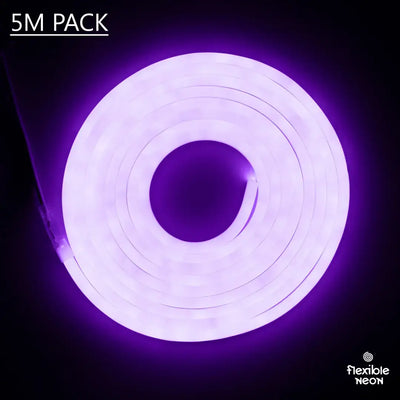

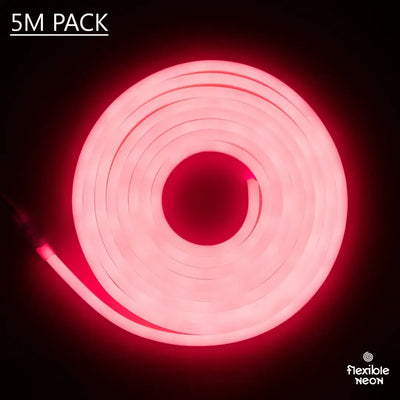

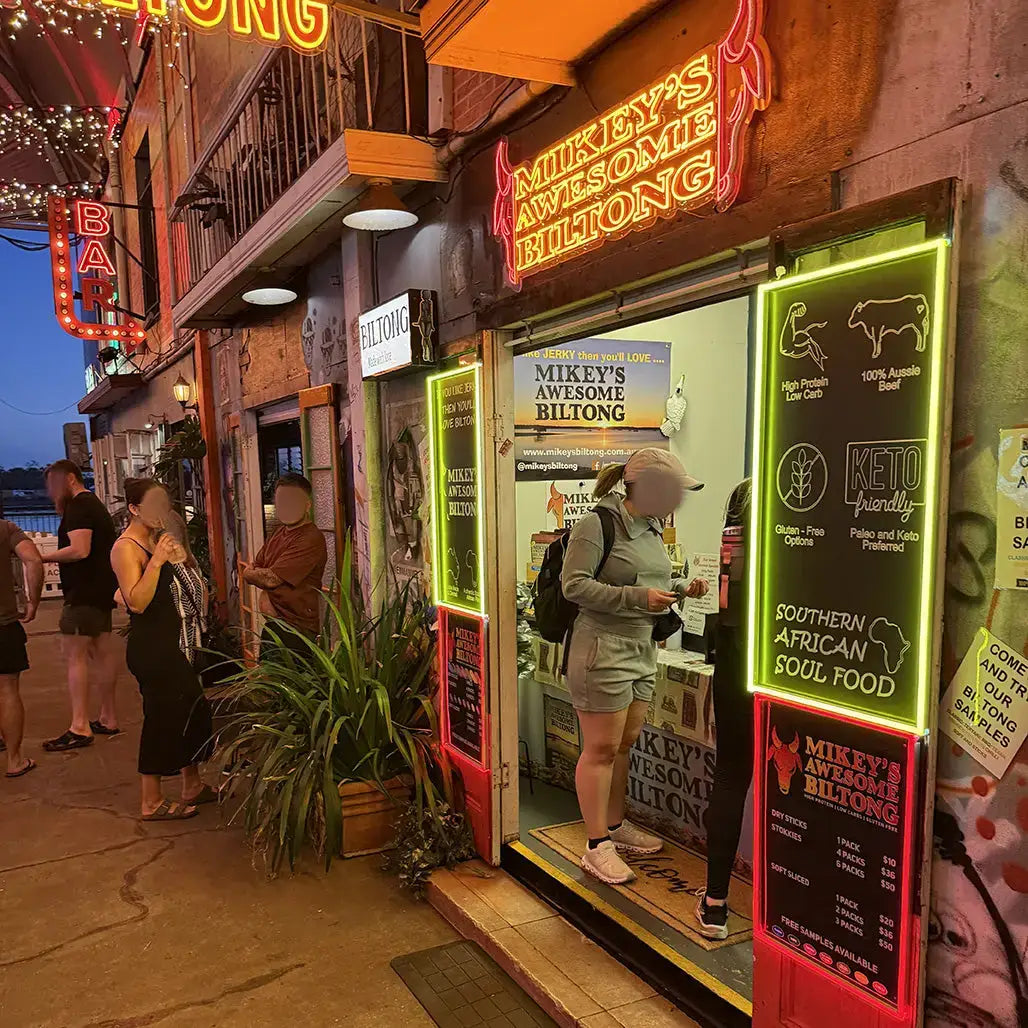

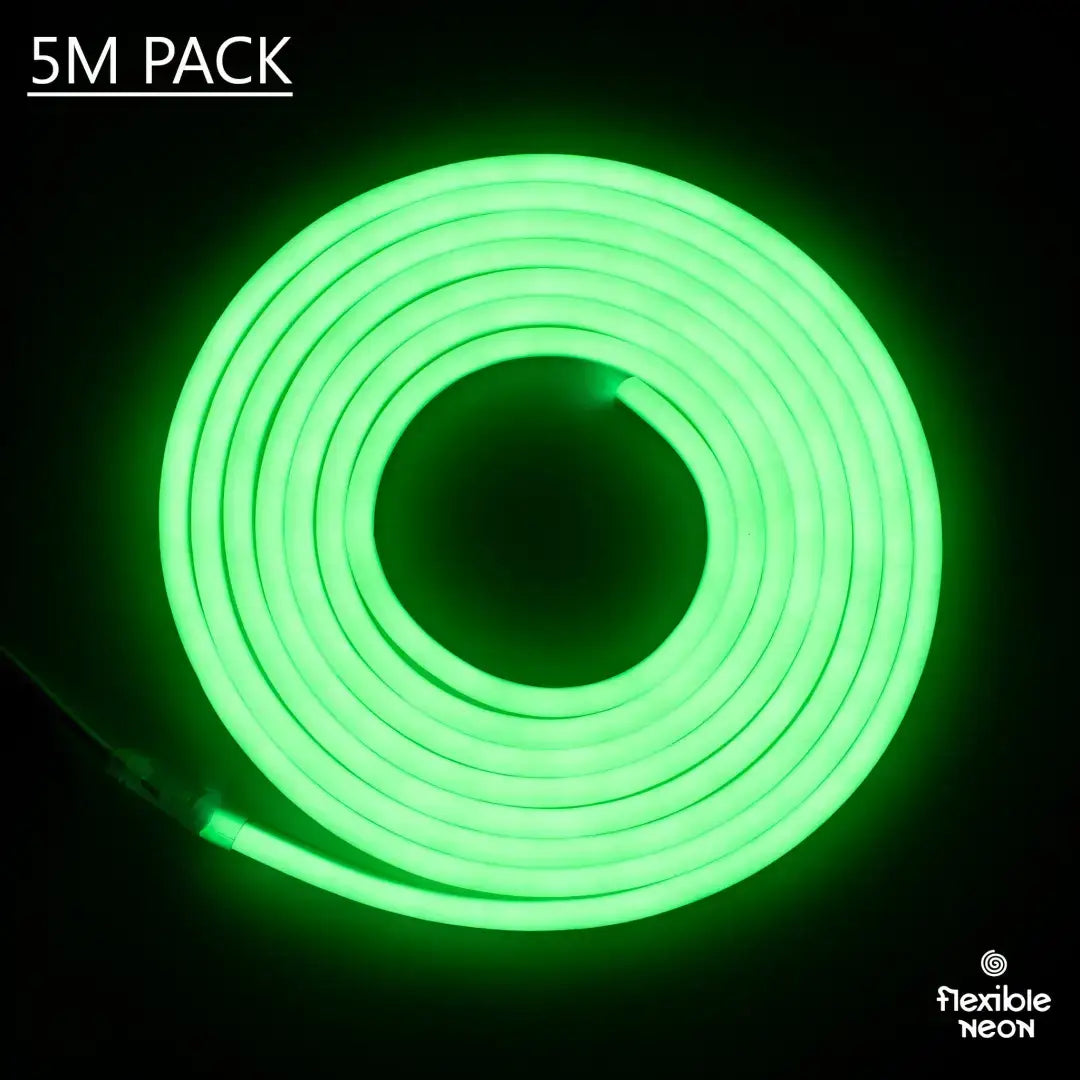

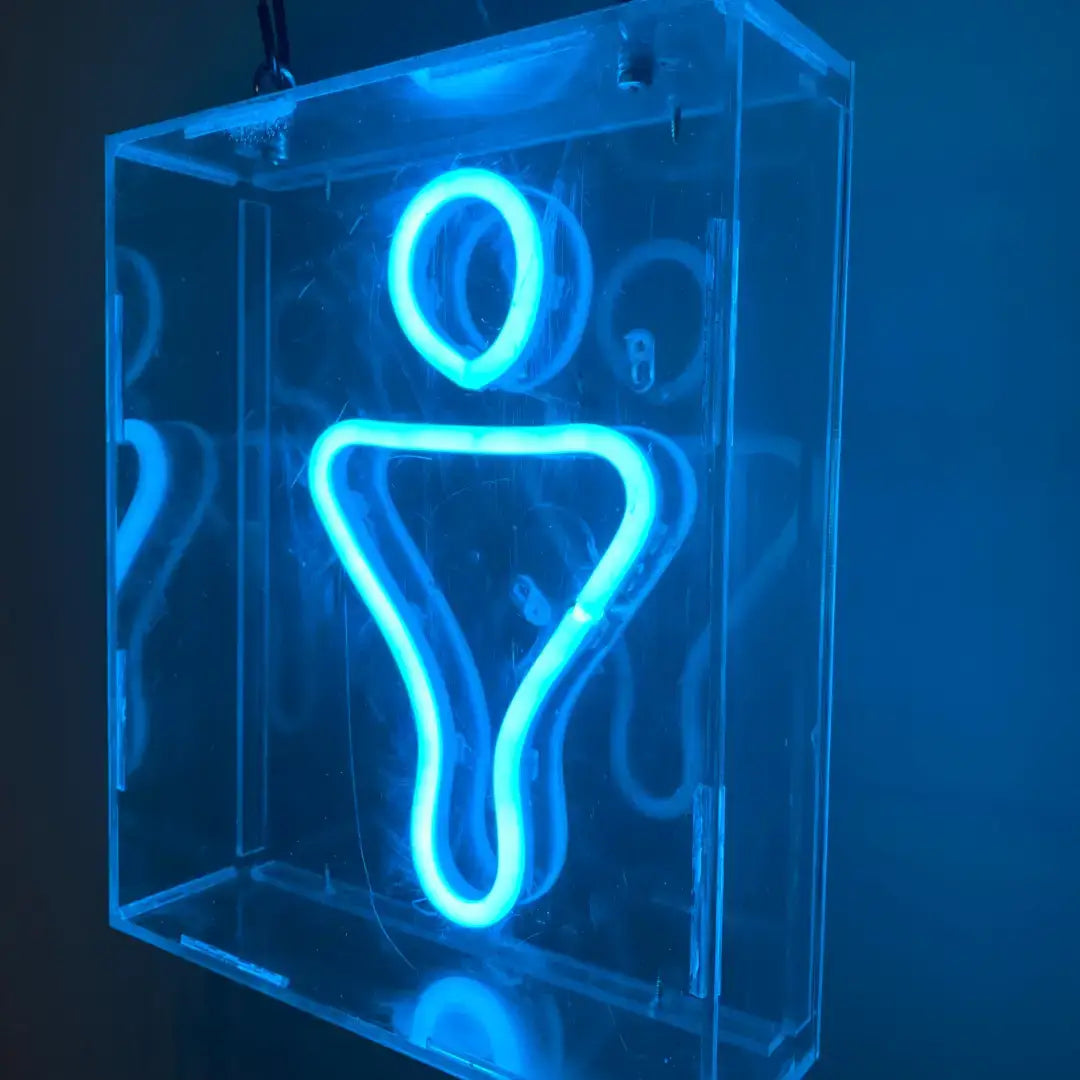

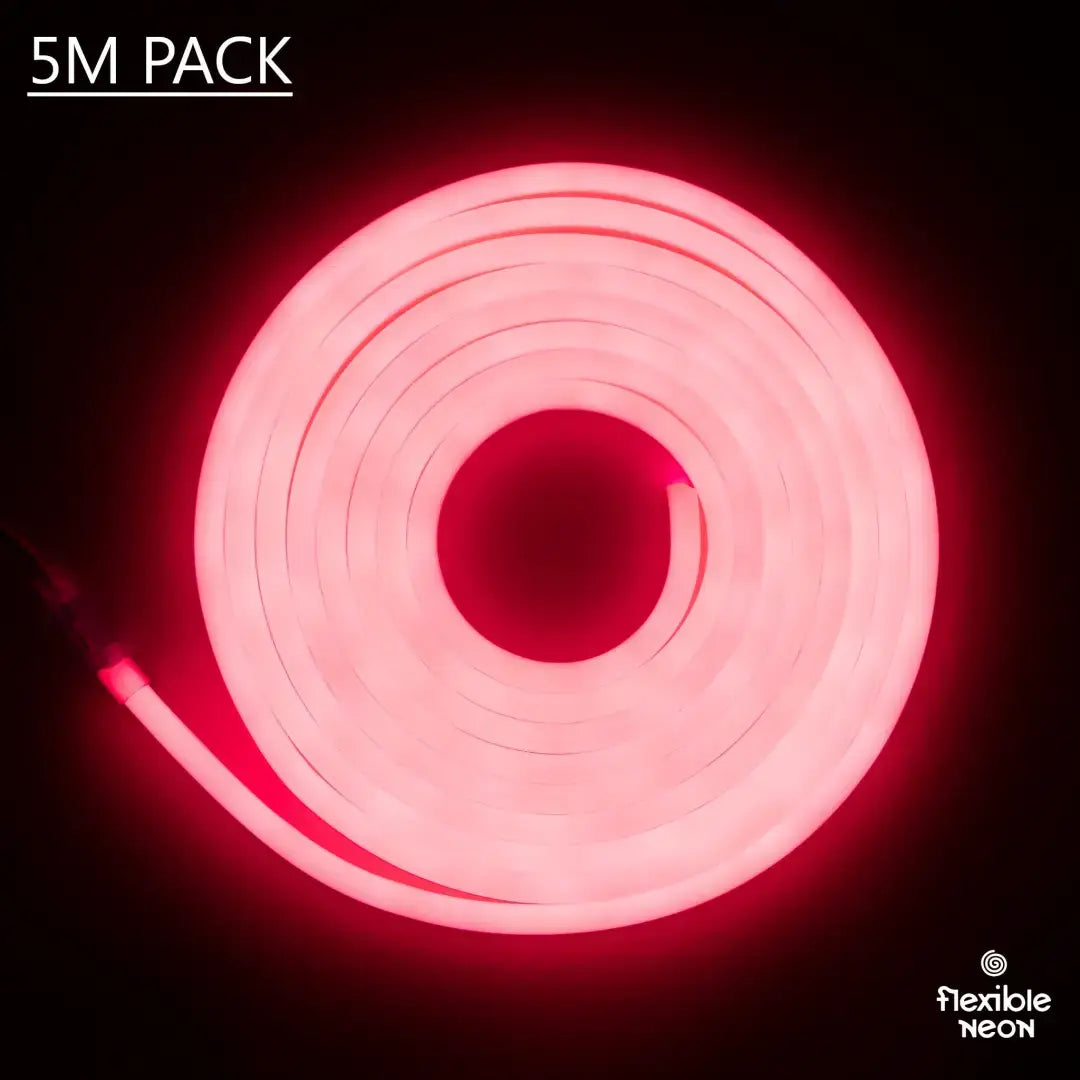

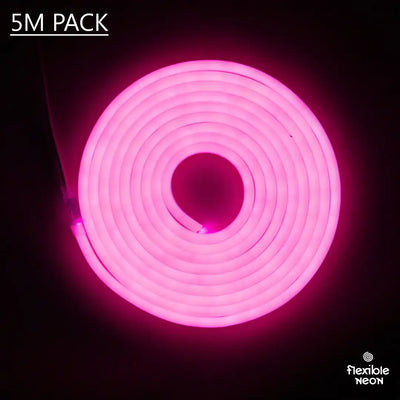

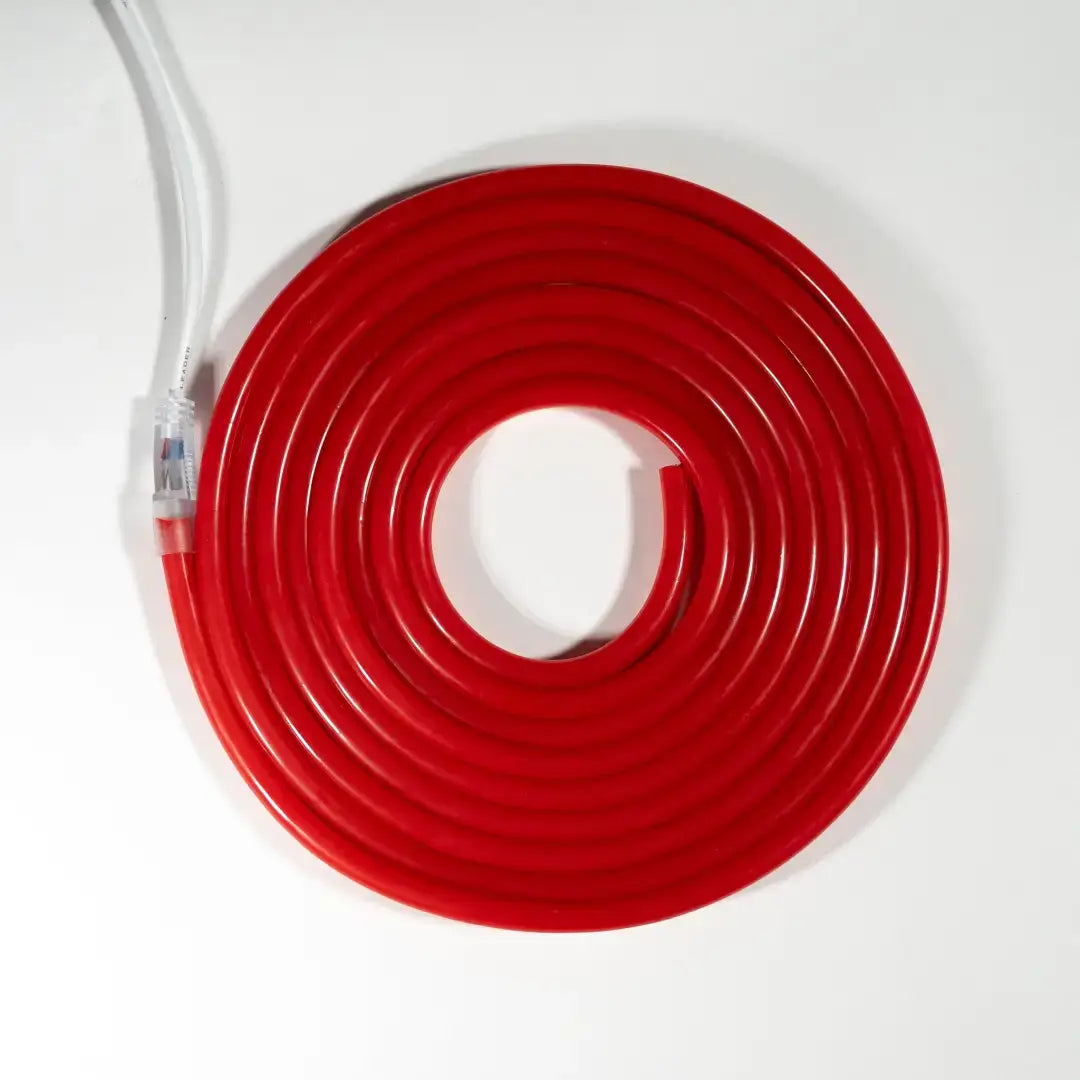

Our 8x10x16mm PVC Flex Neon is a cost-effective, commercial-grade lighting solution designed for signage, architectural accents, retail displays, and creative DIY projects. Supplied in a convenient 5 meter pack, this side-bending neon delivers smooth, 270° light output with a clean round dome finish.

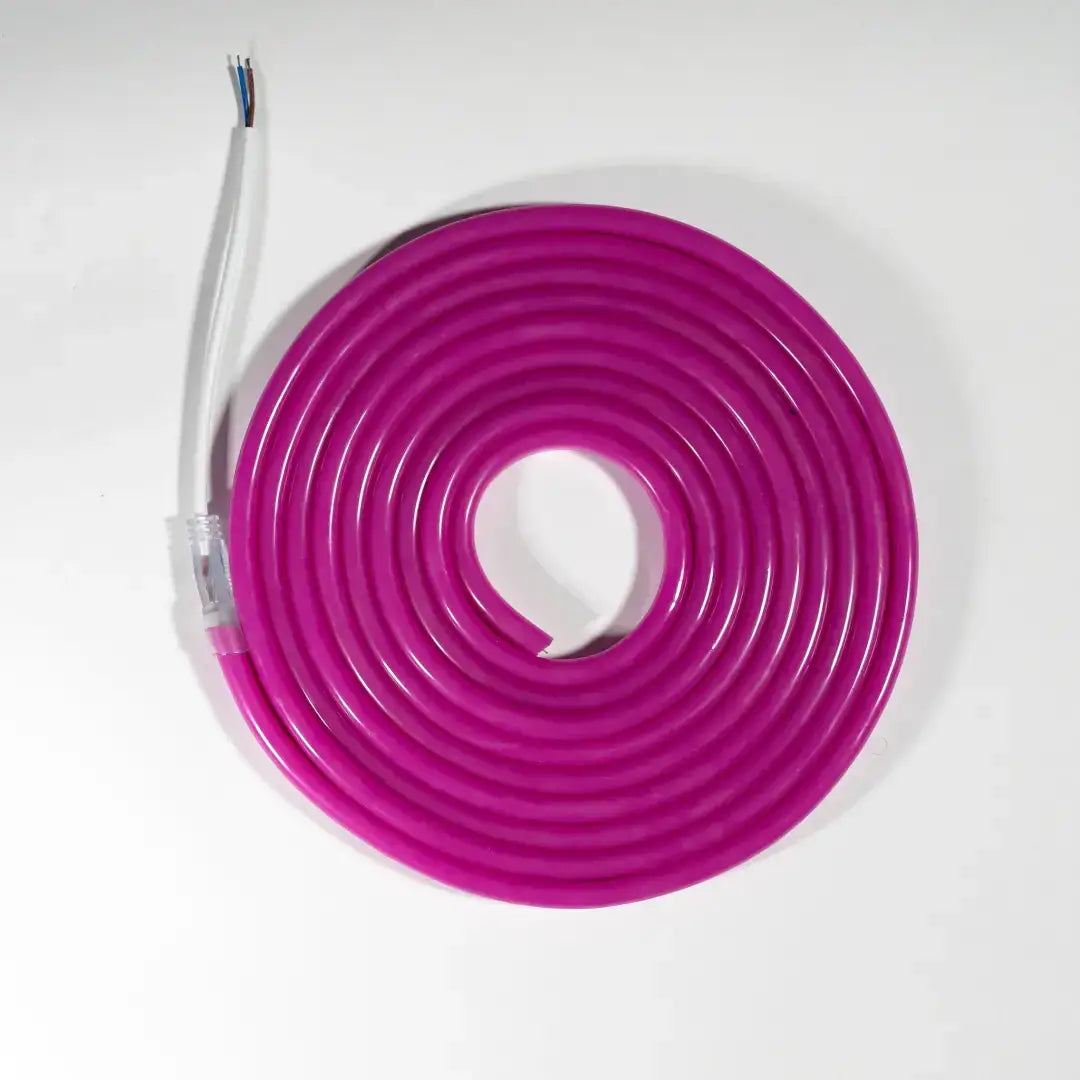

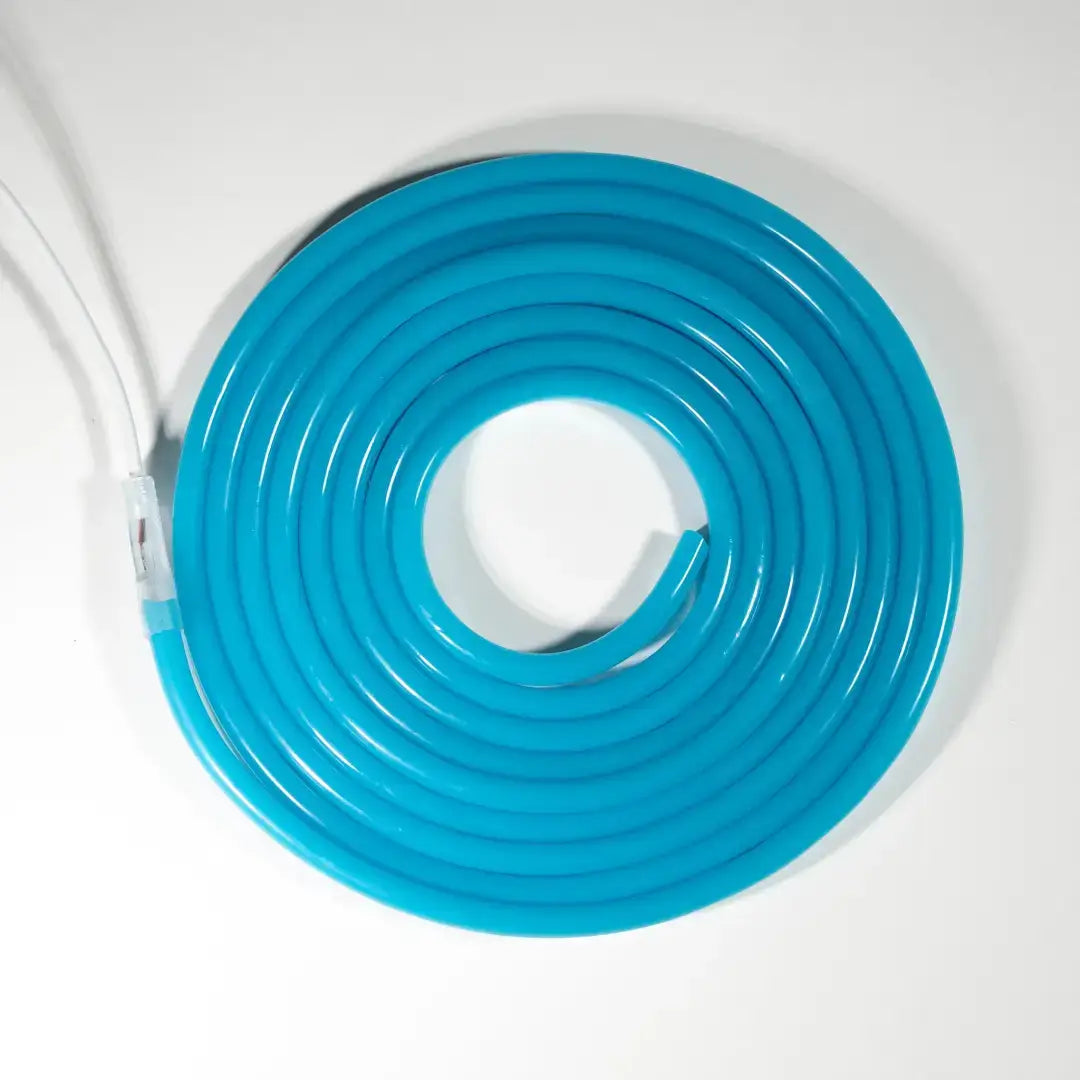

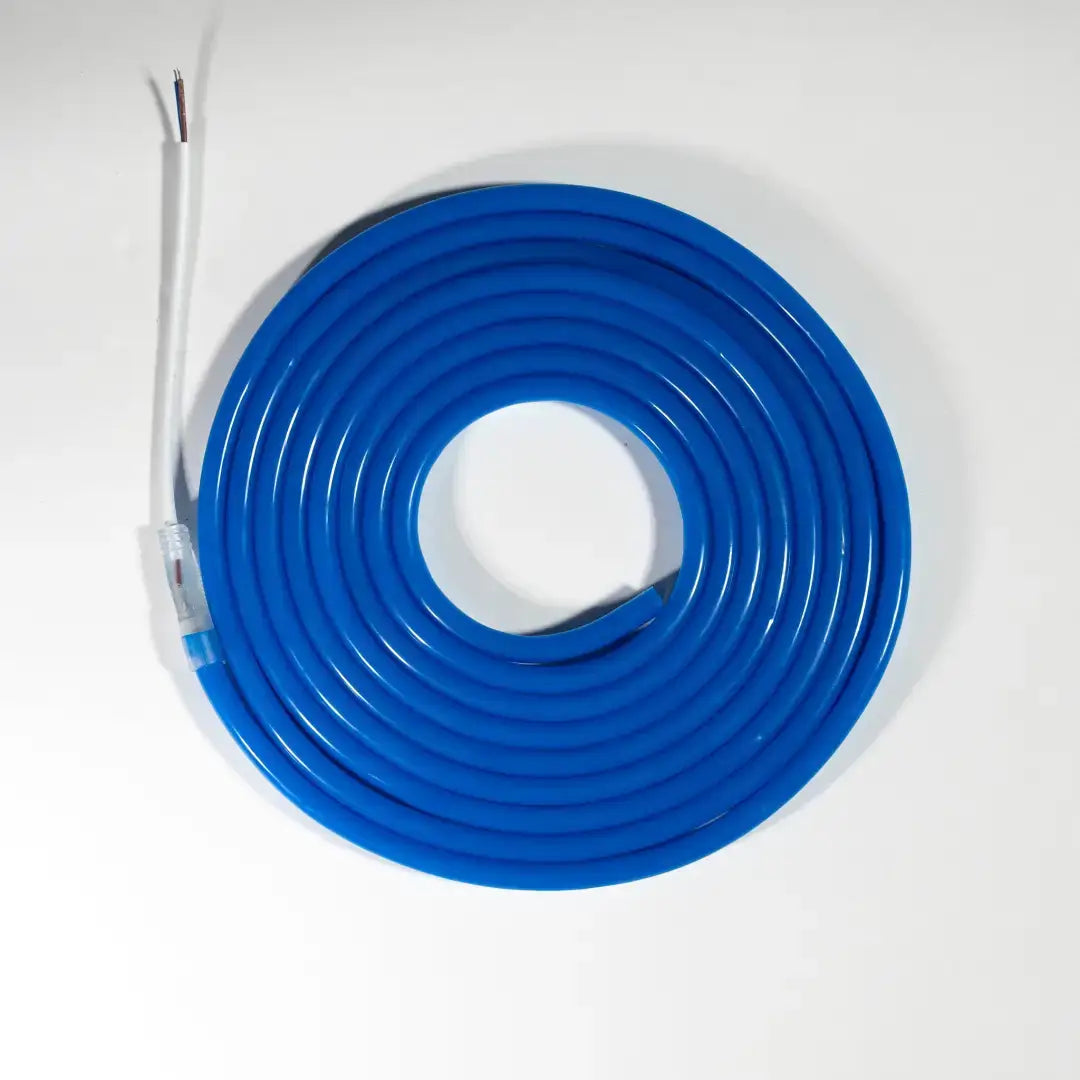

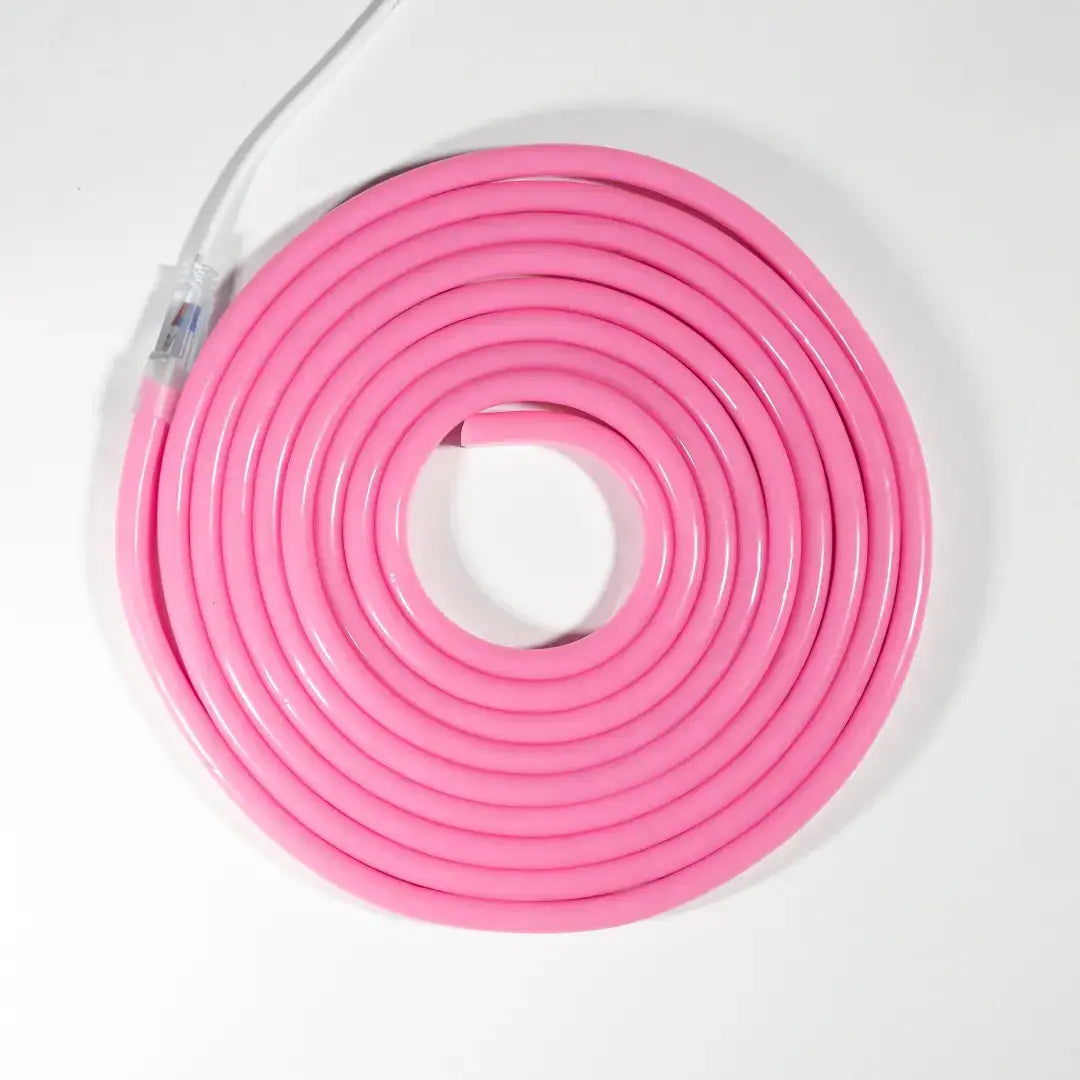

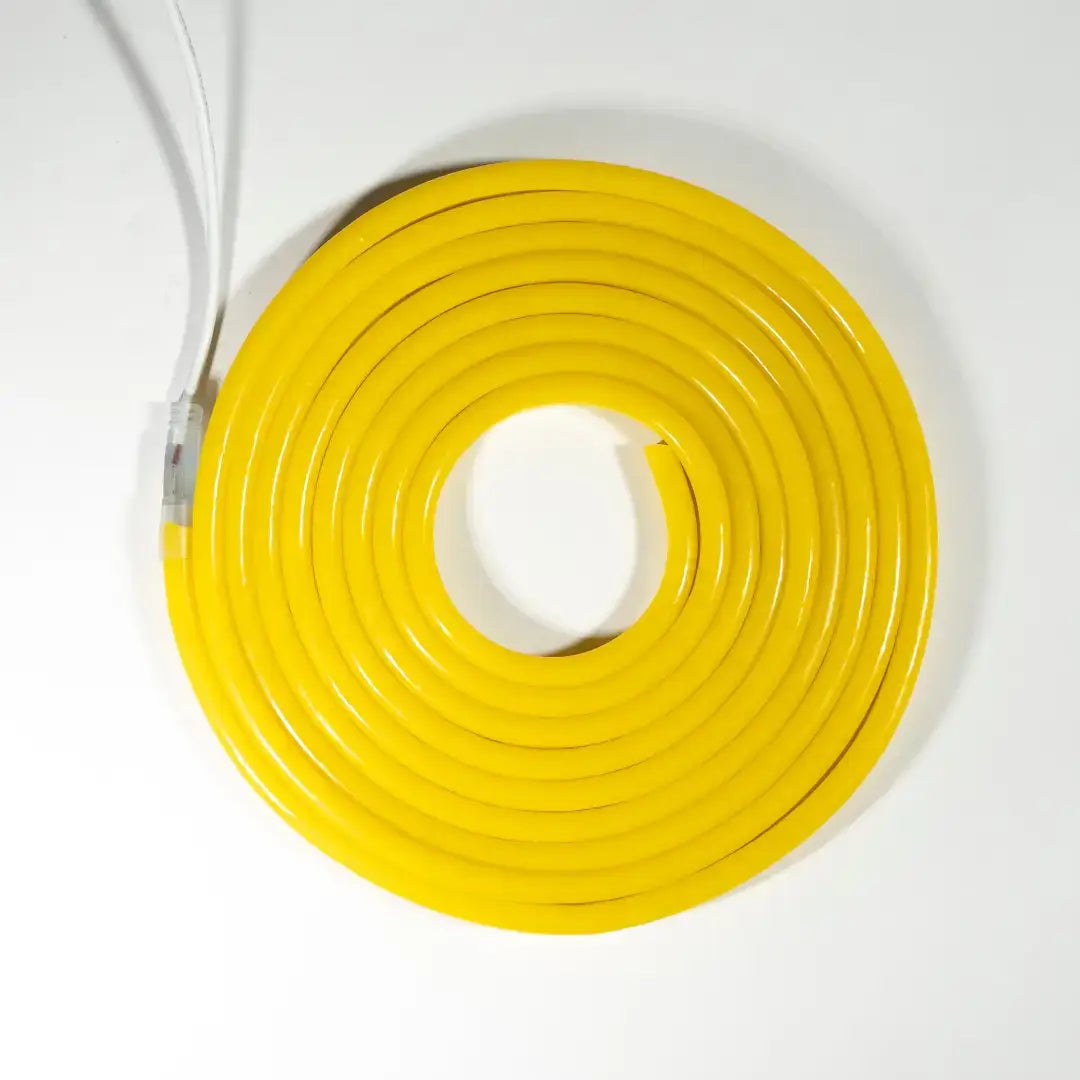

Available in 12 vibrant colour options, you can select the perfect shade to suit your project — whether you’re creating bold signage, subtle feature lighting, or eye-catching installations.

Please Note: This product does not come with soldered ends (no wire attached). Neon will need to be soldered before installation.

Installation Instructions:

  1. Soldering: Solder the neon ends and use silicone glue for attaching end caps, or opt for pre-soldered ends.
  2. Extension Cable: Use appropriate extension cables between the strip and the LED driver.
  3. Connecting: Attach cables to the driver using WAGO connectors. Wires are marked for safe, low-voltage connection.
  4. Mounting: Secure using mounting channels, clips, routed channels, or silicone glue.
  5. Powering: Connect the LED driver to a wall outlet to illuminate your project.
Product Specifications

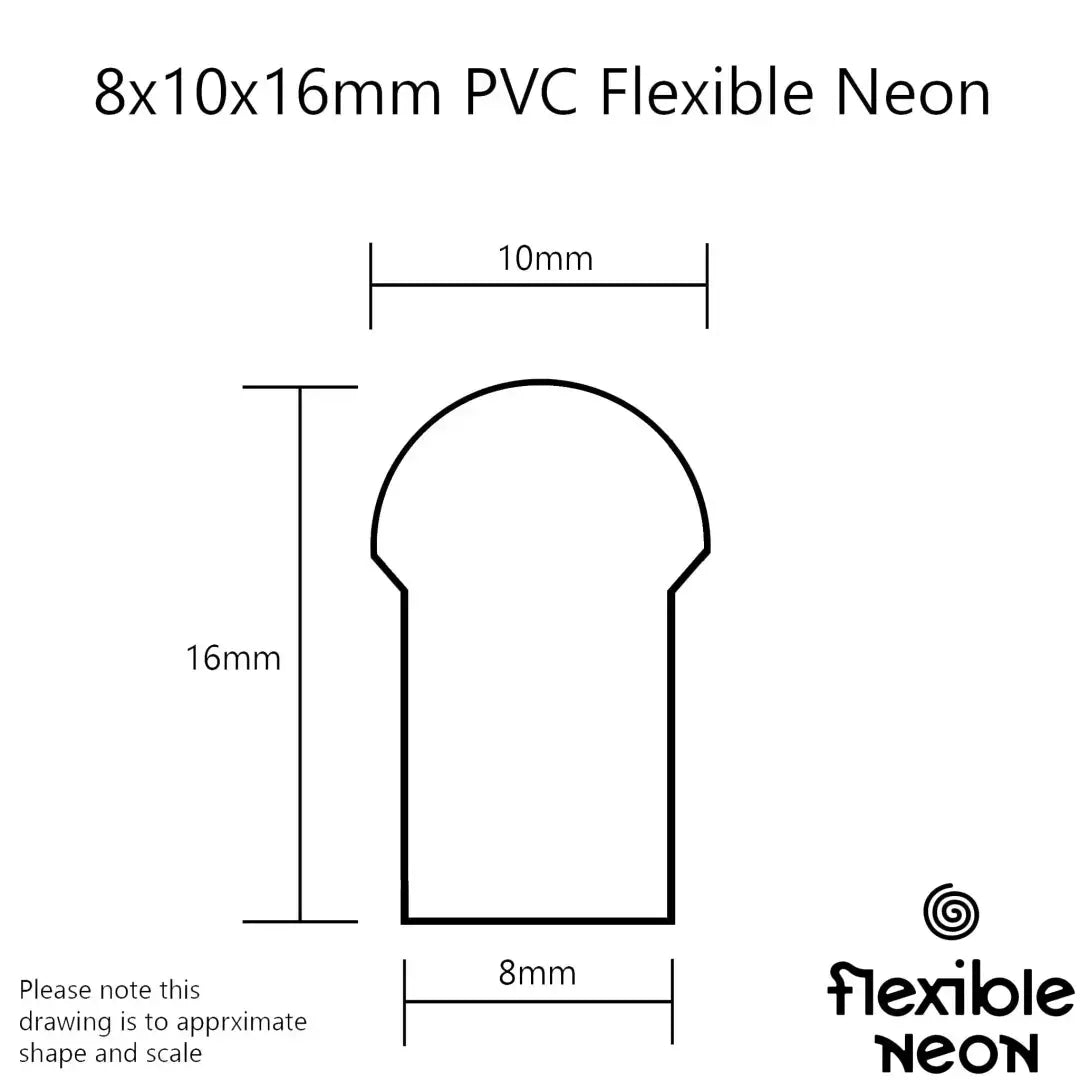

Flexible Neon Dimensions (L × Dome Size × H): 8mm × 10mm × 16mm
Material: PVC
Warranty: 1 Year

Max Run Lengths:
Single Feed: 5m @ 12V DC
Double Feed: 10m @ 12V DC

Lumen Maintenance (approx.): 30,000 hours @ 45°C

Electrical Specifications:
Voltage: 12V DC
Rated Current (A/m): 0.66A/m
Power Consumption: 8W/m

Physical Specifications:
Length: 5m
LED Type: SMD2835
Bend Type: Side Bending
LED Qty/m: 120 LEDs/m
Dimmable: Yes
Cutting Intervals: 25mm
Light Surface: Round Fixture 270°
Minimum Bend Diameter: 30mm (Horizontal Bending Only)

Temperature Ranges:
Installation: 0°C to 60°C
Operating: -20°C to 60°C
Humidity: 0–95% Non-Condensing

Safety:
IP Rating: IP65 (with appropriately rated accessories)
CRI: Ra > 80

Features:
Flame Resistant, Solvent Resistant, Saltwater Resistant, IK08 Security

Certifications:
Strictly according to testing standards of CE, ROHS, REACH and UL

The data above are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.

For further details, please read the data sheet.
