Qty = Length in Meters (e.g. 6 qty = 6m continuous)

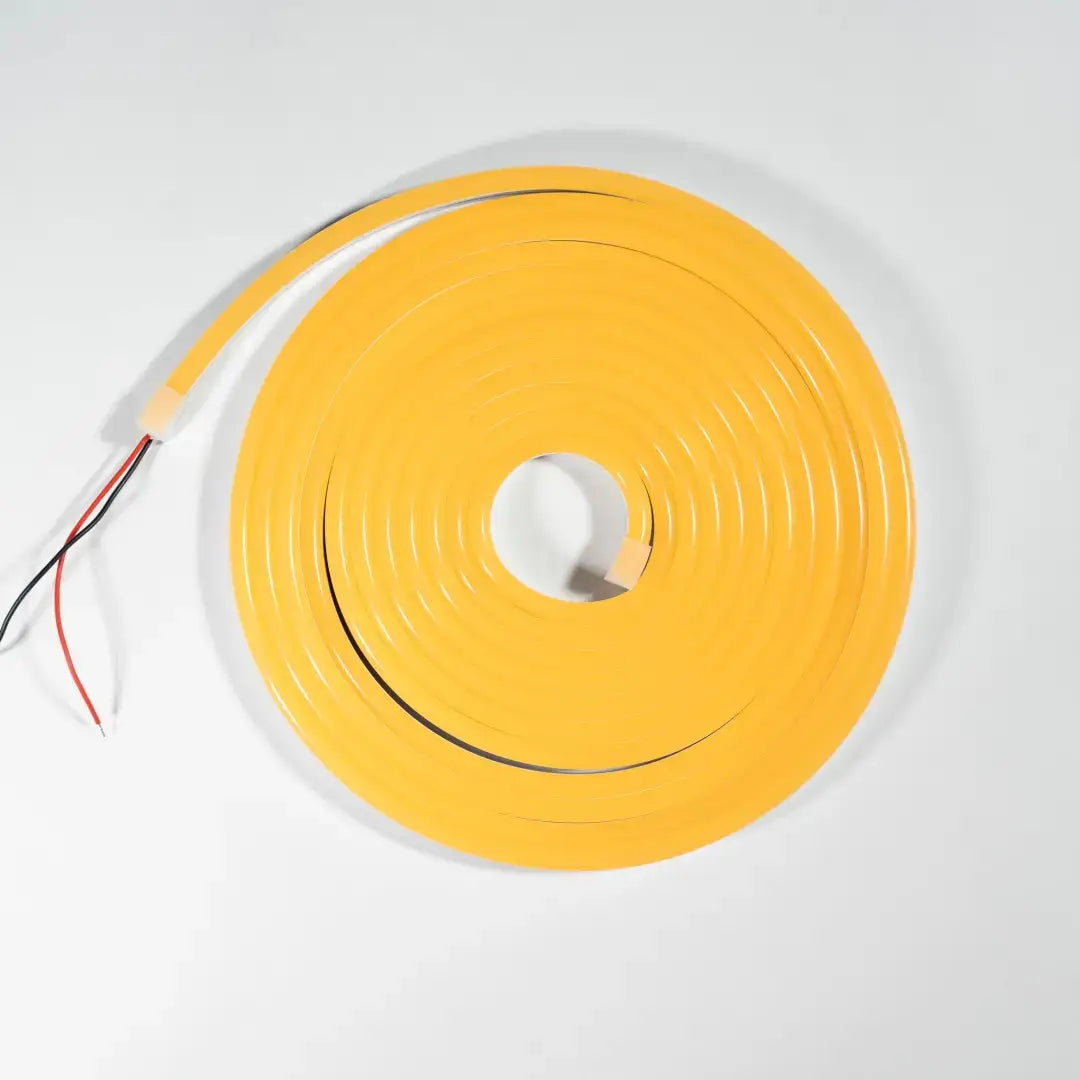

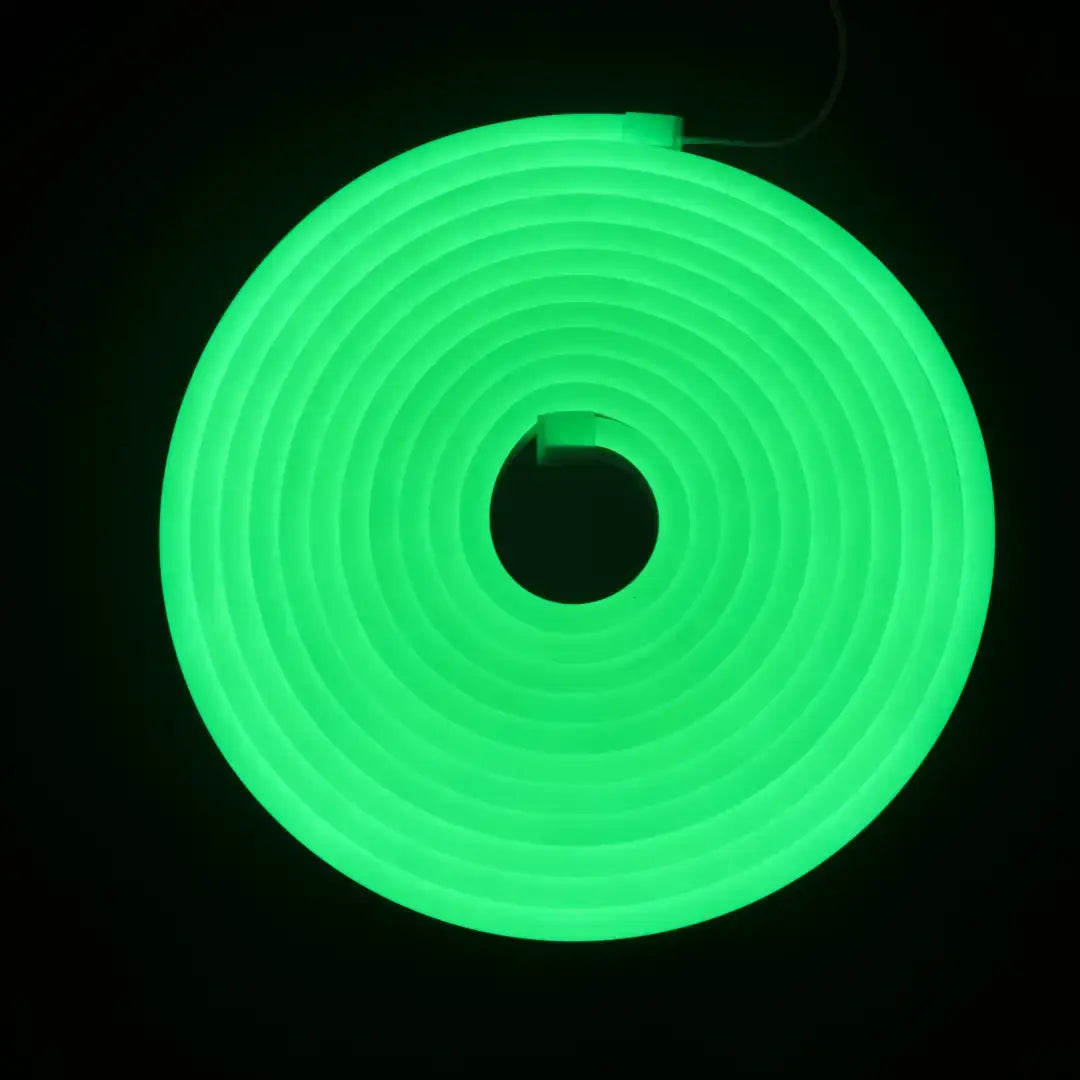

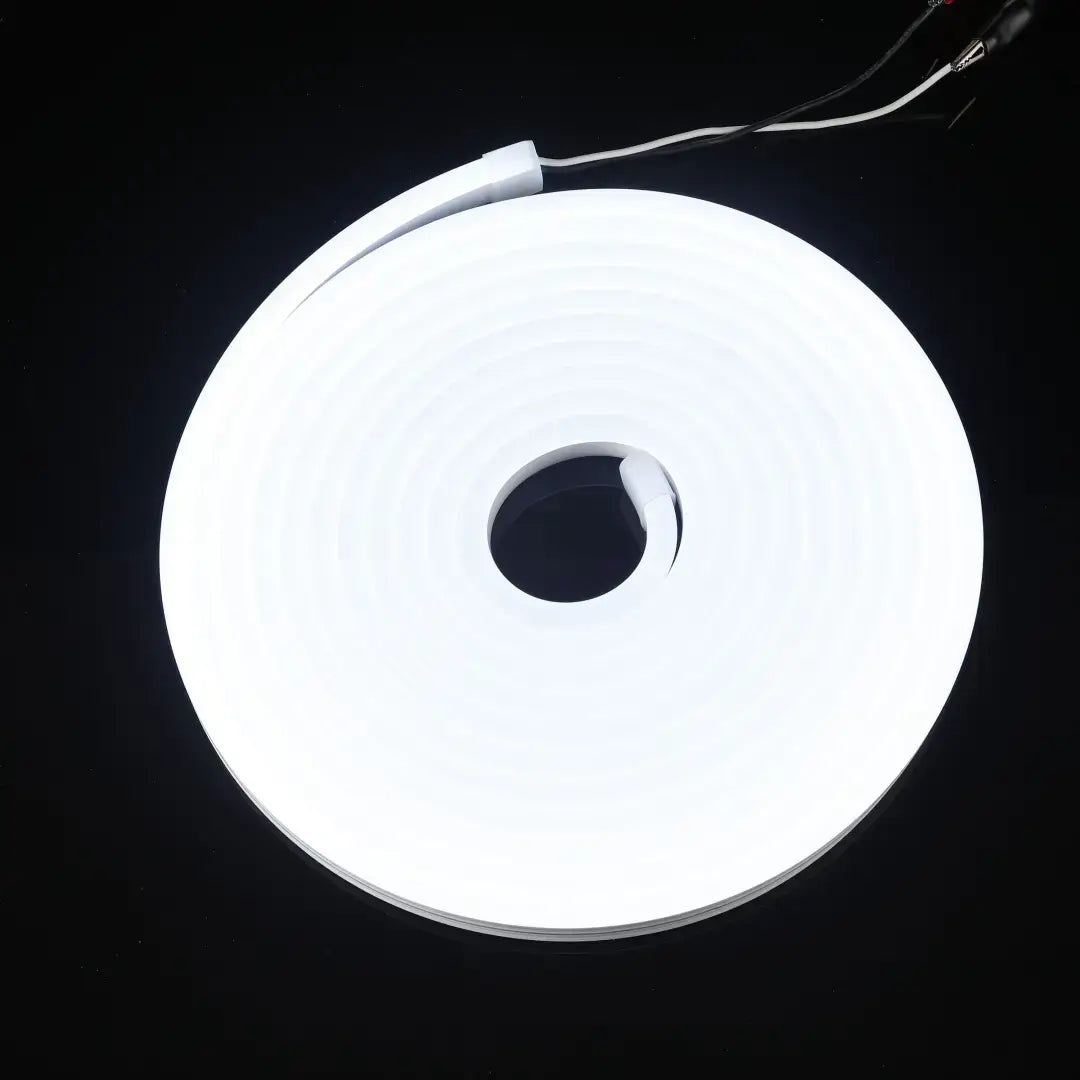

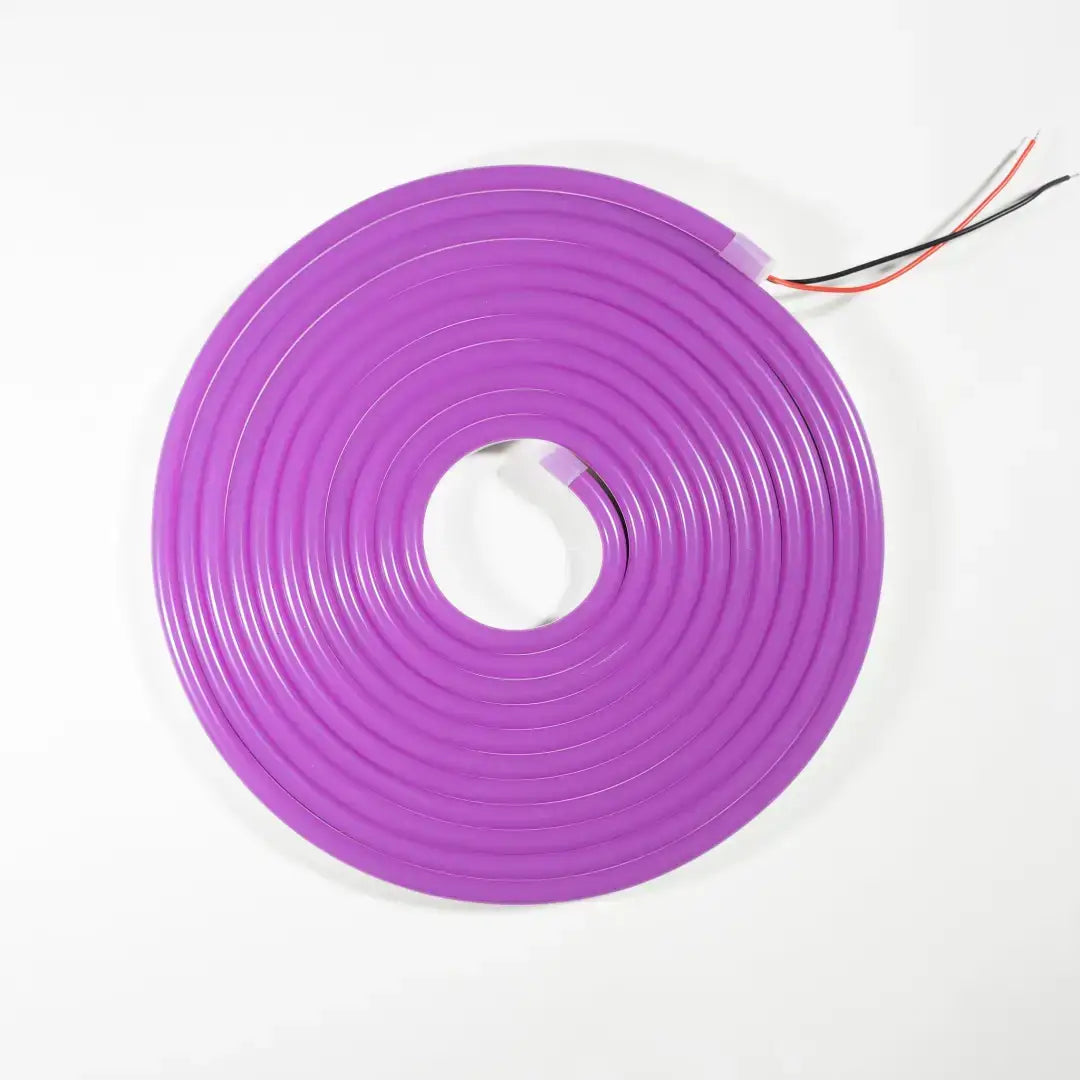

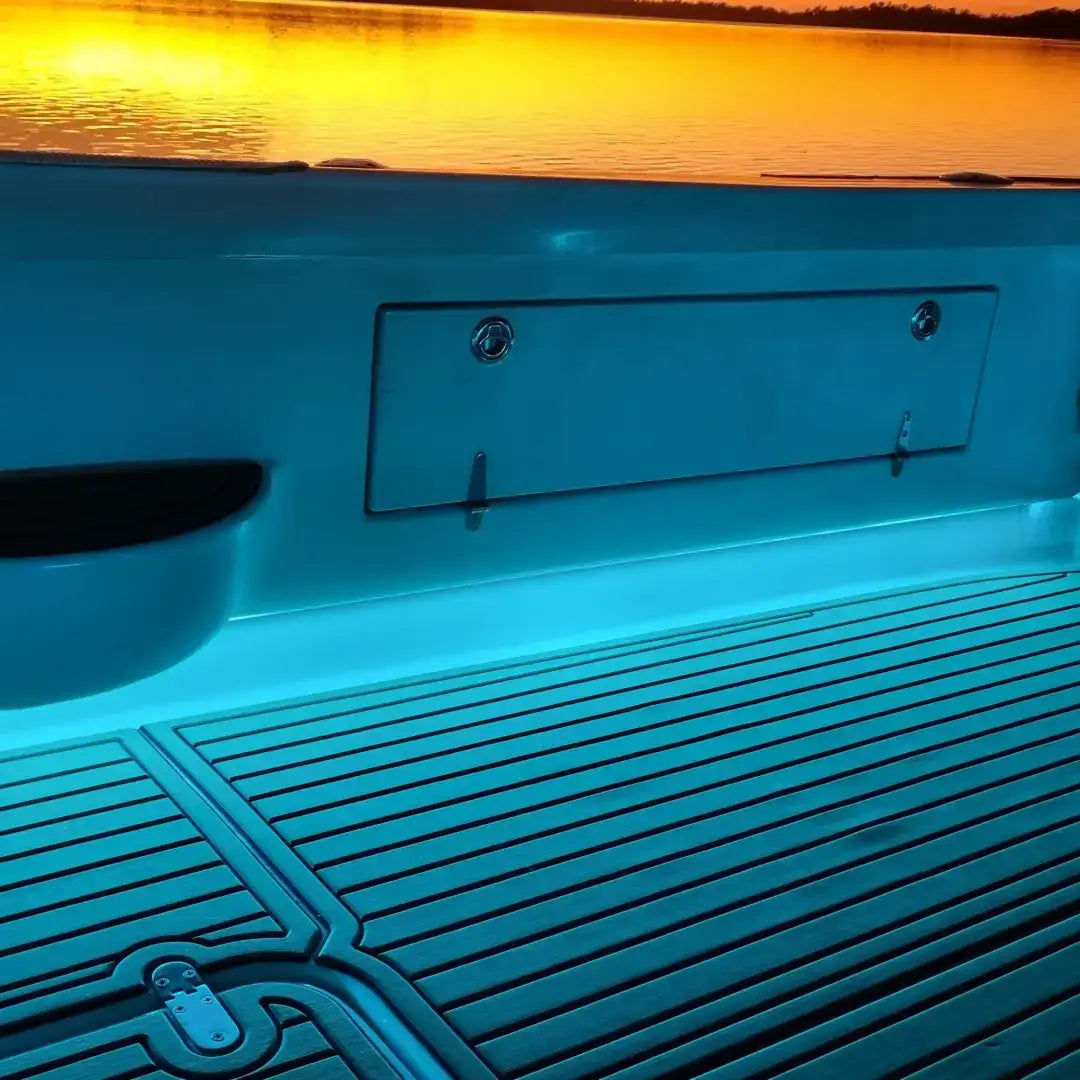

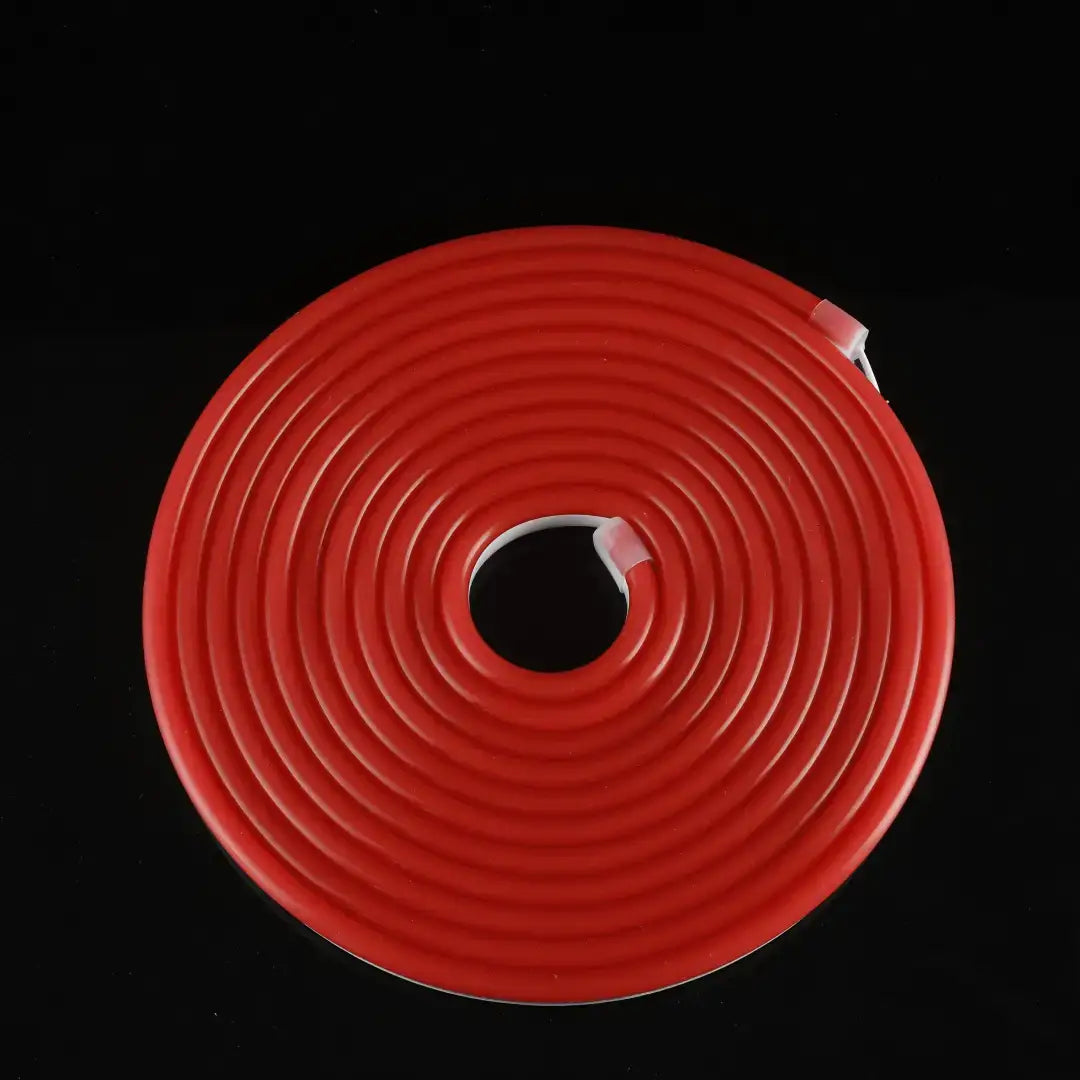

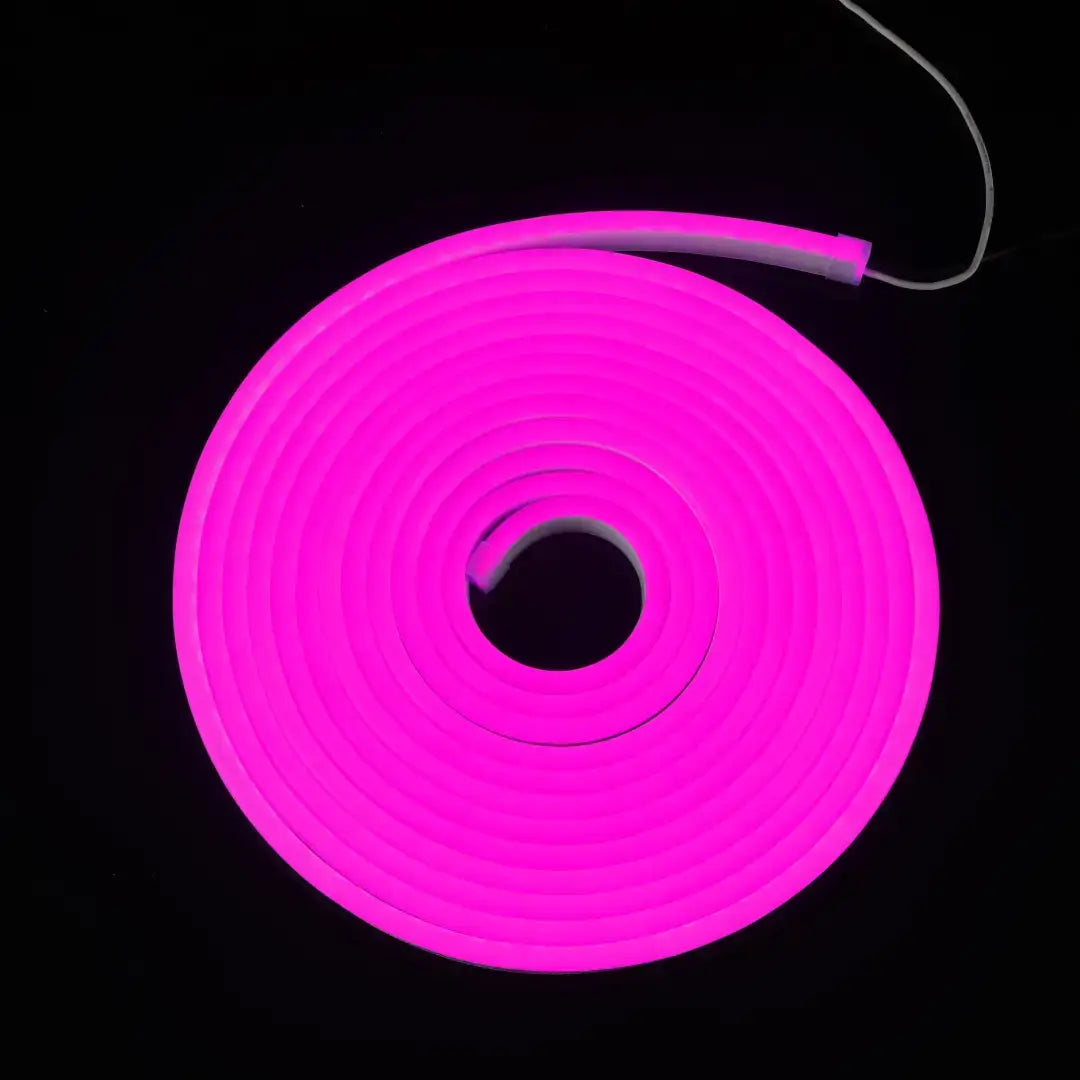

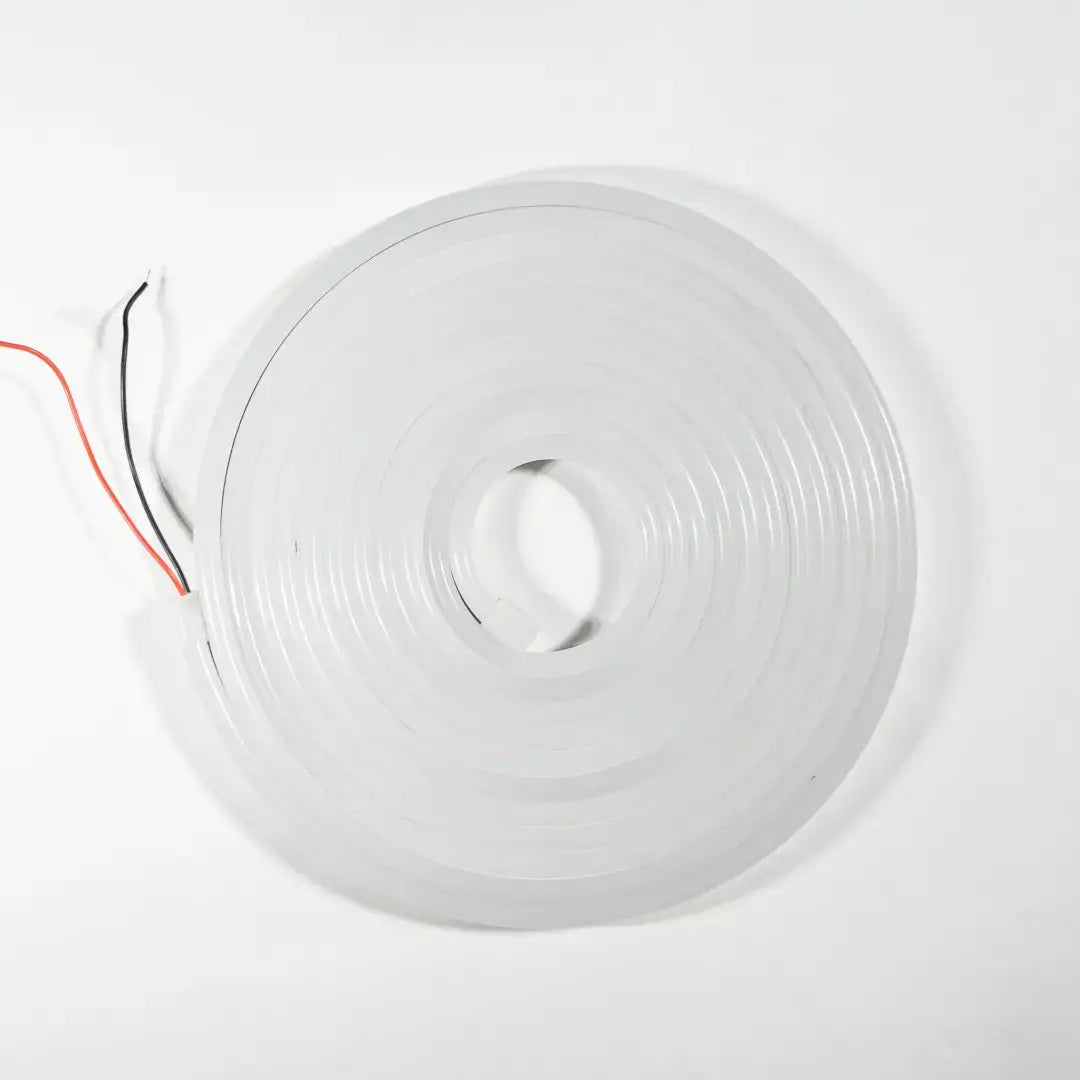

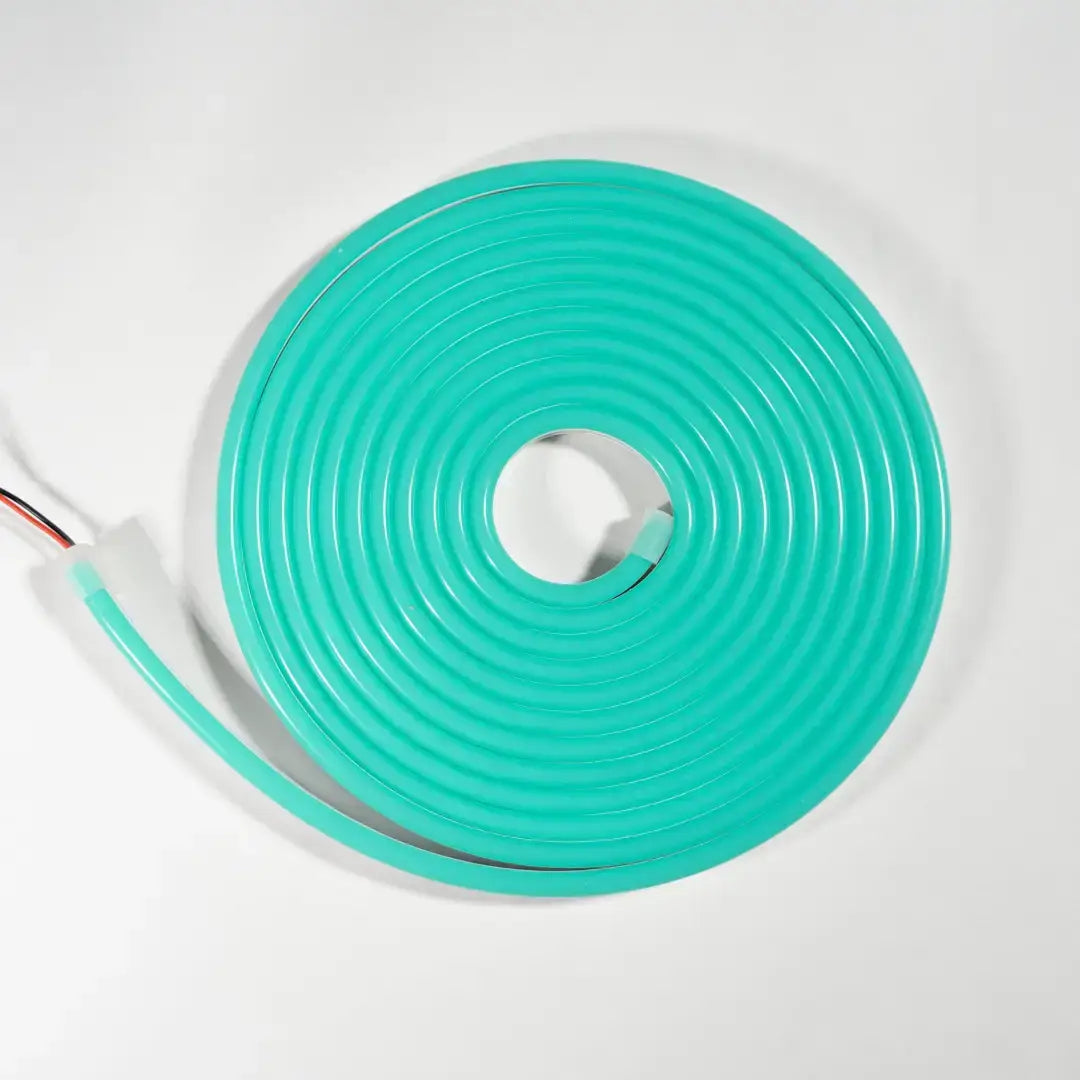

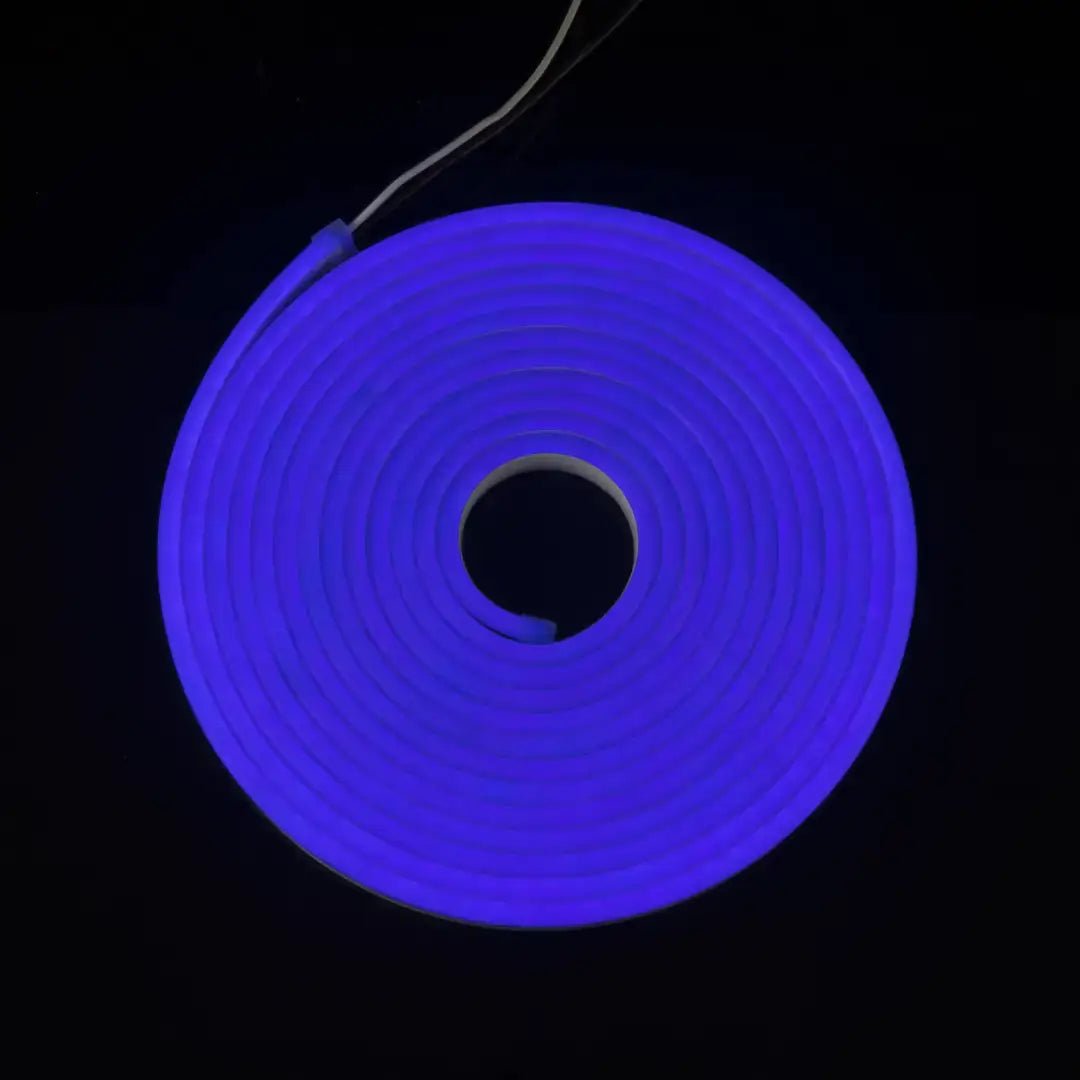

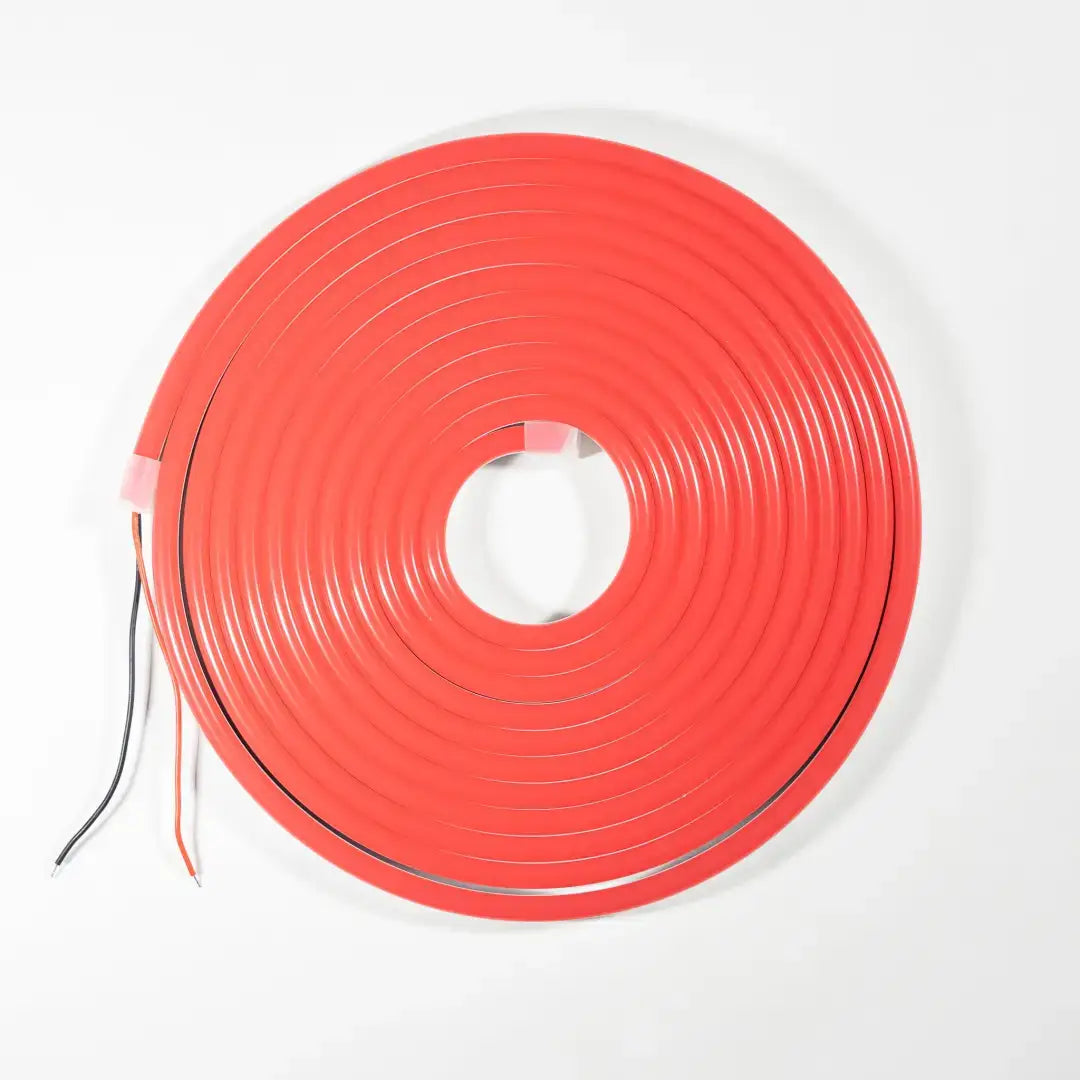

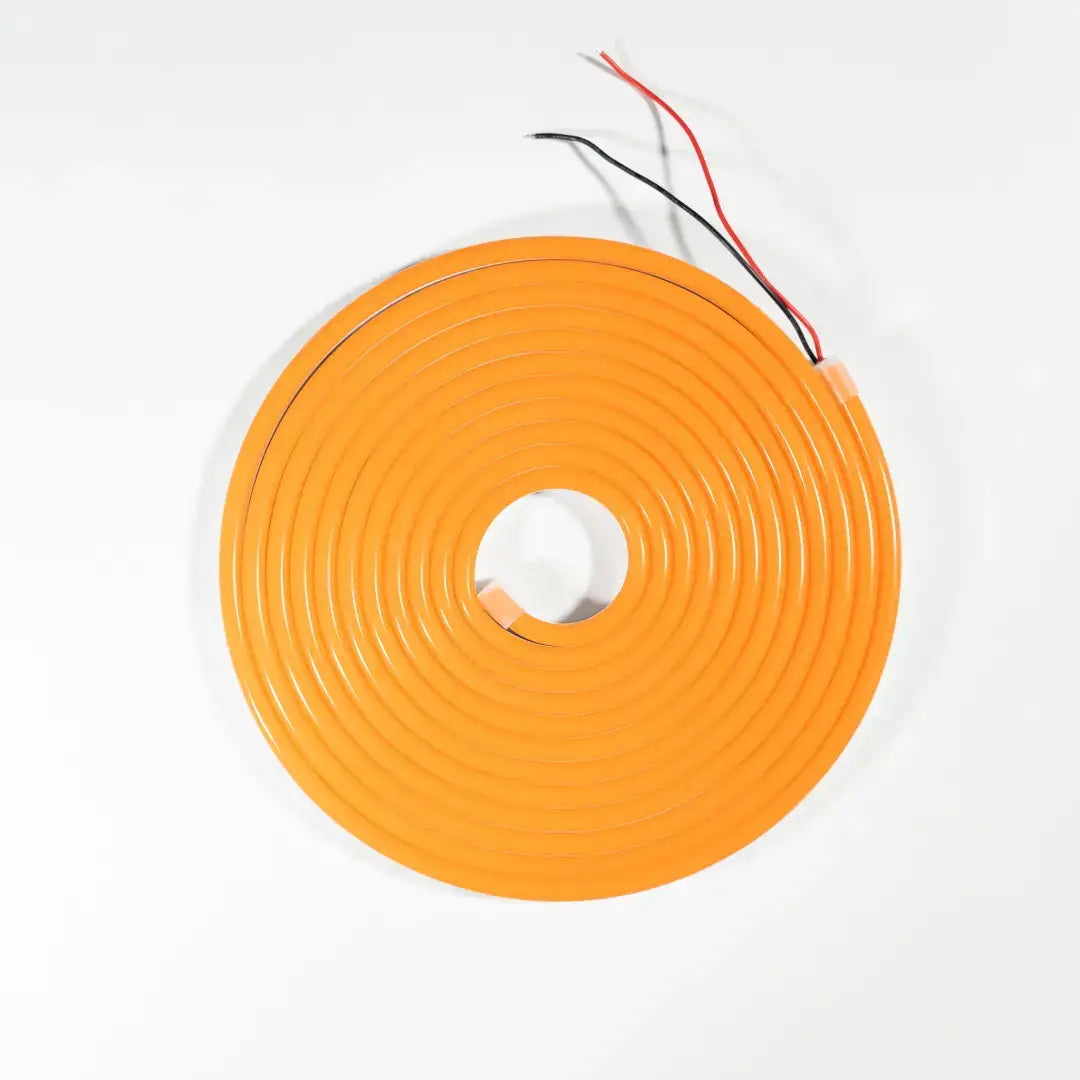

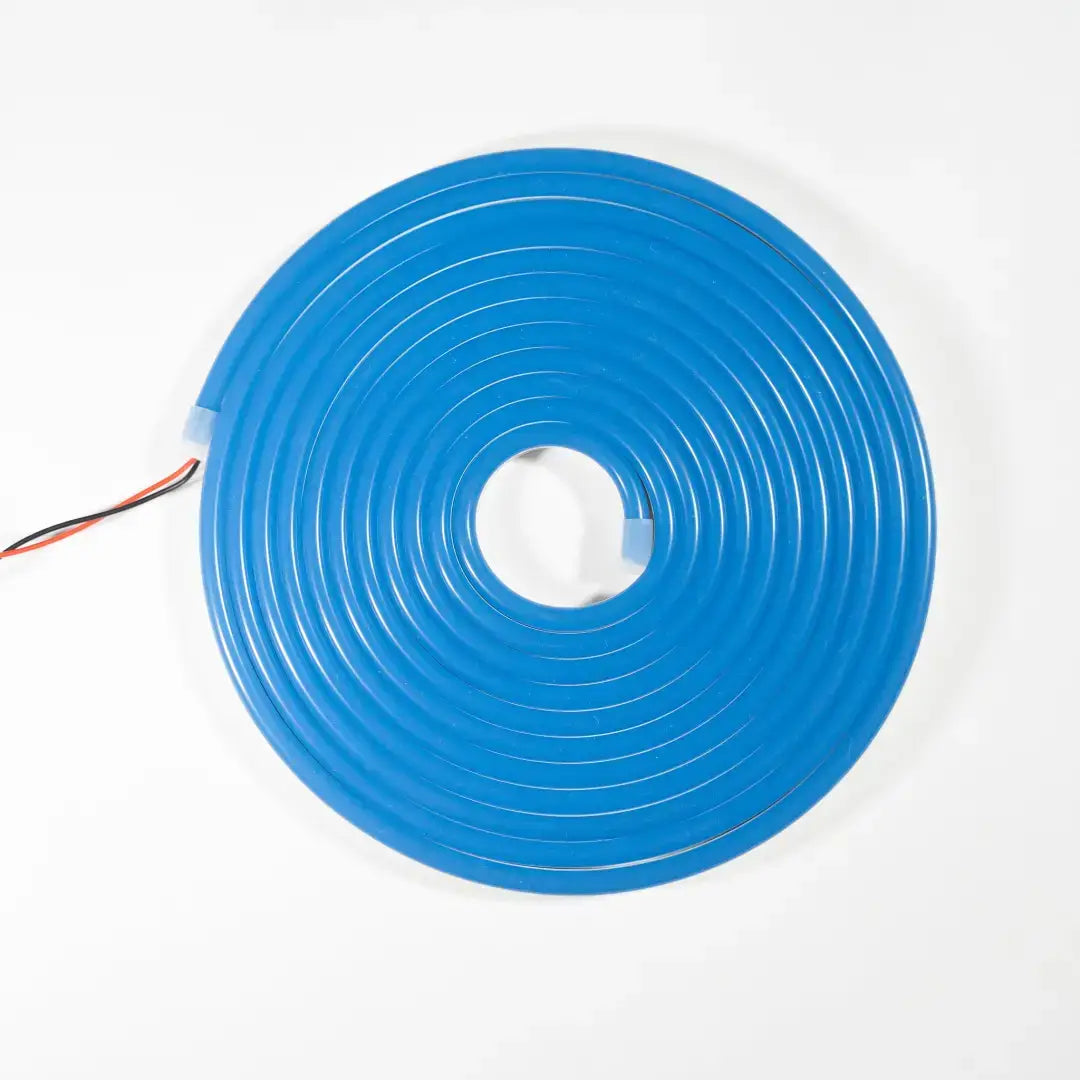

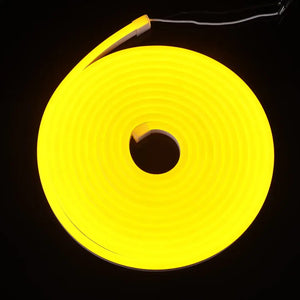

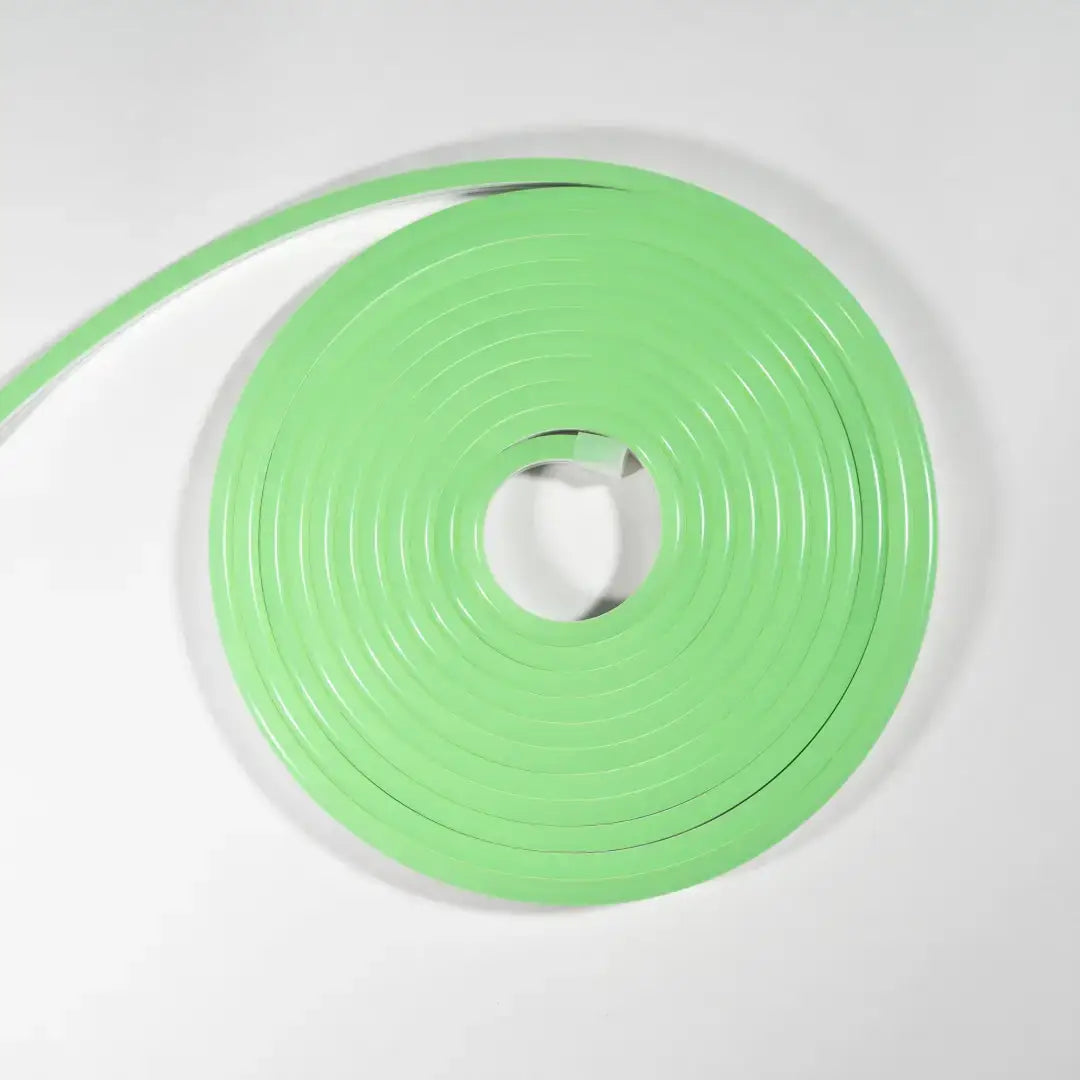

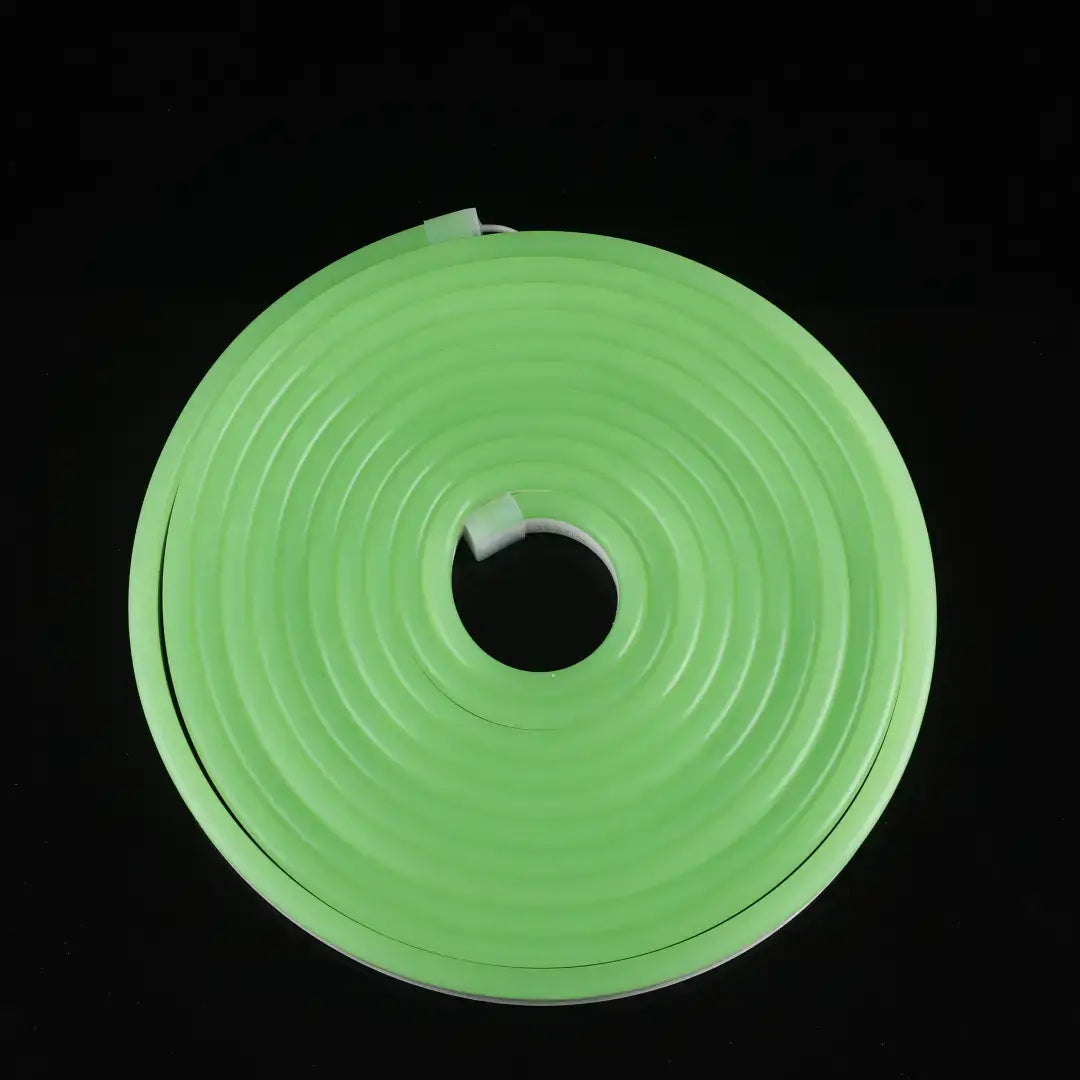

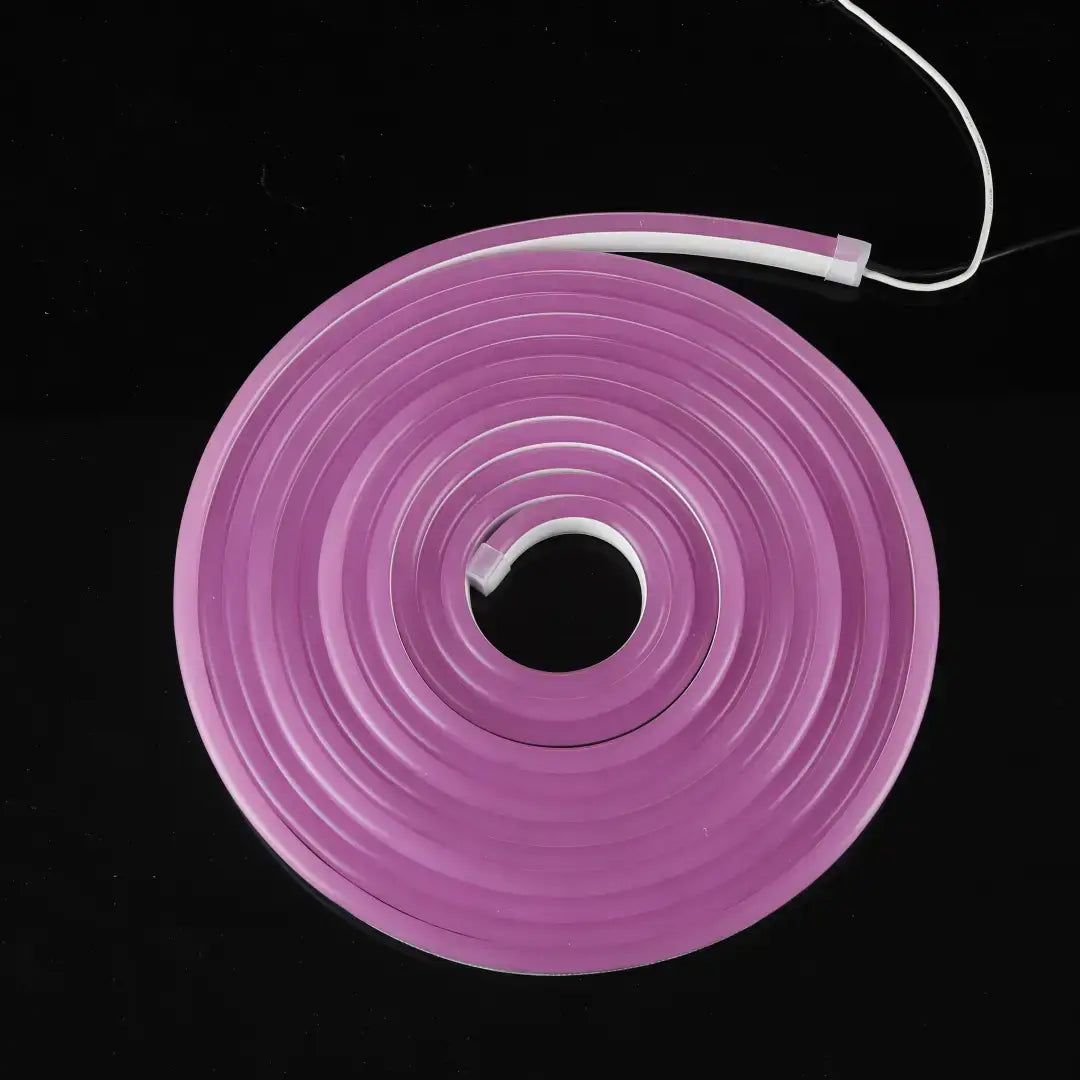

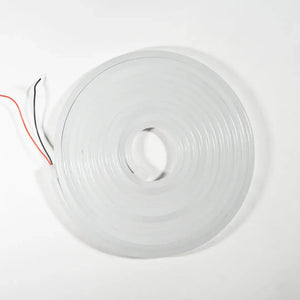

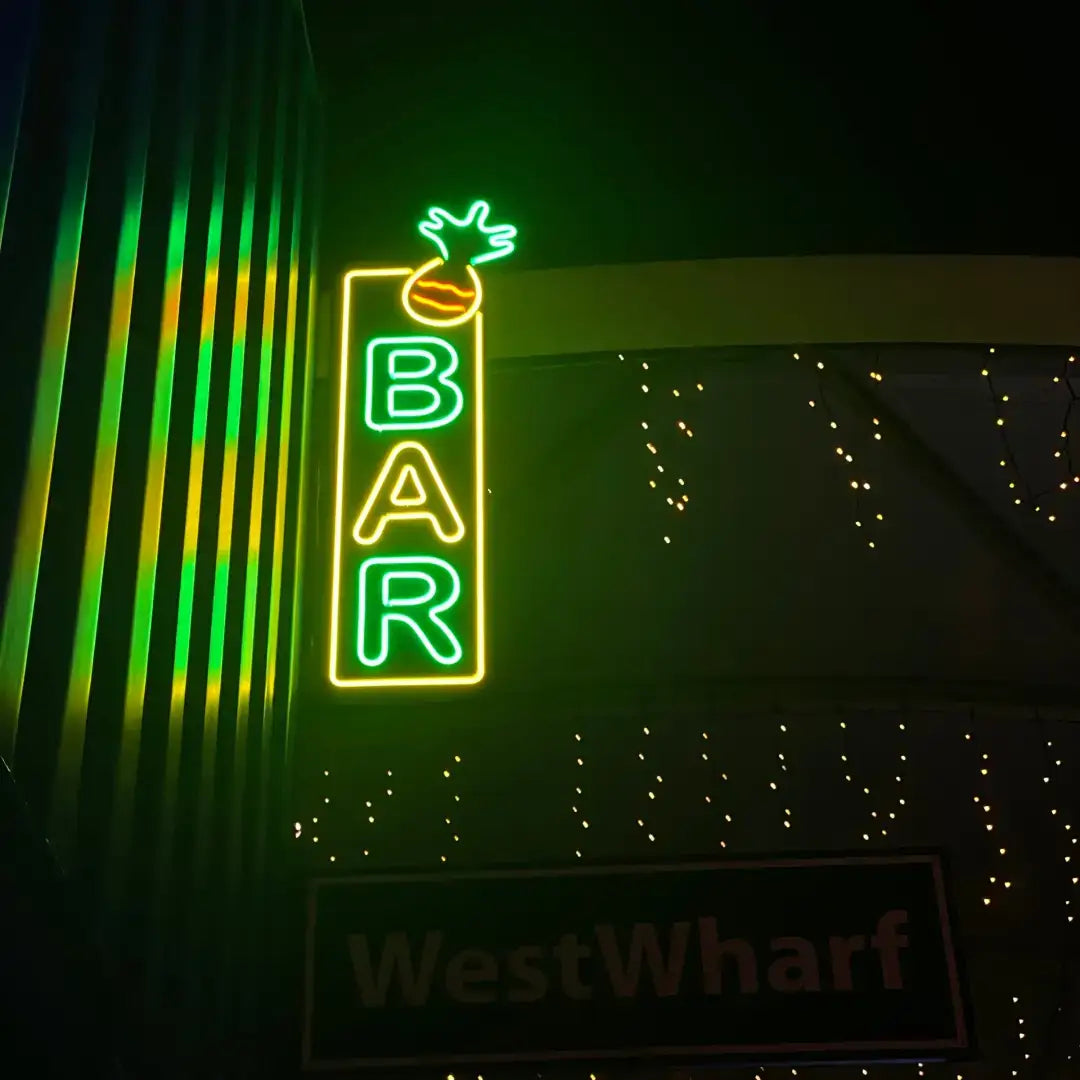

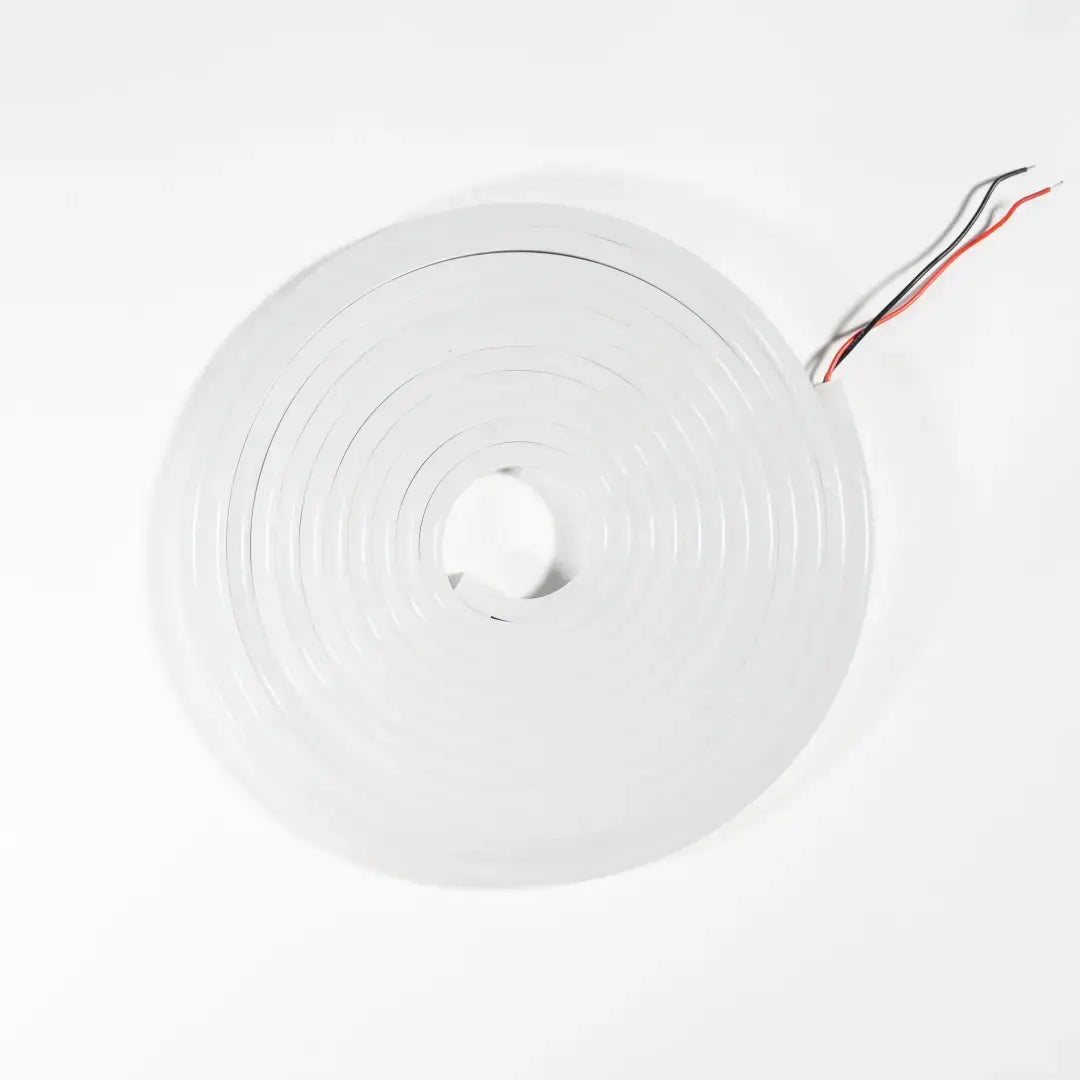

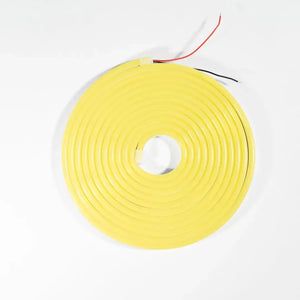

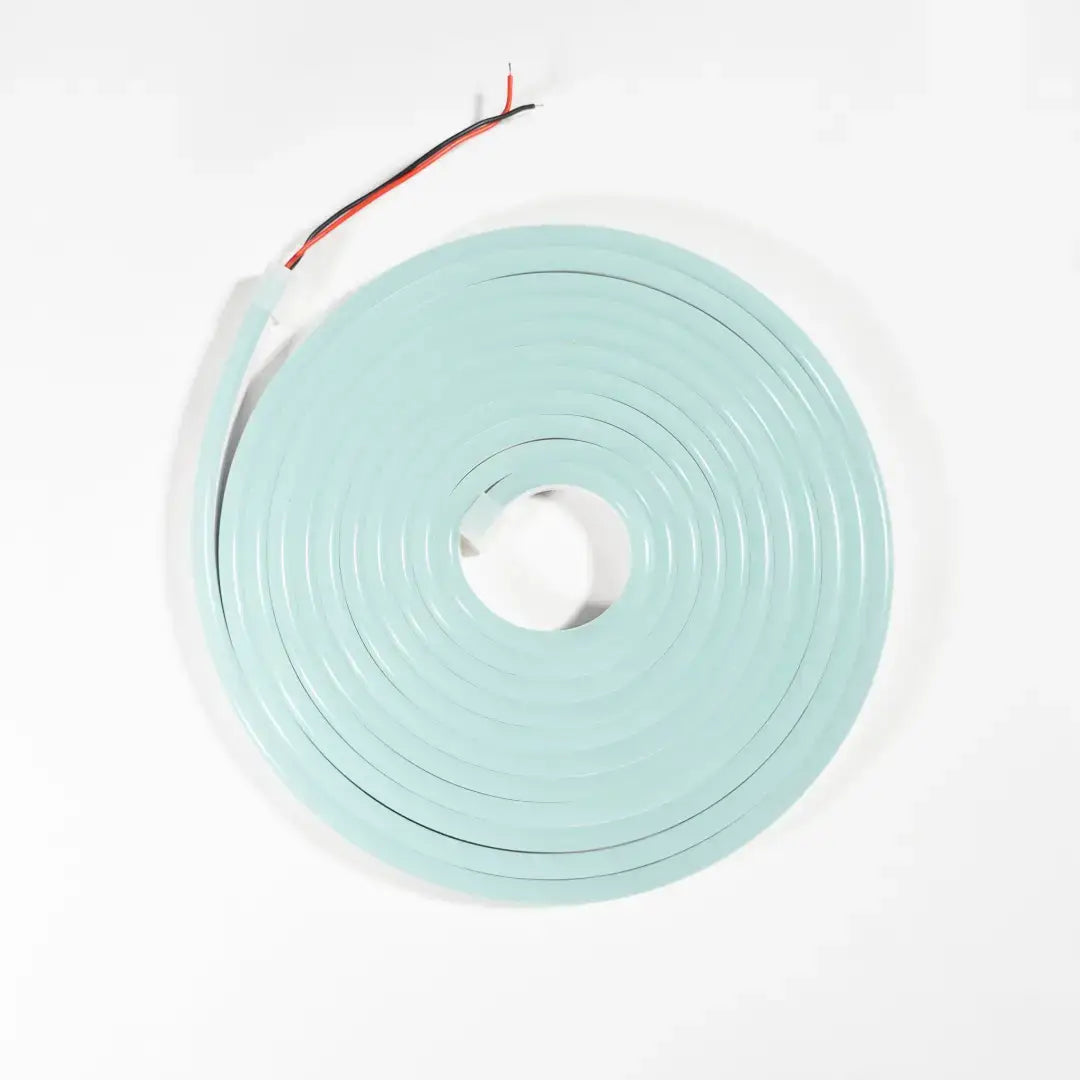

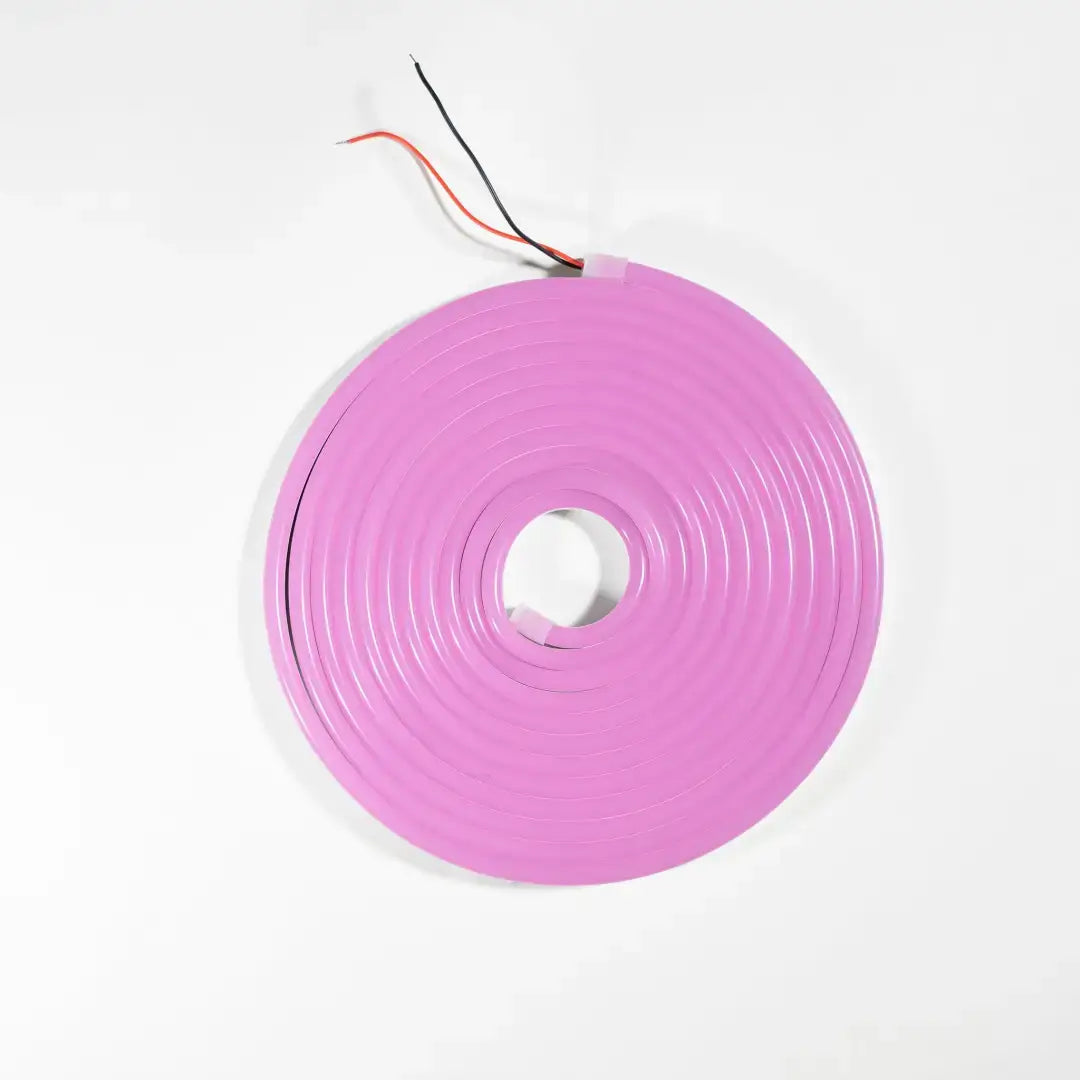

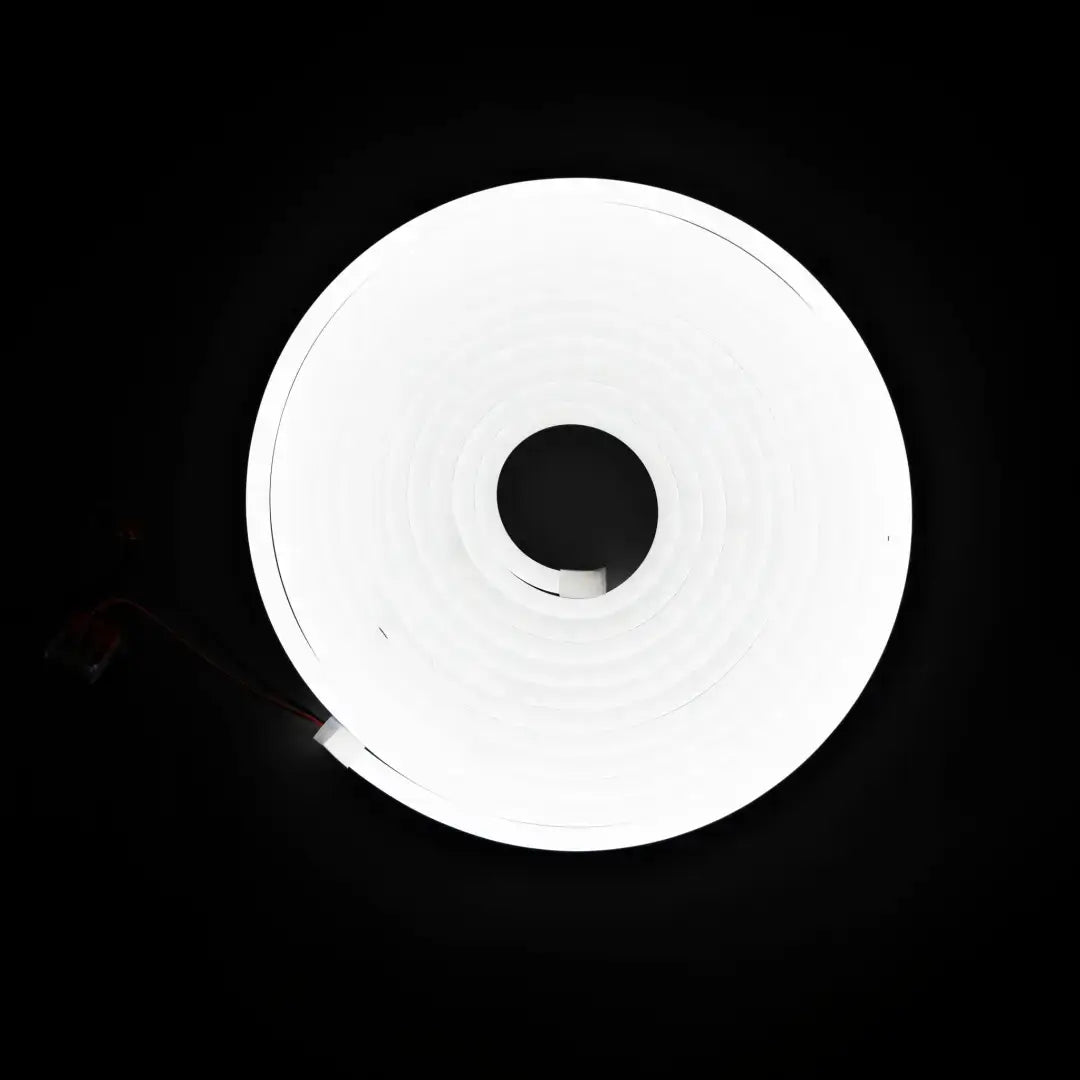

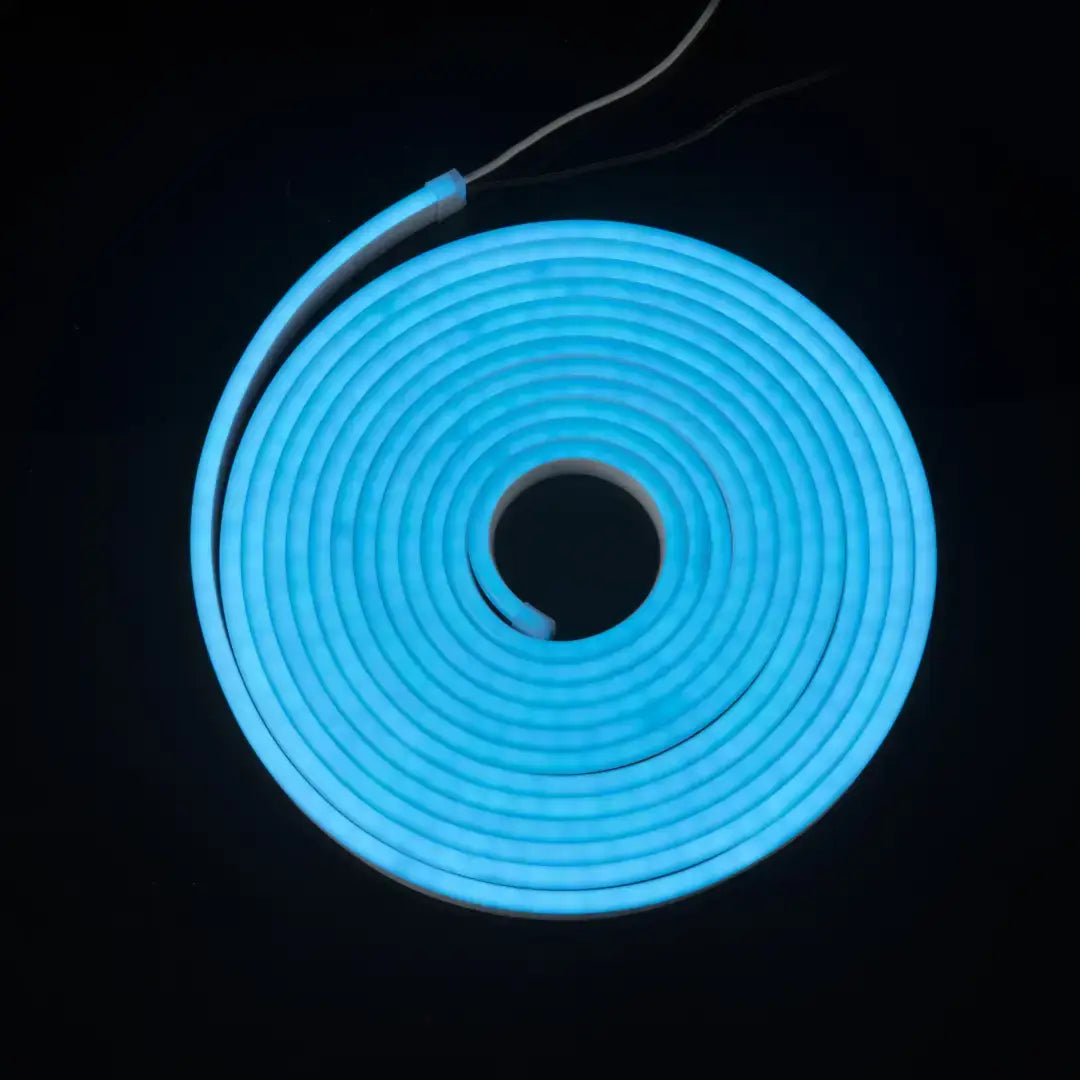

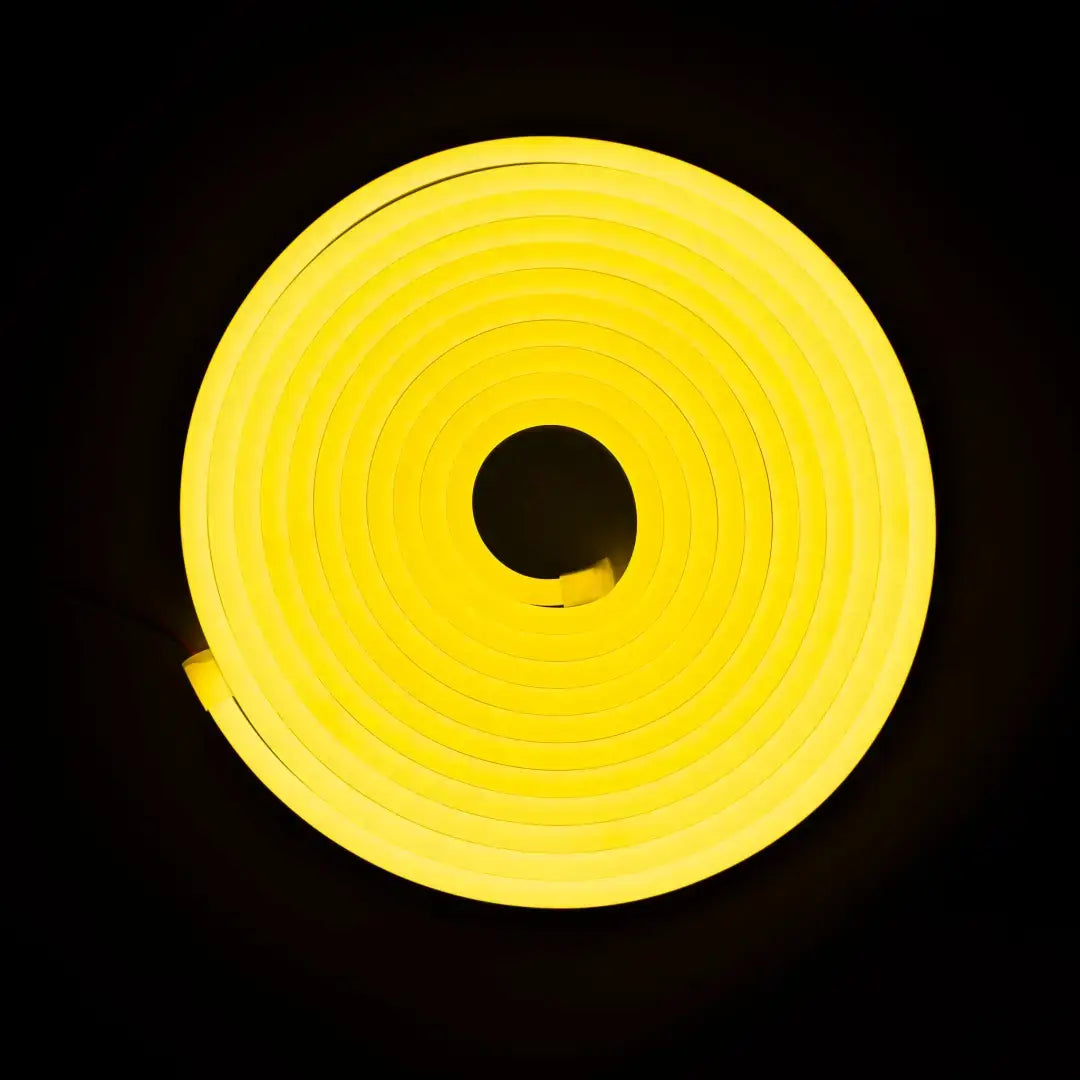

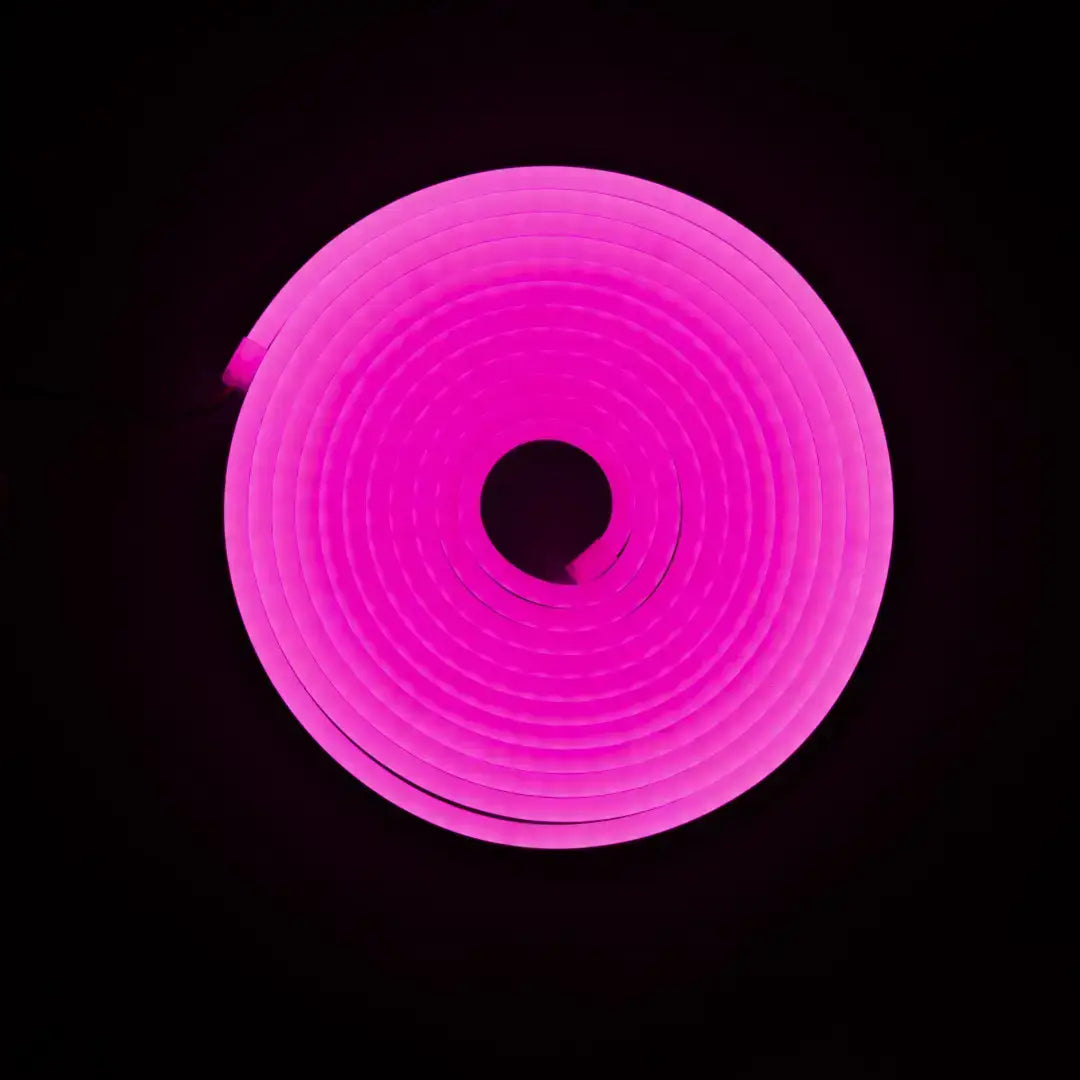

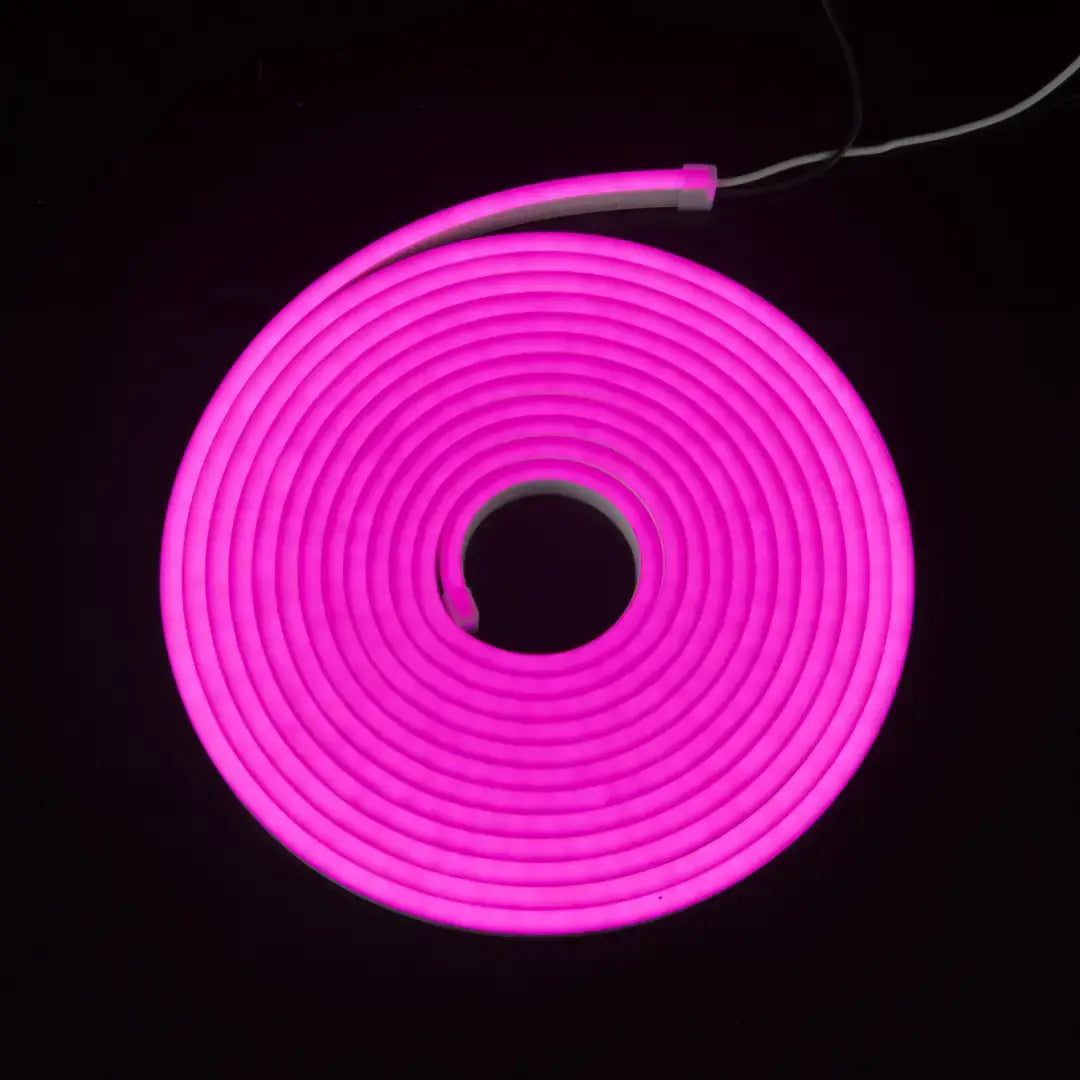

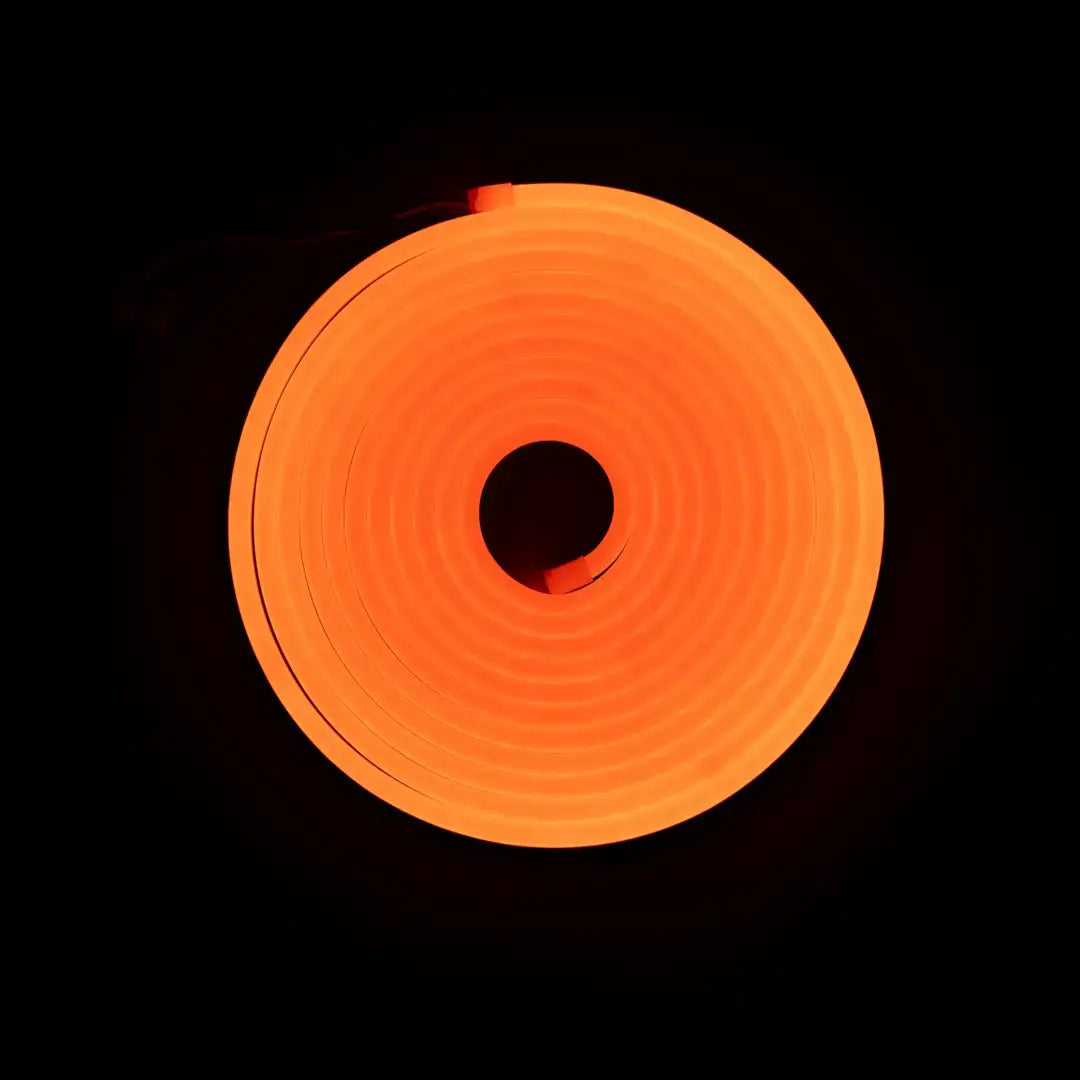

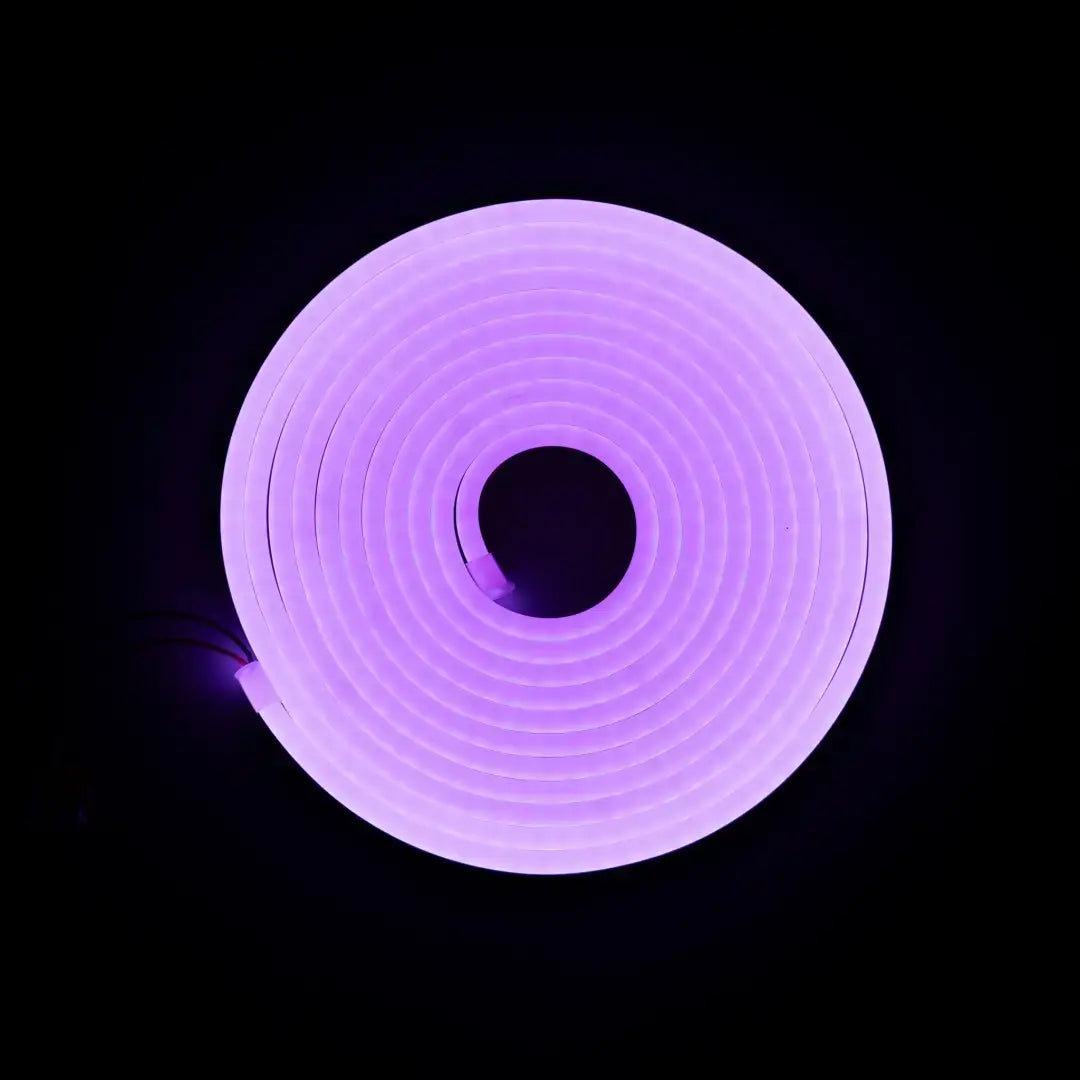

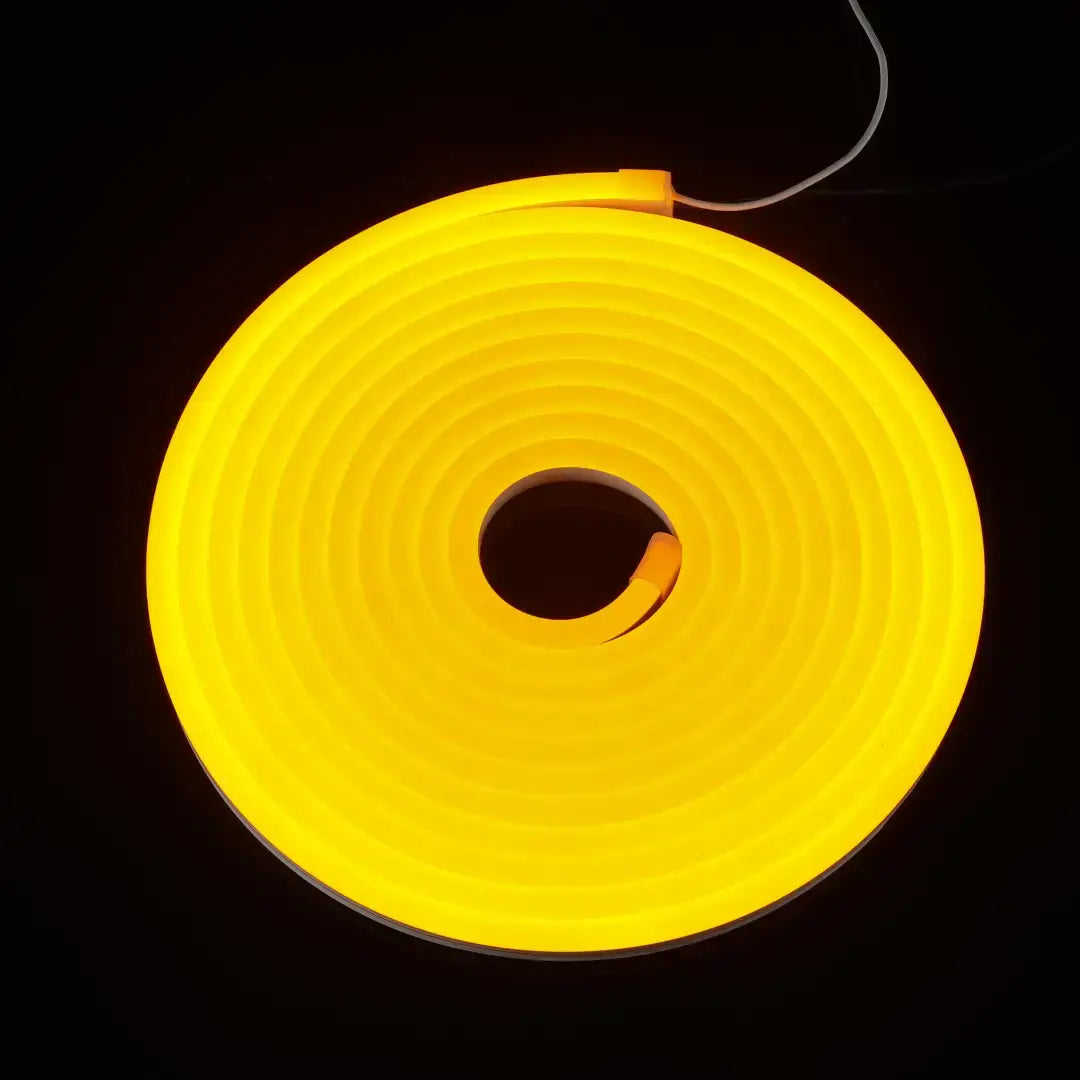

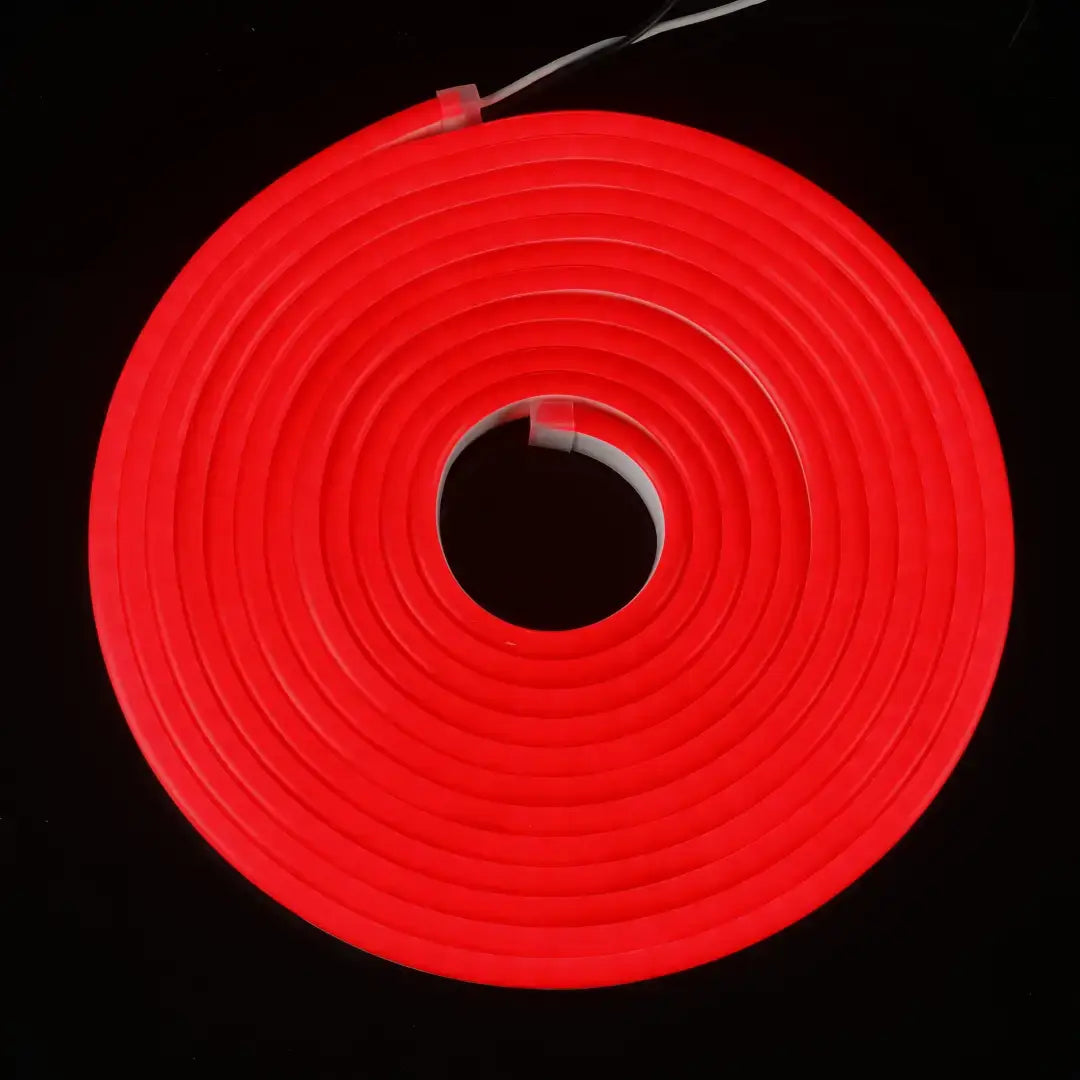

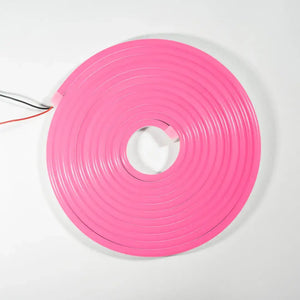

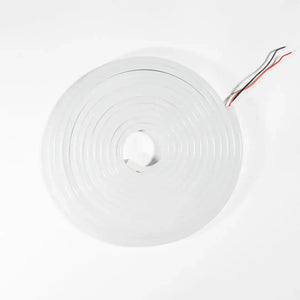

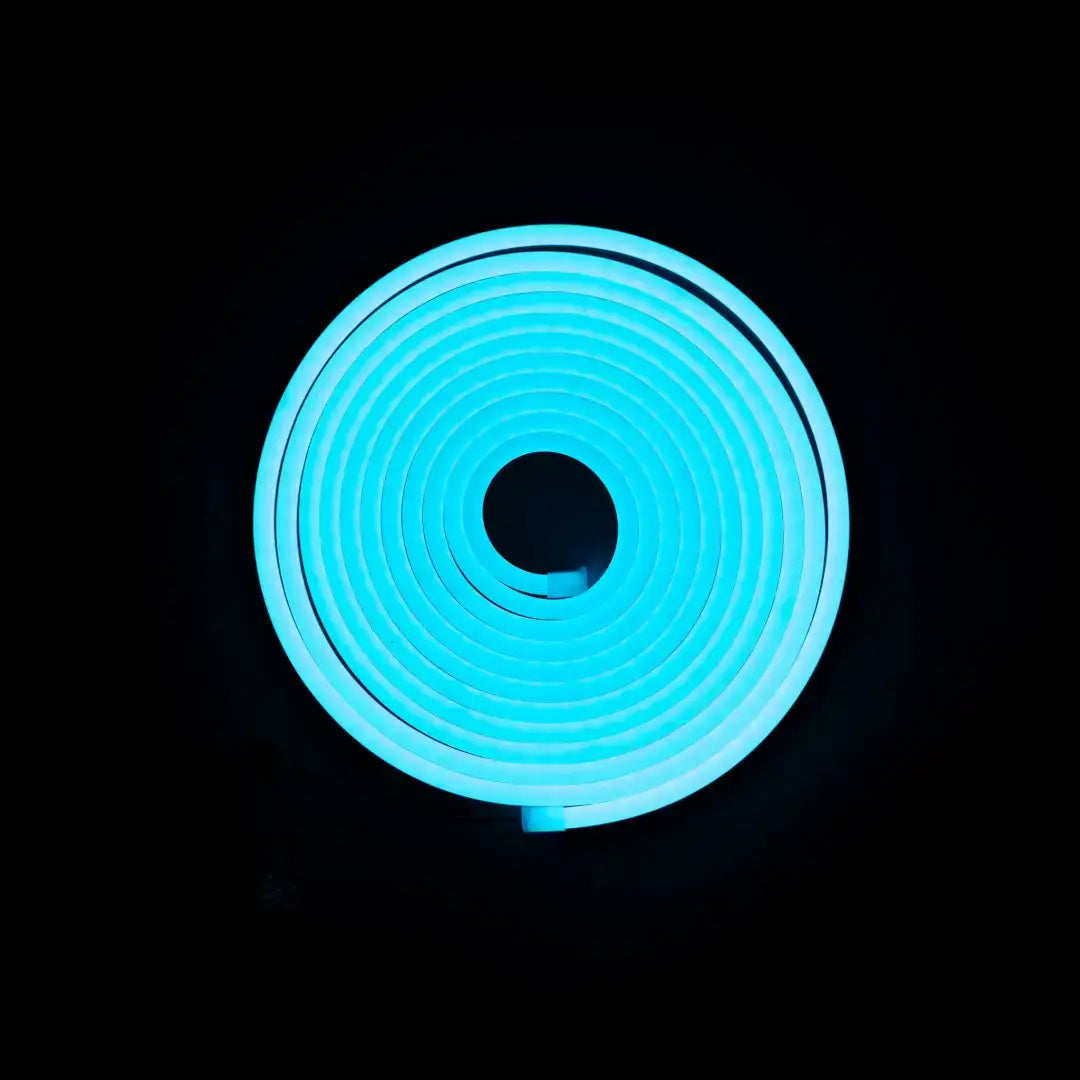

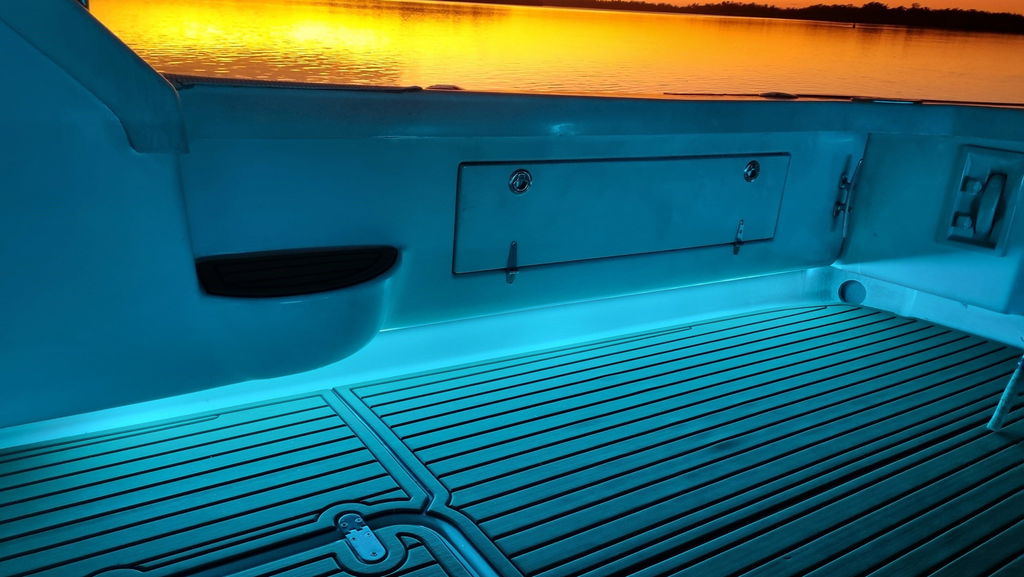

Our 8x16mm Flex Neon is a premium, commercial-grade silicone neon designed for signage, architectural features, retail displays, and high-end residential installations. Sold per meter, this option allows you to order the exact length required for your project, reducing waste and maximising flexibility.

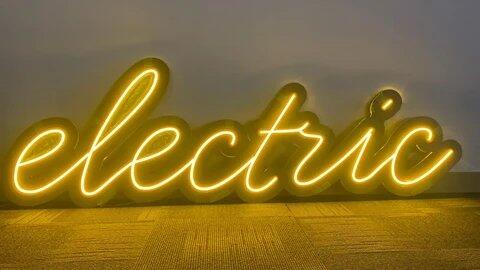

Manufactured from durable silicone, this side-bending neon delivers smooth, consistent illumination with a 160° round light surface for a clean, professional finish. It’s ideal for flowing script, curved outlines, and detailed layouts where flexibility and precision matter.
Please Note:
This product is sold per meter. Soldering is required unless pre-soldered ends are selected.
Specs
|

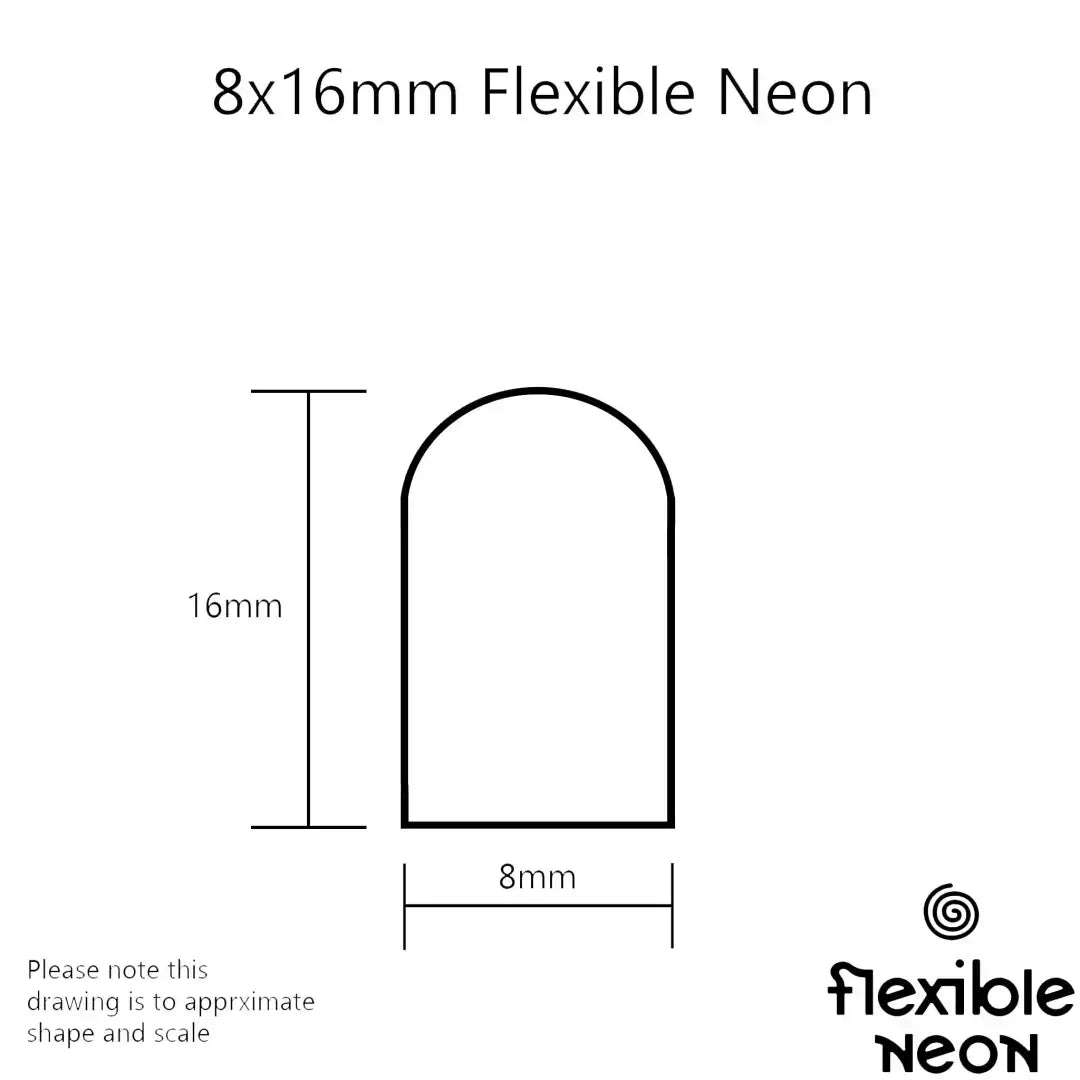

Flexible Neon Dimensions (L x H) |
8mm x 16mm |
|
Material |
Silicone |
|
Warranty |
2 years |
|
Max Run Lengths |
|
|
Single Feed |
5 meters @ 12V DC |
|
Double Feed (Power coming in from both sides) |
10 meters @ 12V DC |
|
Lumen Maintenance (approx.) |
30,000 hours @45°celsuis |
|
Electrical |
|
|
Voltage |
12V DC |
|
Rated Current (A/m) |
0.75 |
|
Power Consumption |
8-10W/m |
|
Physical |
|
|
Length |
Per Meter |
|
LED Type |
SMD2835 |
|
Bend Type |
Side Bending |
|
LED Qty/m |
100LED/m |
|
Dimmable |
Yes |
|
Cutting Intervals |
10mm |
|
Light Surface |
Round Fixture 160° |
|
Minimum Bend Diameter |
30mm (Horizontal Bending Only) |
|
Temperature Ranges |
|
|
Installation |
0°to 60°C |
|
Operating |
-25°to 60°C |
|
Humidity |
0-95% non-condensing |
|
Safety |
|
|
IP Rating |
Ip67 with appropriately rated accessories |
|
CRI |
RA>80 |
|
Features |
Flame Resistant (Fire rating = FV-1), Solvent Resistant, Saltwater Resistant, IK08 Security |
|
Certifications |
Strictly according to the testing standard of CE, ROHS, REACH and UL. |
Colour Specs
| Colour | CCT Wavelength | LM/M | LM/W |
| Red | 620-630nm | >65lm | 8 lm/w |
| Green | 520-530nm | >140lm | 14 lm/w |
| Blue | 465-475nm | >40lm | 5 lm/w |
| Amber | 585-595nm | >80lm | 8 lm/w |

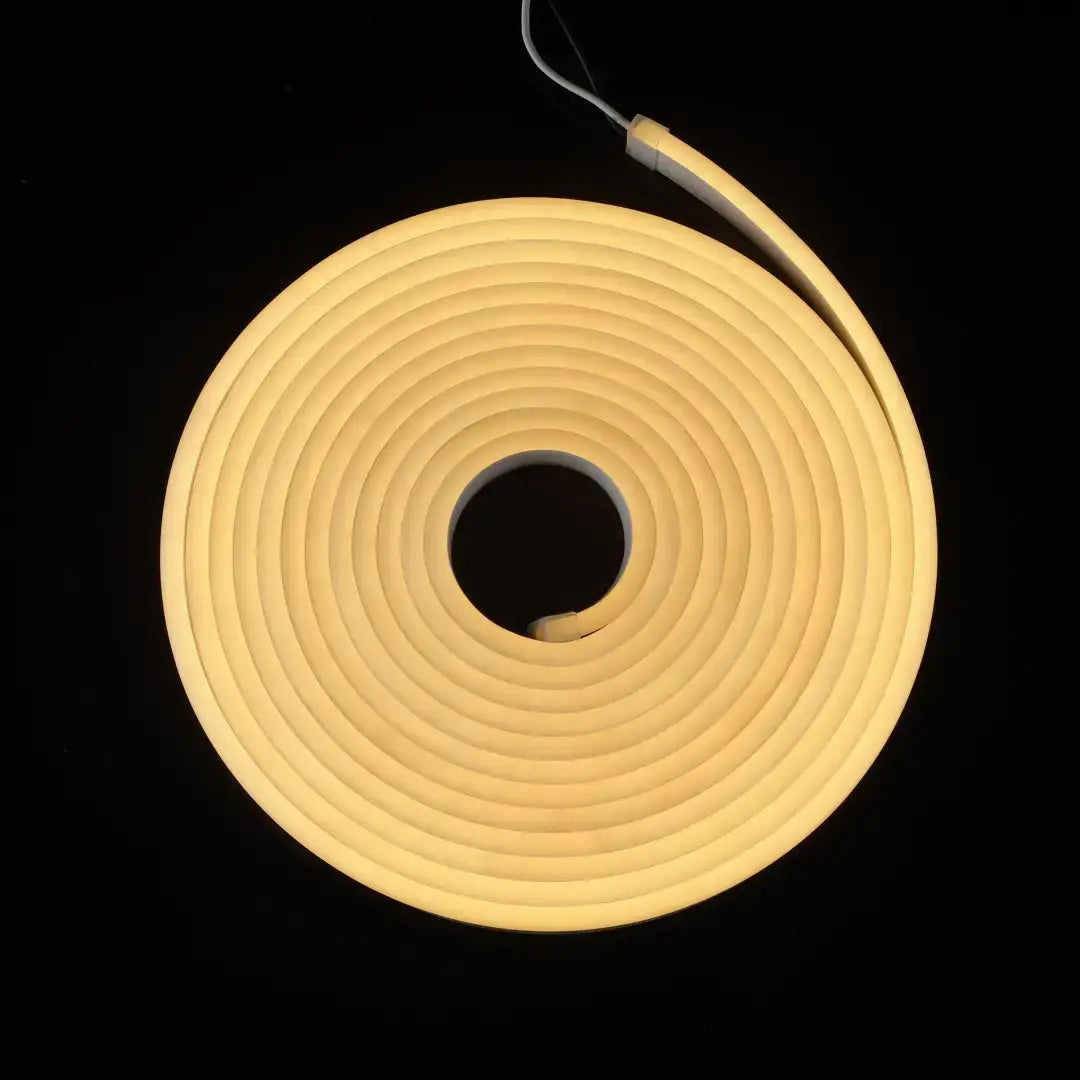

| Warm White - 3000k | 3045±175K | >360lm | 36 lm/w |
| Pure White - 6500k | 6532±510K | >360lm | 36 lm/w |
The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.
For further details, please read the data sheet.
