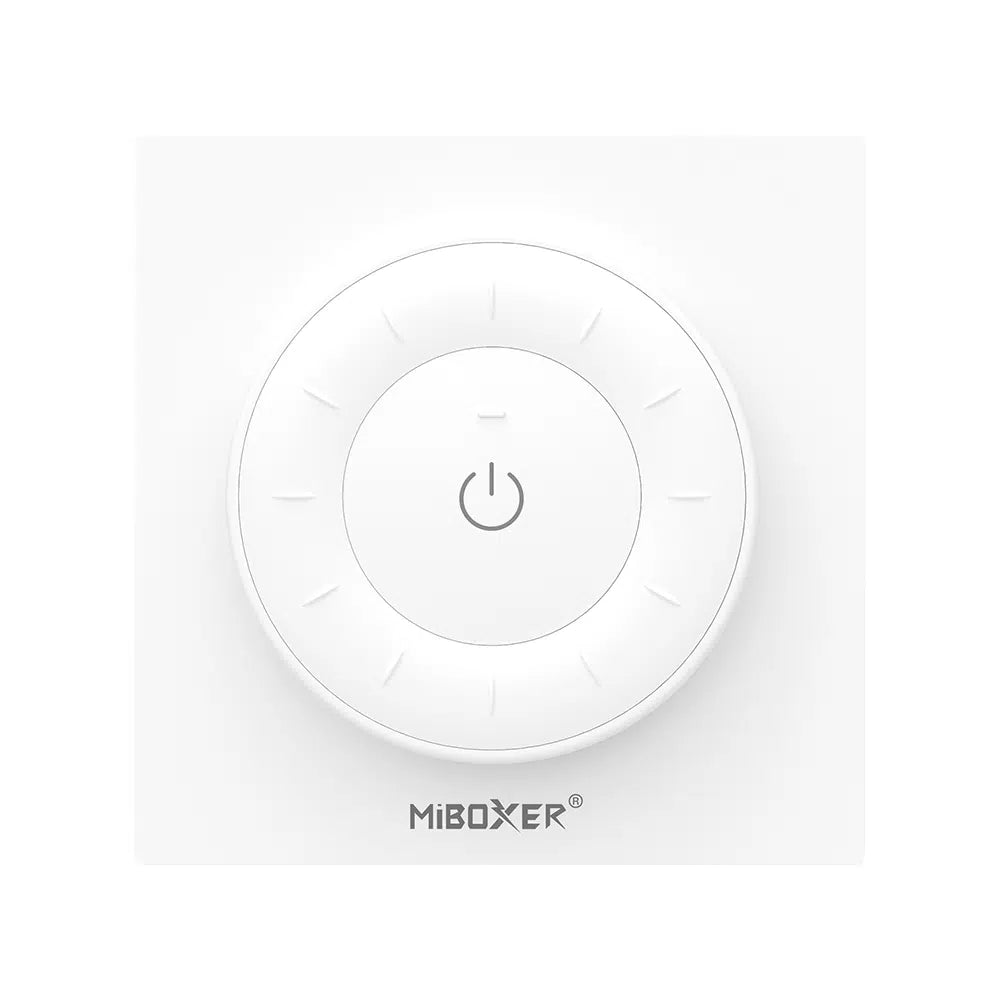

MiBoxer Rotating Wheel Dimmer Panel Remote (2.4GHz)

Requires a Compatible CCT LED Controller:

• RF Wireless LED Dimmer & CCT Controller (2.4GHz) – 12A
• Waterproof 5-in-1 LED Controller (2.4GHz) – 12A
• Indoor 5-in-1 LED Controller (WiFi + 2.4GHz) – 30A
• Waterproof 5-in-1 LED Controller (WiFi + 2.4GHz) – 20A
• Indoor 5-in-1 LED Controller (WiFi + 2.4GHz) – 20A

Bring simple, intuitive control to your tuneable-white LED lighting with the K3 Wireless Rotating Wheel Remote. Easily adjust both brightness and colour temperature to create anything from a warm, relaxing ambience to crisp, practical white light.

The smooth rotating wheel provides precise control, making it ideal for tuneable-white LED strip lighting, architectural lighting, cabinetry, signage and feature lighting.

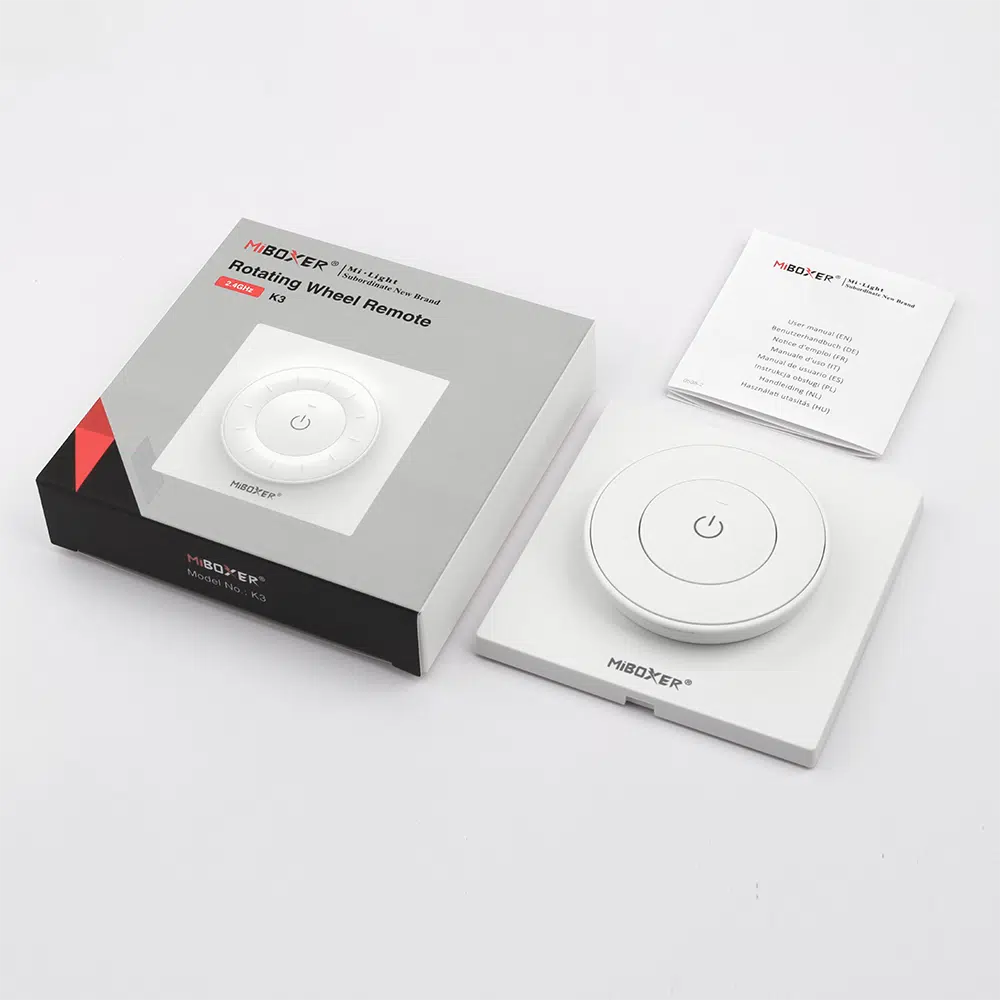

Its compact design can be used as a handheld remote or attached to the included magnetic wall-mounted base. Because it communicates wirelessly through 2.4GHz technology, no additional control wiring or wall cutting is required.

Suitable for residential and commercial lighting systems, the K3 works with compatible MiBoxer 2.4GHz CCT controllers and 5-in-1 controllers configured in CCT mode. It offers reliable wireless control at distances of up to 30 metres in open areas.

Simple, stylish and practical, the K3 makes it easy to fine-tune the brightness and colour temperature of your lighting from one convenient control.

Product Name: Rotating Switch Panel Remote
Model No.: K3 (White)
Working Voltage: 3V (CR2032 battery)
Standby Power Consumption: <6μA
Transmitting Power: 6dBm
RF: 2.4GHz
Control Distance: 30m
Transmission Frequency: 2400–2483.5MHz
Modulation Method: GFSK
Working Temperature: -10~40°C
