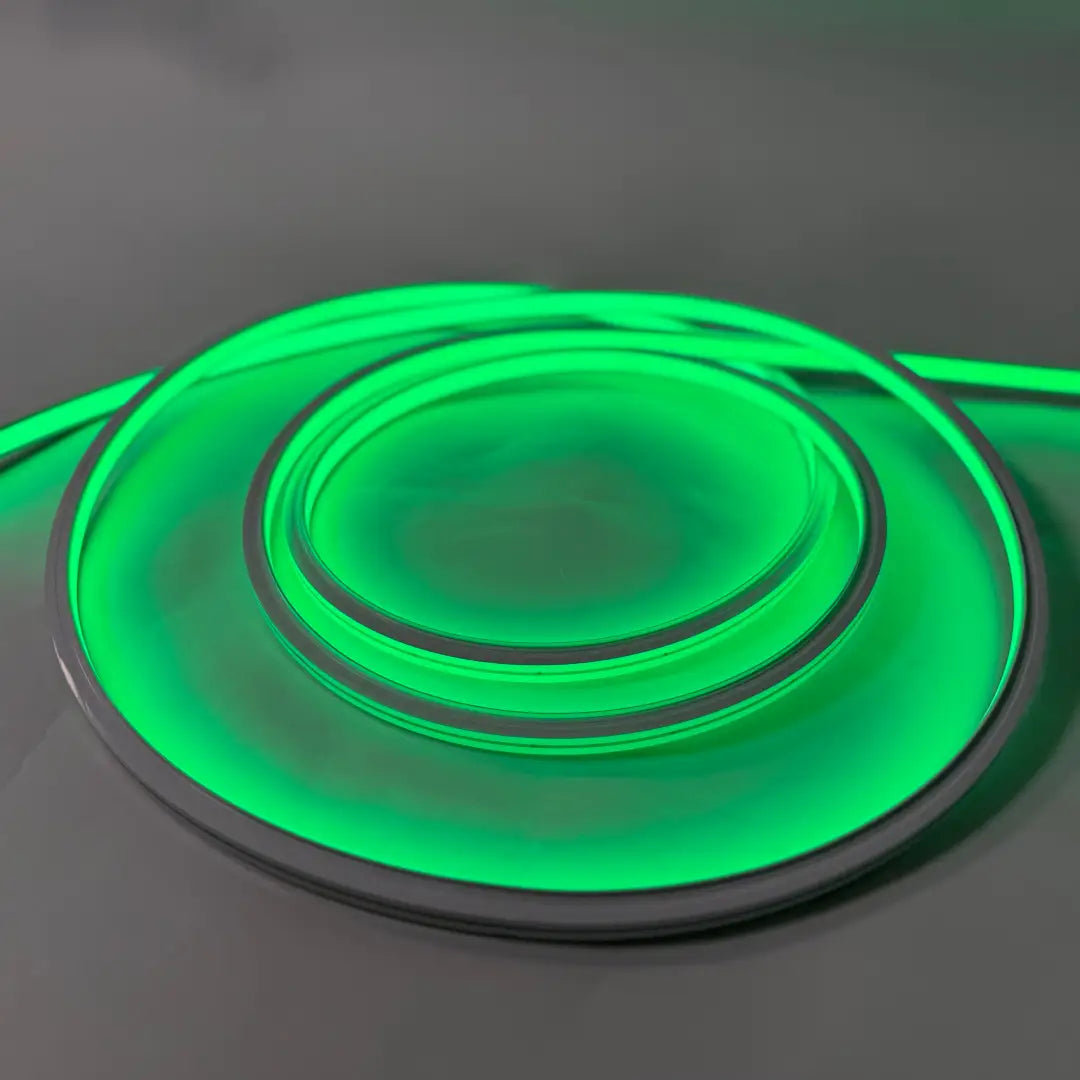

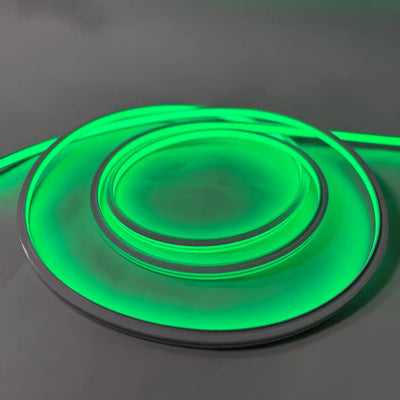

10x10mm Recessed Flexible Neon (Per Meter) RGB

Qty = Length in Meters (e.g. 6 qty = 6m continuous)

Designed for a clean, flush finish, our 10x10mm Recessed Flexible Neon is the perfect lighting solution for seamless architectural and signage applications. With a smart winged design that fits snugly into a 10mm-wide recessed channel, this neon profile hides edges while illuminating from above with a bold and even glow. The 15mm top lip creates a flawless finish across various surfaces, making it a favourite among designers, shopfitters, and sign makers looking for a refined result.

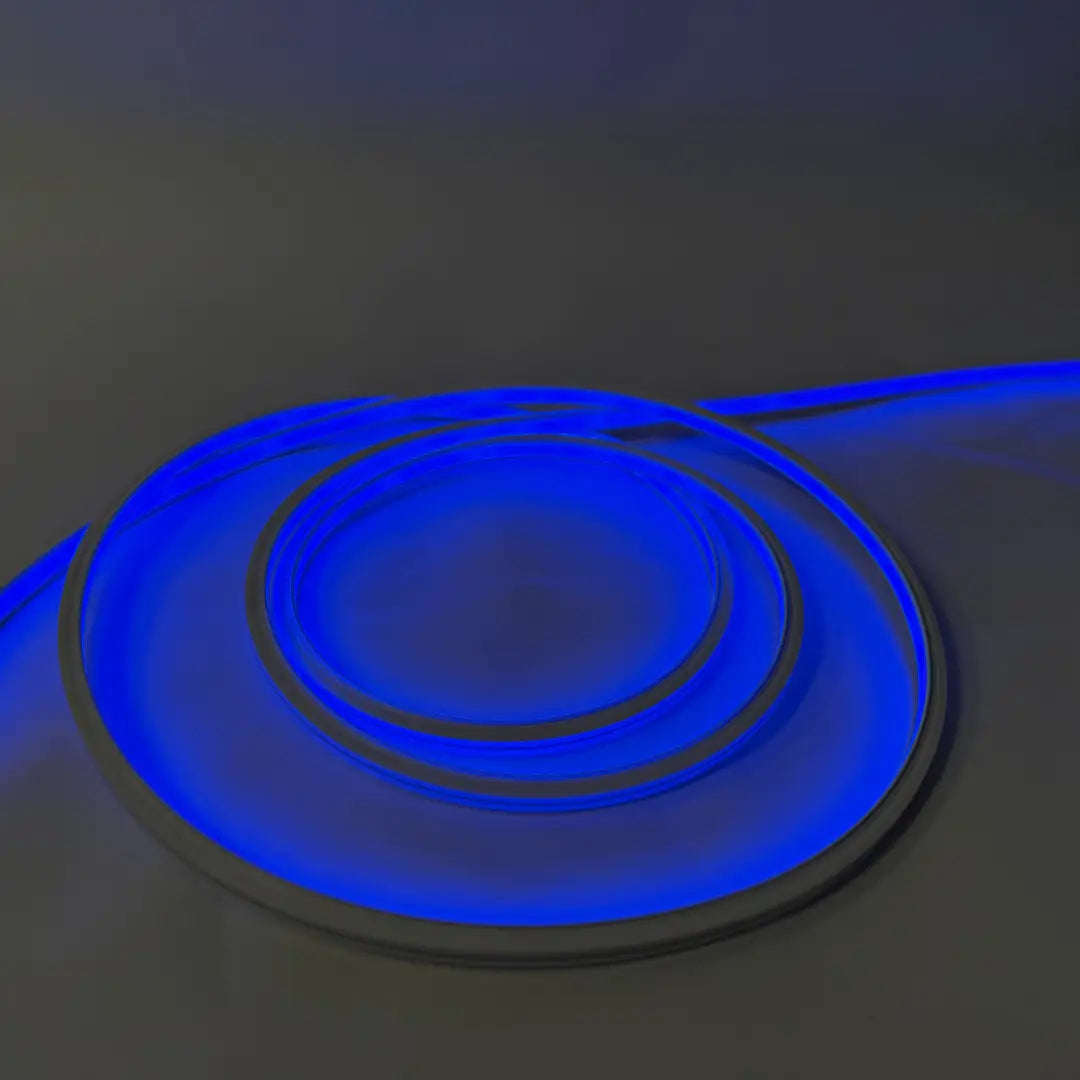

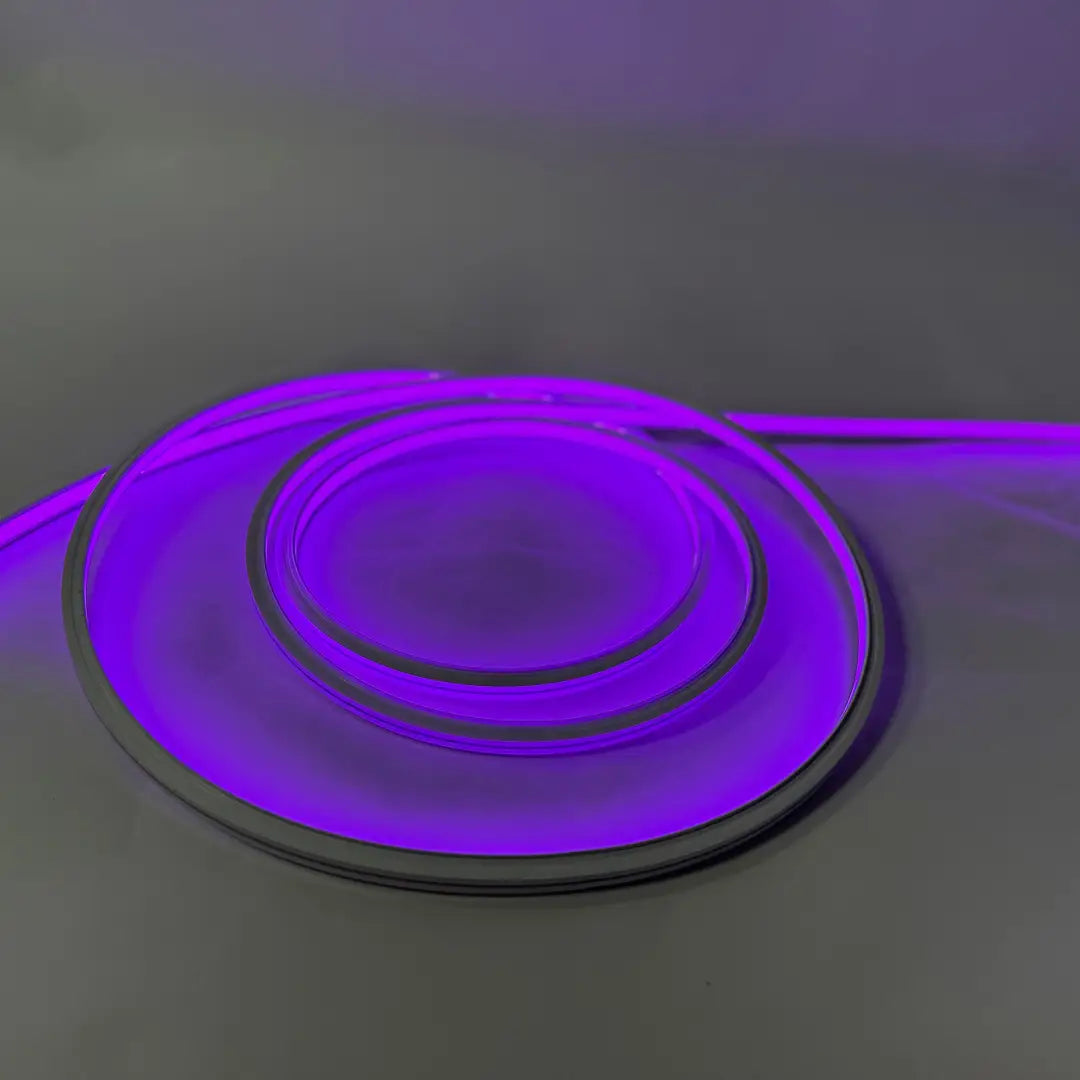

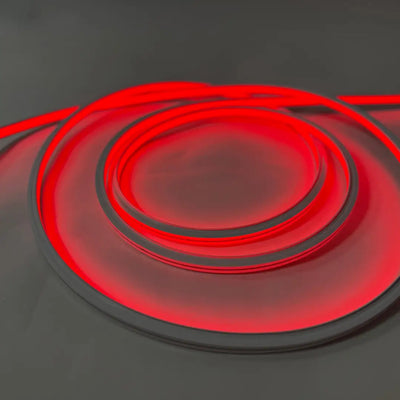

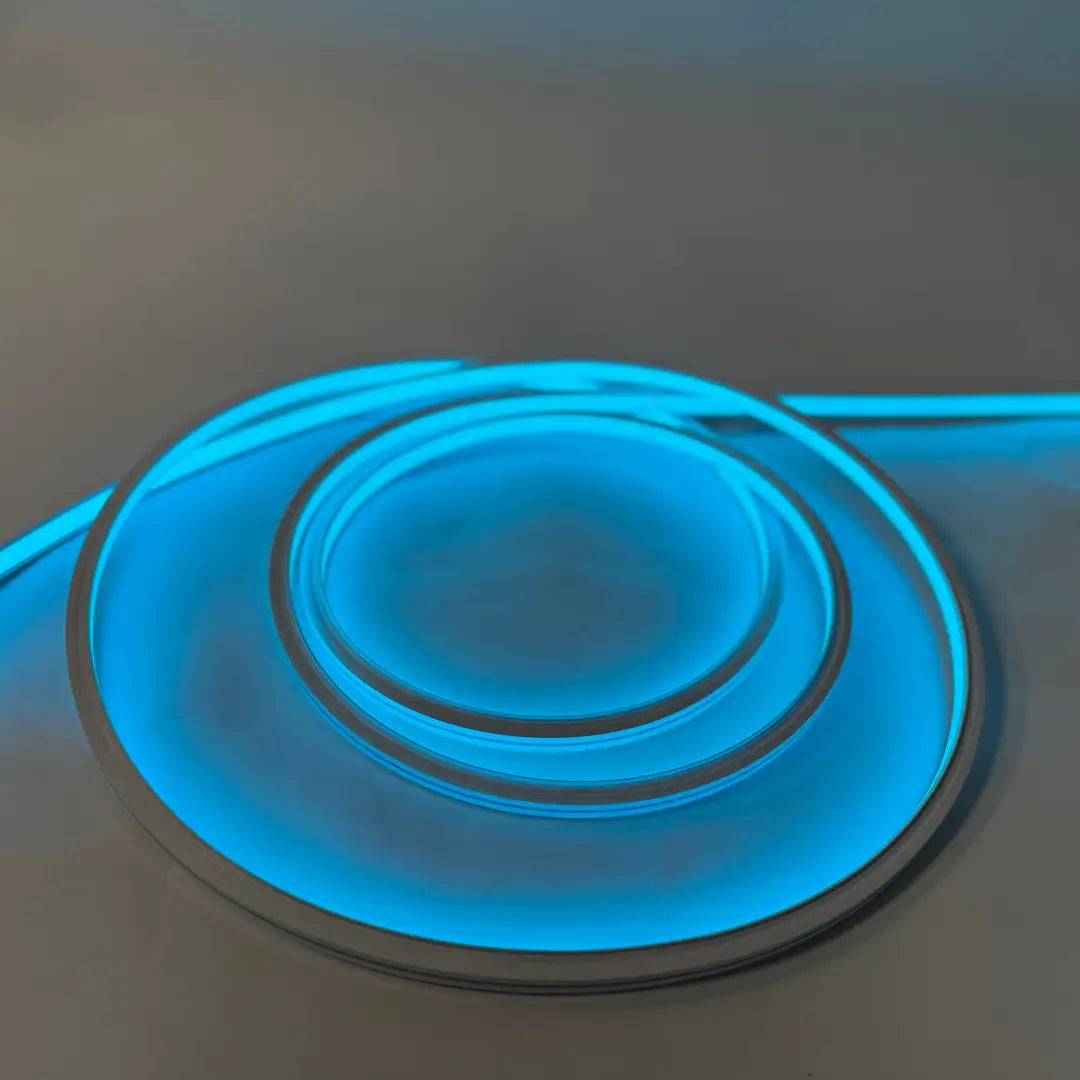

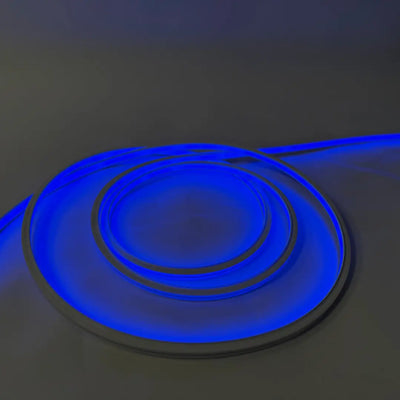

Dynamic and versatile, RGB allows you to set the mood or grab attention with vibrant colour-changing effects — ideal for events, bars, and branded environments.

Whether you're enhancing built-in cabinetry, signage, retail displays, or commercial architectural features, this strip is built to install neatly and light beautifully.

Key Features:

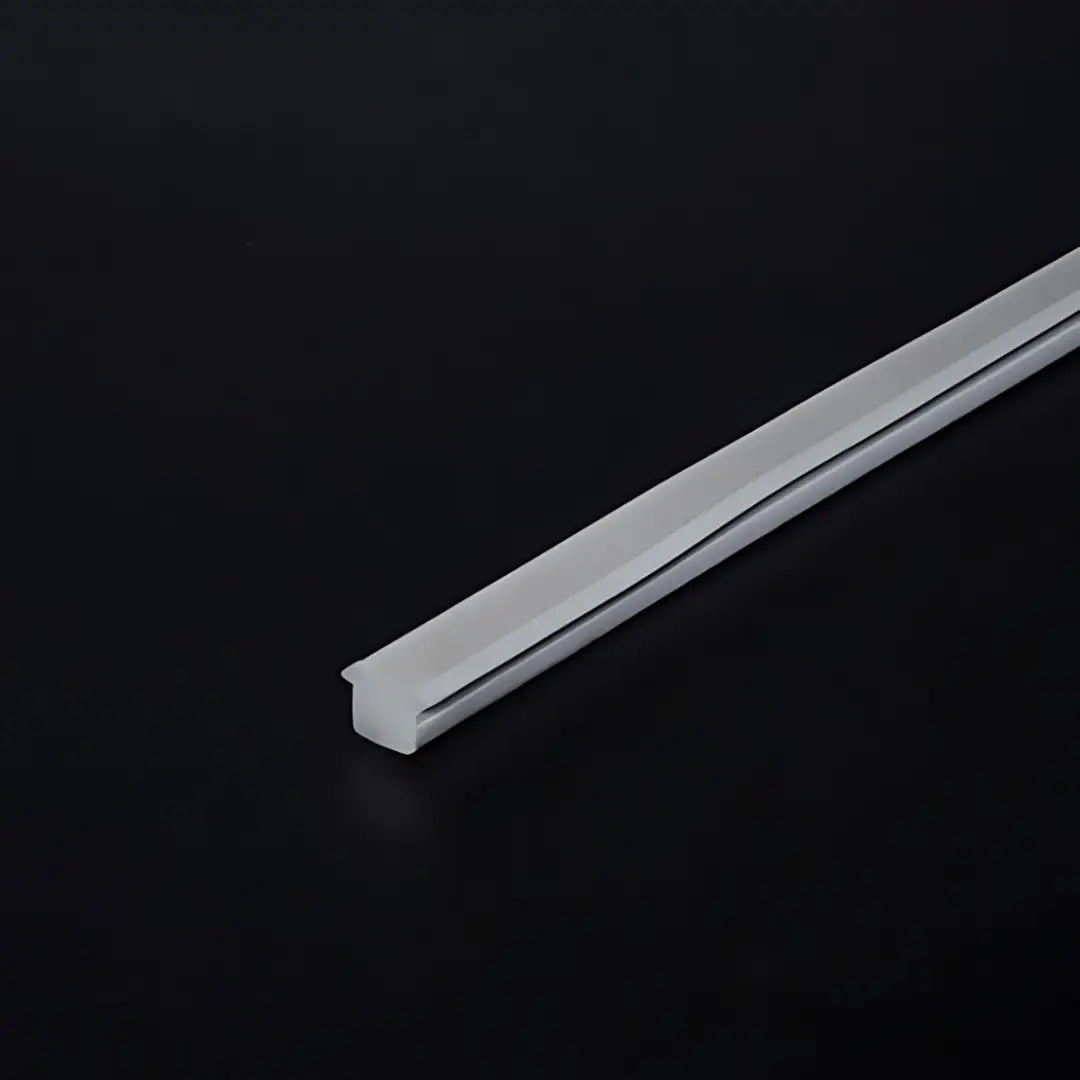

• Recessed Winged Profile: Designed with a 15mm wide top wing to completely cover channel edges and deliver a seamless, professional finish.

• Powerful Performance: Operates on 24V DC, consumes 8W/m, and runs up to 10 meters on a single power feed.

• Brilliant Output: Packed with 120 LEDs per meter, it offers bright, continuous illumination with zero spotting.

• Precision Customisation: Cuttable every 50mm, allowing for tailored runs that perfectly fit your project.

• Durable & Weatherproof: Rated IP67, UV and solvent resistant, flame retardant, and IK08 impact-resistant — ideal for both indoor and outdoor installs.

• Flexible Layouts: Allows vertical bending for smooth curves and creative layouts.

• High CRI >90: Ensures natural, accurate light reproduction for signage, commercial lighting, and architectural use.

• Dimmable: Compatible with dimming systems for adjustable ambience and control.


Overview:

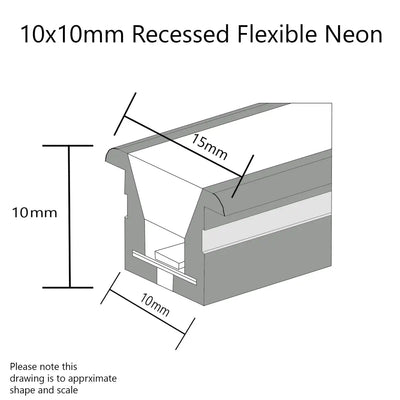

Flexible Neon Dimensions (H × W × D): 10mm × 10mm × 15mm
Material: Silicone
Warranty: 3 Years
Max Run Lengths:

• Single Feed: 5m @ 24V DC
• Double Feed: 10m @ 24V DC
  Lumen Maintenance (approx.): 50,000 hours L70 @ 25°C, 35,000 hours L70 @ 50°C
  Colour: RGB

Electrical Specifications:
Voltage: 24V DC
Rated Current: 0.34A/m
Power Consumption: 8W/m

Physical Specifications:
Available Lengths: Sold per metre
LED Quantity: 120 LEDs/m
Dimmable: Yes
Cutting Intervals: 50mm

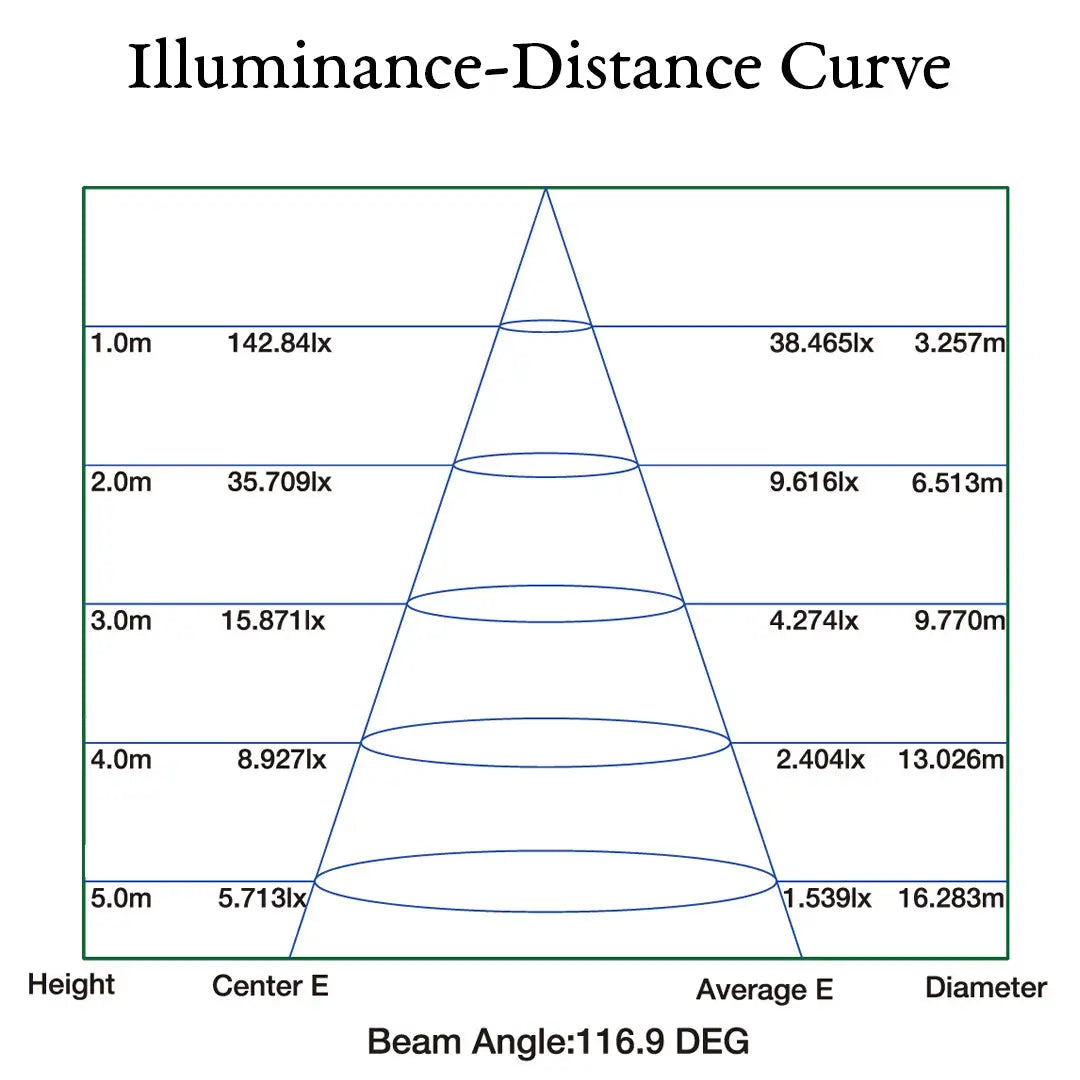

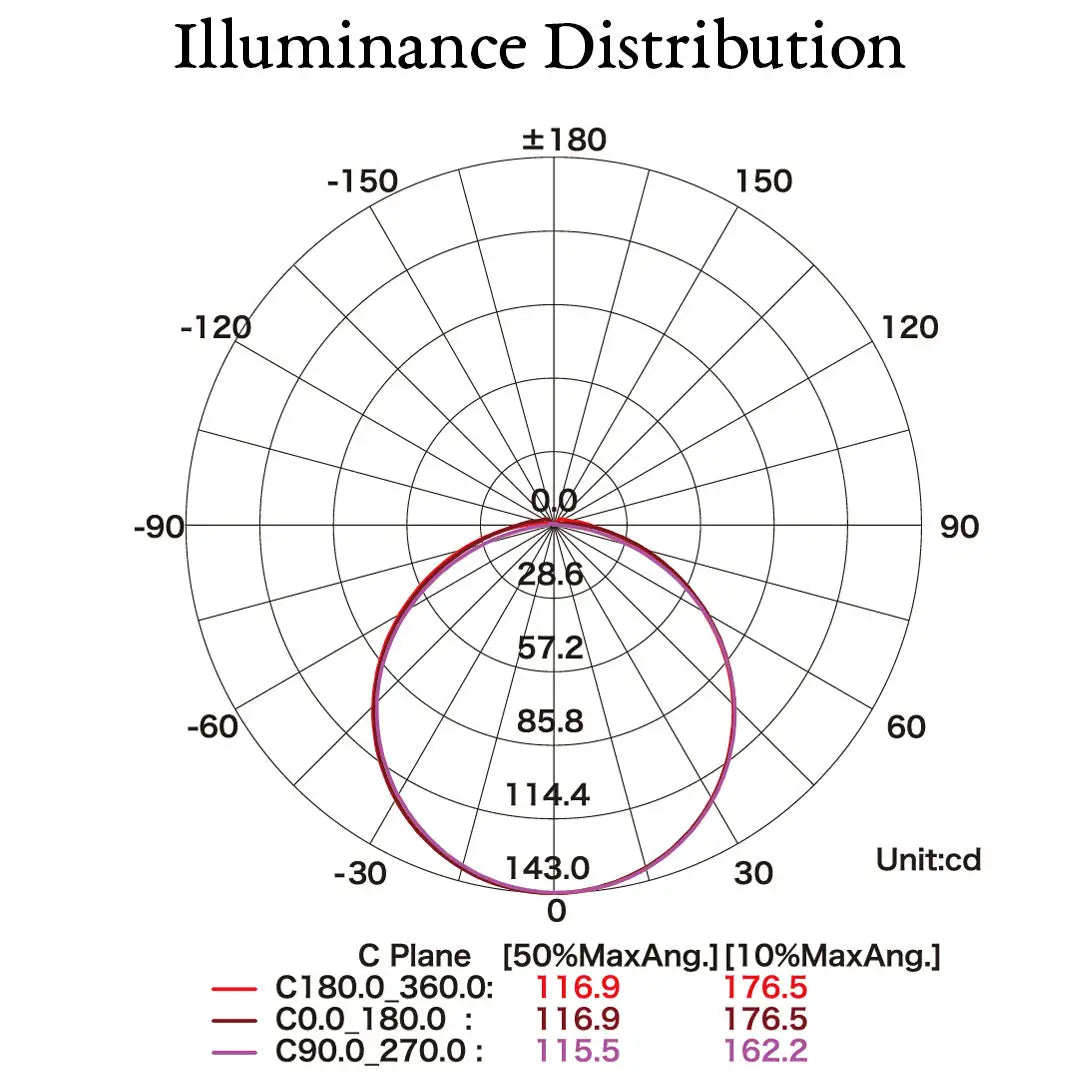

Light Surface: 120°
Minimum Bend Diameter: 100mm (Vertical Bending Only)

Environmental & Safety Specifications:
Installation Temperature: 0°C to 50°C
Operating Temperature: -40°C to 55°C
Humidity: 0–95% Non-Condensing
IP Rating: IP67 (with appropriately rated accessories)
CRI: Ra > 90

Features:
Anti-yellowing, flame resistant, UV resistant, solvent resistant, saltwater resistant, IK08 rated, dirt resistant

Certifications:
CE & RoHS (Strictly according to testing standards)
