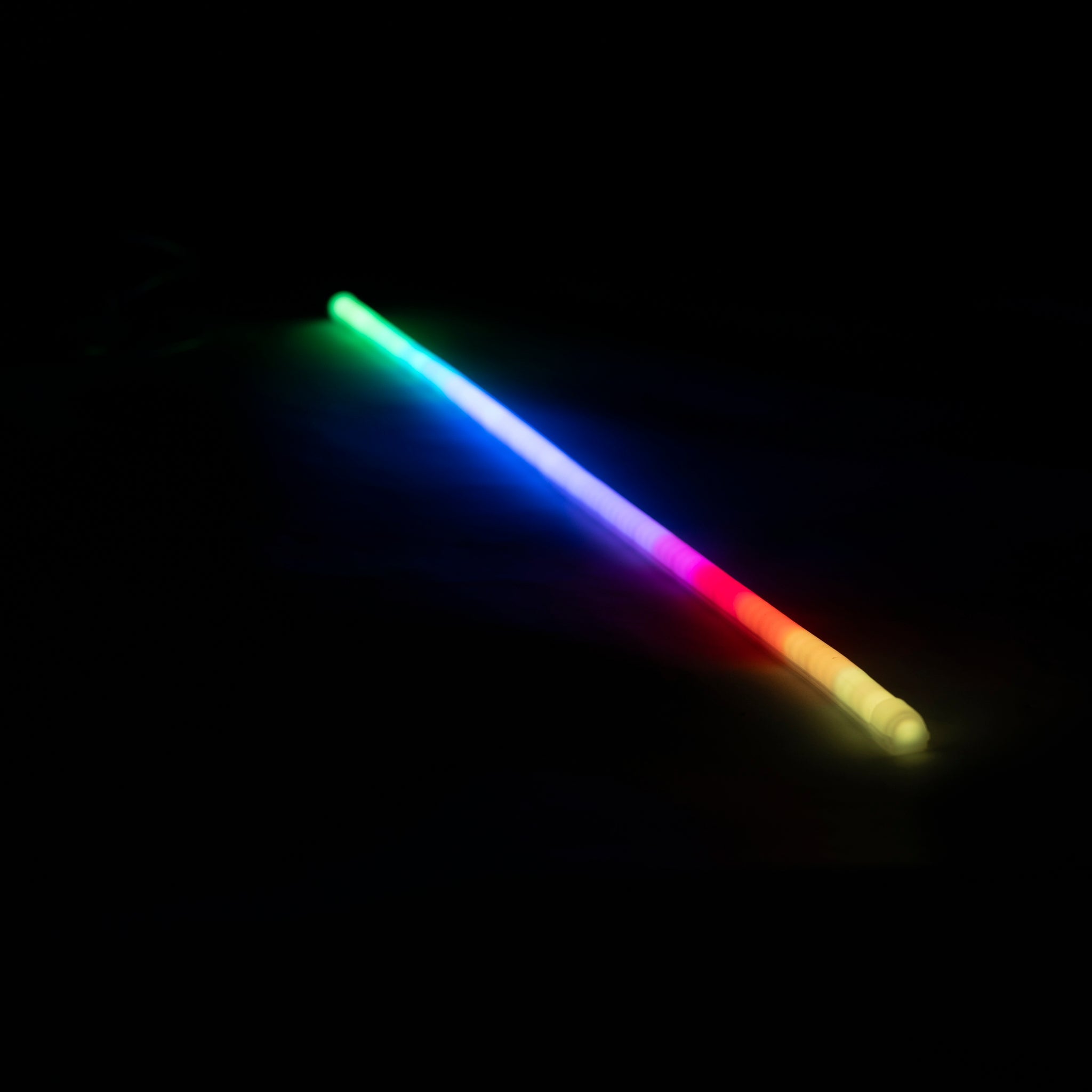

Guide: How Pixel LED's Work

Pixel LED's, also known as addressable LED's or smart LED's, are a fascinating type of light-emitting diode that allows individual control over each LED in a strip or matrix. They have revolutionised the world of lighting, enabling dynamic and mesmerising visual effects. Here's a comprehensive guide on how pixel LED's work:

1. Basic Structure: Pixel LED's consist of three main components: the RGB LED chip, a controller, and a driver. The RGB LED chip contains three individual LEDs - red, green, and blue - all integrated into one package. The controller is the brain that processes data and sends signals to each LED. The driver provides the necessary power and voltage regulation for the LED's to operate efficiently.

2. Addressing Each Pixel: Unlike conventional LED's, which are all controlled together as a single unit, pixel LED's can be individually addressed. Each LED in the strip or matrix has its unique address, allowing the controller to command specific LED's to turn on, off, or change colours independently.

3. Communication Protocols: Pixel LED's use various communication protocols to receive data from the controller. Flexible Neon mainly uses the SMD5050 but other common ones include WS2812, APA102, SK6812, and WS2813. These protocols enable data transmission through a single data wire, making it easy to control large numbers of LED's in long chains or grids.

4. Colour Mixing: By varying the intensity of the red, green, and blue LED's in each pixel, pixel LED's can produce a wide range of colours. This colour mixing capability enables the creation of intricate and dynamic lighting effects, from smooth gradients to animated patterns.

5. Control Methods: We employ a custom controller system for all our pixel needs at Flexible Neon.  If you require assistance with setup, feel free to reach out to us. Pixel LED's can be controlled using microcontrollers or a dedicated LED controller. The microcontroller processes the desired lighting patterns and sends data to the LED strip or matrix using the appropriate communication protocol.

6. Power Requirements: Since each LED in a pixel LED strip requires power, it's essential to ensure that the power supply can handle the total power consumption of all LED's simultaneously displaying their brightest colours. Power injection might be necessary for longer strips or matrices to prevent voltage drop and maintain consistent brightness across all pixels.

7. Programming and Effects: To achieve stunning lighting effects, programming plays a crucial role. Users can code their own patterns or take advantage of Flexible Neon's pixel controller which has, intricate animations, colour-changing effects, and even responsive lighting that reacts to sound or environmental changes.

8. Applications: Pixel LED's have a wide range of applications, including stage lighting, art installations, architectural lighting, signage, home automation, and digital art. Their ability to create captivating visuals and easily adapt to various designs makes them a popular choice in the lighting industry.

Conclusion: Pixel LED's have transformed lighting possibilities, enabling intricate, dynamic, and mesmerising effects that were once unimaginable. With individual addressability and a wide range of colour options, these smart LED's provide endless creative opportunities for designers, artists, and enthusiasts alike. Whether for artistic expression, commercial displays, or home projects, pixel LED's continue to redefine the way we illuminate our surroundings and captivate our senses.
