Product Description:

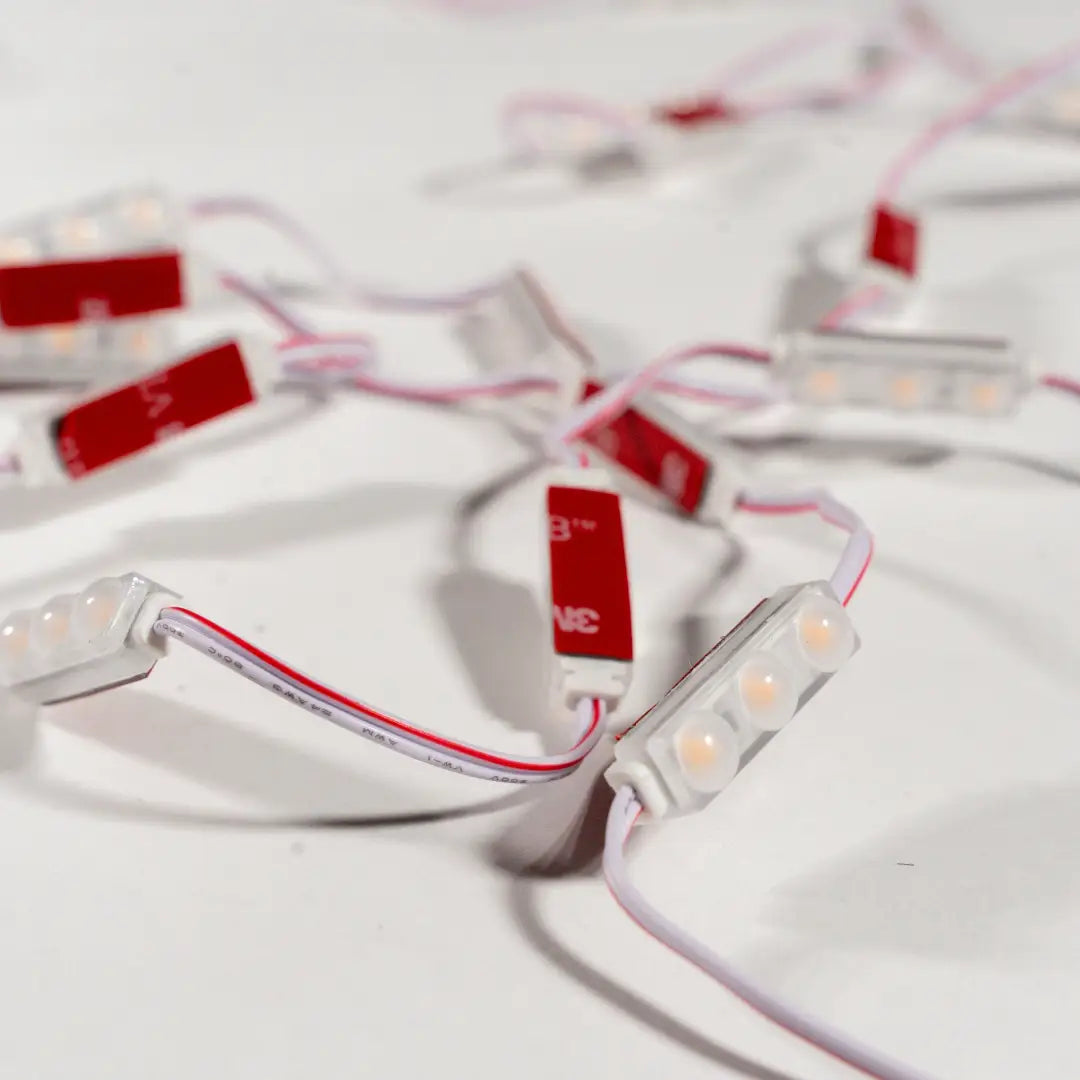

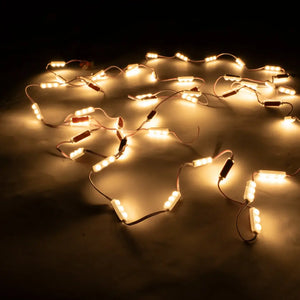

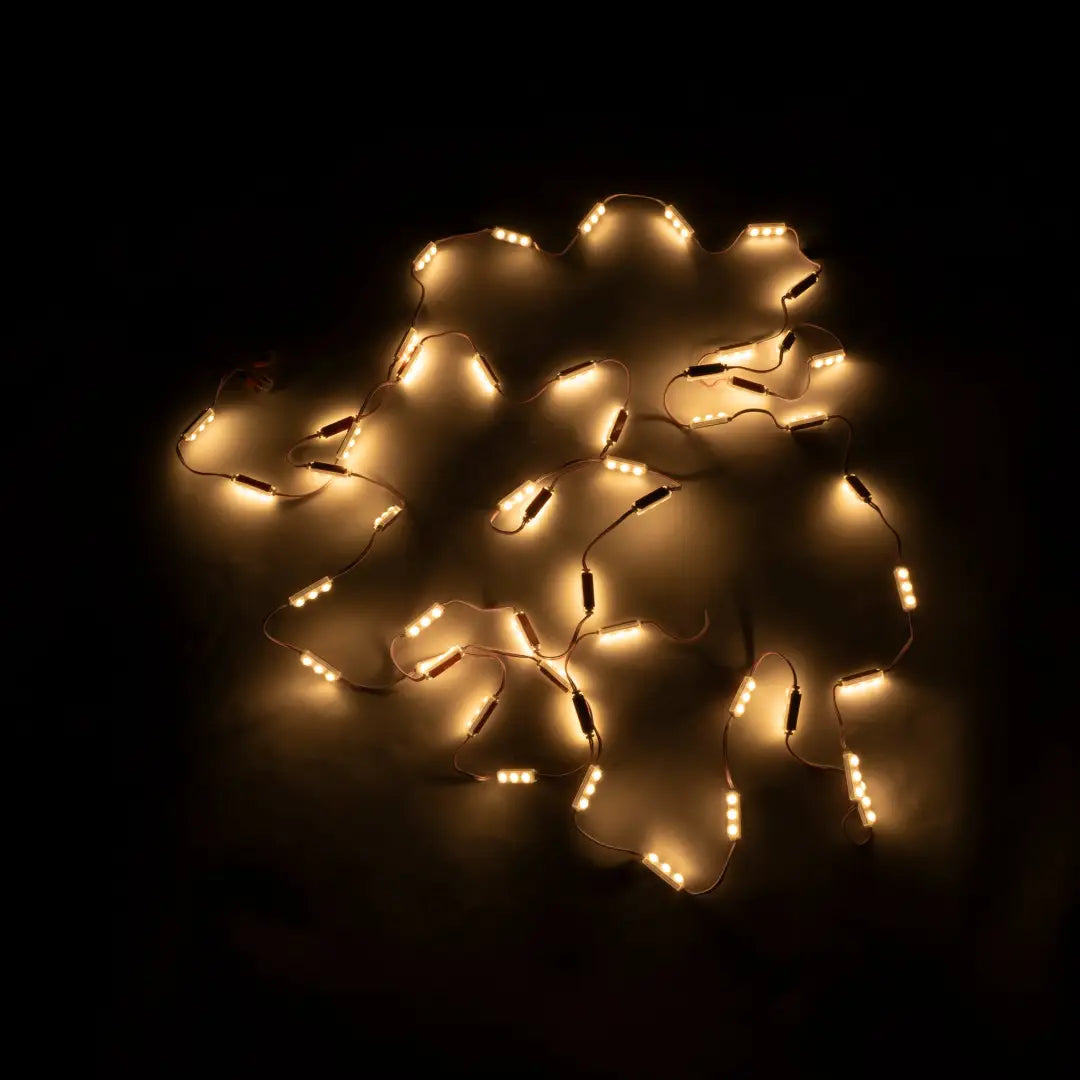

Introducing our Module Mini 3 LED (20 Pack) in Warm White 2700K: a compact and inviting lighting solution for various applications. These mini modules are specifically designed to fit into 5-10cm deep channel letters, acrylic letters, light boxes, and more. With their warm white colour temperature of 2700K, they emit a soft and cosy glow, creating a warm and welcoming atmosphere. Despite their smaller size, each pack contains 20 modules, providing ample lighting coverage for your project. Upgrade your signage or lighting design with our Module Mini 3 LED (50 Pack) in Warm White 2700K and enjoy their compact size, versatility, and ability to fit into tighter spots without compromising on quality.


Specs

Dimensions

42mm x 10mm x 8mm

Applications

Best to fit into 5-10cm deep Channel letters, Acrylic letters, Light boxes, etc.

Warranty

 5 years

Main Parameters



Materials

PVC body and PC lens (Fireproof UL94-V0)

Lumen (approx.)

110-12 LM/W

Electrical



Voltage

DC12V Constant Voltage

Power Consumption (per Module)

0.72W

Physical



LED Qty per piece 3

Dimmable

YES

Per pack Quantity

50

Light Surface

160° Bat-Wing optics design.
High efficiency SMD2835
3-step MacAdam ellipse

Safety



IP Rating

IP67

Certifications CE & RoHS

Features

160° Bat-Wing optics design, High efficiency SMD2835, 3-step MacAdam ellipse, perfect colour consistency, Fireproof (UL94-V0) PVC body and PC lens, comes with 3M Tape.

The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.
