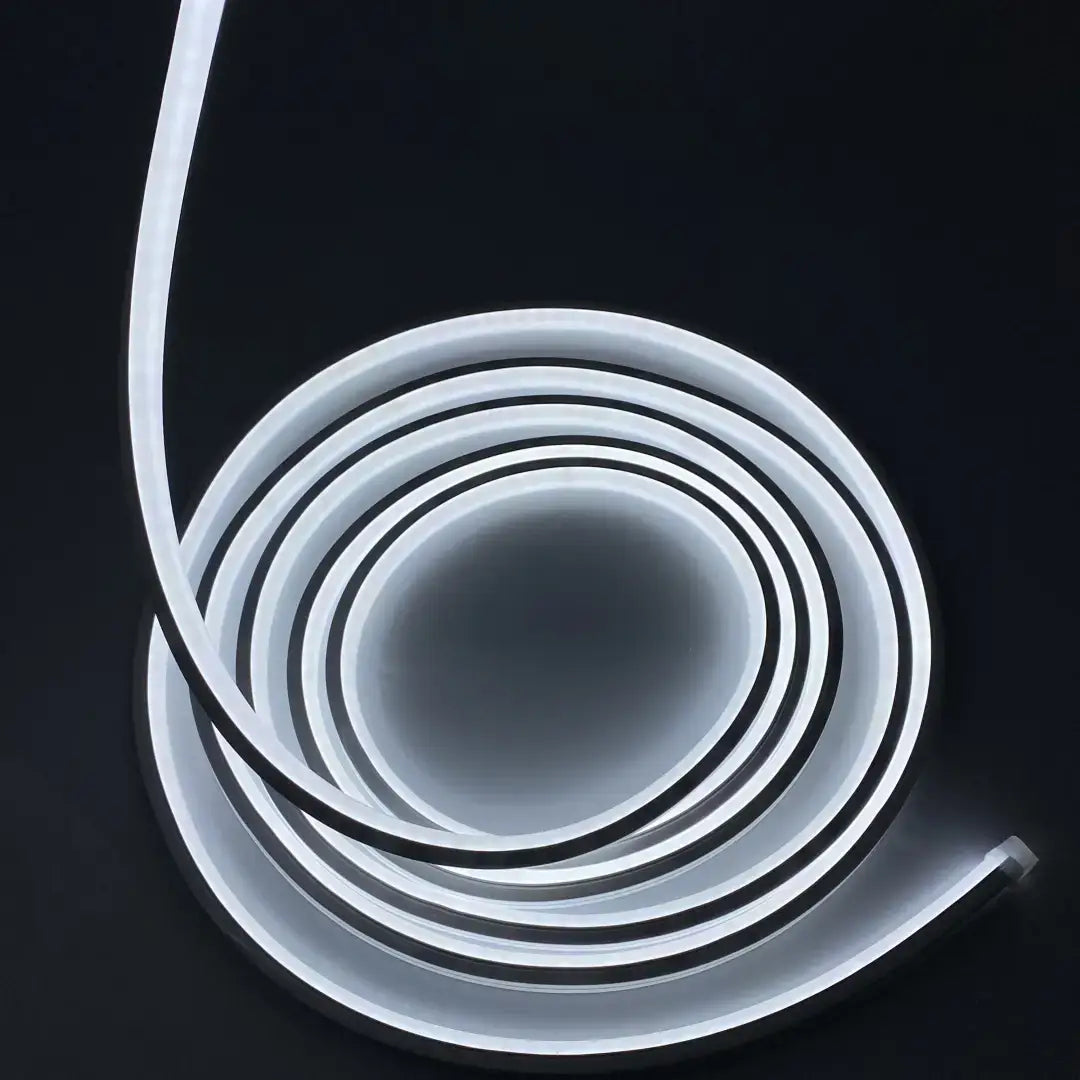

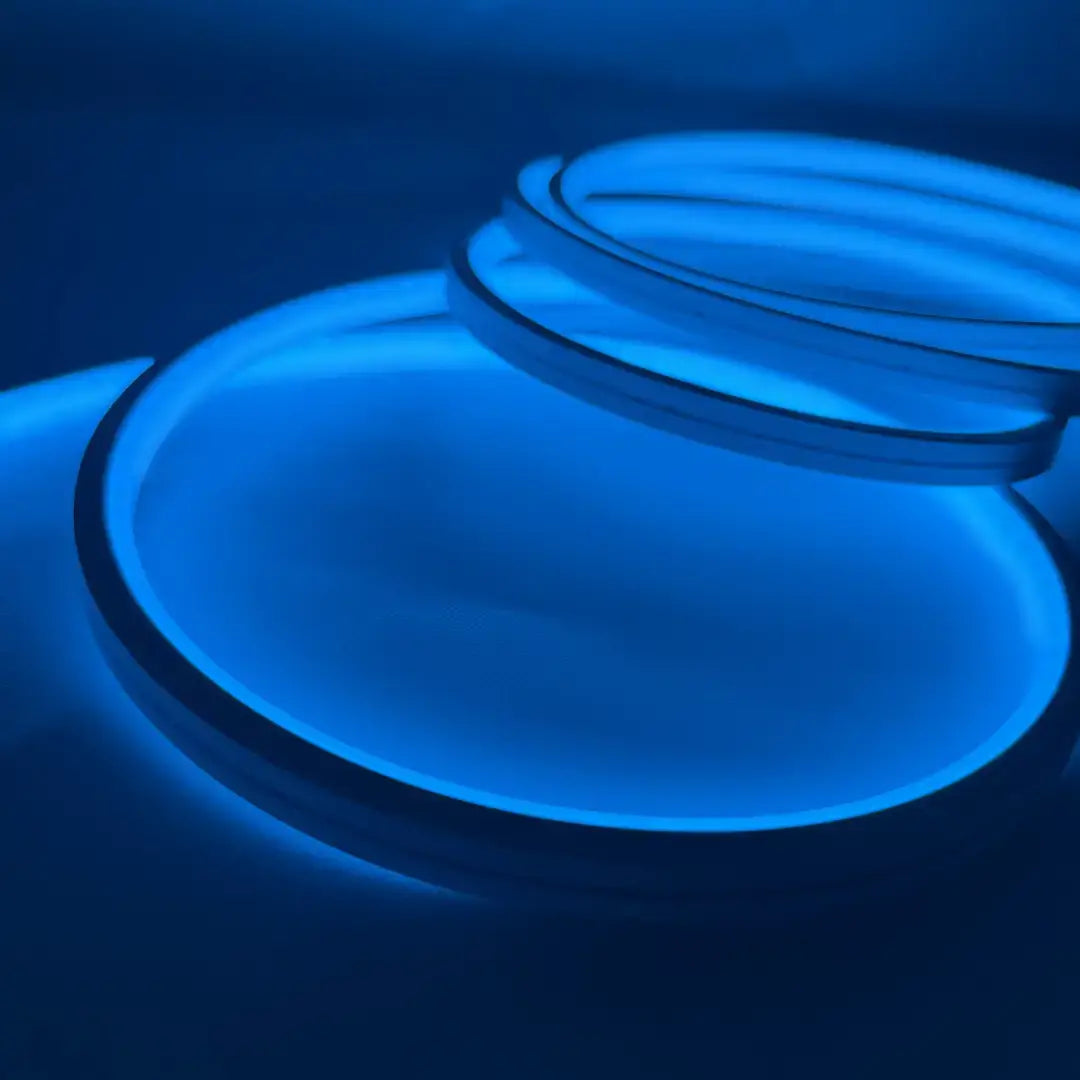

10x10mm Tri View Flex Neon - Per Meter (24V)

Qty = Length in Meters (e.g. 6 qty = 6m continuous)

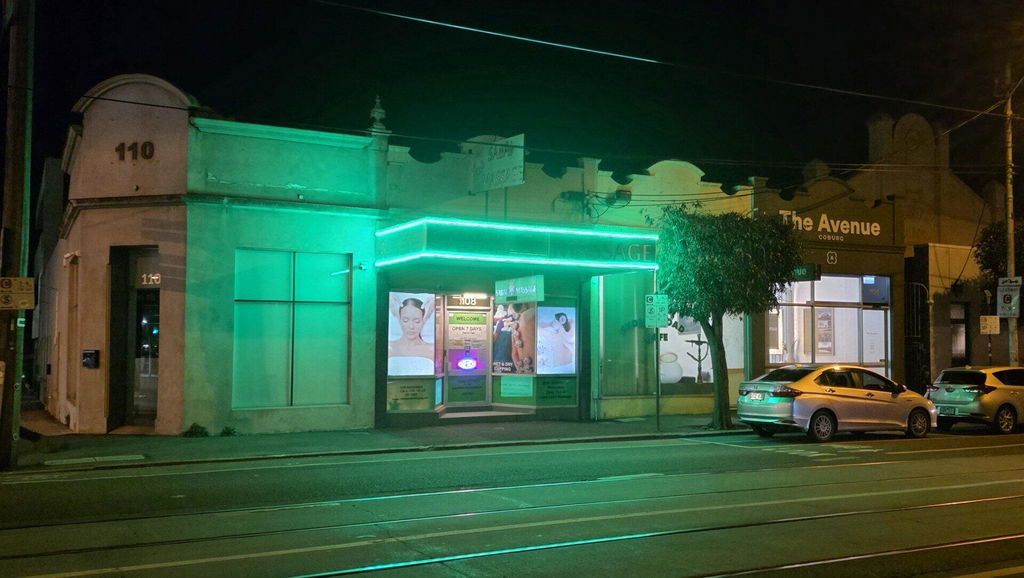

Our 10x10mm Tri View Flex Neon – per meter (24V) is a premium Commercial Grade Lighting solution designed for professional Architectural Lighting applications across Australia. Perfect for signage, façades, retail spaces and Building Exterior Neon, this high-performance Architectural Neon Flex provides bold, seamless illumination for modern projects.

Sold per meter, it allows you to order the exact length required, making it ideal for Custom Architectural Lighting, Neon Wall Lights, and detailed Architectural lighting design. The innovative tri-view design emits light from three sides, creating vibrant, even output that enhances Modern Building Illumination and standout Neon Features for Architecture.

Manufactured from durable, UV-resistant silicone, this IP67-rated waterproof LED strip is built for Australian conditions. Operating on 24V DC, this efficient 24 volt LED strip delivers consistent brightness with smooth vertical bending for clean curves and sharp lines. It’s the perfect Flexible Neon solution for designers seeking reliable, professional-grade neon led strip lights Australia wide.

Please Note:
This product is sold per meter. Soldering is required unless pre-soldered ends are selected. A compatible 24V DC driver is required.

Overview:

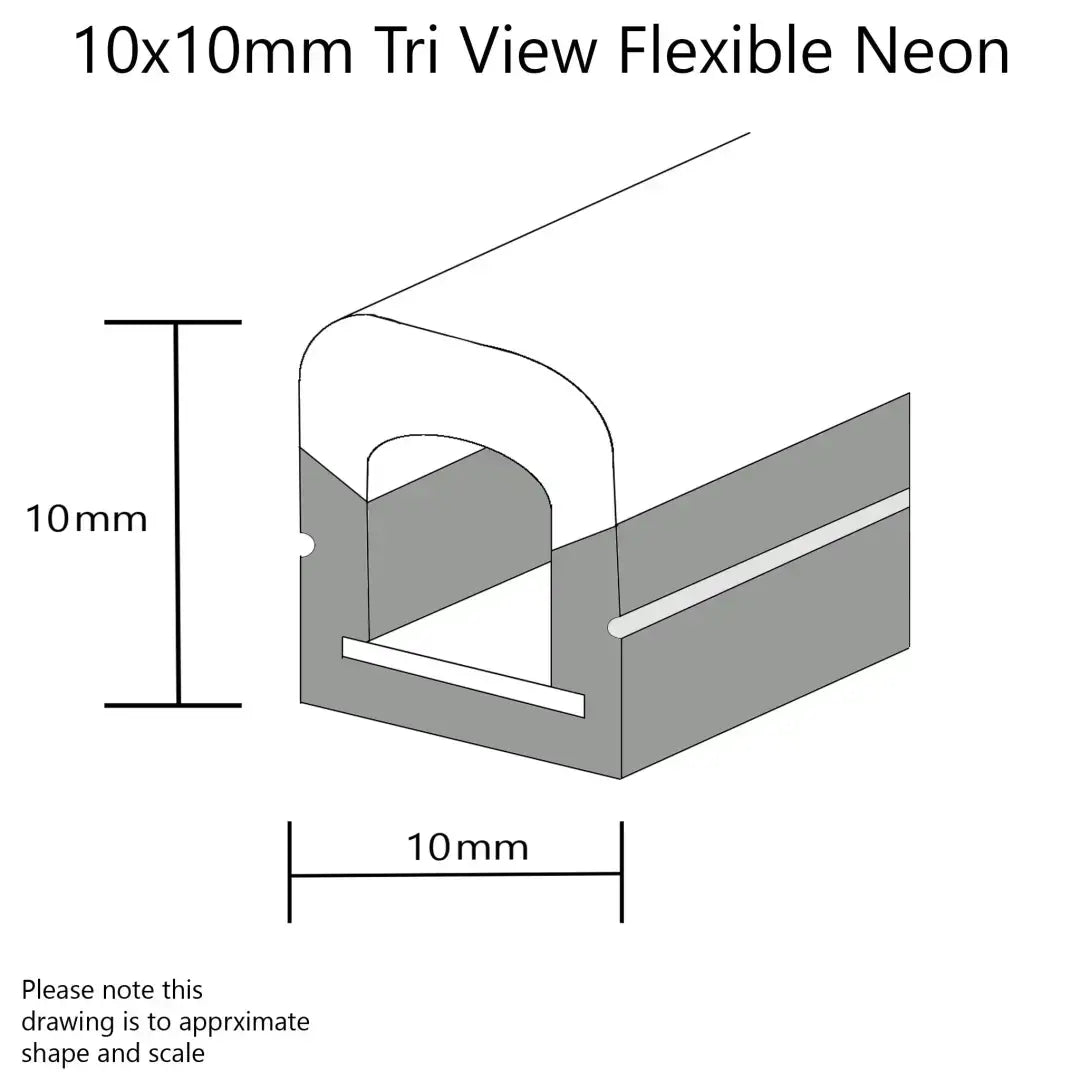

Flexible Neon Dimensions (L x H): 10mm x 10mm Tri-View
Material: Silicone
Warranty: 3 Years

Max Run Lengths:
- Single Feed: 10m @ 24V DC
- Double Feed: 20m @ 24V DC
Lumen Maintenance:
- 50,000 hours @ 25°C
- 35,000 hours @ 50°C

Electrical:
Voltage: 24V DC
Power Consumption: 8W/m

Physical:
Length: Per Metre
LED Type: SMD2835
Bend Type: Top Bending
LED Quantity: 120 LEDs/m

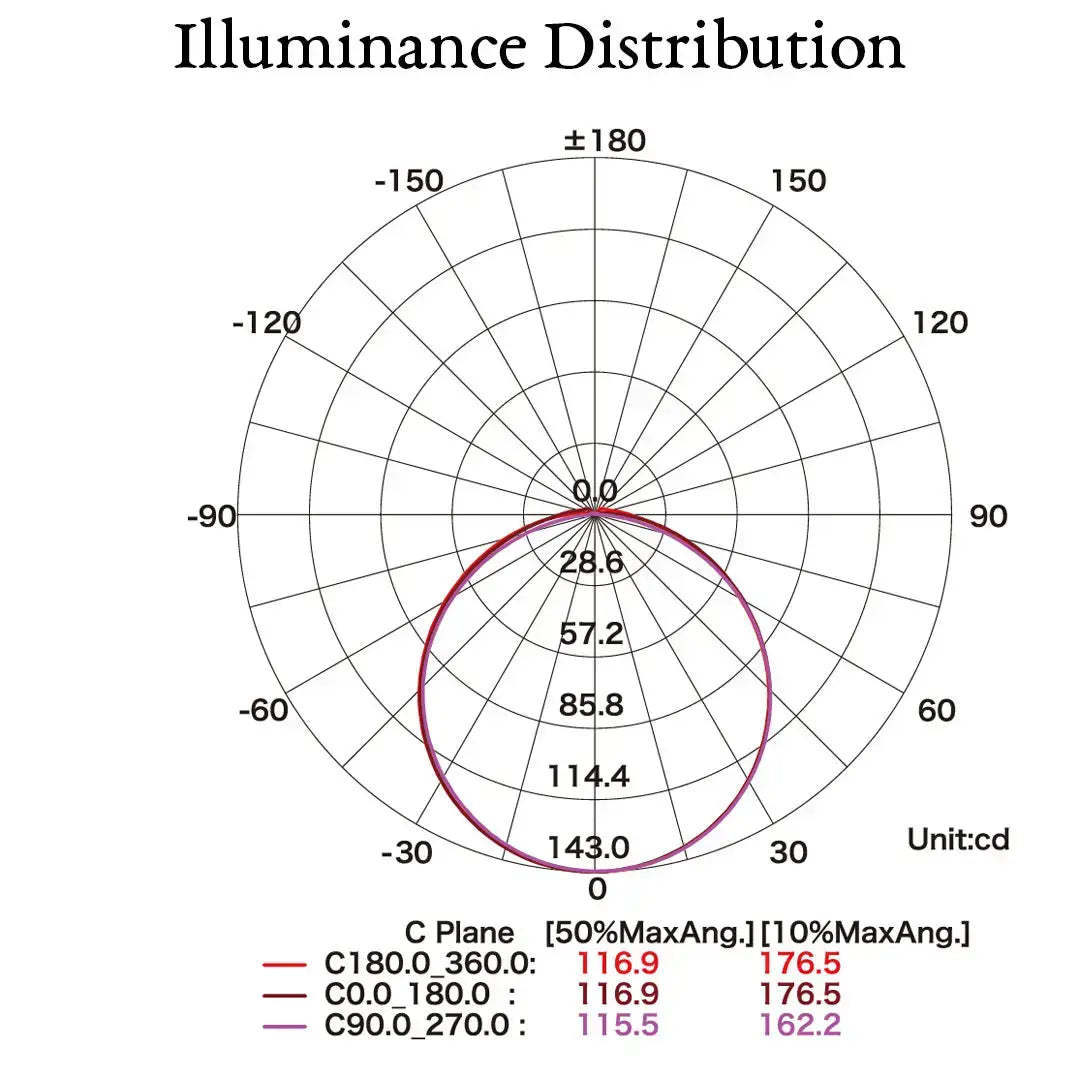

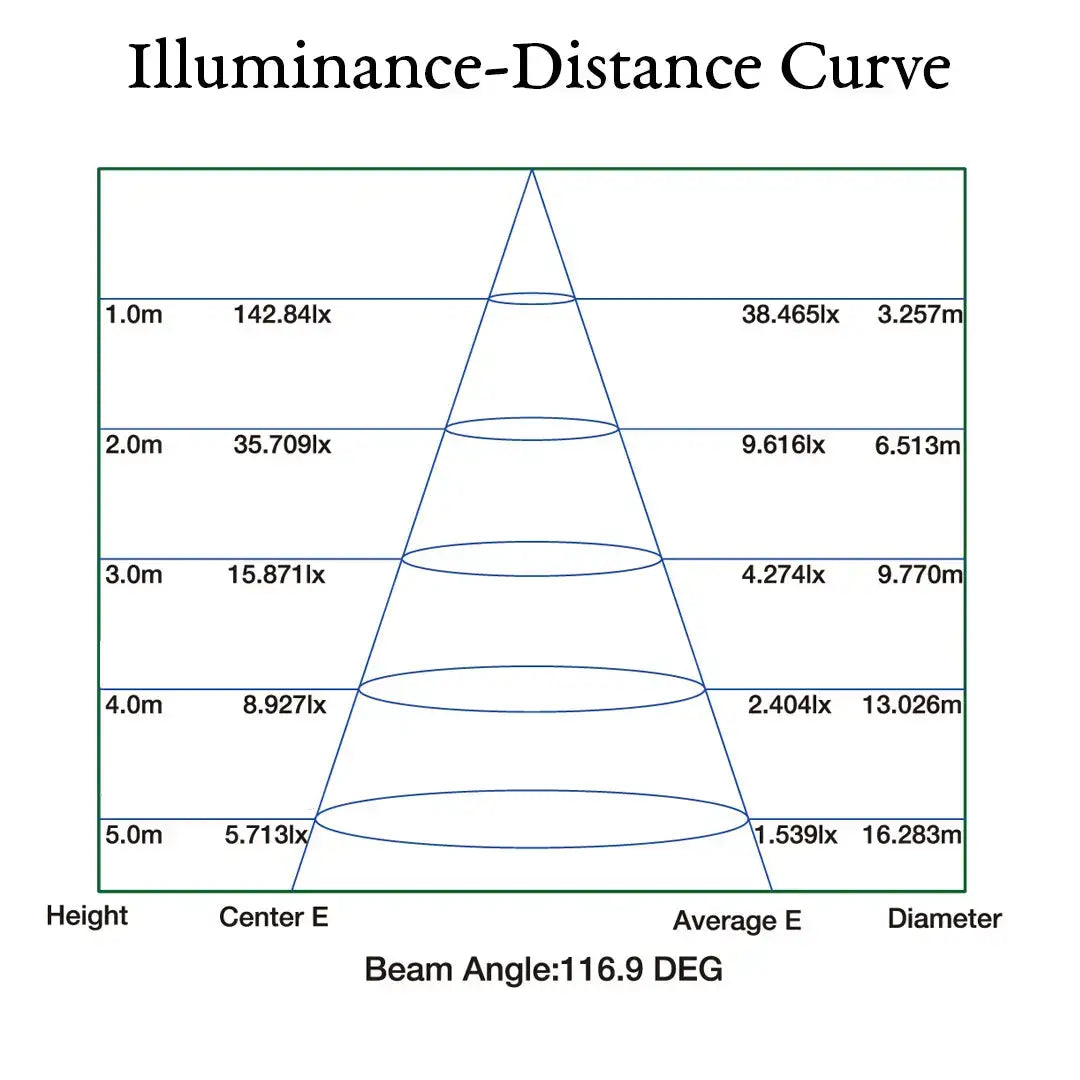

Light Surface: Round Fixture 120°
Cutting Intervals: 50mm
Minimum Bend Diameter: 100mm (Top Bending Only)
Dimmable: Yes

Temperature Ranges:
Installation Temperature: 0°C to 50°C
Operating Temperature: -40°C to 55°C
Humidity: 0–95% Non-Condensing

Safety:
IP Rating: IP67 (with appropriately rated accessories)
CRI: Ra >90
Features:
- Flame Resistant (Fire rating = FV-1), Solvent Resistant, Saltwater Resistant, IK08 Security
- Resistance to saline solutions, acids & alkali, corrosive gases and UV
Certifications:
CE, RoHS, UKCA (Tested to relevant standards)

Colour Specifications:
Colour | CCT Wavelength | LM/M

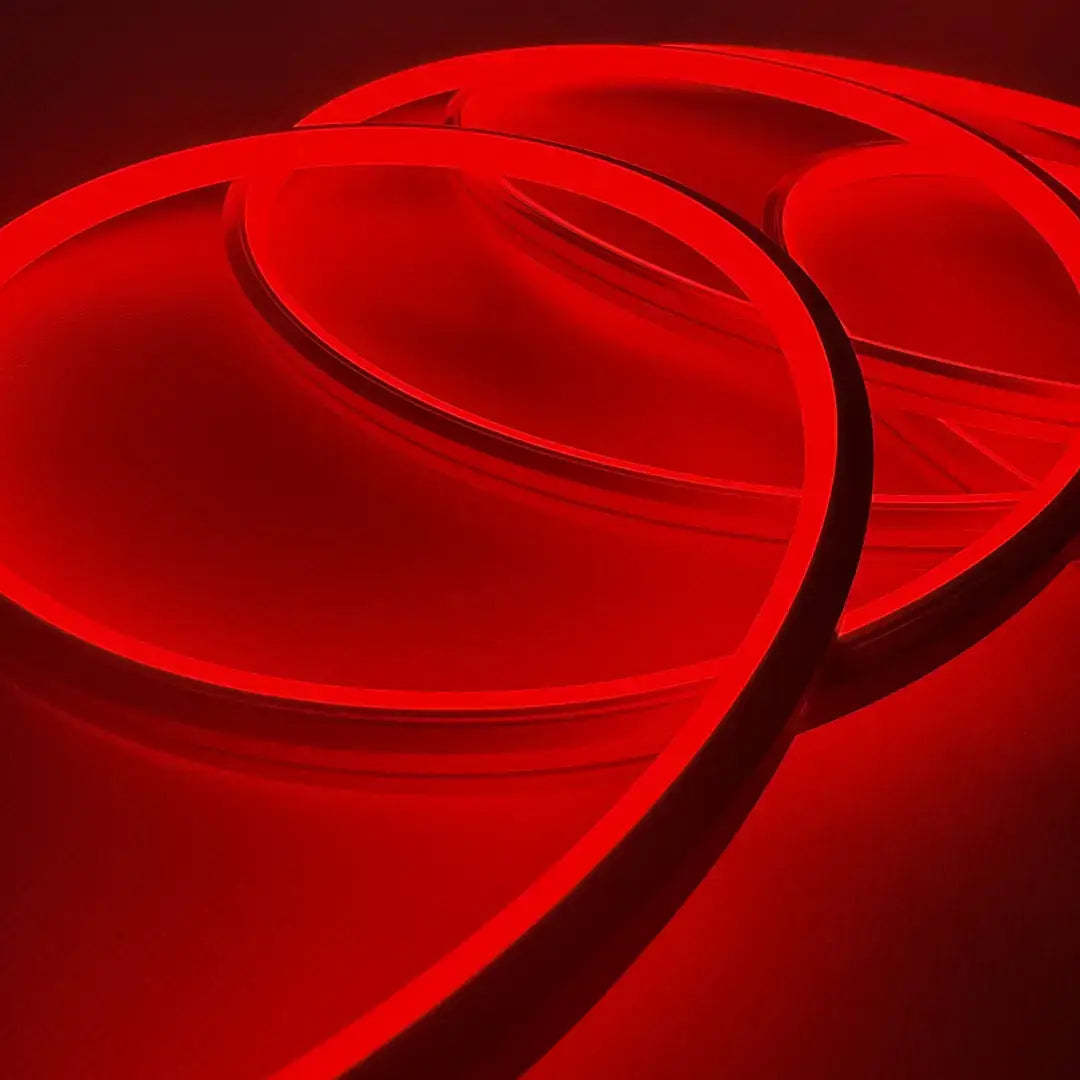

Red: 620–630nm | >200m/m
Green: 520–530nm | >550lm/m
Blue: 465–475nm | >90lm/m
Amber: 585–595nm | >370lm/m
Warm White (3000K): 3045K ±175K | >500lm/m
Natural White (400K): 3985±275K | >500lm/m
Pure White (6500K): 6532K ±510K | >510lm/m
