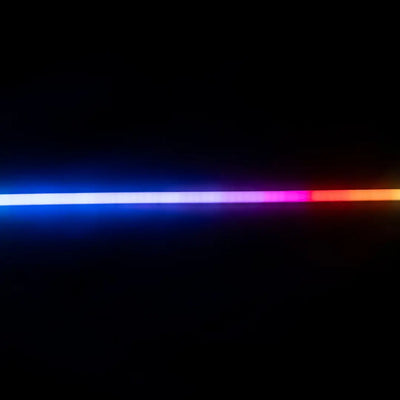

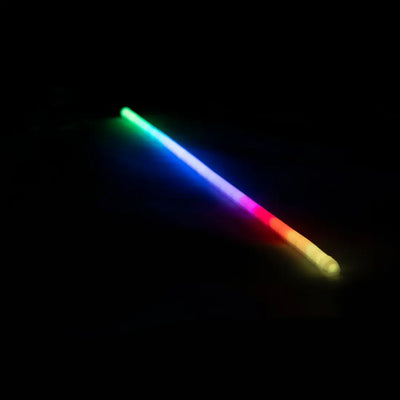

15x13 Semi-Circle Flex Neon RGB Pixel - Per Meter

Qty = Length in Meters (e.g. 6 qty=6m continuous)

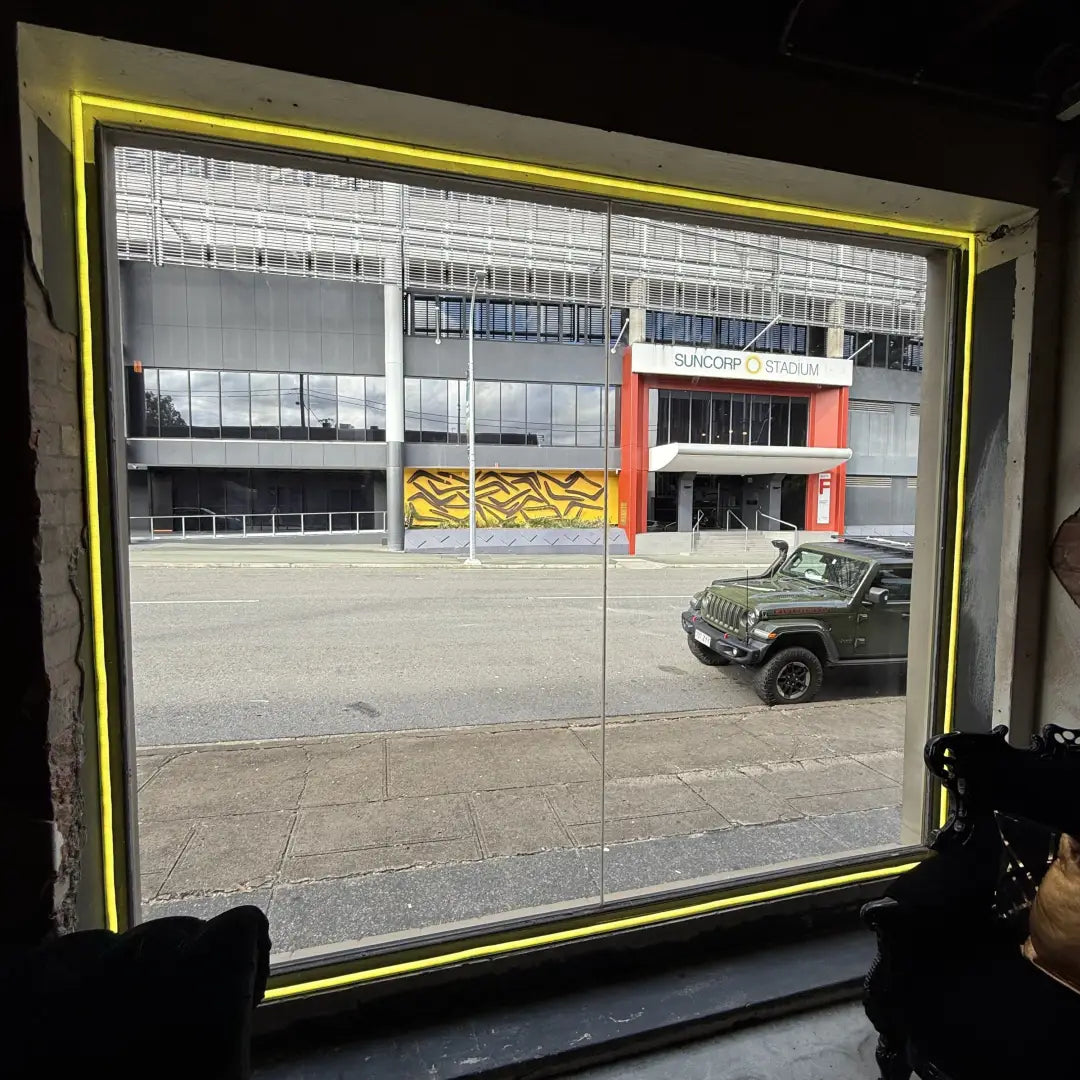

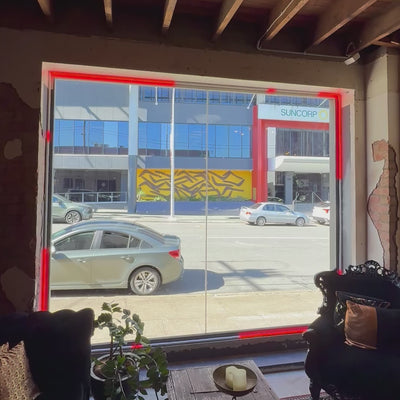

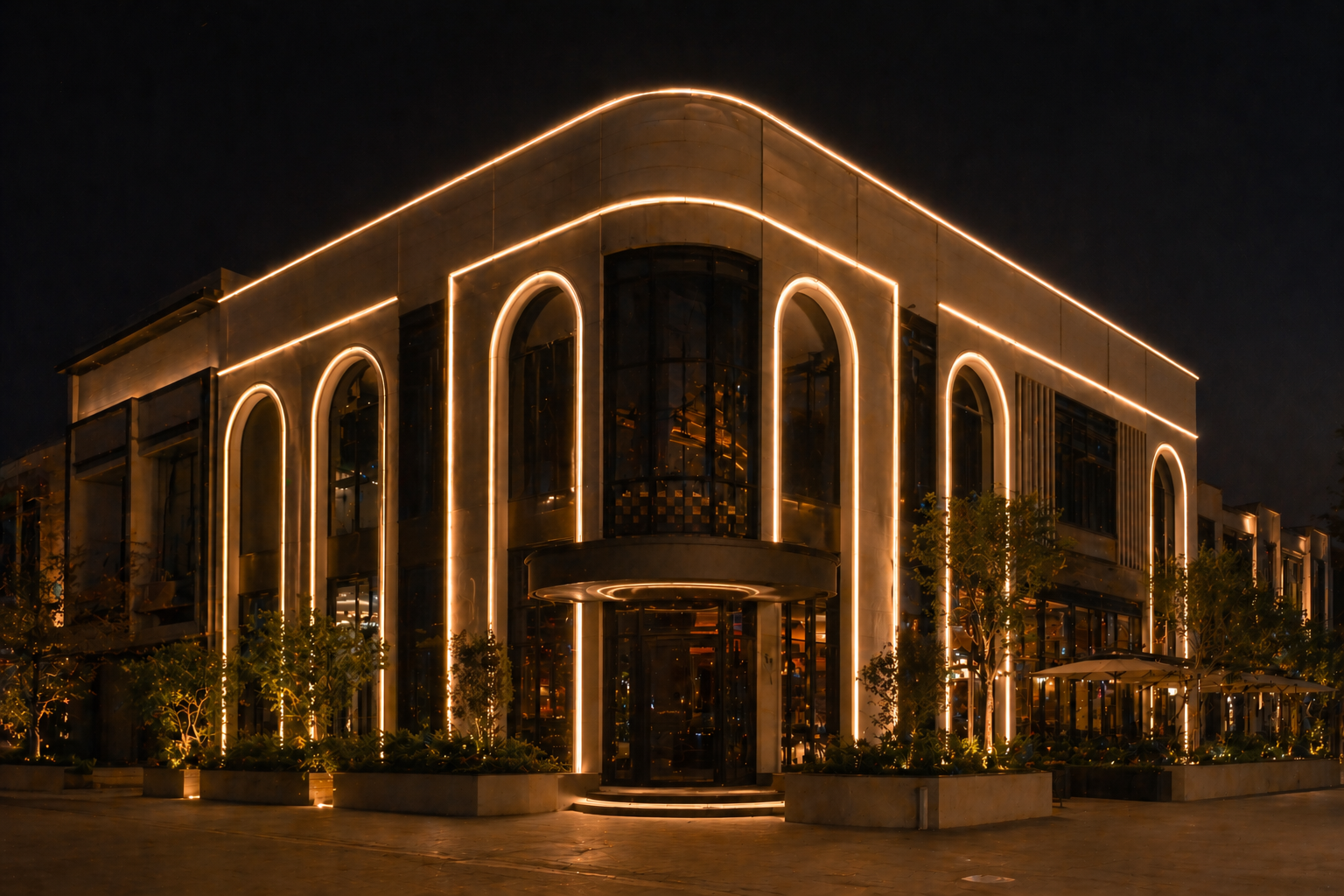

Our 15x13mm Semi-Circle Architectural Neon LED Strip is the perfect choice for those seeking a stylish and durable lighting solution for architectural applications. Designed with a unique semi-circle shape, this premium strip is ideal for neon signs, architectural features, product lighting, and more. Here’s everything you need to know about this high-quality lighting option:

Product Highlights:

• Architectural Elegance: The semi-circle design adds a sophisticated touch, making it ideal for architectural lighting and decorative applications.
• Commercial Grade Quality: Built to last, ideal for a variety of applications including neon signs, architectural strips, and product lighting.
• Unmatched Brightness: Our brightest option, ideal for applications requiring intense illumination including neon signs, architectural strips, and product lighting.
• Vertical Bending: Designed for flexibility, allowing for creative and intricate lighting designs.
• Power Requirements: This 12v neon strip requires a 12v LED Driver, available for purchase in our store. Once connected, it can be plugged into a standard Australian outlet.
• Max Run Length: Single feed (power from one side) supports up to 5m. Double feed (power from both sides) extends up to 10m.
• Weather Resistant: IP67 rated, ensuring durability in various weather conditions.
• Customisable Cutting: Small cutting intervals of 5cm make it perfect for custom projects.
• Long-Lasting LEDs: With an estimated lifespan of 36,000 hours, you can enjoy long-term illumination.

Please read Spec Sheets below for more info.

Overview:

Dimensions & Material:

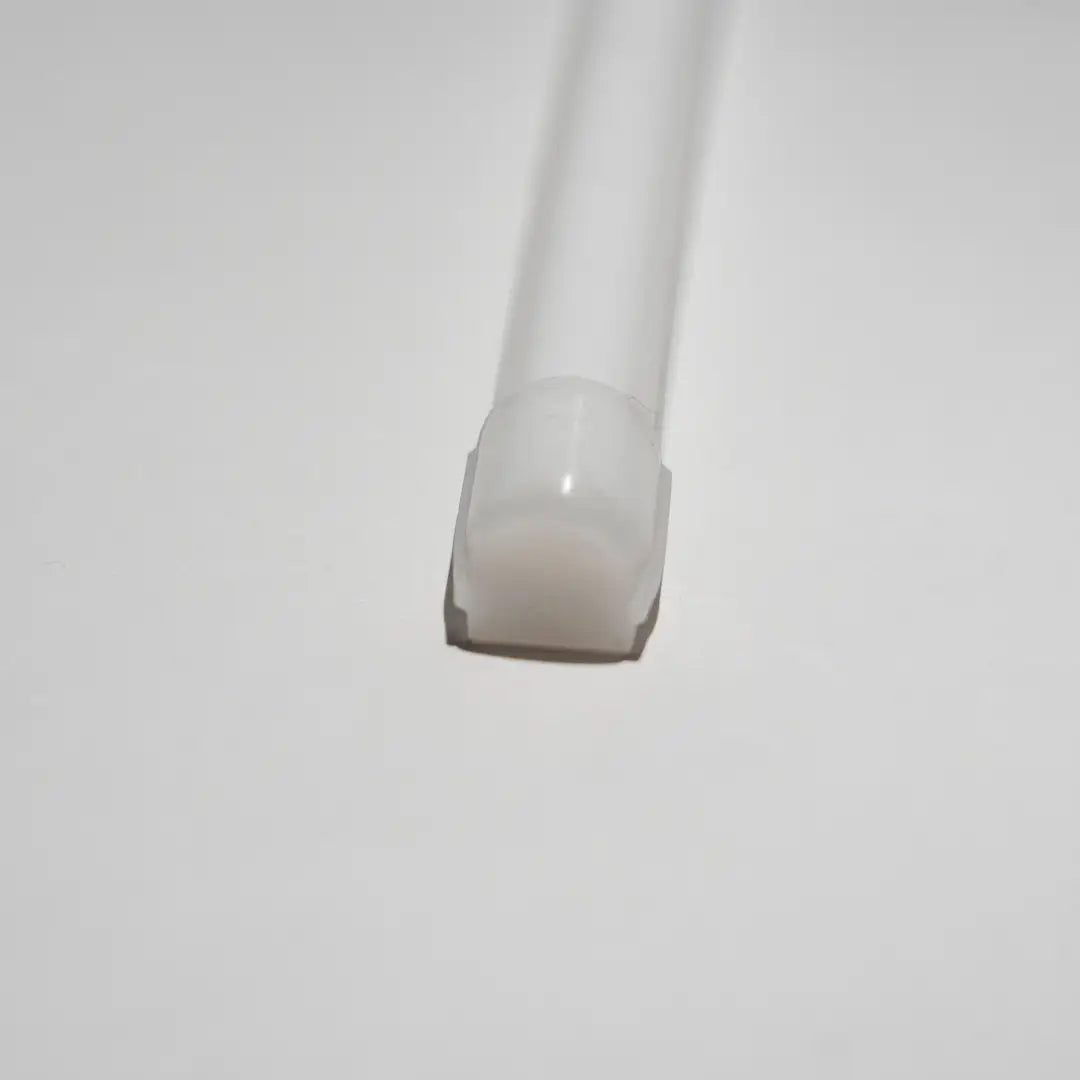

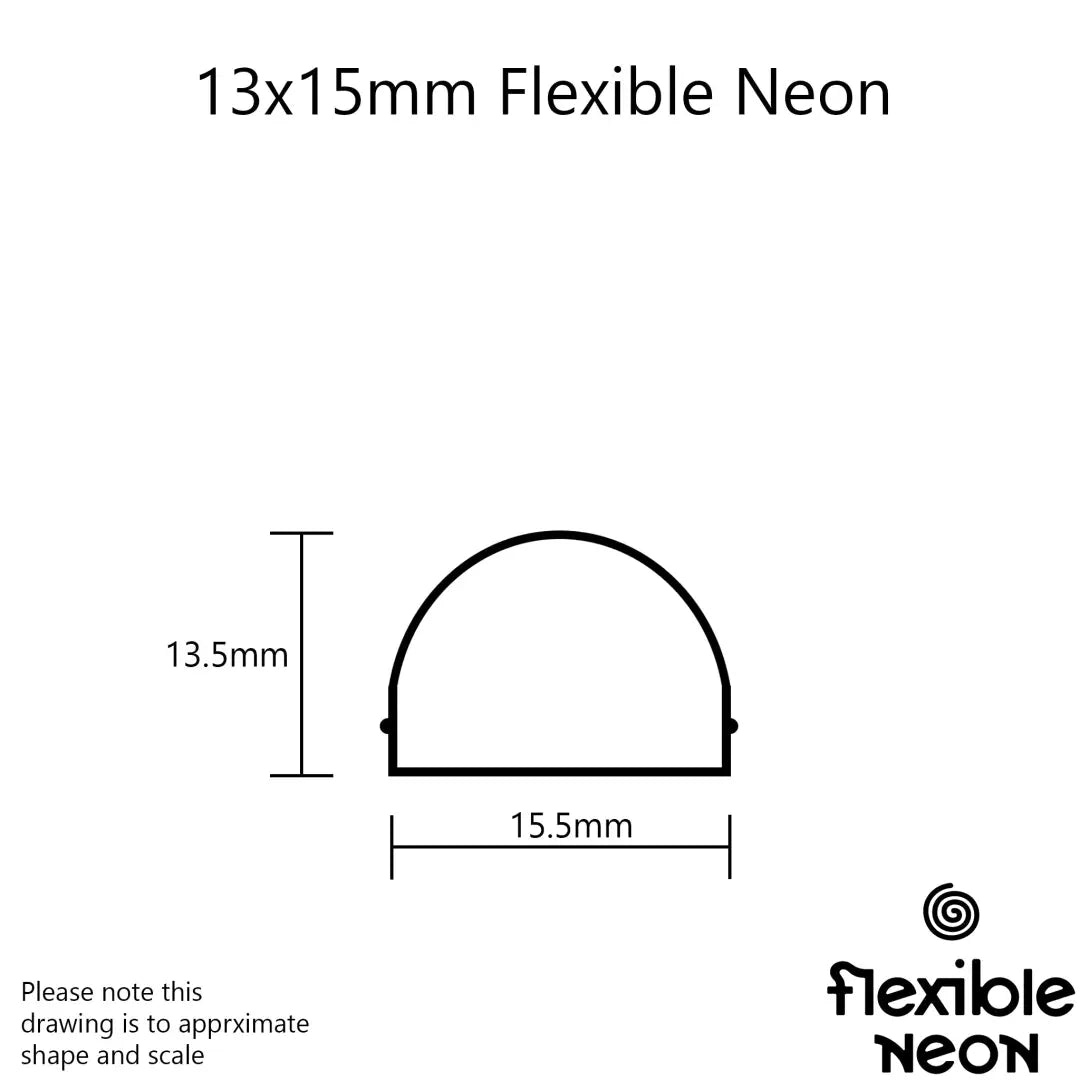

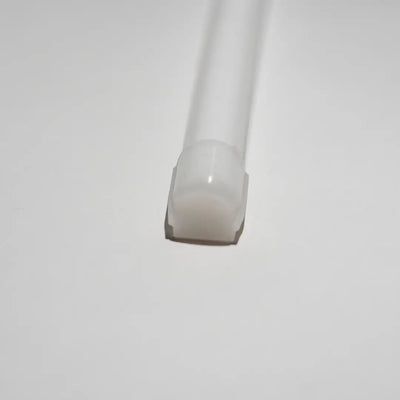

• Flexible Neon Dimensions (H x W): 15.5mm × 13.5mm
• Material: Silicone

Electrical:

• Voltage: 12V DC
• Rated Current: 1 A/m
• Power Consumption: 15W/m (High Brightness)
• LED Qty/m: 108 LEDs (18 Pixels/m)
• LED Type/Chip: SMD3838, SM16703
• Dimmable: Yes
• Cutting Intervals: 28.8mm
• Light Surface: 180°

Run Lengths:

• Single Feed: 5 meters @ 12V DC
• Double Feed: 10 meters @ 12V DC

Performance & Lifespan:

• Lumen Maintenance: 36,000 hours @ 45°C
• CRI: RA > 80

Physical & Installation:

• Available Lengths: Per Meter
• Minimum Bend Diameter: 80mm for Pixel
• Installation Temperature: 0° to 55°C
• Operating Temperature: -25° to 55°C
• Humidity: 0–95% non-condensing

Safety & Certification:

• IP Rating: IP67 (with appropriately rated accessories)
• Flame Resistant, UV Resistant, Solvent Resistant, Saltwater Resistant, IK08 Security
• Certifications: CE, ROHS, REACH, CB, UL, UKCA

Warranty:

• 2 Years or 36,000 hours (whichever comes first)
