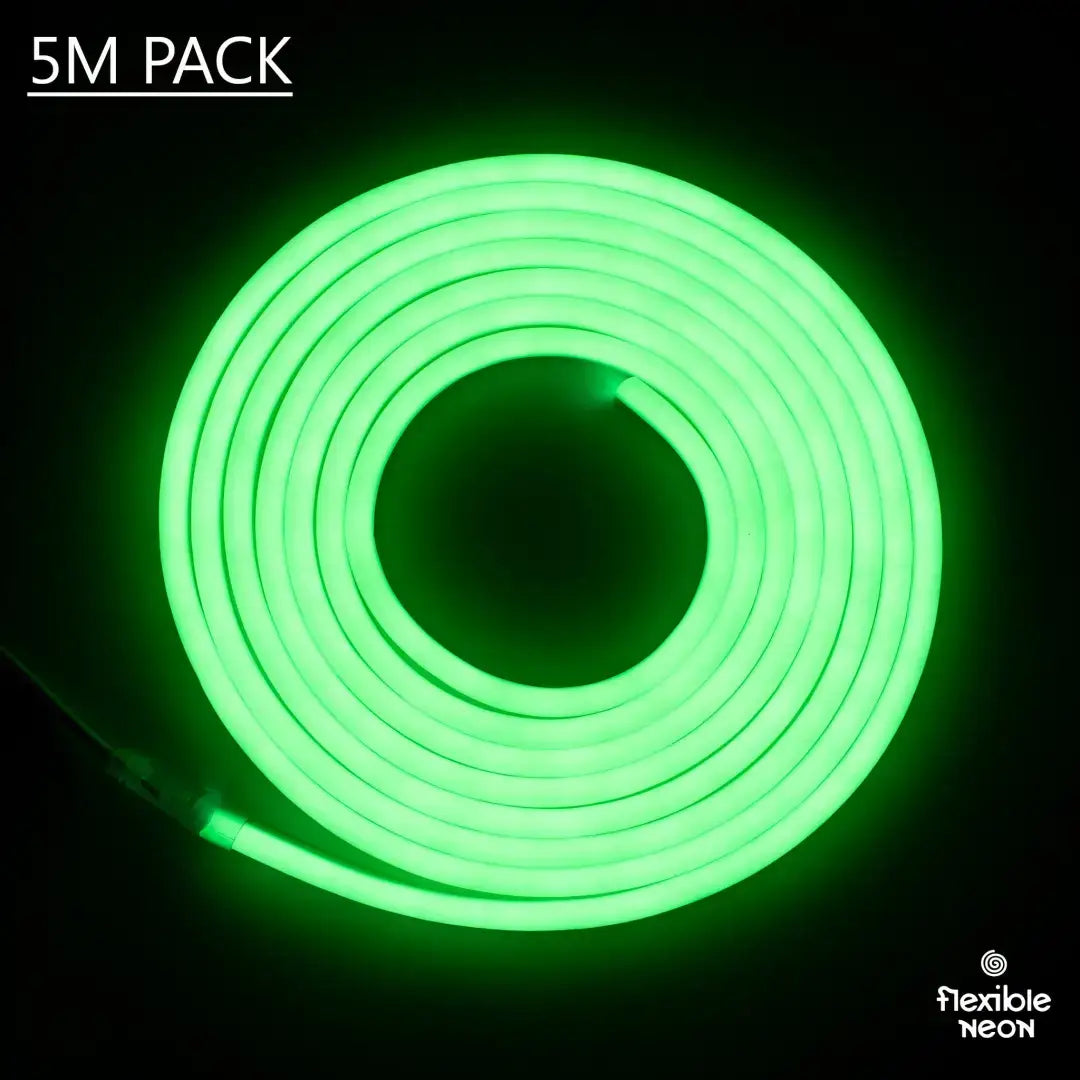

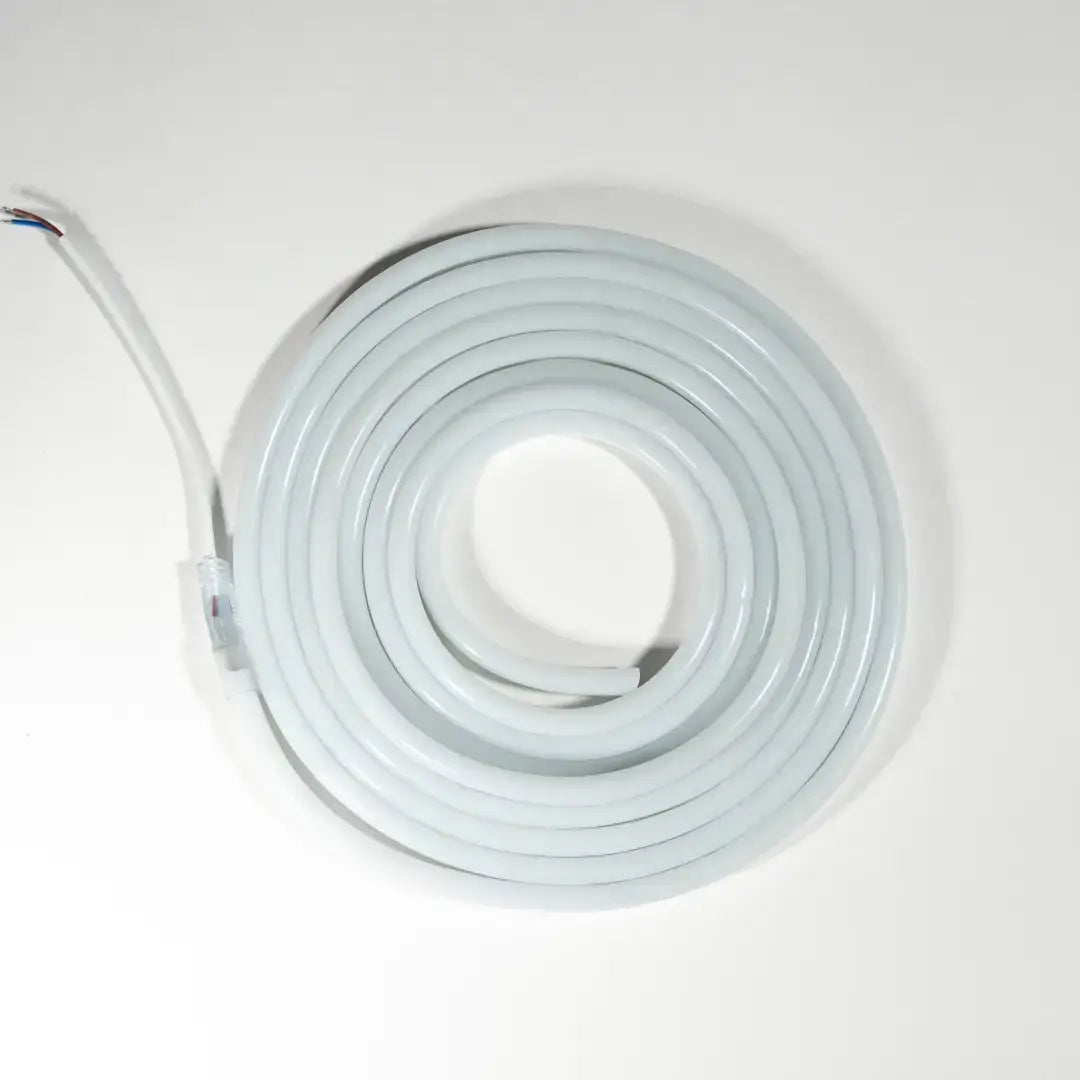

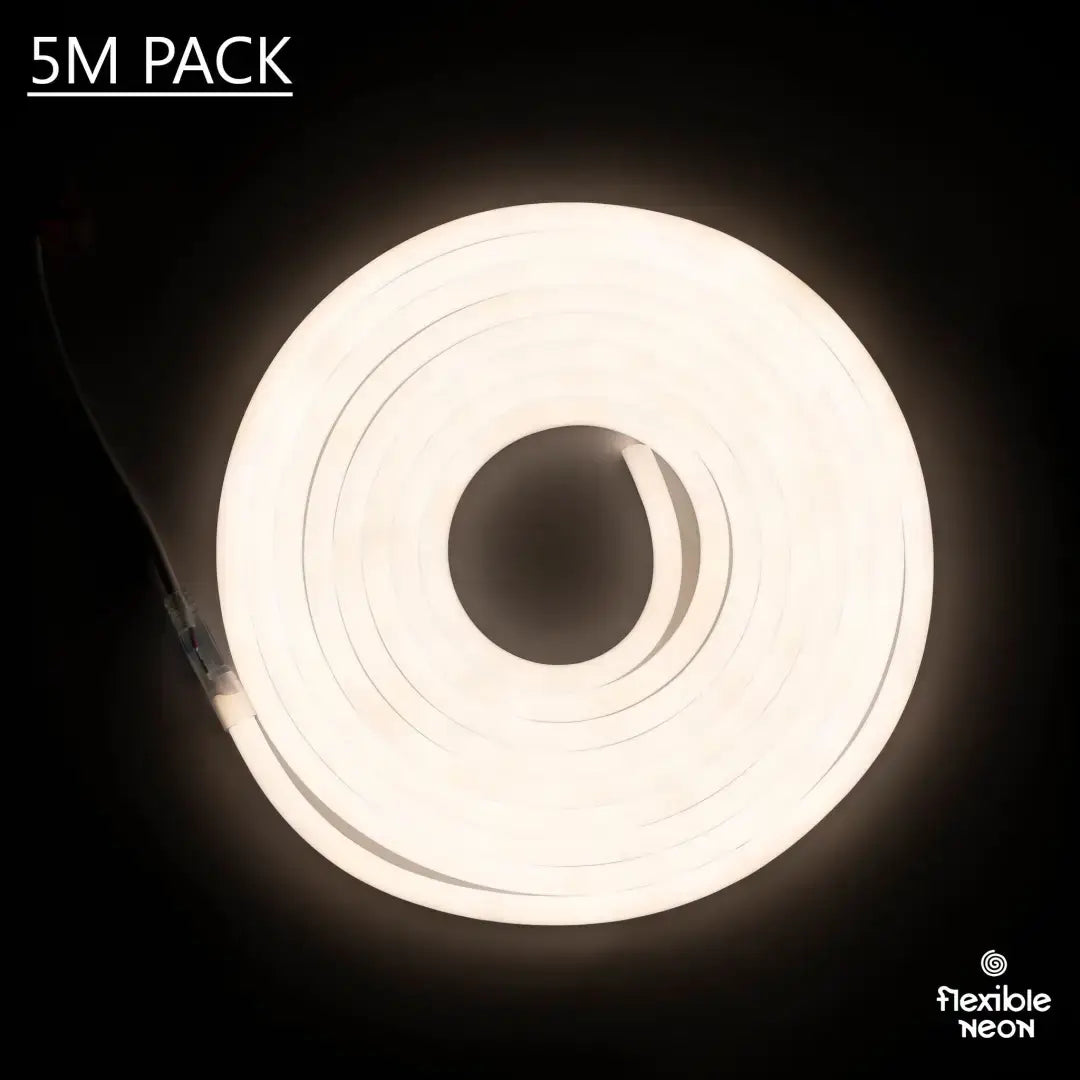

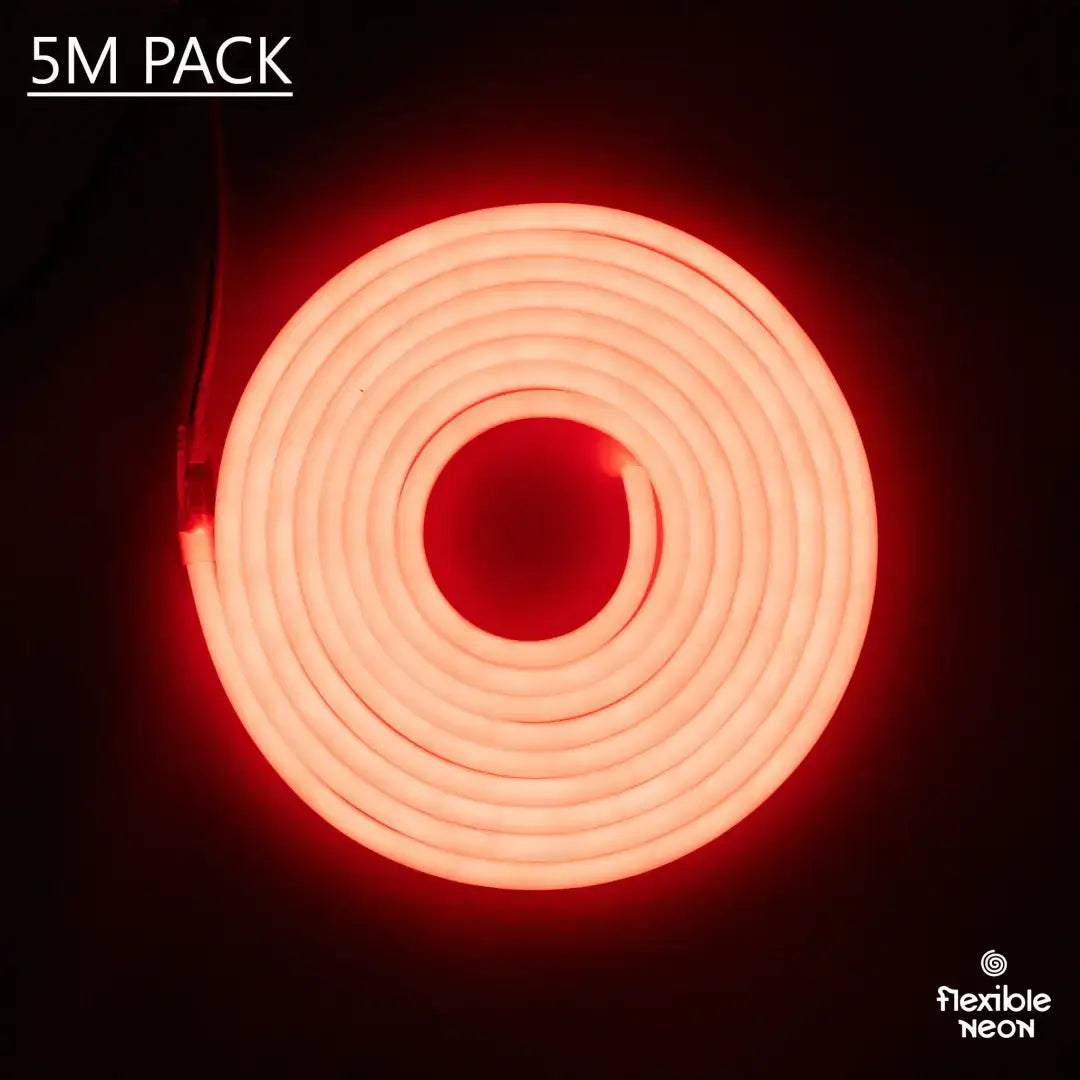

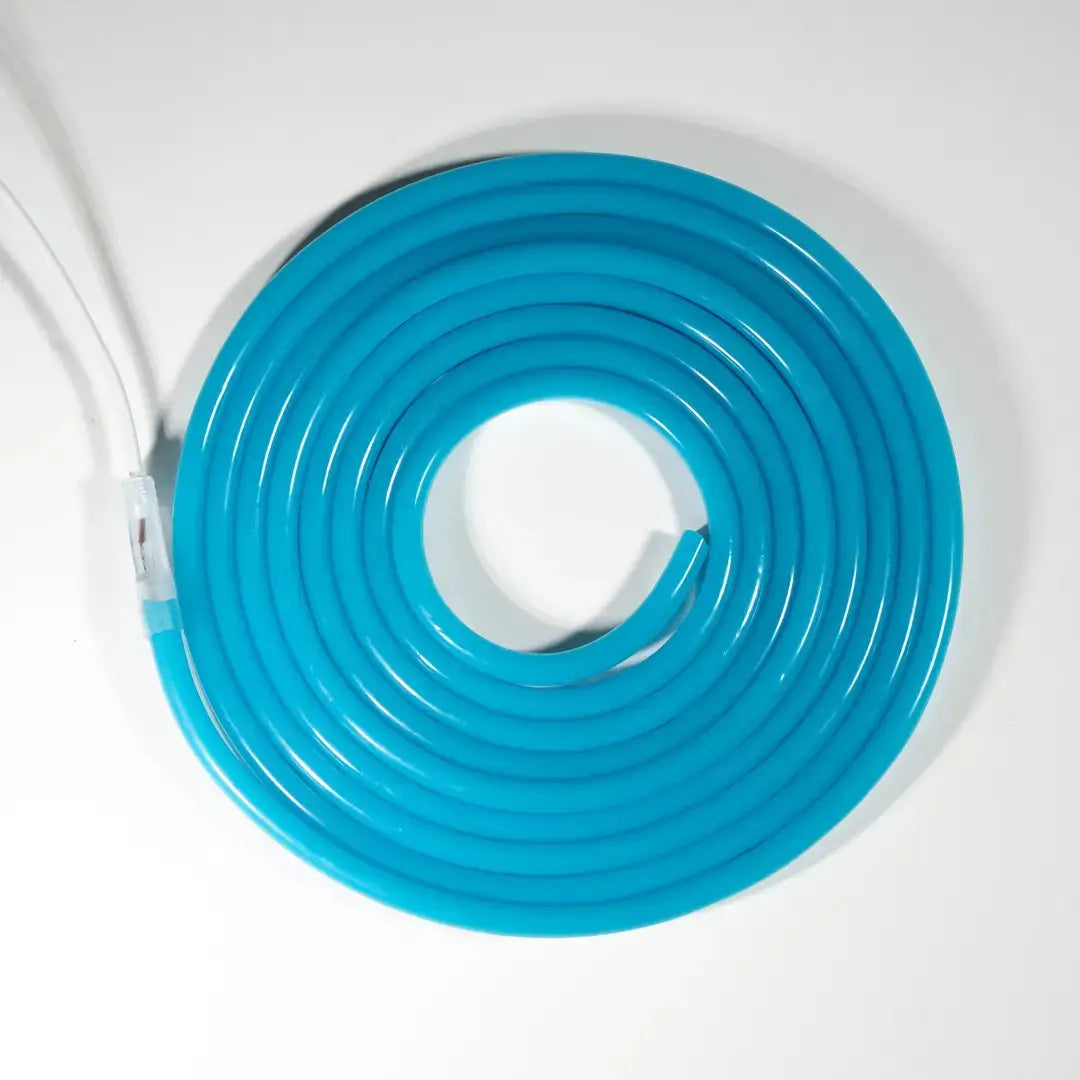

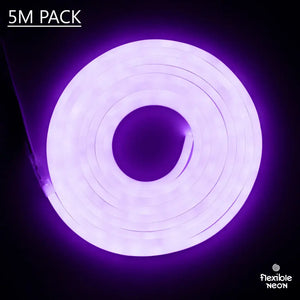

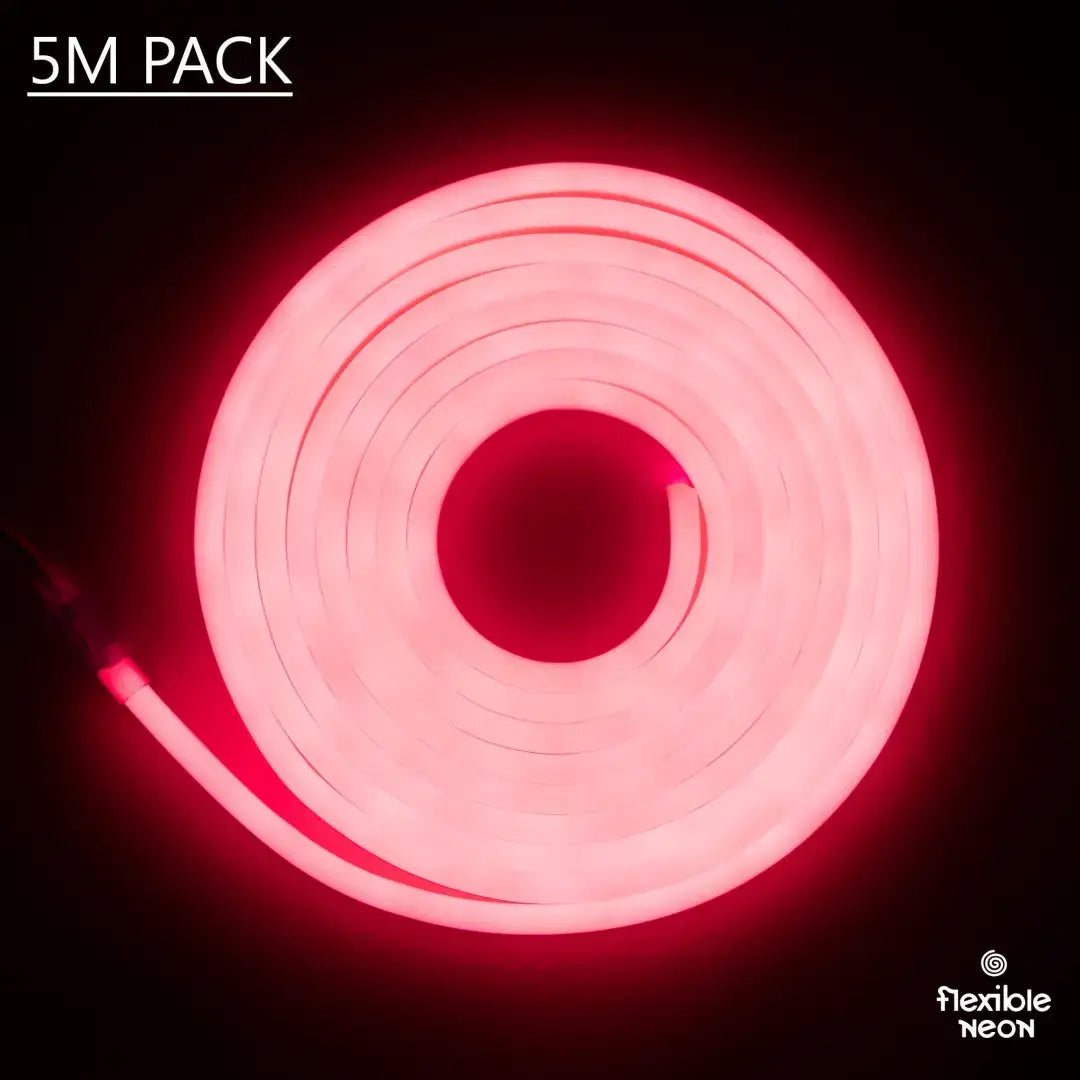

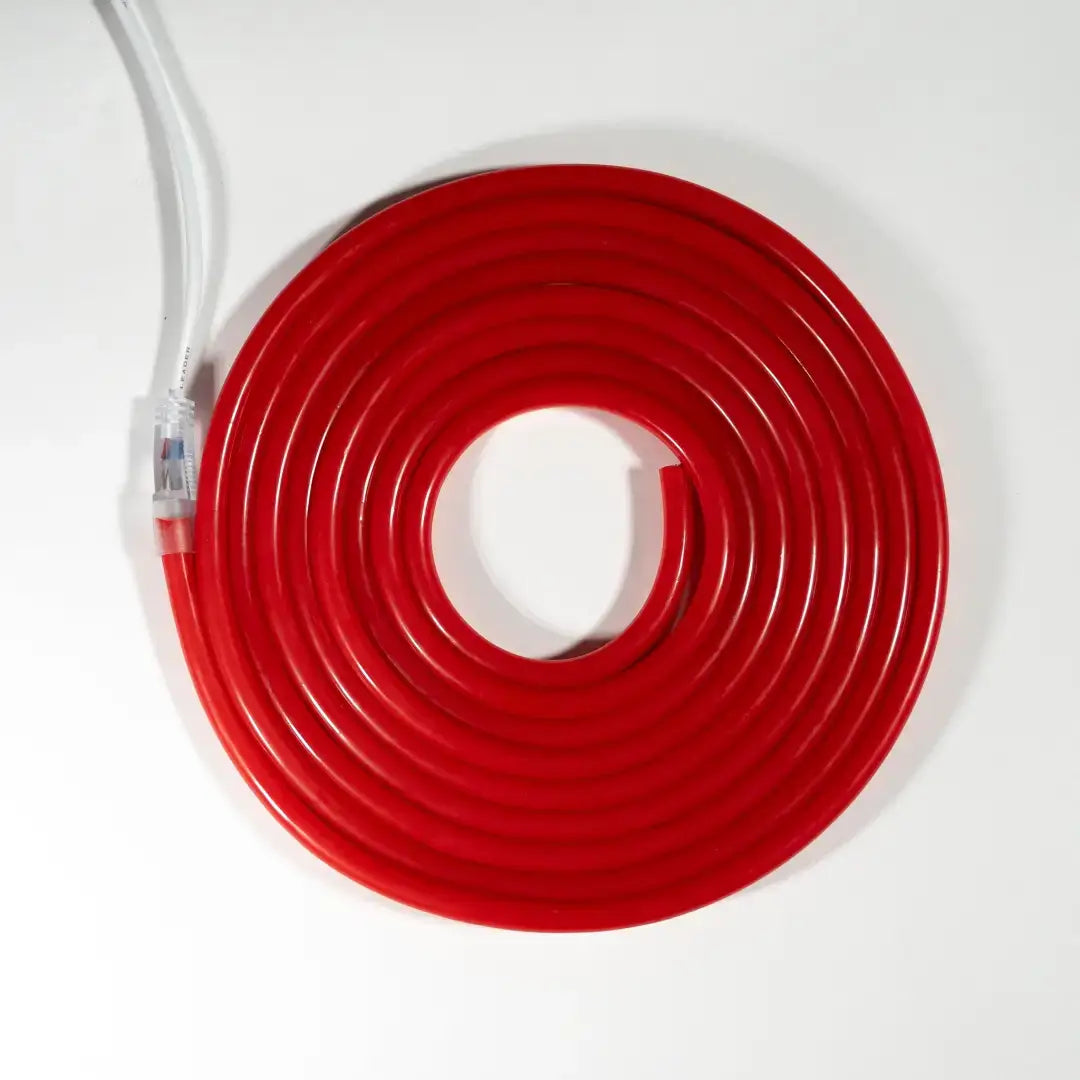

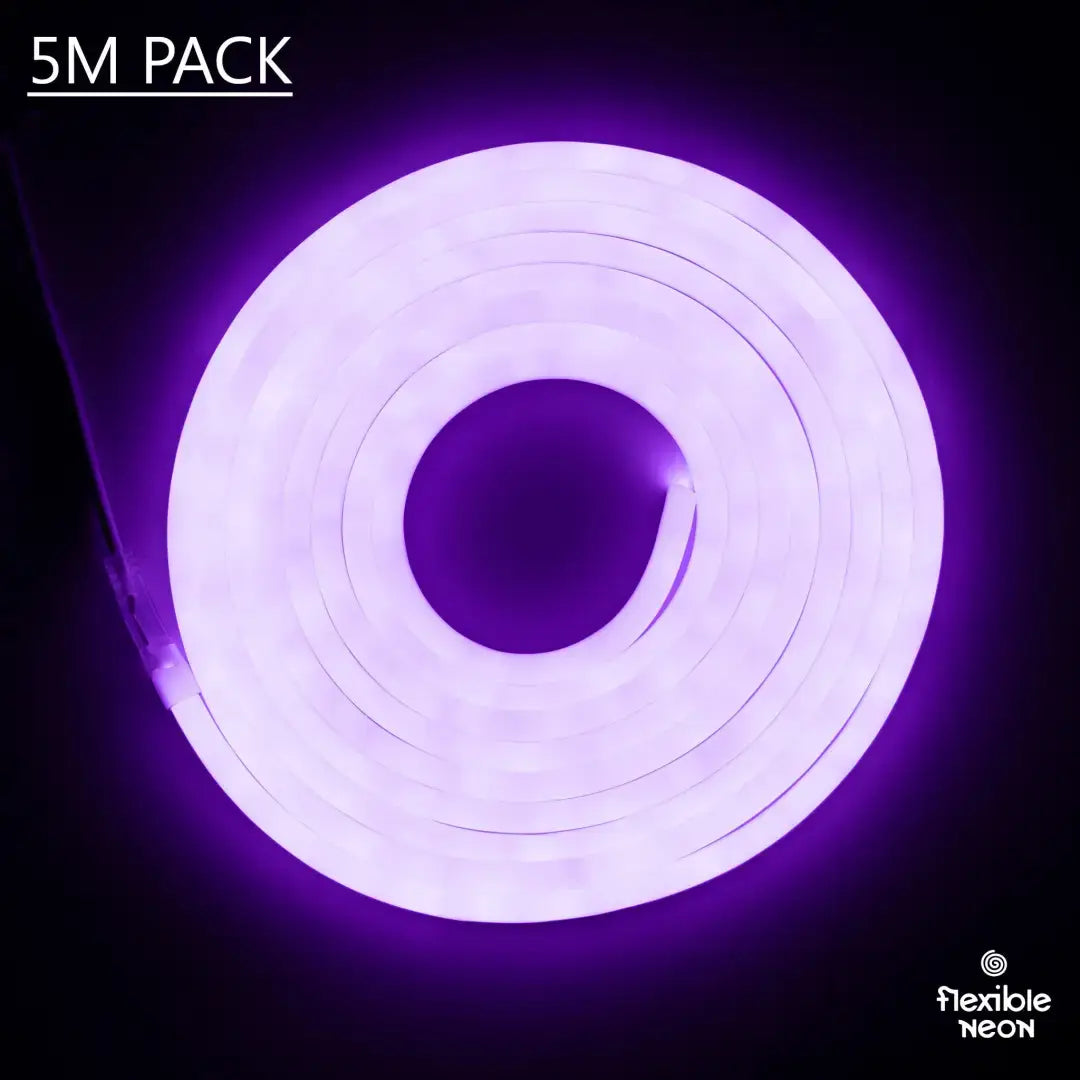

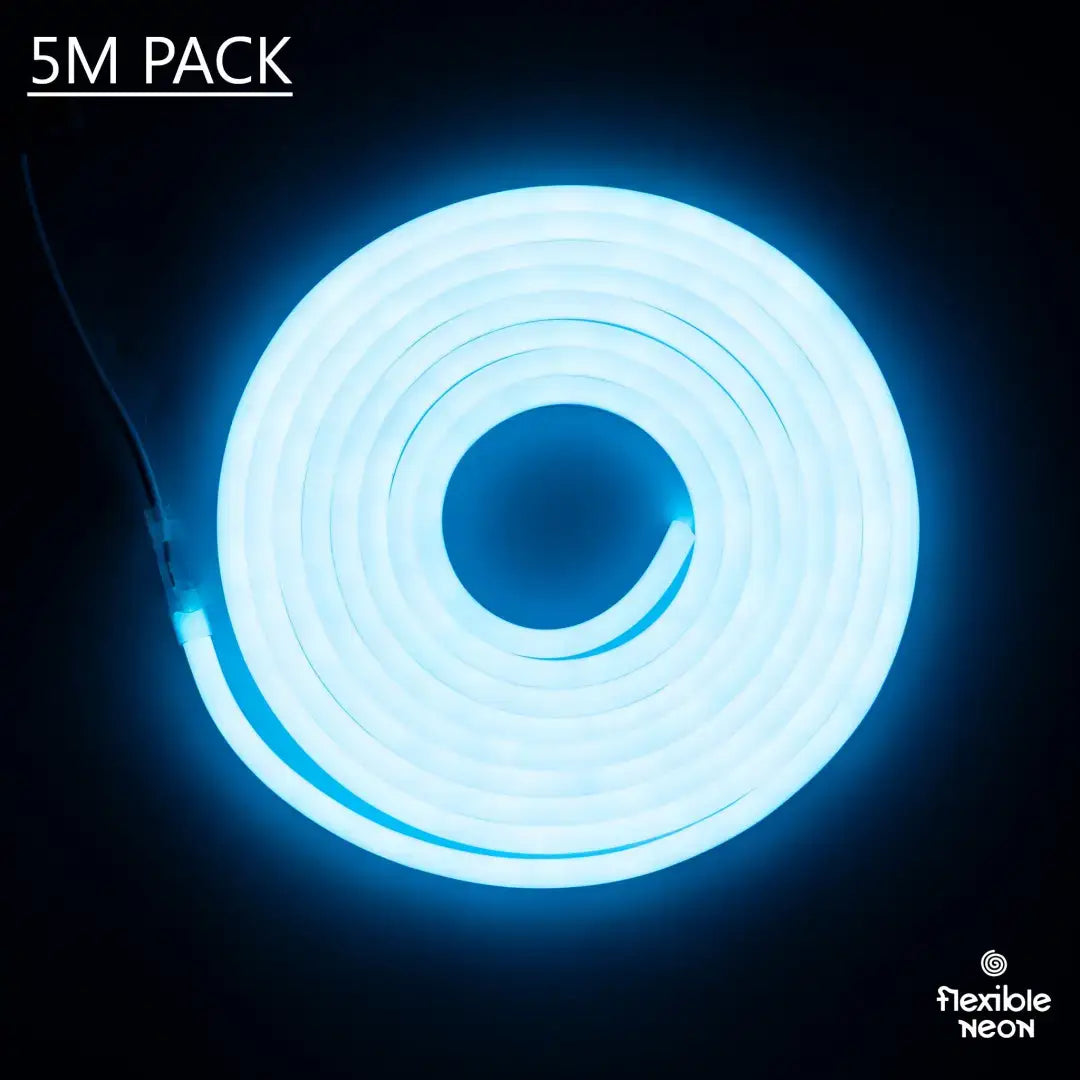

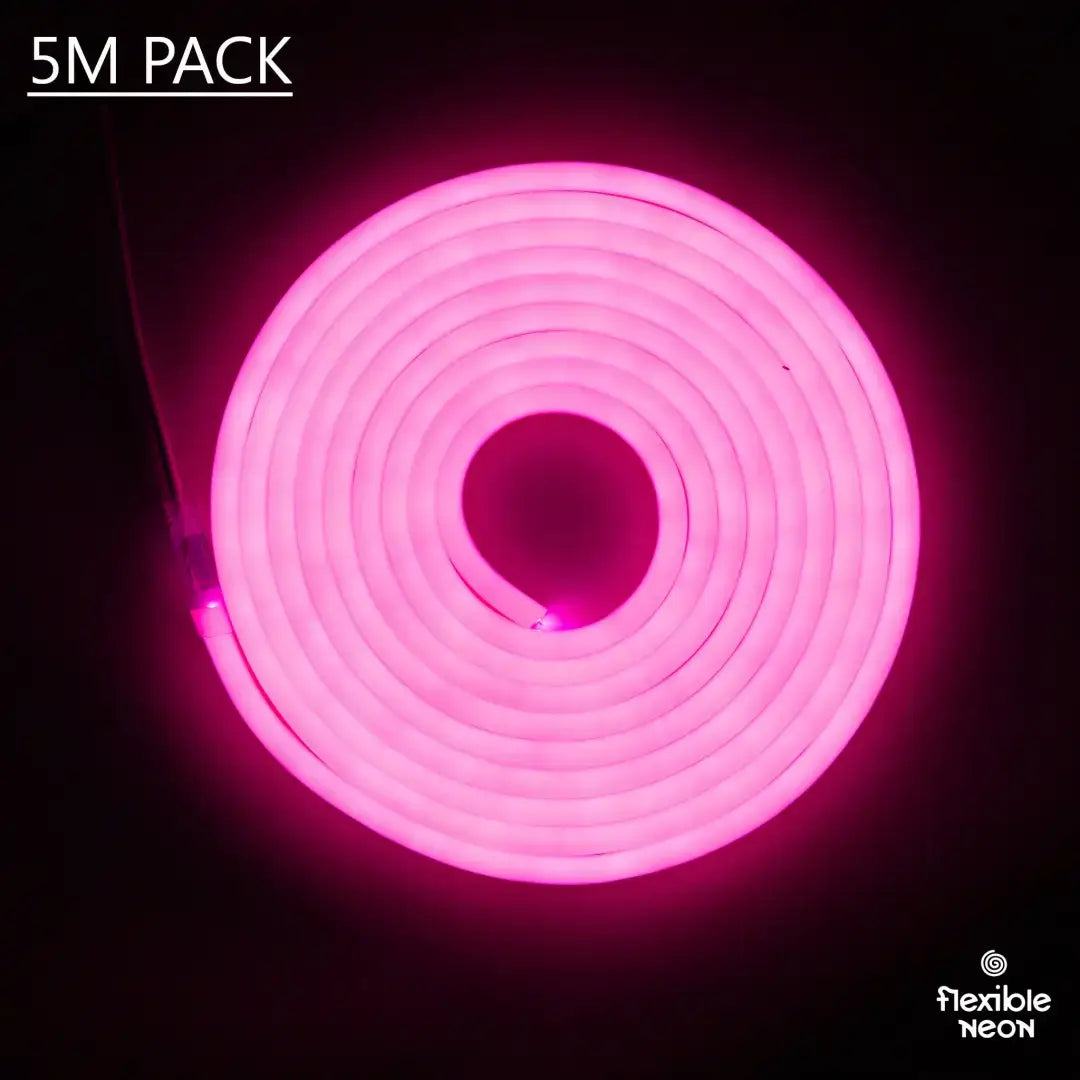

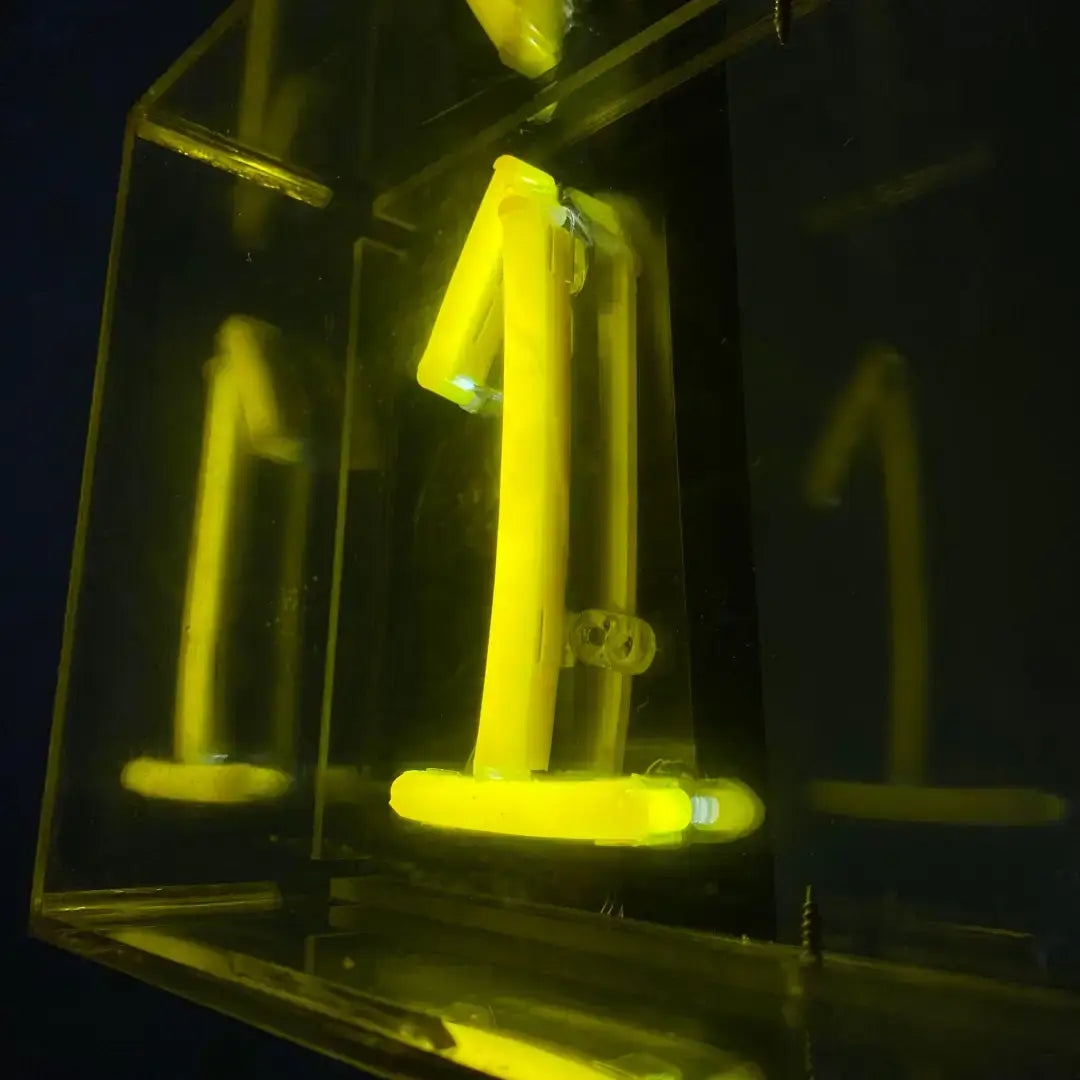

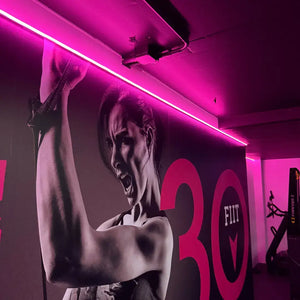

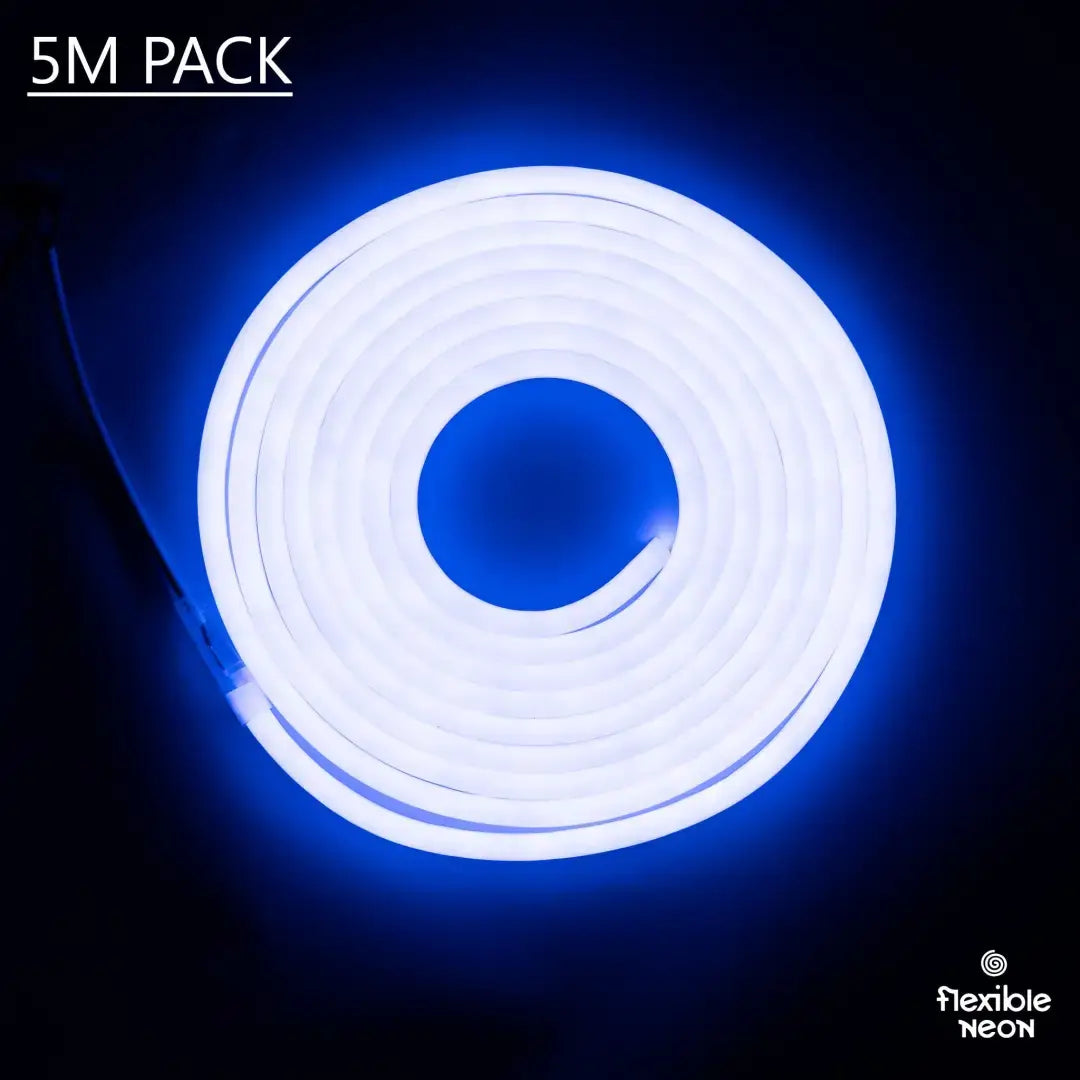

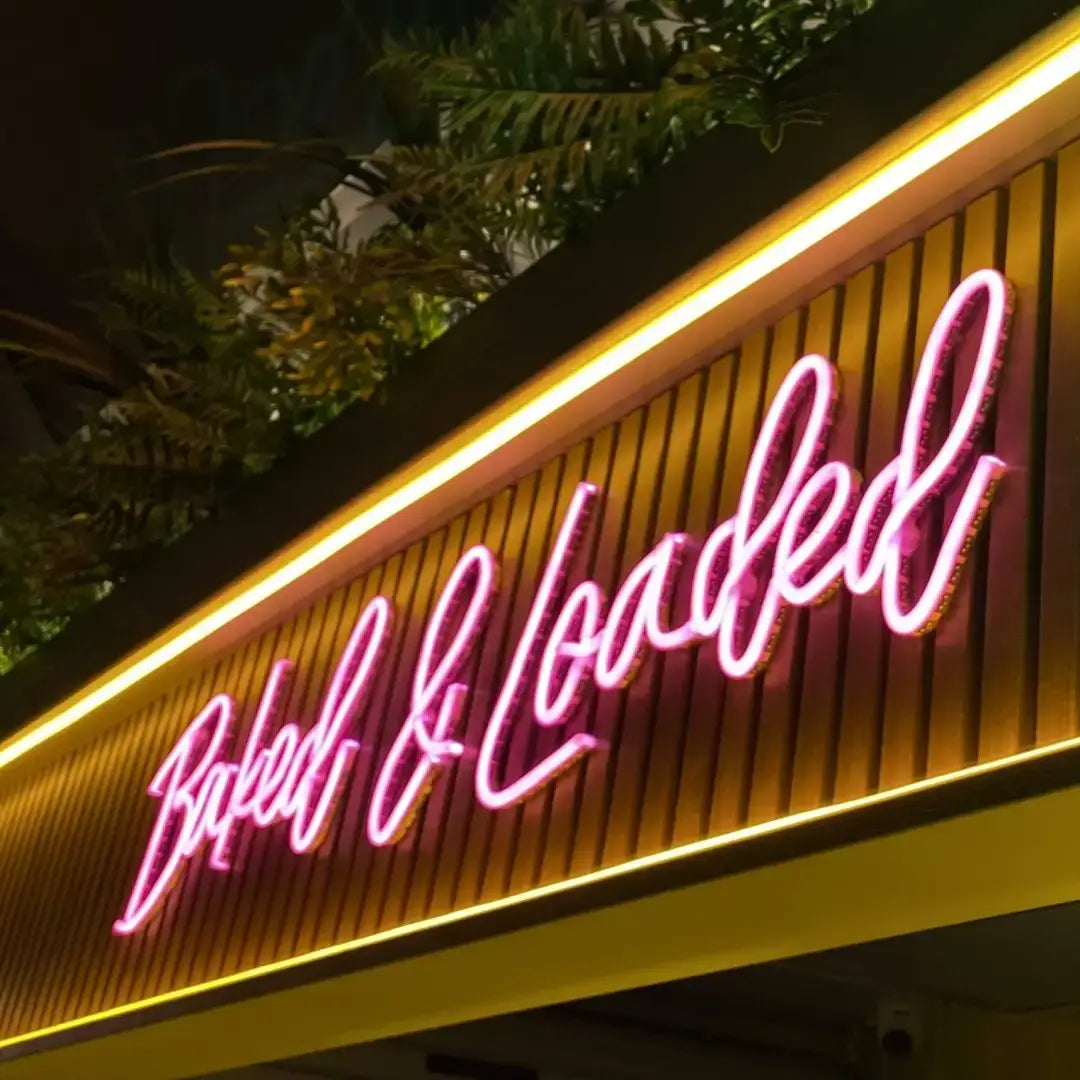

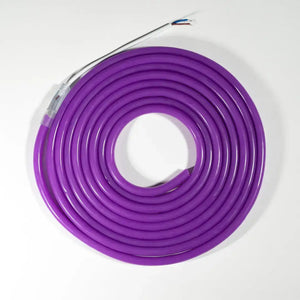

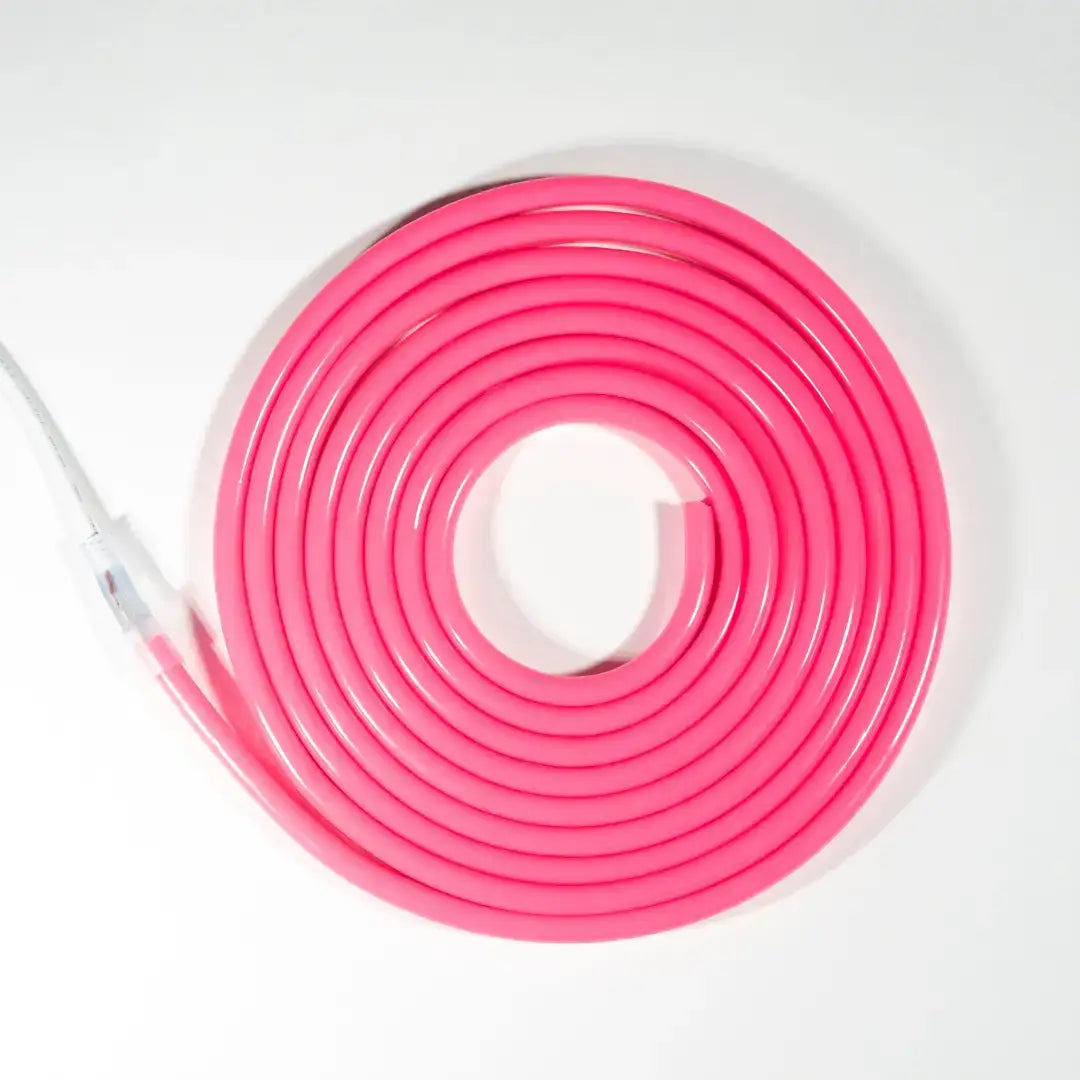

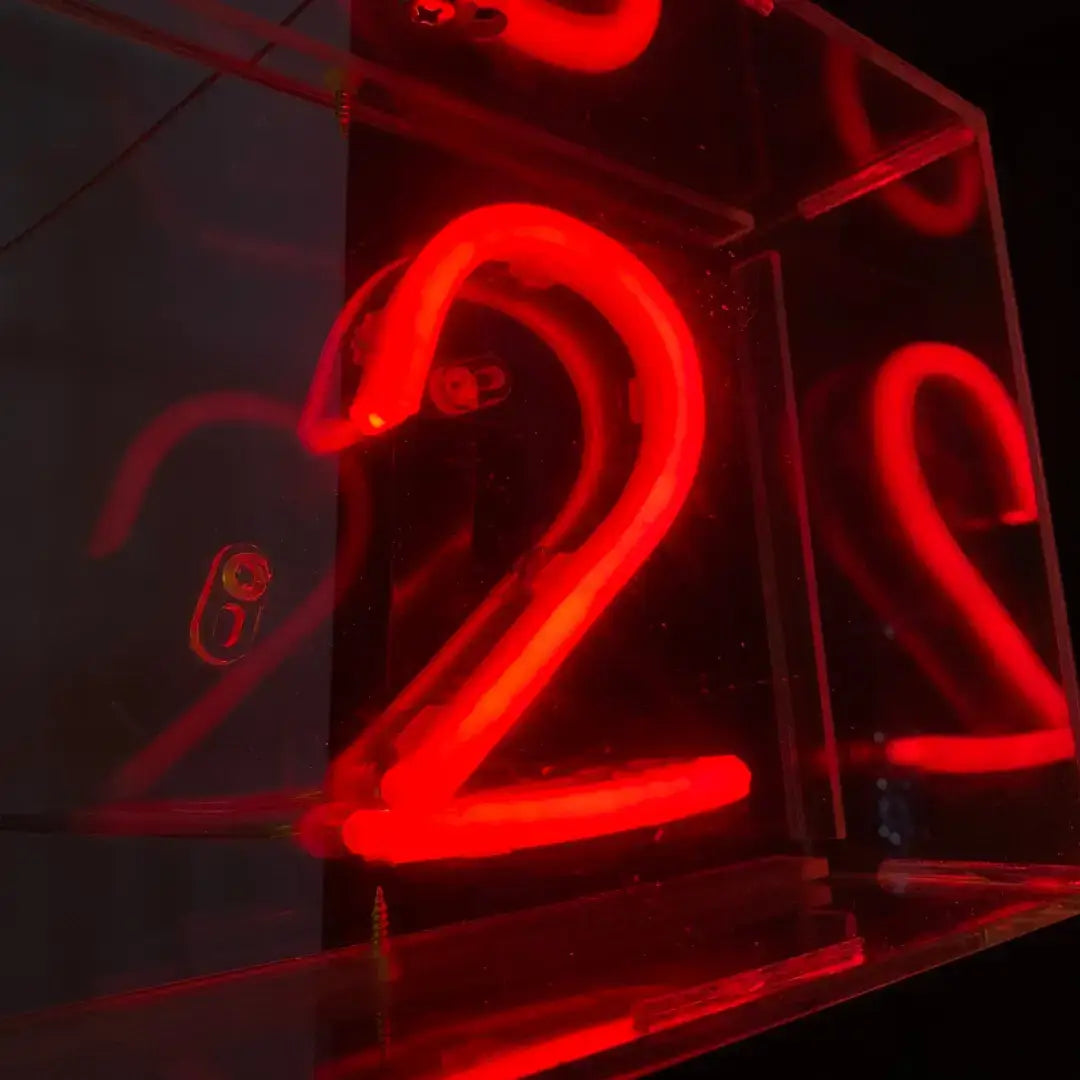

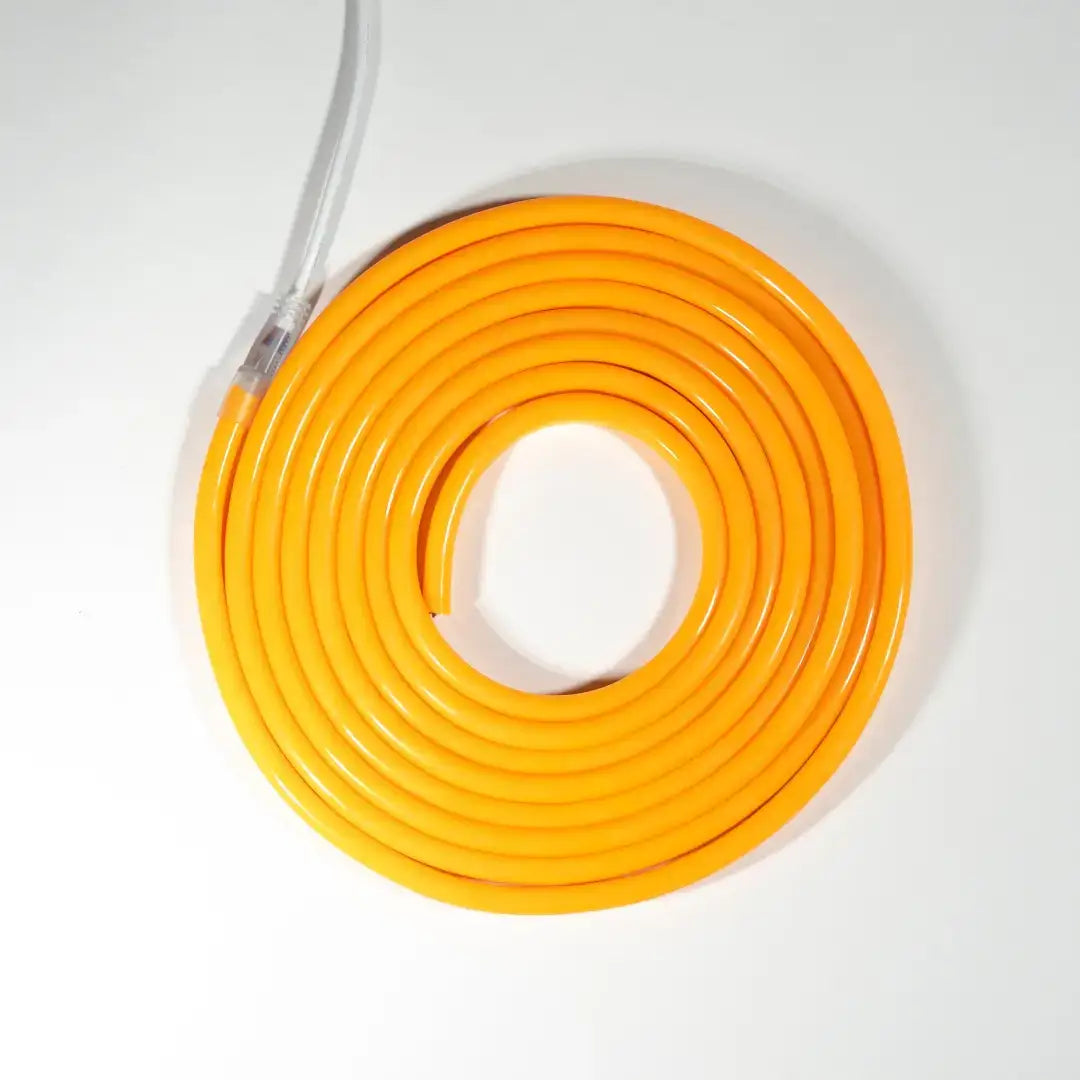

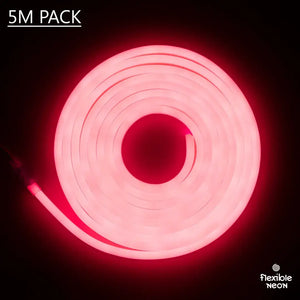

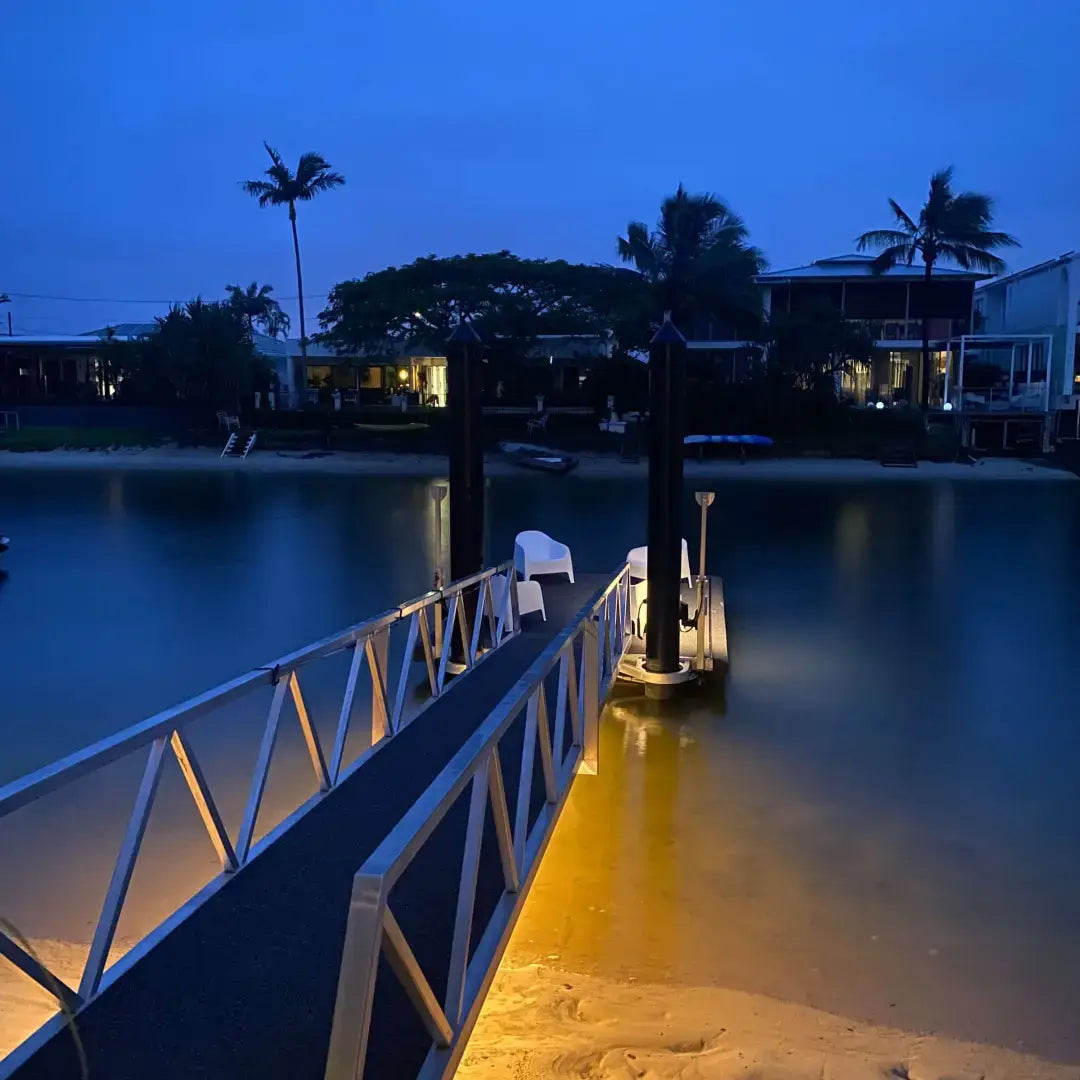

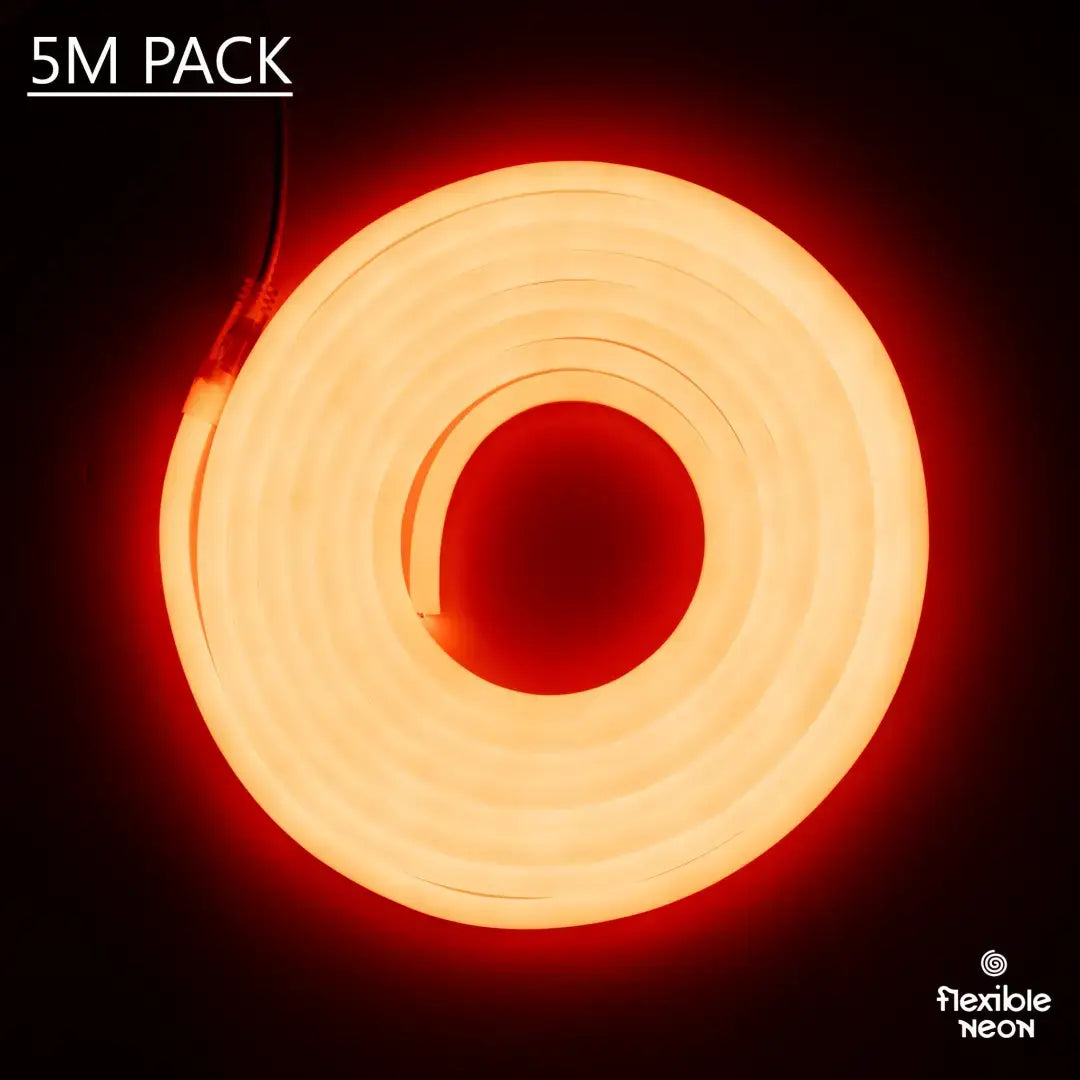

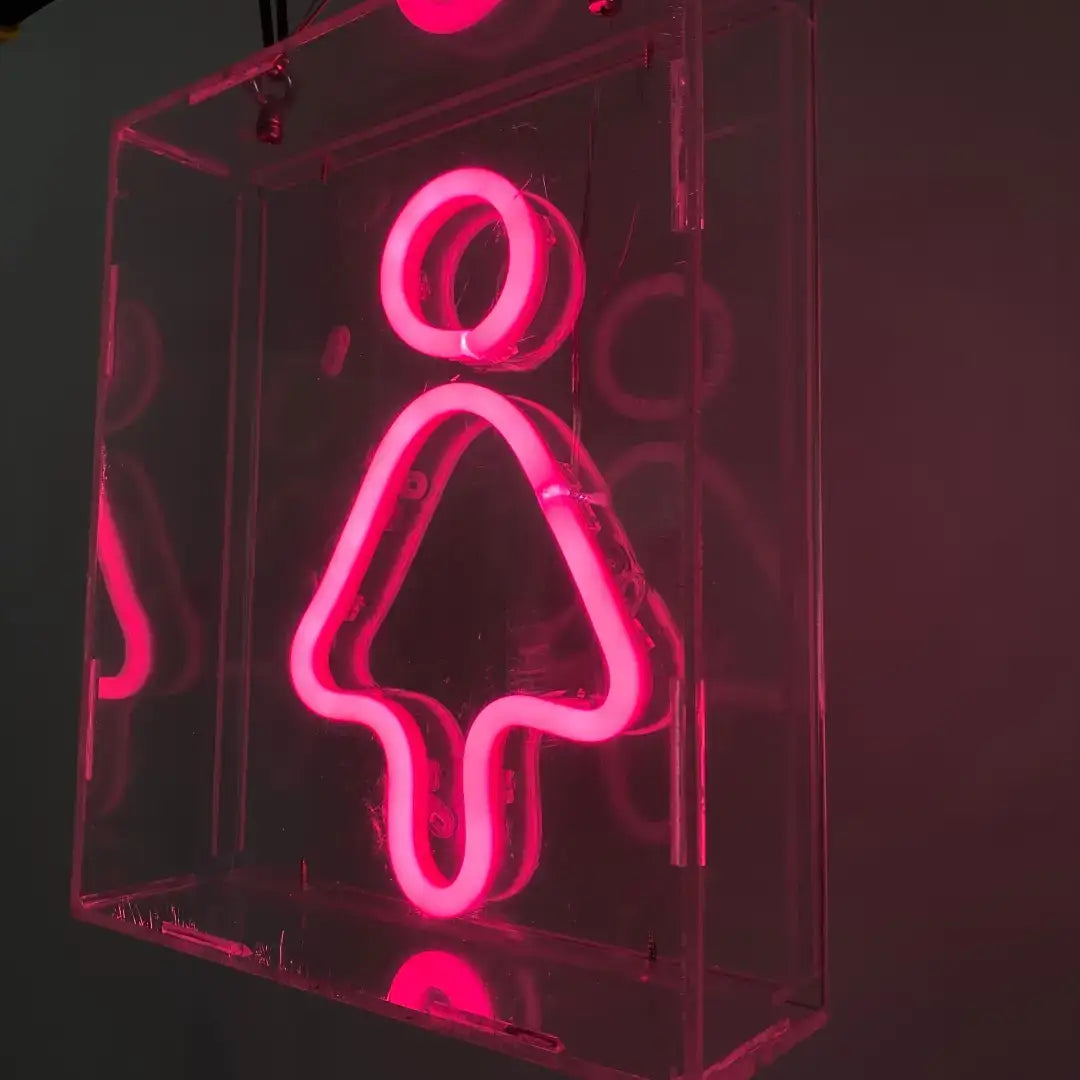

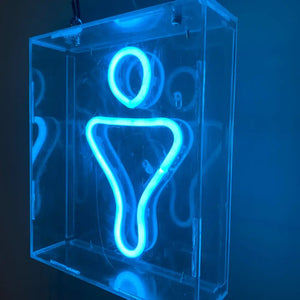

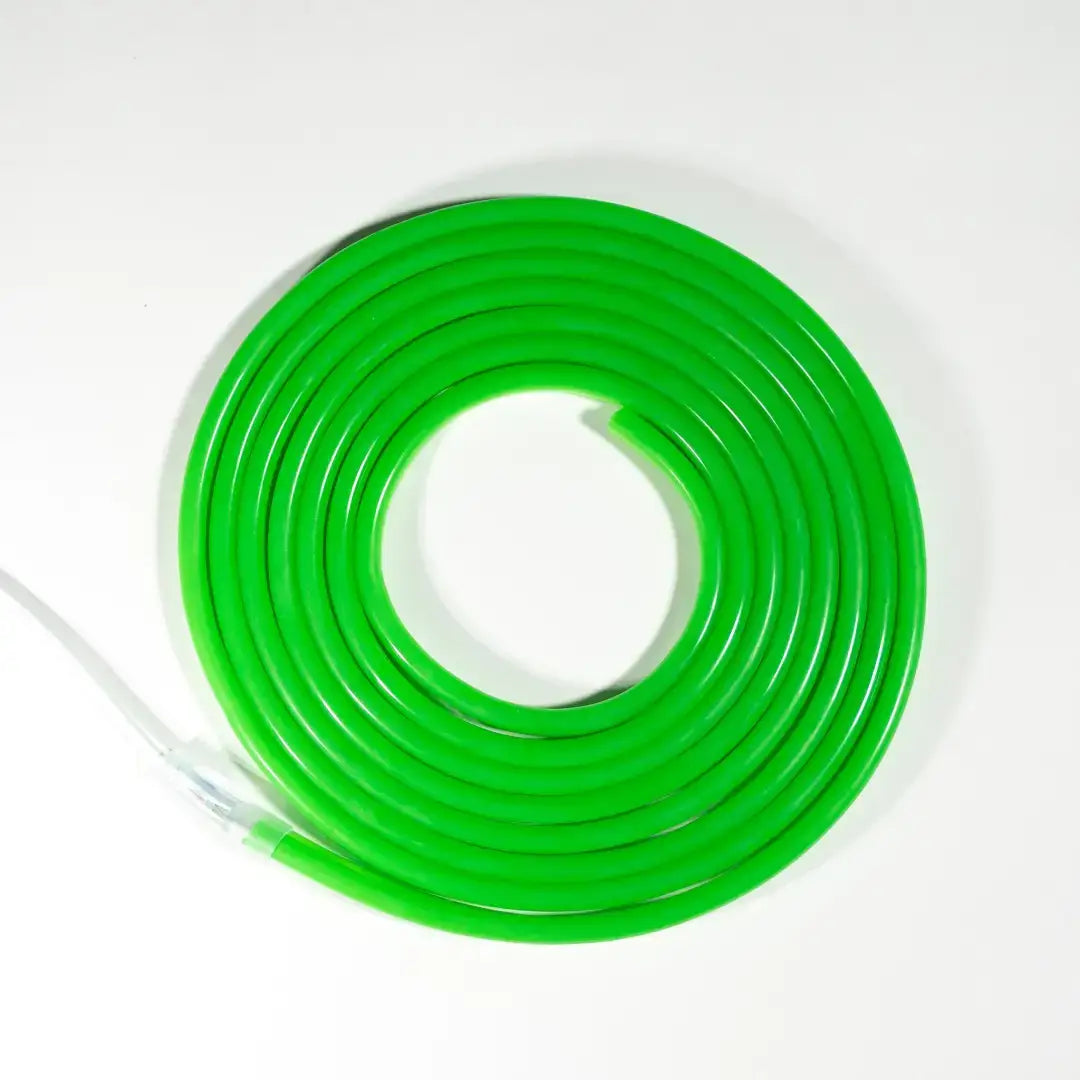

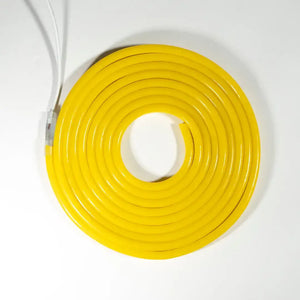

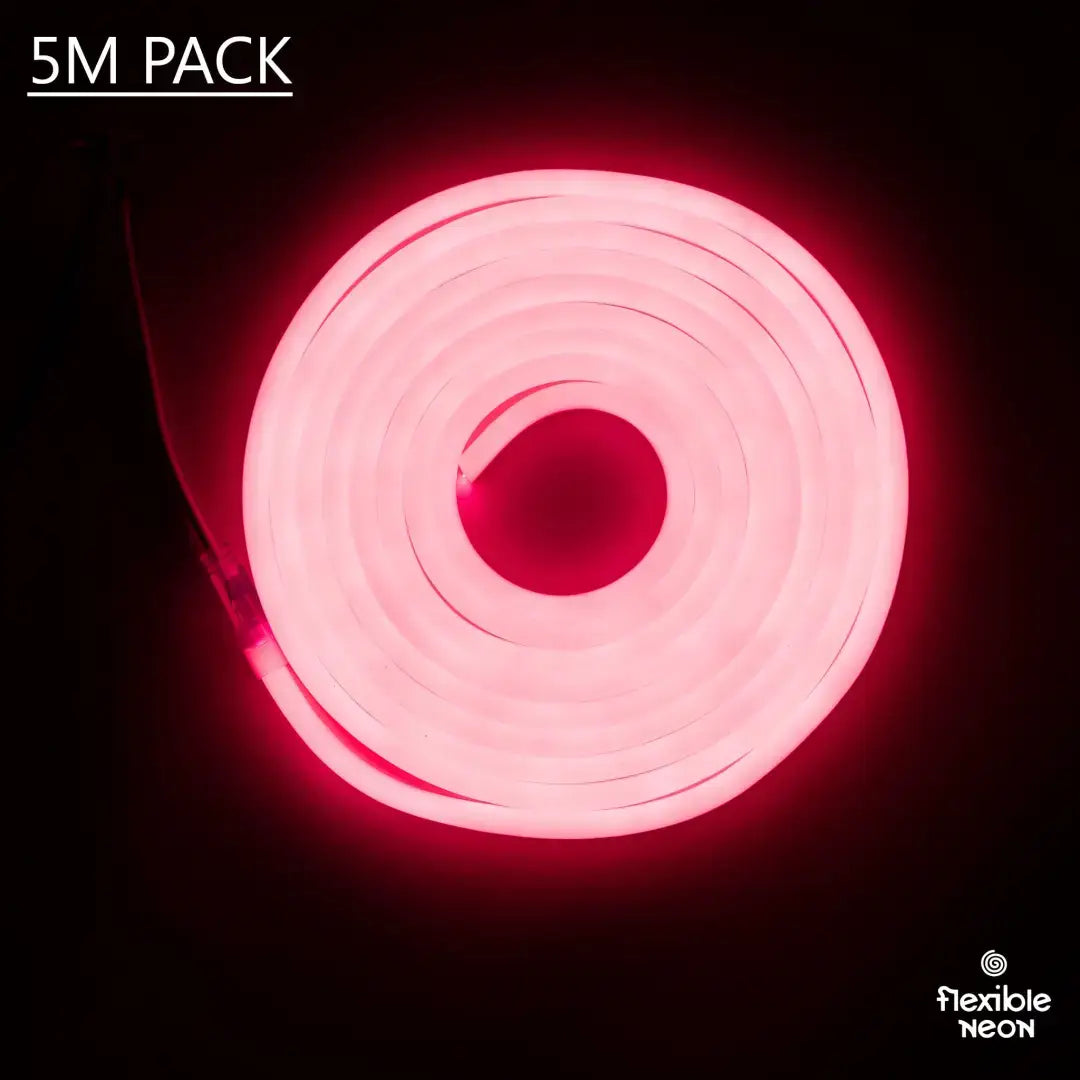

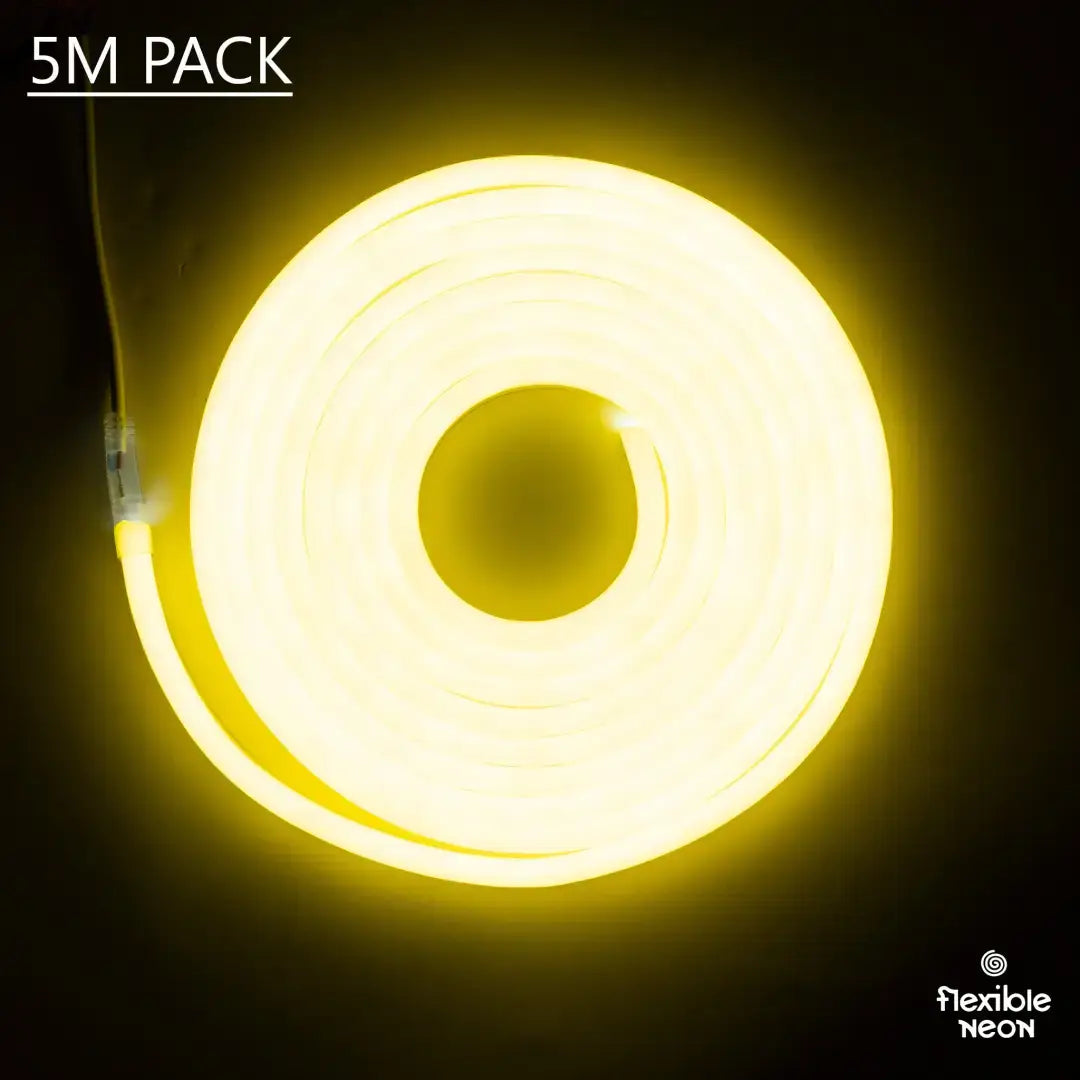

Our 8x10x16mm PVC Flex Neon is a cost-effective, commercial-grade lighting solution designed for signage, architectural accents, retail displays, and creative DIY projects. Supplied in a convenient 5 meter pack, this side-bending neon delivers smooth, 270° light output with a clean round dome finish.

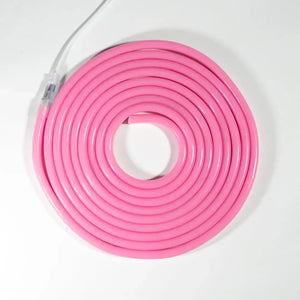

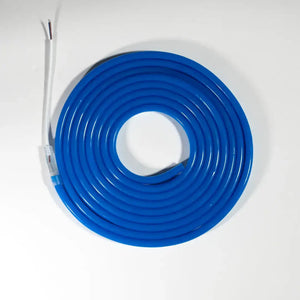

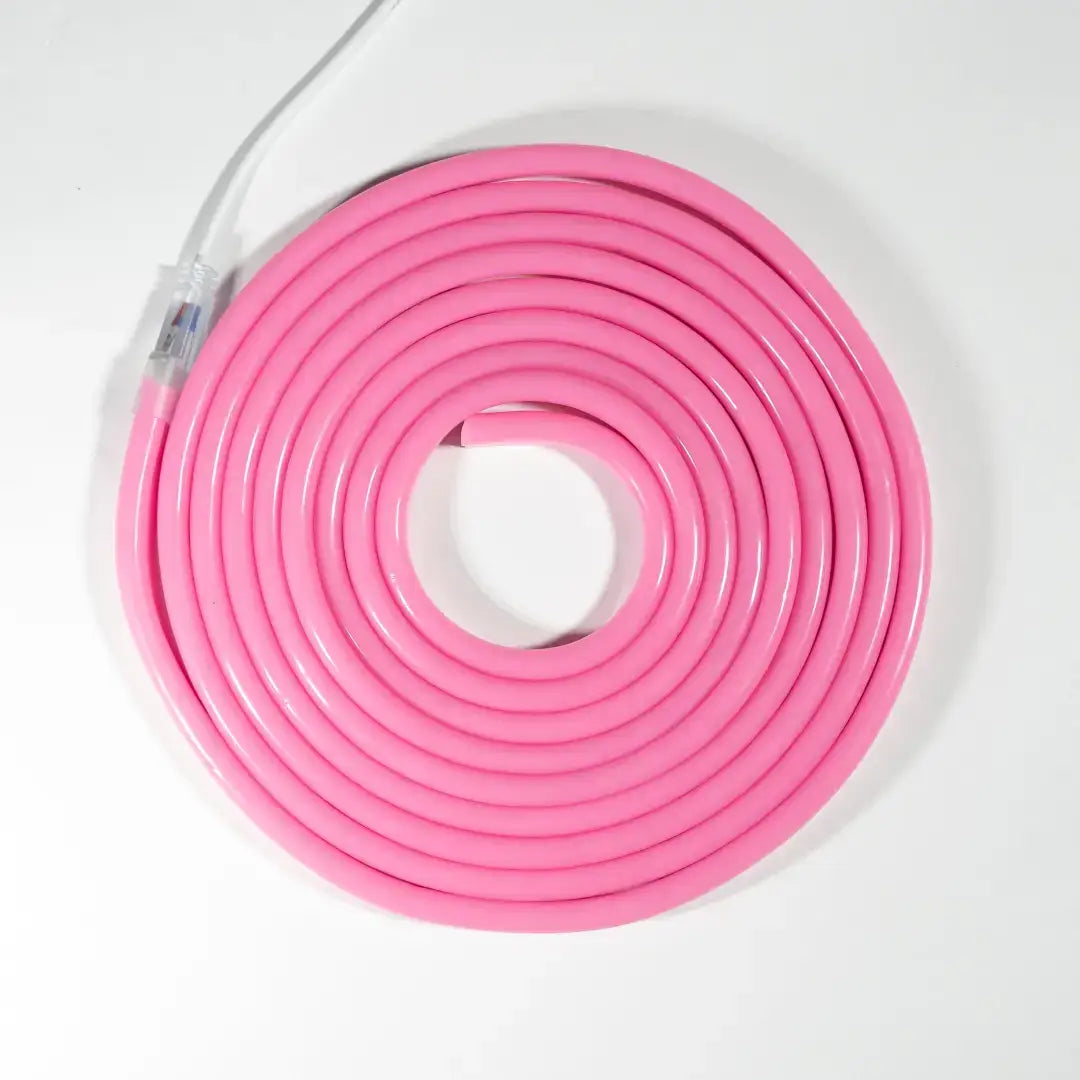

Available in 12 vibrant colour options, you can select the perfect shade to suit your project — whether you’re creating bold signage, subtle feature lighting, or eye-catching installations.

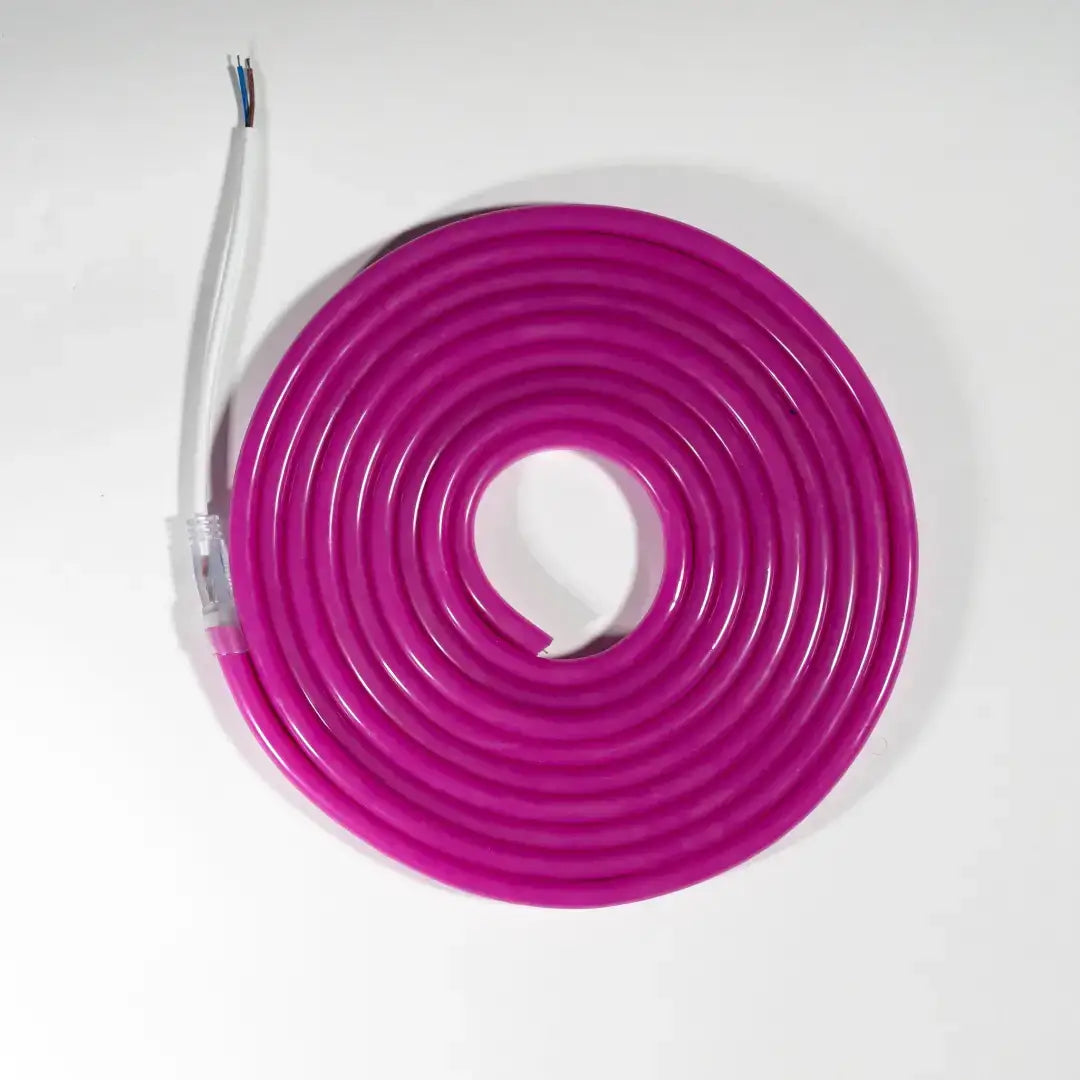

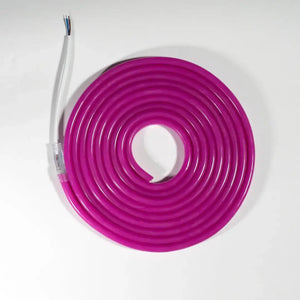

Please Note: This product does not come with soldered ends (no wire attached). Neon will need to be soldered before installation.
Installation Instructions:
- Soldering: Solder the neon ends and use silicone glue for attaching end caps, or opt for pre-soldered ends.
- Extension Cable: Use appropriate extension cables between the strip and the LED driver.
- Connecting: Attach cables to the driver using WAGO connectors. Wires are marked for safe, low-voltage connection.
- Mounting: Secure using mounting channels, clips, routed channels, or silicone glue.
- Powering: Connect the LED driver to a wall outlet to illuminate your project.
Specs
|

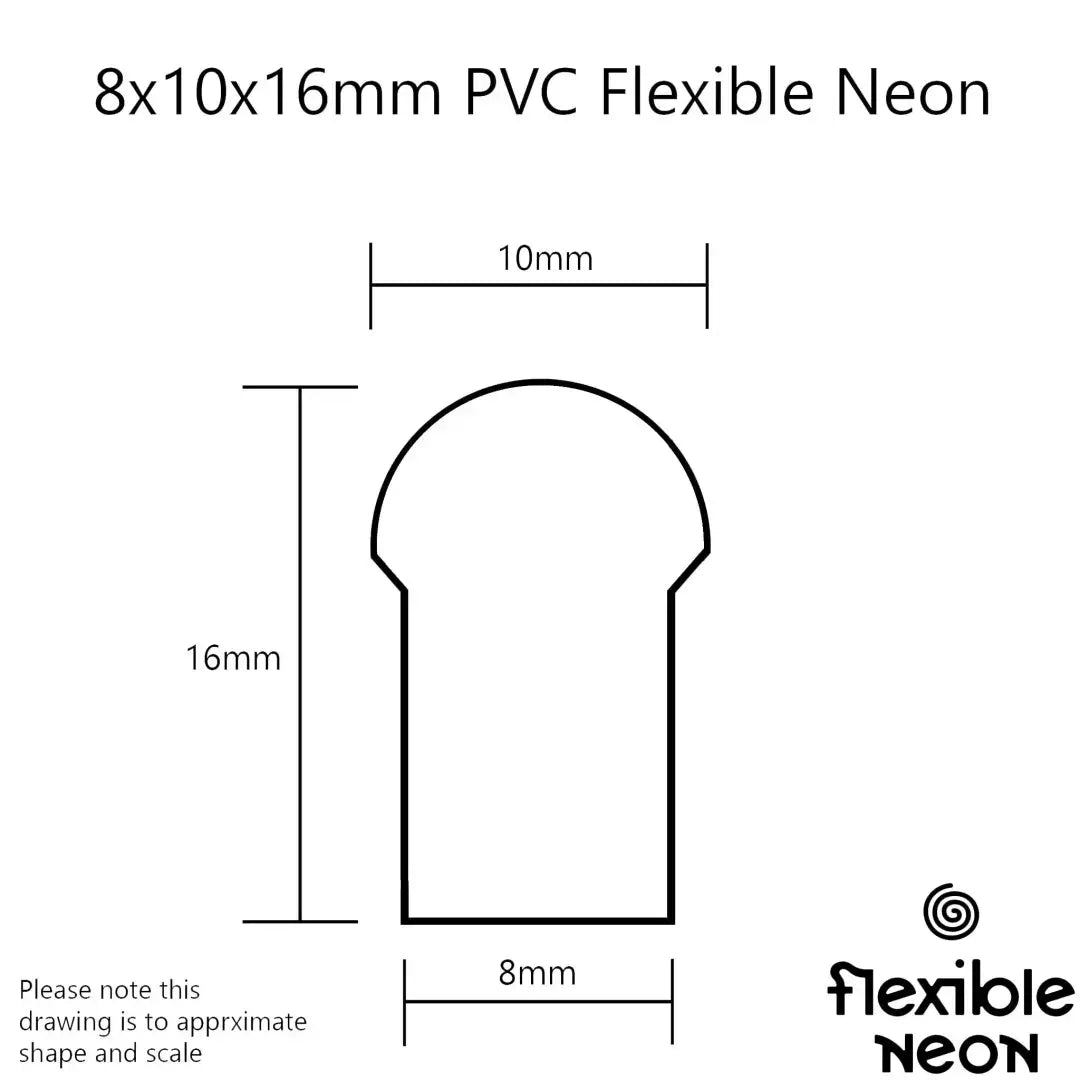

Flexible Neon Dimensions (L x Dome Size x H) |
8mm x 10mm x 16mm |
|
Material |
PVC |
|
Warranty |
1 years |
|
Max Run Lengths |
|
|
Single Feed |
5 meters @ 12V DC |
|
Double Feed (Power coming in from both sides) |
10 meters @ 12V DC |
|
Lumen Maintenance (approx.) |
30,000 hours @45°celsuis |
|
Electrical |
|
|
Voltage |
12V DC |
|
Rated Current (A/m) |
0.66 |
|
Power Consumption |
8W/m |
|
Physical |
|
|
Length |
5m |
|
LED Type |
SMD2835 |
|
Bend Type |
Side Bending |
|
LED Qty/m |
120LED/m |
|
Dimmable |
Yes |
|
Cutting Intervals |
25mm |
|
Light Surface |
Round Fixture 270° |
|
Minimum Bend Diameter |
30mm (Horizontal Bending Only) |
|
Temperature Ranges |
|
|
Installation |
0°to 60°C |
|
Operating |
-20°to 60°C |
|
Humidity |
0-95% non-condensing |
|
Safety |
|
|
IP Rating |
Ip65 with appropriately rated accessories |
|
CRI |
RA>80 |
|
Features |
Flame Resistant, Solvent Resistant, Saltwater Resistant, IK08 Security |
|
Certifications |
Strictly according to the testing standard of CE, ROHS, REACH and UL. |
The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.
For further details, please read the data sheet.
