Qty = Length in Meters (e.g. 6 qty = 6m continuous)

Designed for a clean, flush finish, our 10x10mm Recessed Flexible Neon is the perfect lighting solution for seamless architectural and signage applications. With a smart winged design that fits snugly into a 10mm-wide recessed channel, this neon profile hides edges while illuminating from above with a bold and even glow. The 15mm top lip creates a flawless finish across various surfaces, making it a favourite among designers, shopfitters, and sign makers looking for a refined result.

Balanced and neutral, Natural White delivers clarity without being harsh. Ideal for retail displays, offices, and signage where true colour representation matters.

Whether you're enhancing built-in cabinetry, signage, retail displays, or commercial architectural features, this strip is built to install neatly and light beautifully.

Key Features:

  • Recessed Winged Profile: Designed with a 15mm wide top wing to completely cover channel edges and deliver a seamless, professional finish.

  • Powerful Performance: Operates on 24V DC, consumes 8W/m, and runs up to 10 meters on a single power feed.

  • Brilliant Output: Packed with 120 LEDs per meter, it offers bright, continuous illumination with zero spotting.

  • Precision Customisation: Cuttable every 50mm, allowing for tailored runs that perfectly fit your project.

  • Durable & Weatherproof: Rated IP67, UV and solvent resistant, flame retardant, and IK08 impact-resistant — ideal for both indoor and outdoor installs.

  • Flexible Layouts: Allows vertical bending for smooth curves and creative layouts.

  • High CRI >90: Ensures natural, accurate light reproduction for signage, commercial lighting, and architectural use.

  • Dimmable: Compatible with dimming systems for adjustable ambience and control.





Specs

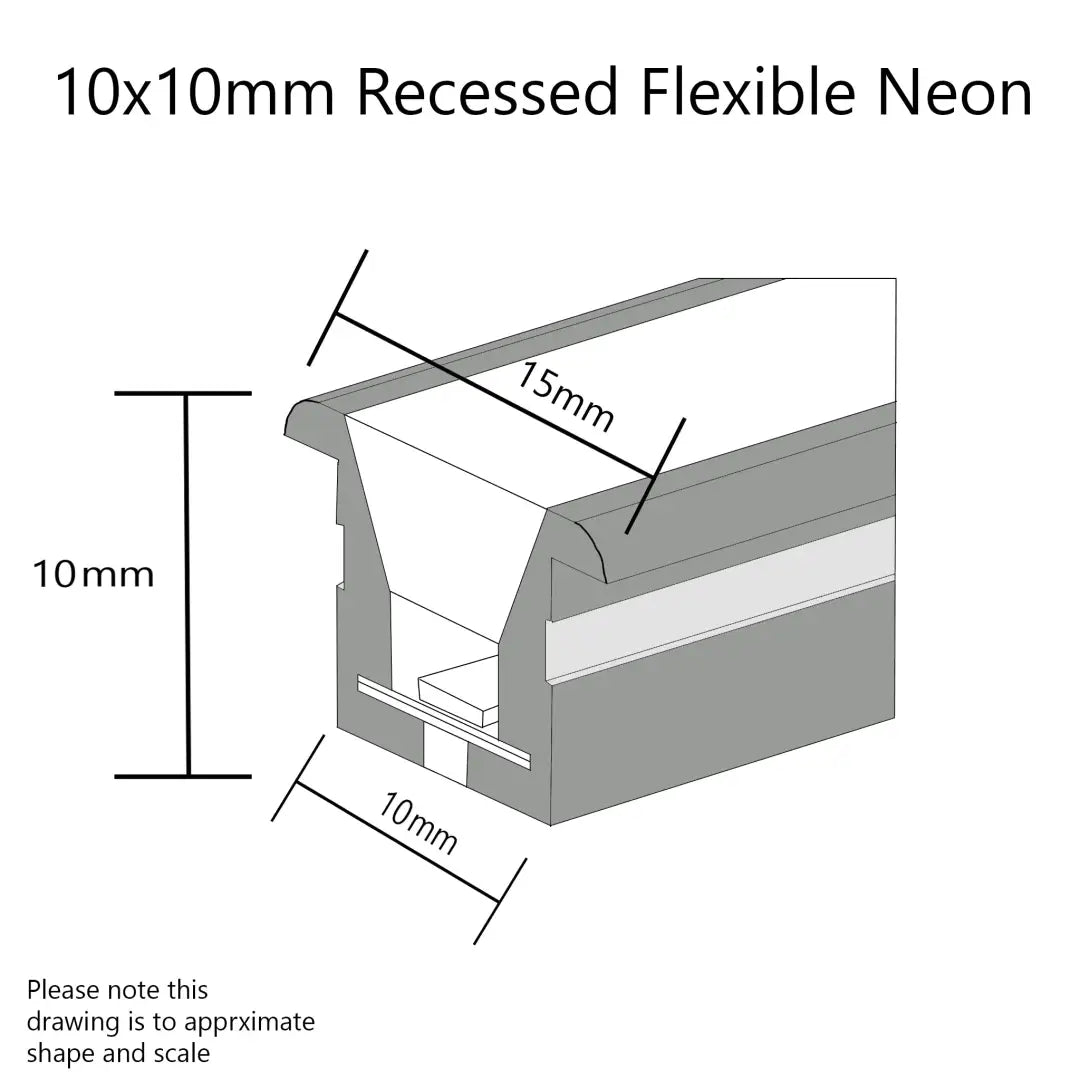

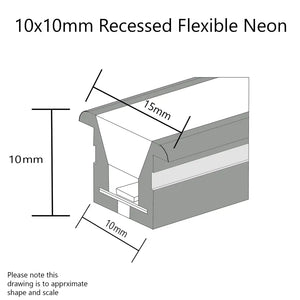

Flexible Neon Dimensions (H x W Size)

 10mm x 10mm x 15mm

Material

Silicone

Warranty

3 years

Max Run Lengths



Single Feed

10 meters @ 24V DC

Double Feed

20 meters @ 24V DC

Lumen Maintenance (approx.)

50,000 hours L70 @25°celsuis

35,000 hours L70 @50°celsuis

Electrical



Voltage

24V DC

Rated Current (A/m)

0.34

Power Consumption

8W/m

Colour

Natural White 4000k

Lumens per Meter (LM/M)

500 LM/M

Physical



Available Lengths

Per Meter

LED Qty/m

120LED/m

Dimmable

Yes

Cutting Intervals

50mm

Light Surface

120°

Minimum Bend Diameter

100mm (Vertical Bending Only)

Temperature Ranges



Installation

0°to 50°C

Operating

-40°to 55°C

Humidity

0-95% non-condensing

Safety



IP Rating

Ip67 with appropriately rated accessories

CRI

RA>90

Warranty

3 Years

Features

Anti Yellowing, Flame Resistant, UV Resistant, Solvent Resistant, Saltwater Resistant, IK08 Security, Dirt Resistant,

Certifications

Strictly according to the testing standard of CE & ROHS

The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.

For further details, please read the data sheet.
