Qty = Length in Meters (e.g. 6 qty = 6m continuous)
Our 10x10mm Tri View Flexible Neon is designed for maximum visibility — projecting light from three sides for a brighter, more immersive glow. Crafted with precision and flexibility in mind, it’s the ideal choice for signage, commercial features, custom installations, and creative projects that need to shine from all directions.

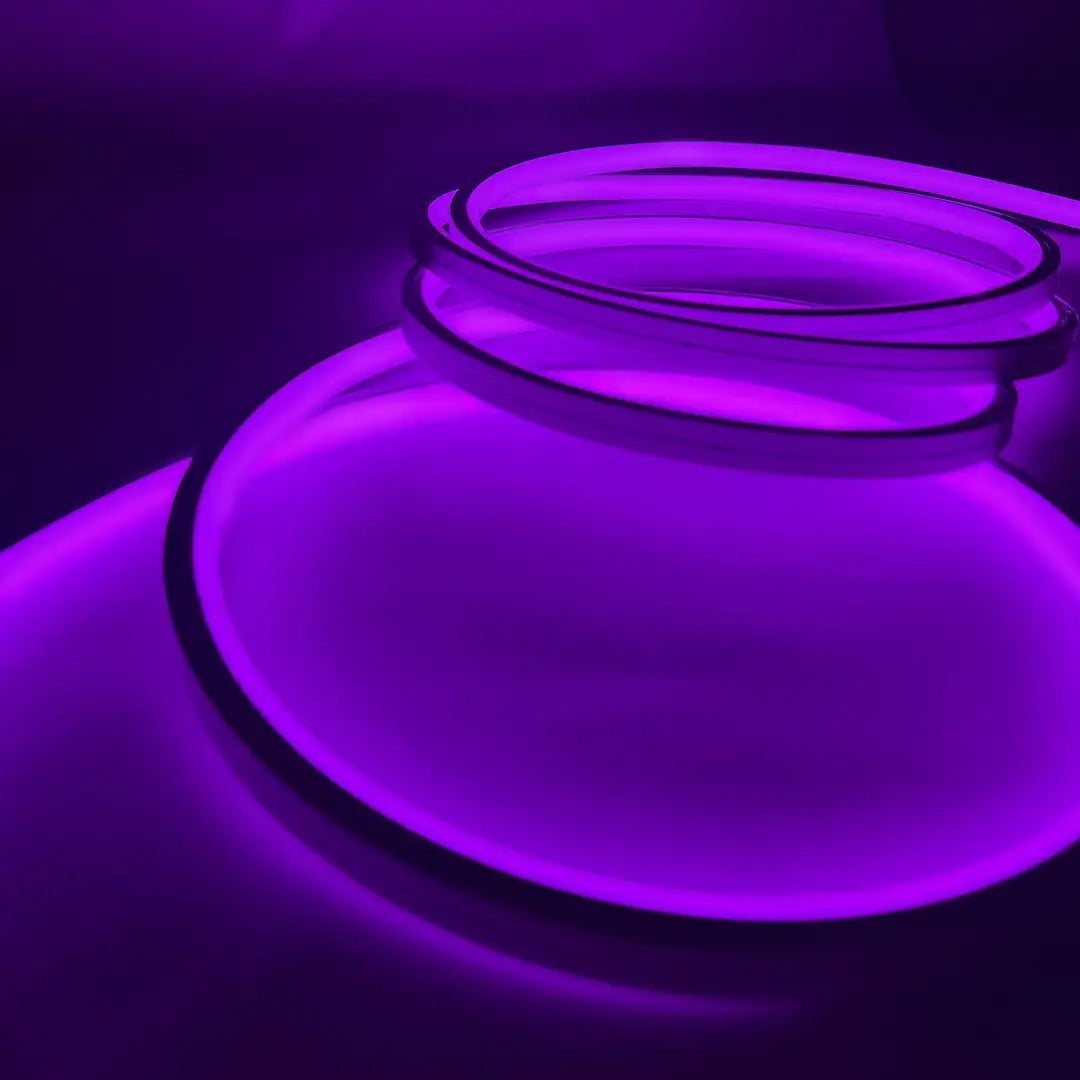

Jacaranda Purple provides a deep, dramatic look perfect for creative installations and accent lighting in artistic or nightlife settings.
Key Features:
Tri-View Design: Emits light from the top and both sides for 120° visibility.
Commercial Grade Durability: Built from high-quality silicone, IP67 rated, UV-resistant, and made to withstand the elements.
Efficient & Powerful: Runs on 24V DC and delivers 8W/m brightness while allowing single feeds up to 10 meters.
Flexible Installation: Horizontal bending allows smooth curves and custom layouts — perfect for creative signage or wrapping features.
Vibrant Colour Options: Available in a full range of rich, eye-catching colours — from classic Warm White to vibrant Hot Pink and deep Royal Blue.
Seamless Finish: Compatible with our slimline accessories for clean and professional installations.
Dimmable: Easily adjust brightness with compatible dimming systems.
Cuttable Every 50mm: Perfect for custom lengths with precise cuts.
Long Lifespan: Up to 50,000 hours of high-quality illumination.
Whether you’re illuminating a commercial façade, creating an unforgettable event backdrop, or building standout signage, our Tri-View Neon delivers consistent performance and unmatched glow.
Specs

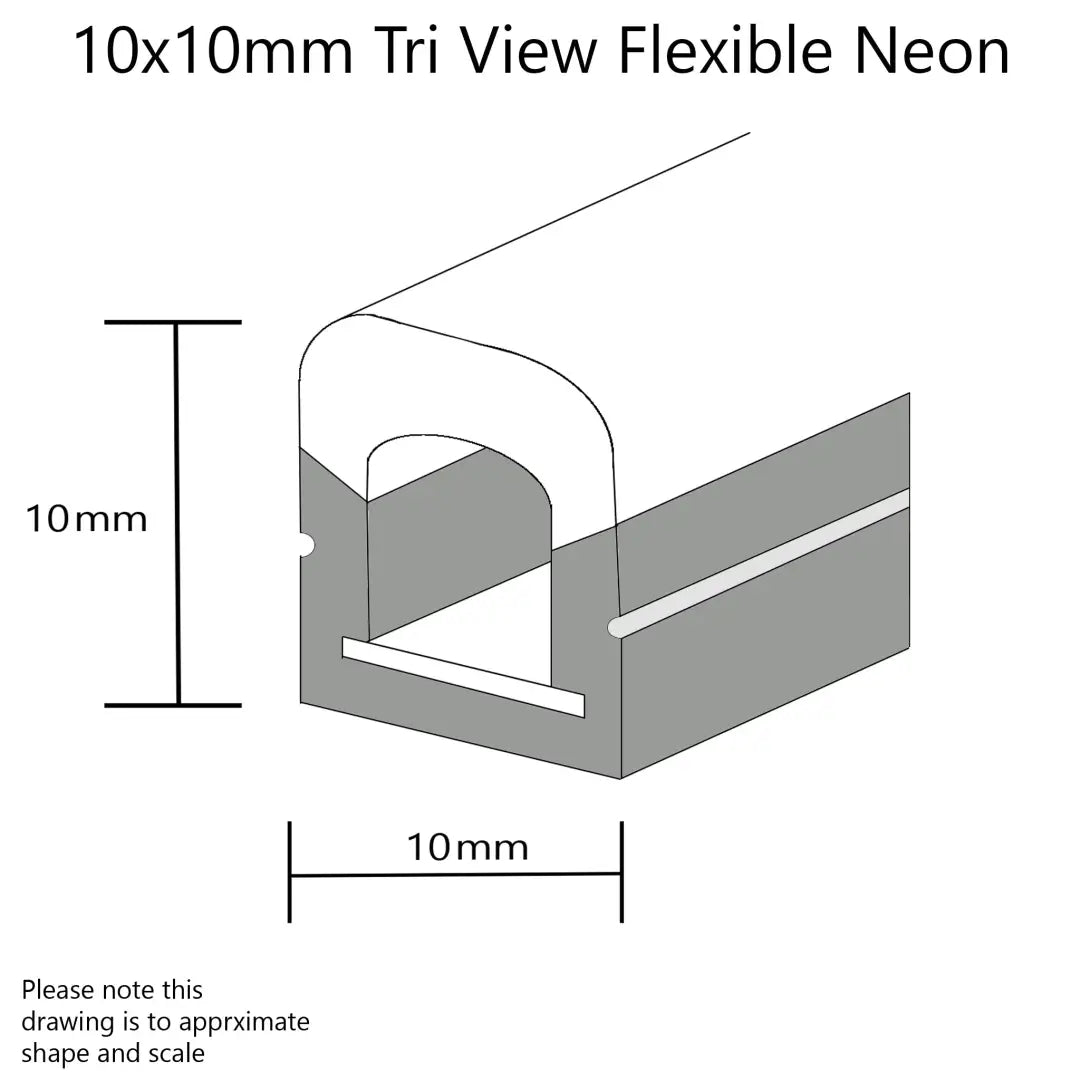

Flexible Neon Dimensions (H x W Size) |
10mm x 10mm |
Material |
Silicone |
Warranty |
3 years |
Max Run Lengths |
|
Single Feed |
10 meters @ 24V DC |
Double Feed |
20 meters @ 24V DC |
Lumen Maintenance (approx.) |
50,000 hours@25°celsuis 35,000 hours@50°celsuis |
Electrical |
|
Voltage |
24V DC |
Rated Current (A/m) |
0.34 |
Power Consumption |
8W/m |
Physical |
|
Available Lengths |
Per Meter |
LED Qty/m |
120LED/m |
Dimmable |
Yes |
Cutting Intervals |
50mm |
Light Surface |
120° |
Minimum Bend Diameter |
100mm (Vertical Bending Only) |
Temperature Ranges |
|
Installation |
0°to 50°C |
Operating |
-40°to 55°C |
Humidity |
0-95% non-condensing |
Safety |
|
IP Rating |
Ip67 with appropriately rated accessories |
CRI |
RA>90 |
Warranty |
3 Years |
Features |
Anti Yellowing, Flame Resistant, UV Resistant, Solvent Resistant, Saltwater Resistant, IK08 Security, Dirt Resistant, |
Certifications |
Strictly according to the testing standard of CE & ROHS |
The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.
For further details, please read the data sheet.
