Our 6x12mm Flexible Neon LED Strip is a premium product designed for durability and versatility, perfect for neon signs, architectural strips, product lighting, and more. Here’s everything you need to know about this high-quality commercial grade lighting solution:
Product Highlights:
Installation Instructions:
Please note, Flexible Neon is not responsible for any issues arising from the installation process. This guide reflects our recommended installation method for the 6x12mm Flexible Neon LED Strip.
Product Description:

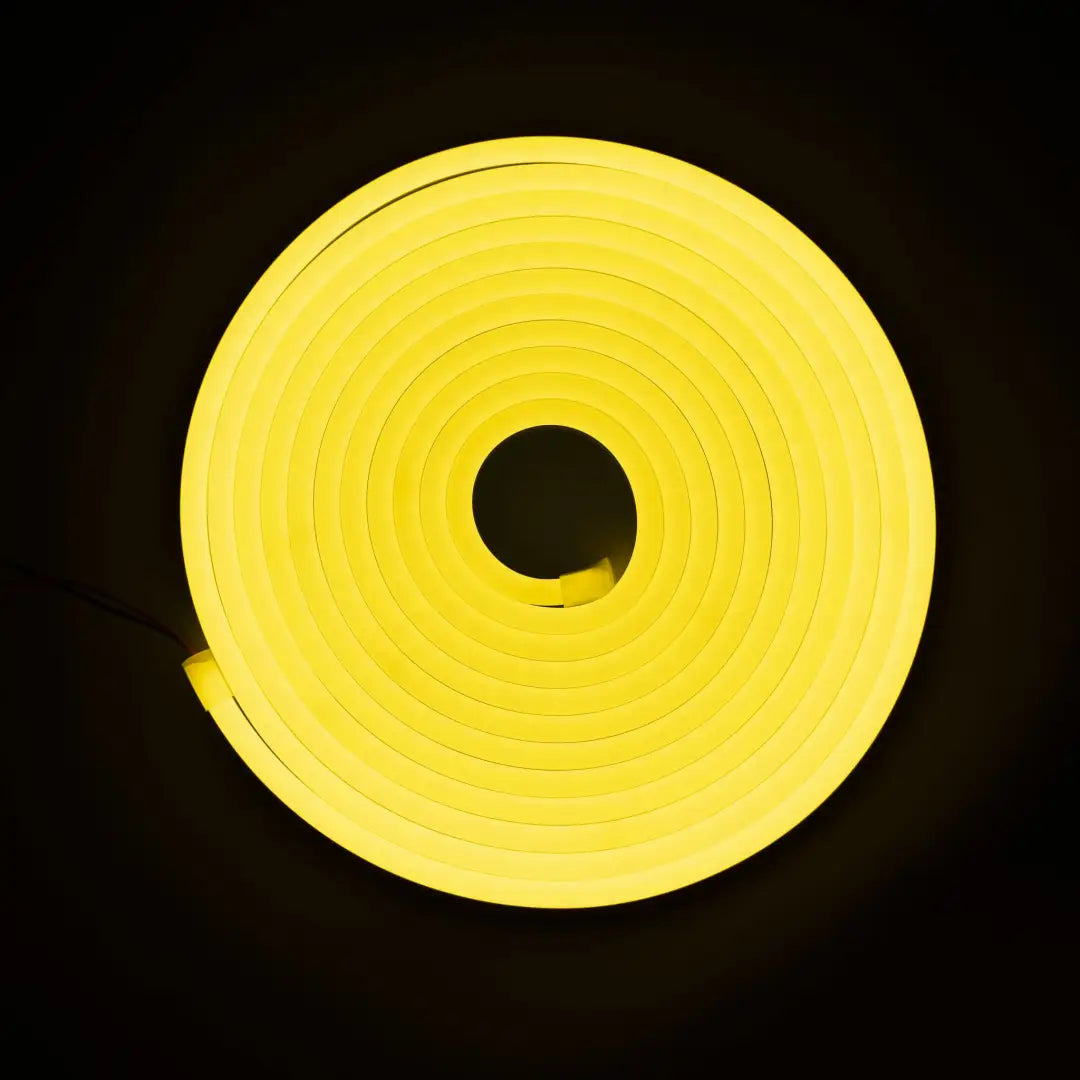

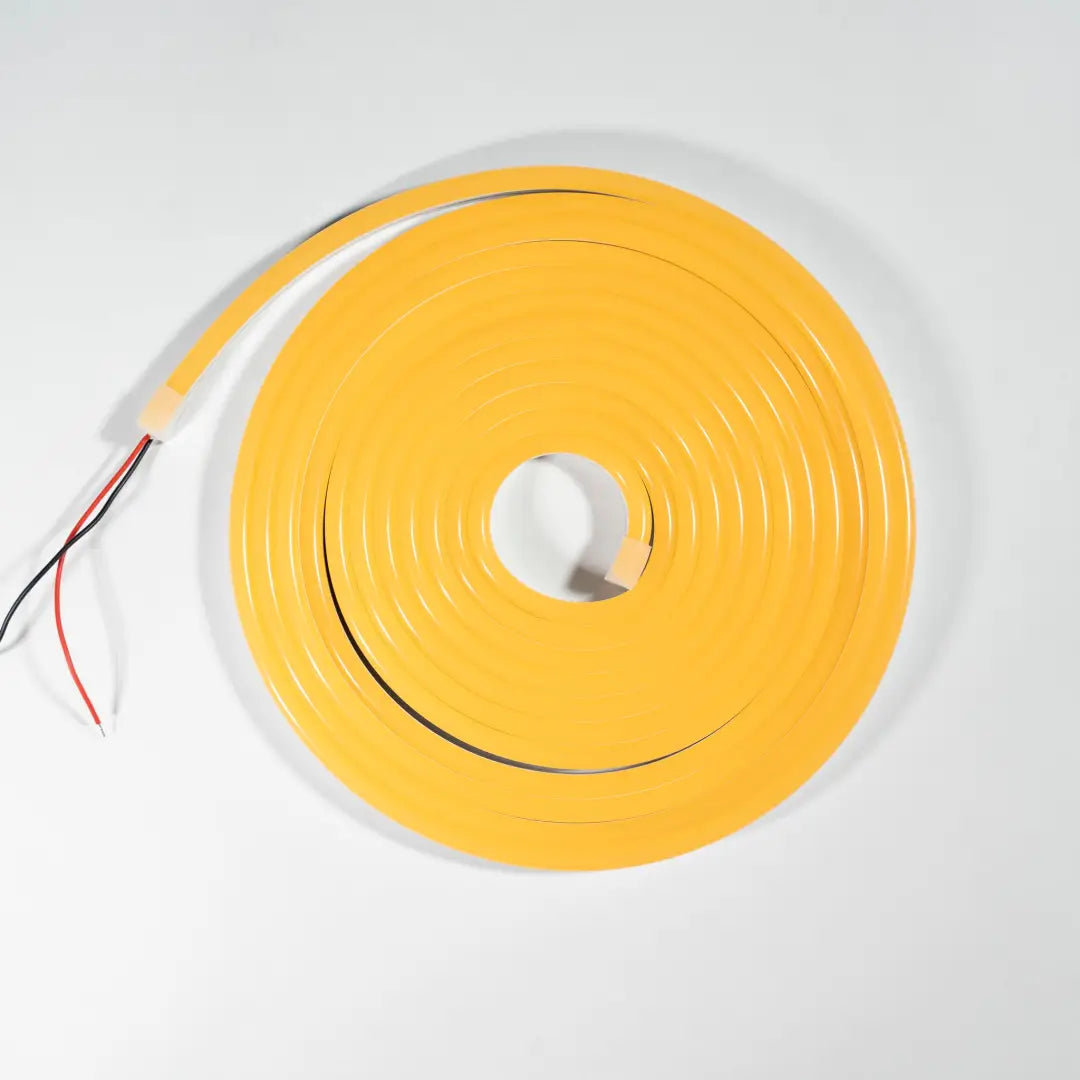

Get ready to brighten up your space with our 6x12 Flex Neon in Sun Yellow. This innovative lighting solution isn't just another neon strip—it's a game-changer for any project, offering versatility and dynamism like never before.
Crafted with a small cutting interval, our 6x12 Flex Neon is tailor-made for signage that demands intricate and detailed designs. Its ability to capture attention and make a bold statement ensures that your message shines bright and clear.
But that's not all. Our 6x12 Flex Neon excels in various lighting design scenarios, bringing a touch of elegance and creativity to interior linear lighting designs. Whether it's commercial spaces, offices, or residential interiors, its sleek and minimalist design adds a captivating ambience that's sure to impress. Plus, its flexibility and adaptability make it the perfect choice for facade lighting, contour lighting, landscape illumination, and residential projects. With this neon strip, you can effortlessly highlight architectural features or enhance the outdoor aesthetics of your business.
Experience the outstanding performance and versatility of our 6x12 Flex Neon as it fills your space with a vibrant and captivating glow. Its commercial-grade lighting technology ensures exceptional performance, while its slim profile and modern aesthetics take your lighting designs to new heights.
Ready to unlock a world of creative possibilities? Upgrade to our 6x12 Flex Neon in Sun Yellow today and elevate your signage, lighting designs, and overall visual experience. With its ability to cater to a wide range of applications, this flexible lighting solution is your key to success in any architectural lighting project.
Specs

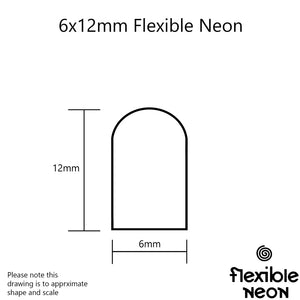

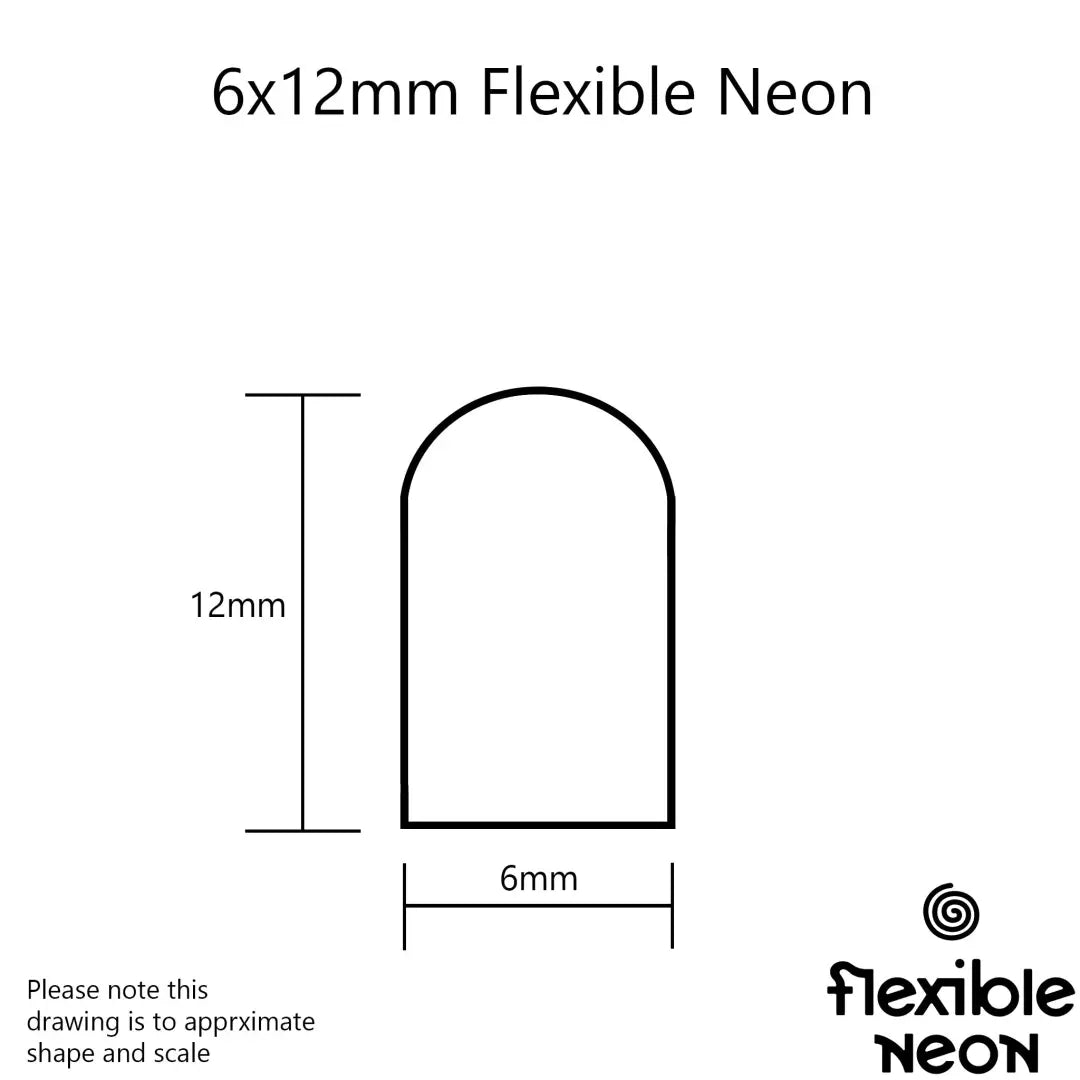

Flexible Neon Dimensions (W x H) |
6mm x 12mm |
Material |
Silicone |
Warranty |
2 years |
Max Run Lengths |
|
Single Feed |
5 meters @ 12V DC |
Double Feed |
10 meters @ 12V DC |
Lumen Maintenance (approx.) |
25,000 hours@45°celsuis |
Electrical |
|
Voltage |
12V DC |
Rated Current (A/m) |
0.83 |
Power Consumption |
9W/m (High Brightness) |
Physical |
|
Available Lengths |
Per Meter | 5m |
LED Qty/m |
100LED/m |
Dimmable |
Yes |
Cutting Intervals |
10mm |
Light Surface |
Round Fixture 160° |
Minimum Bend Diameter |
30mm (Horizontal Bending Only) |
Temperature Ranges |
|
Installation |
0°to 60°C |
Operating |
-25°to 60°C |
Humidity |
0-95% non-condensing |
Safety |
|
IP Rating |
Ip67 with appropriately rated accessories |
CRI |
RA>80 |
Warranty |
2 Years |
Features |
Flame Resistant, UV Resistant, Solvent Resistant, Saltwater Resistant, IK08 Security |
Certifications |
Strictly according to the testing standard of CE, ROHS, REACH and UL. |
The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.
For further details, please read the data sheet.
