Qty = Length in Meters (e.g. 6 qty = 6m continuous)

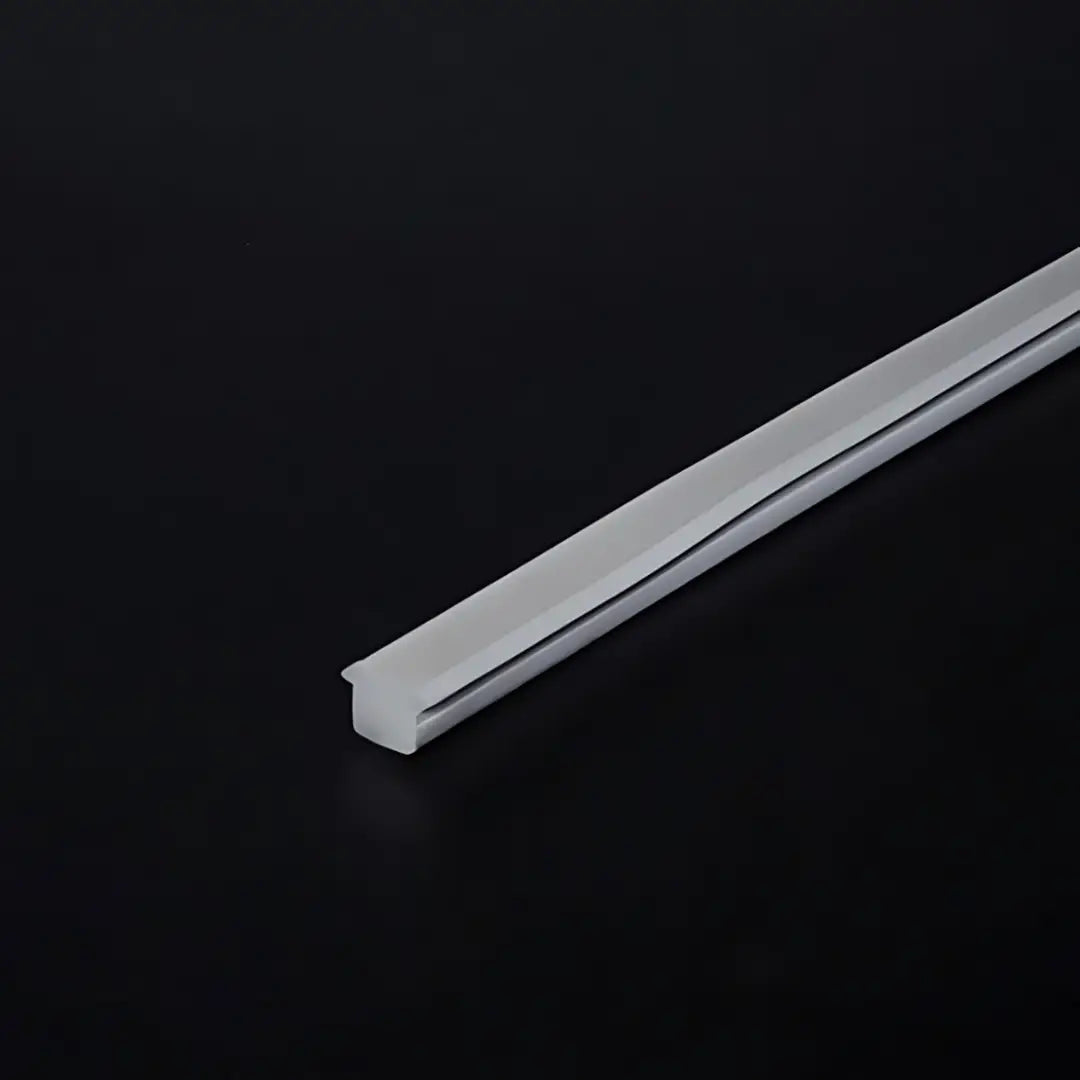

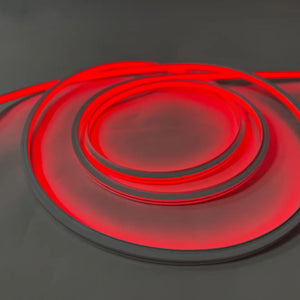

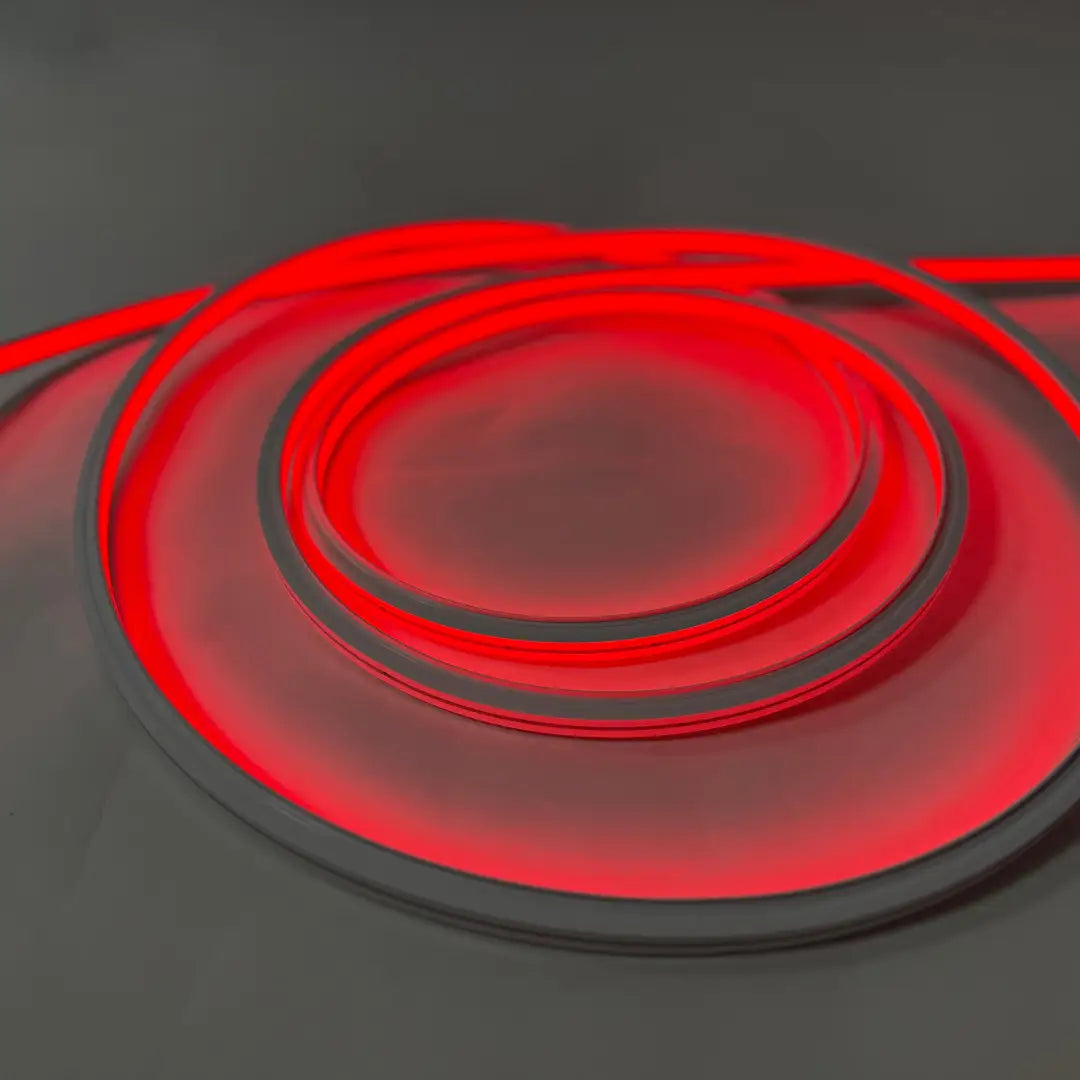

Designed for a clean, flush finish, our 10x10mm Recessed Flexible Neon is the perfect lighting solution for seamless architectural and signage applications. With a smart winged design that fits snugly into a 10mm-wide recessed channel, this neon profile hides edges while illuminating from above with a bold and even glow. The 15mm top lip creates a flawless finish across various surfaces, making it a favourite among designers, shopfitters, and sign makers looking for a refined result.

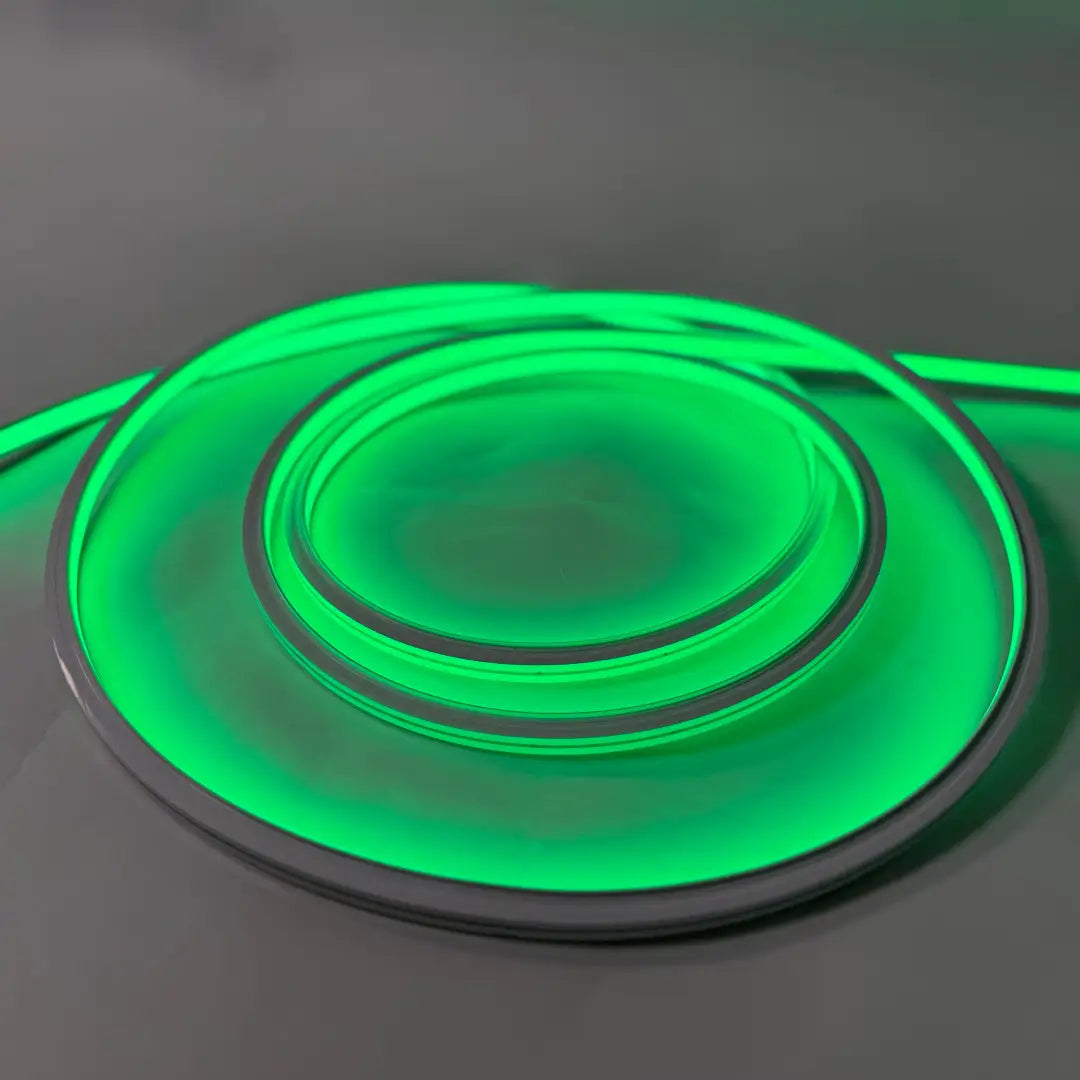

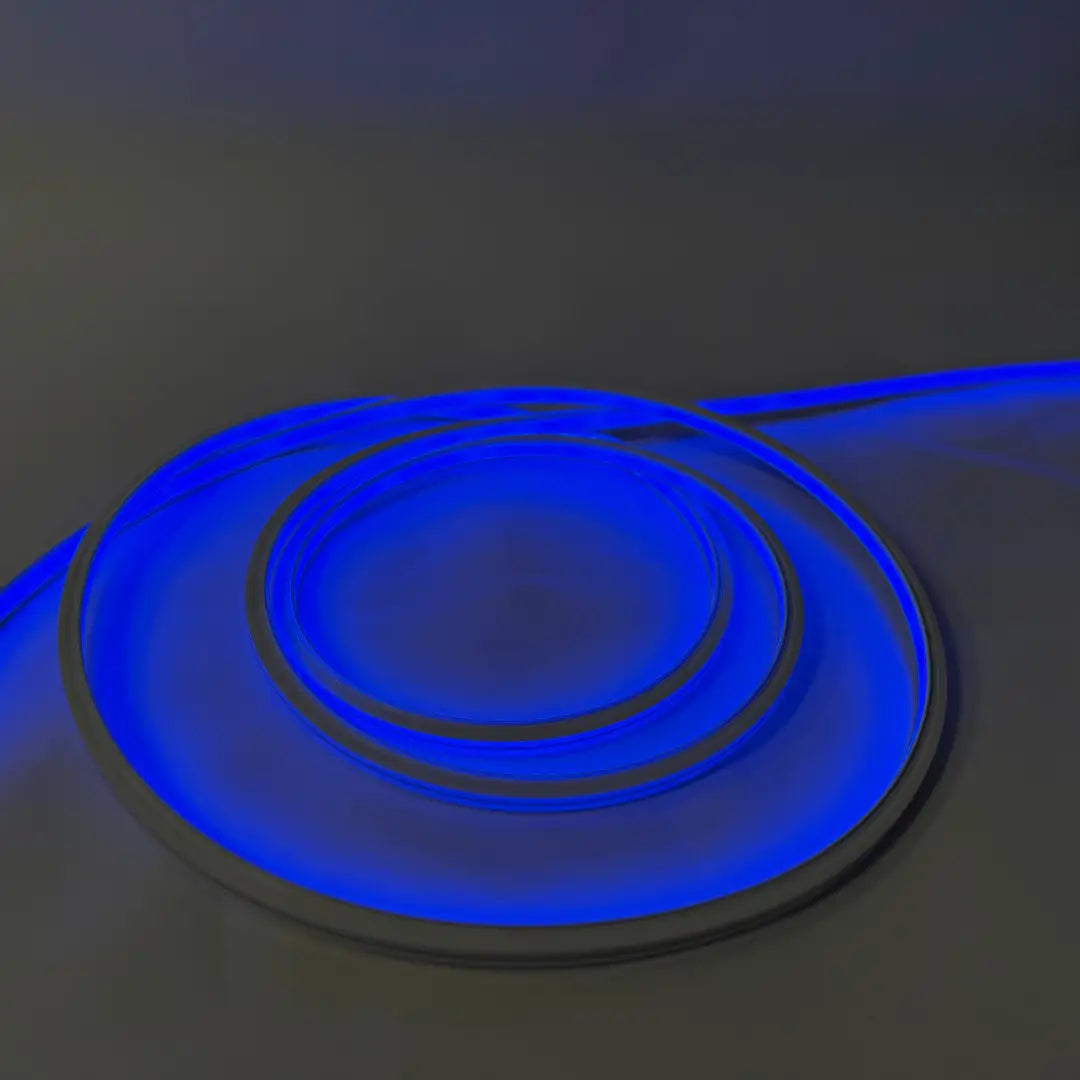

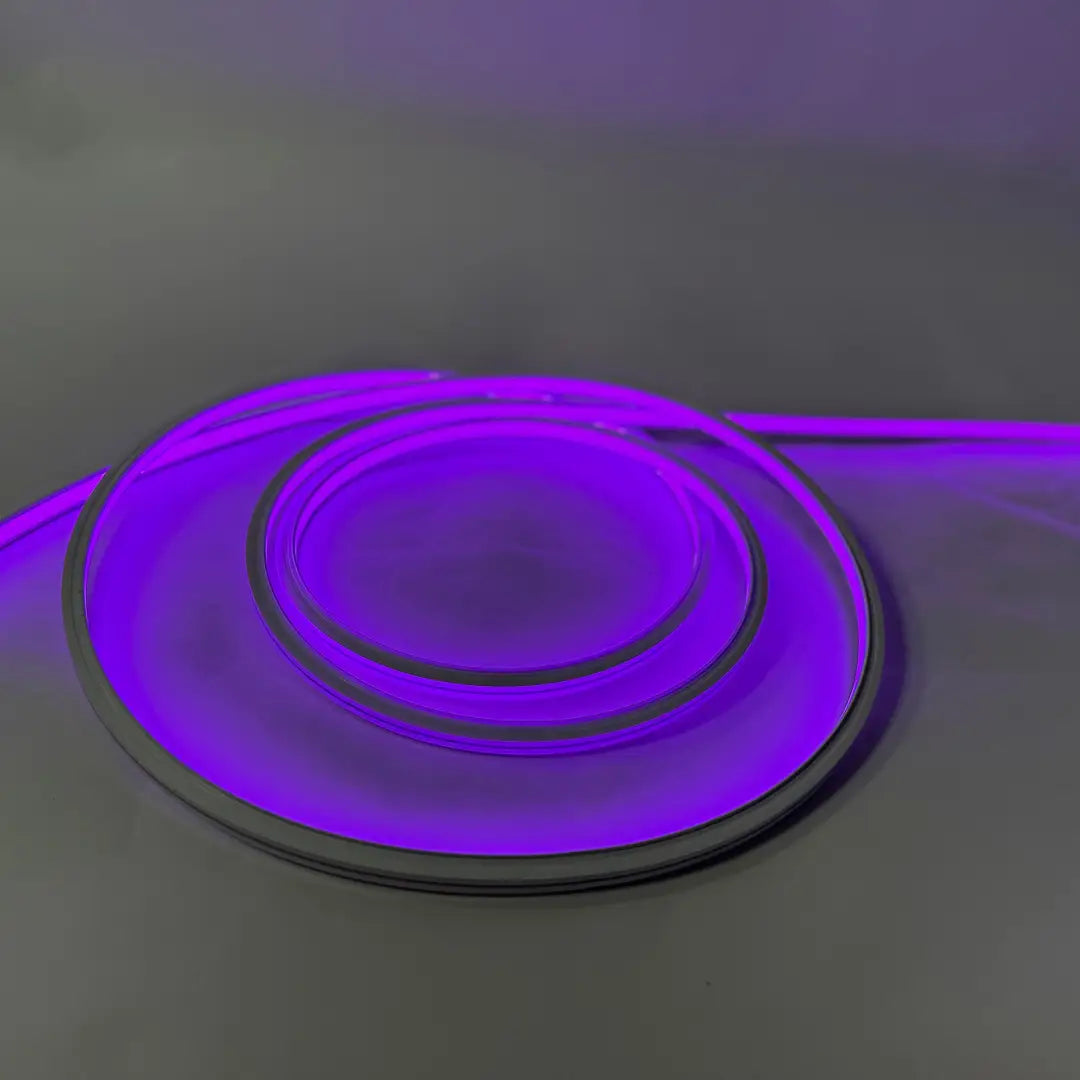

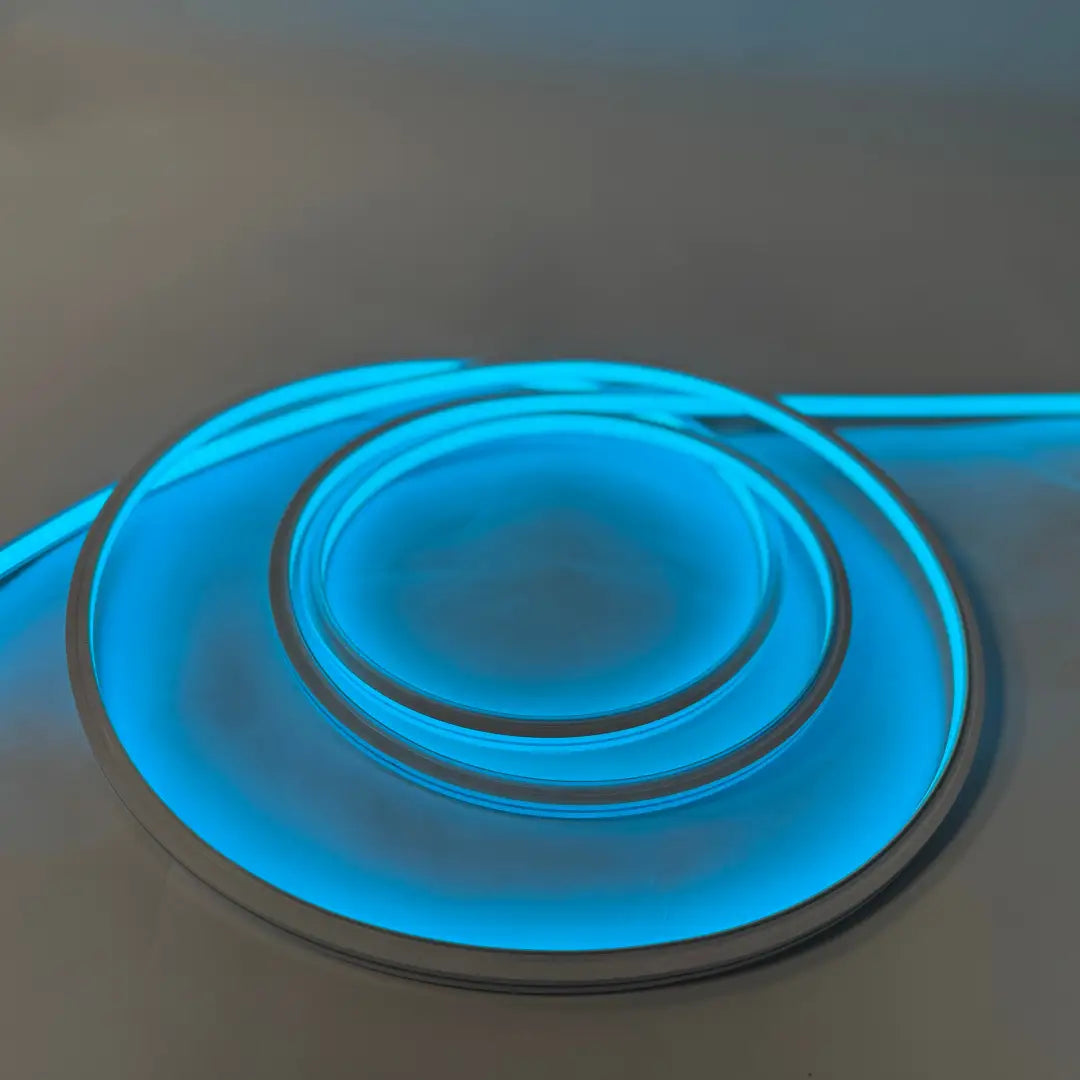

Dynamic and versatile, RGB allows you to set the mood or grab attention with vibrant colour-changing effects — ideal for events, bars, and branded environments.
Whether you're enhancing built-in cabinetry, signage, retail displays, or commercial architectural features, this strip is built to install neatly and light beautifully.
Key Features:
Recessed Winged Profile: Designed with a 15mm wide top wing to completely cover channel edges and deliver a seamless, professional finish.
Powerful Performance: Operates on 24V DC, consumes 8W/m, and runs up to 10 meters on a single power feed.
Brilliant Output: Packed with 120 LEDs per meter, it offers bright, continuous illumination with zero spotting.
Precision Customisation: Cuttable every 50mm, allowing for tailored runs that perfectly fit your project.
Durable & Weatherproof: Rated IP67, UV and solvent resistant, flame retardant, and IK08 impact-resistant — ideal for both indoor and outdoor installs.
Flexible Layouts: Allows vertical bending for smooth curves and creative layouts.
High CRI >90: Ensures natural, accurate light reproduction for signage, commercial lighting, and architectural use.
Dimmable: Compatible with dimming systems for adjustable ambience and control.
Specs

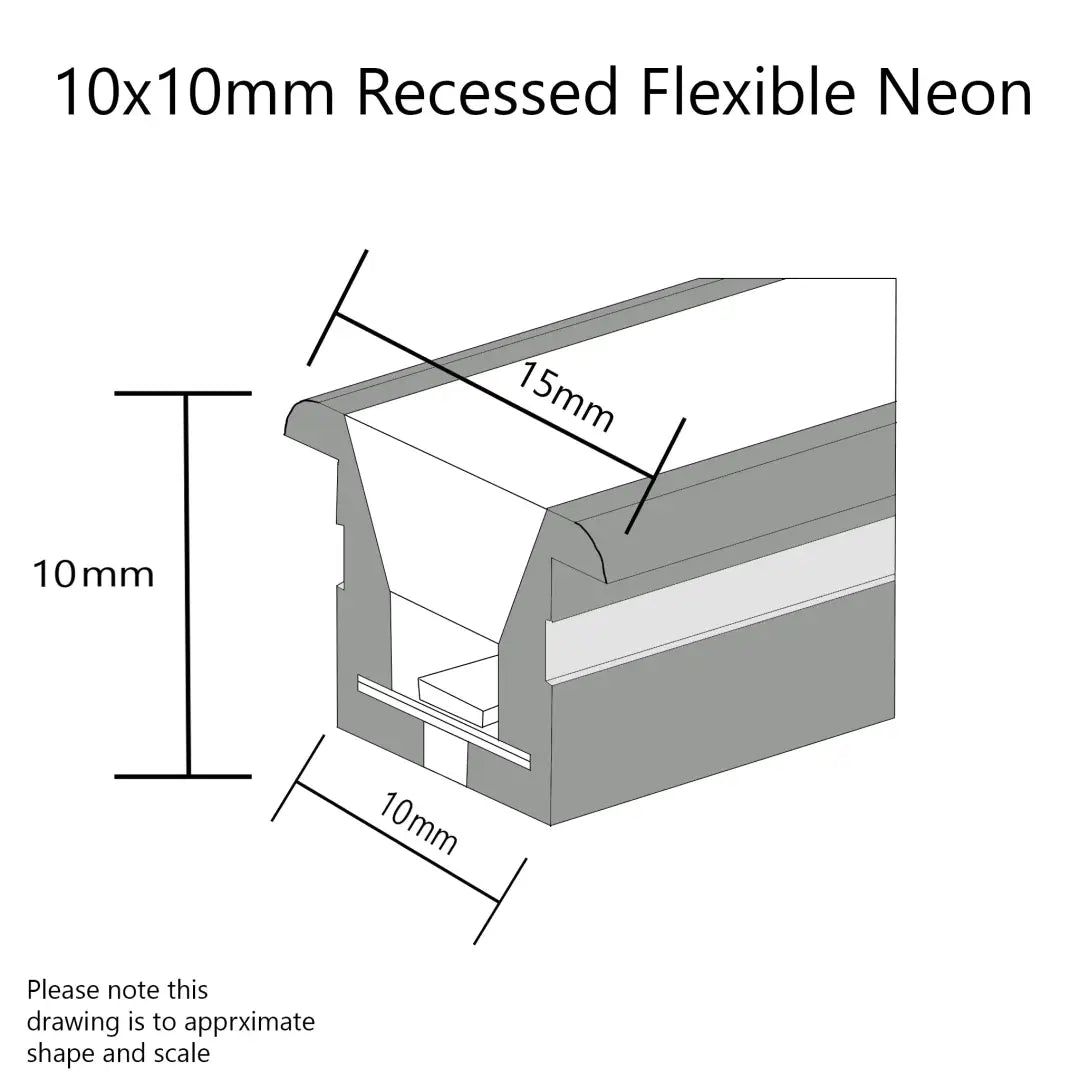

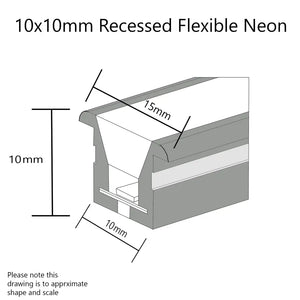

Flexible Neon Dimensions (H x W Size) |
10mm x 10mm x 15mm |
Material |
Silicone |
Warranty |
3 years |
Max Run Lengths |
|
Single Feed |
5 meters @ 24V DC |
Double Feed |
10 meters @ 24V DC |
Lumen Maintenance (approx.) |
50,000 hours L70 @25°celsuis 35,000 hours L70 @50°celsuis |
Electrical |
|
Voltage |
24V DC |
Rated Current (A/m) |
0.34 |
Power Consumption |
8W/m |
Colour |
RGB |
Physical |
|
Available Lengths |
Per Meter |
LED Qty/m |
120LED/m |
Dimmable |
Yes |
Cutting Intervals |
50mm |
Light Surface |

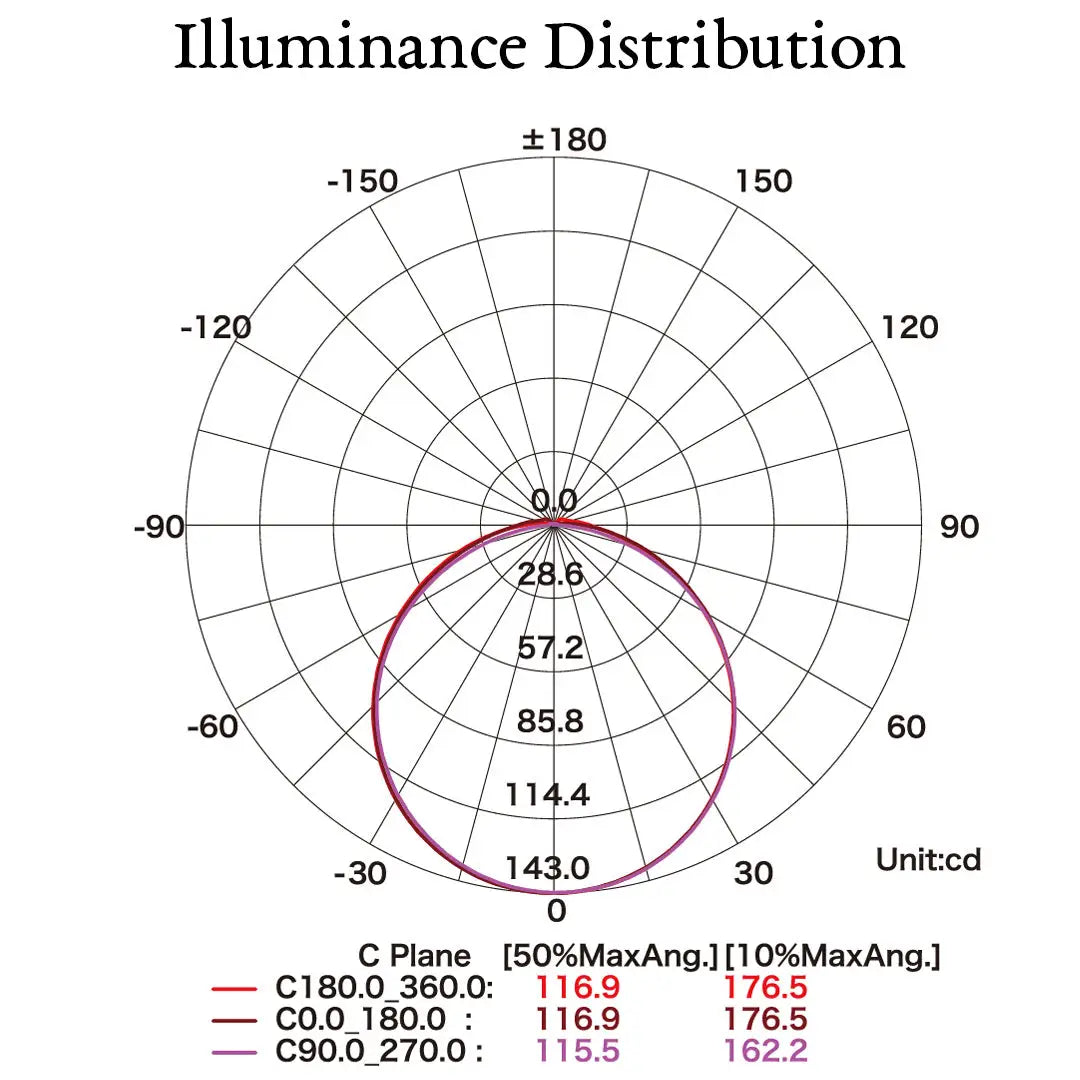

120° |
Minimum Bend Diameter |
100mm (Vertical Bending Only) |
Temperature Ranges |
|
Installation |
0°to 50°C |
Operating |
-40°to 55°C |
Humidity |
0-95% non-condensing |
Safety |
|
IP Rating |
Ip67 with appropriately rated accessories |
CRI |
RA>90 |
Warranty |
3 Years |
Features |
Anti Yellowing, Flame Resistant, UV Resistant, Solvent Resistant, Saltwater Resistant, IK08 Security, Dirt Resistant, |
Certifications |
Strictly according to the testing standard of CE & ROHS |
The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.
For further details, please read the data sheet.
