Qty = Length in Meters (e.g. 6 qty = 6m continuous)

Our 10x10mm Tri View Flexible Neon is designed for maximum visibility — projecting light from three sides for a brighter, more immersive glow. Crafted with precision and flexibility in mind, it’s the ideal choice for signage, commercial features, custom installations, and creative projects that need to shine from all directions.

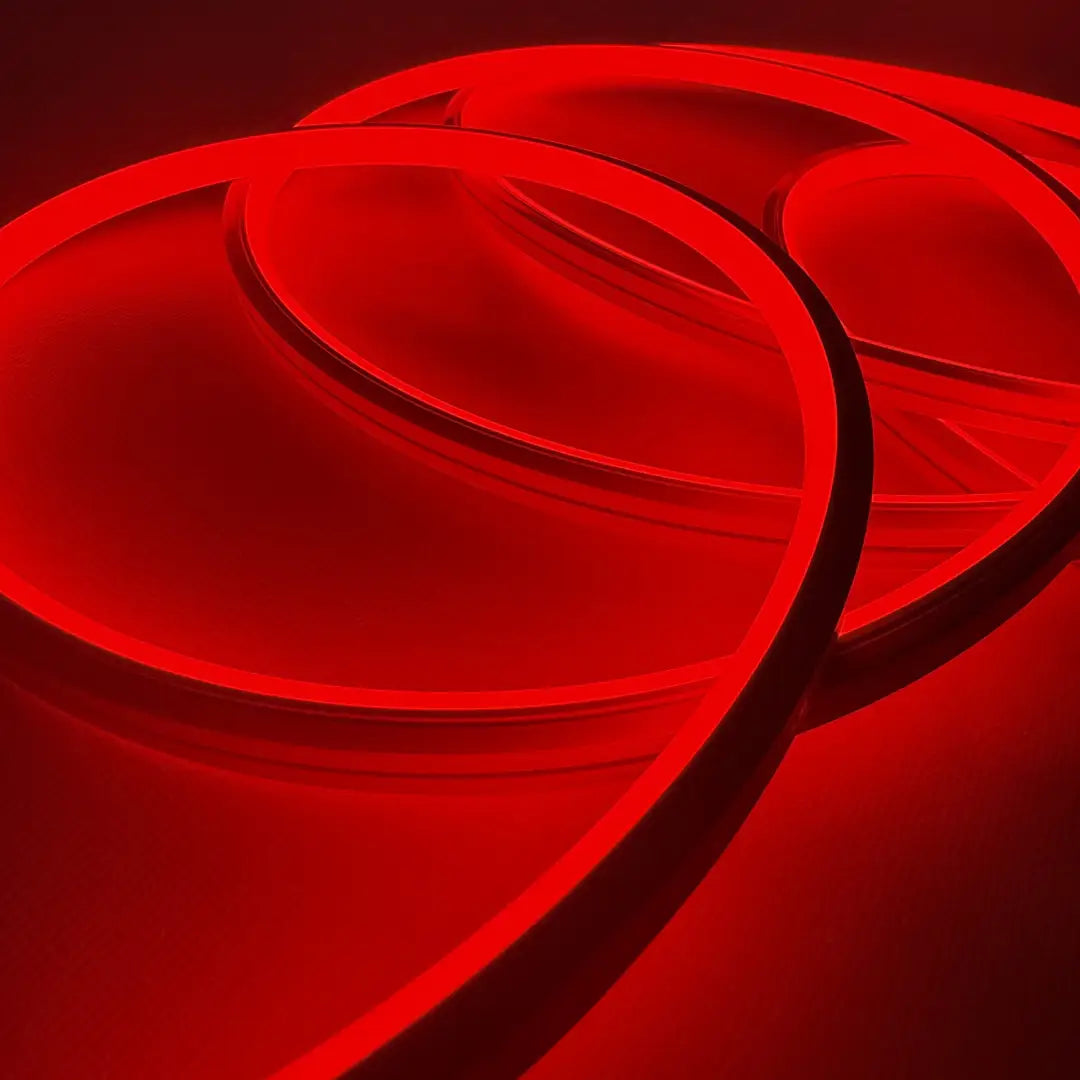

Make a bold statement with Fire Truck Red. Its vibrant intensity is ideal for eye-catching signage, themed decor, or feature lighting in commercial and event spaces.

Key Features:

  • Tri-View Design: Emits light from the top and both sides for 120° visibility.

  • Commercial Grade Durability: Built from high-quality silicone, IP67 rated, UV-resistant, and made to withstand the elements.

  • Efficient & Powerful: Runs on 24V DC and delivers 8W/m brightness while allowing single feeds up to 10 meters.

  • Flexible Installation: Horizontal bending allows smooth curves and custom layouts — perfect for creative signage or wrapping features.

  • Vibrant Colour Options: Available in a full range of rich, eye-catching colours — from classic Warm White to vibrant Hot Pink and deep Royal Blue.

  • Seamless Finish: Compatible with our slimline accessories for clean and professional installations.

  • Dimmable: Easily adjust brightness with compatible dimming systems.

  • Cuttable Every 50mm: Perfect for custom lengths with precise cuts.

  • Long Lifespan: Up to 50,000 hours of high-quality illumination.

Whether you’re illuminating a commercial façade, creating an unforgettable event backdrop, or building standout signage, our Tri-View Neon delivers consistent performance and unmatched glow.



Specs

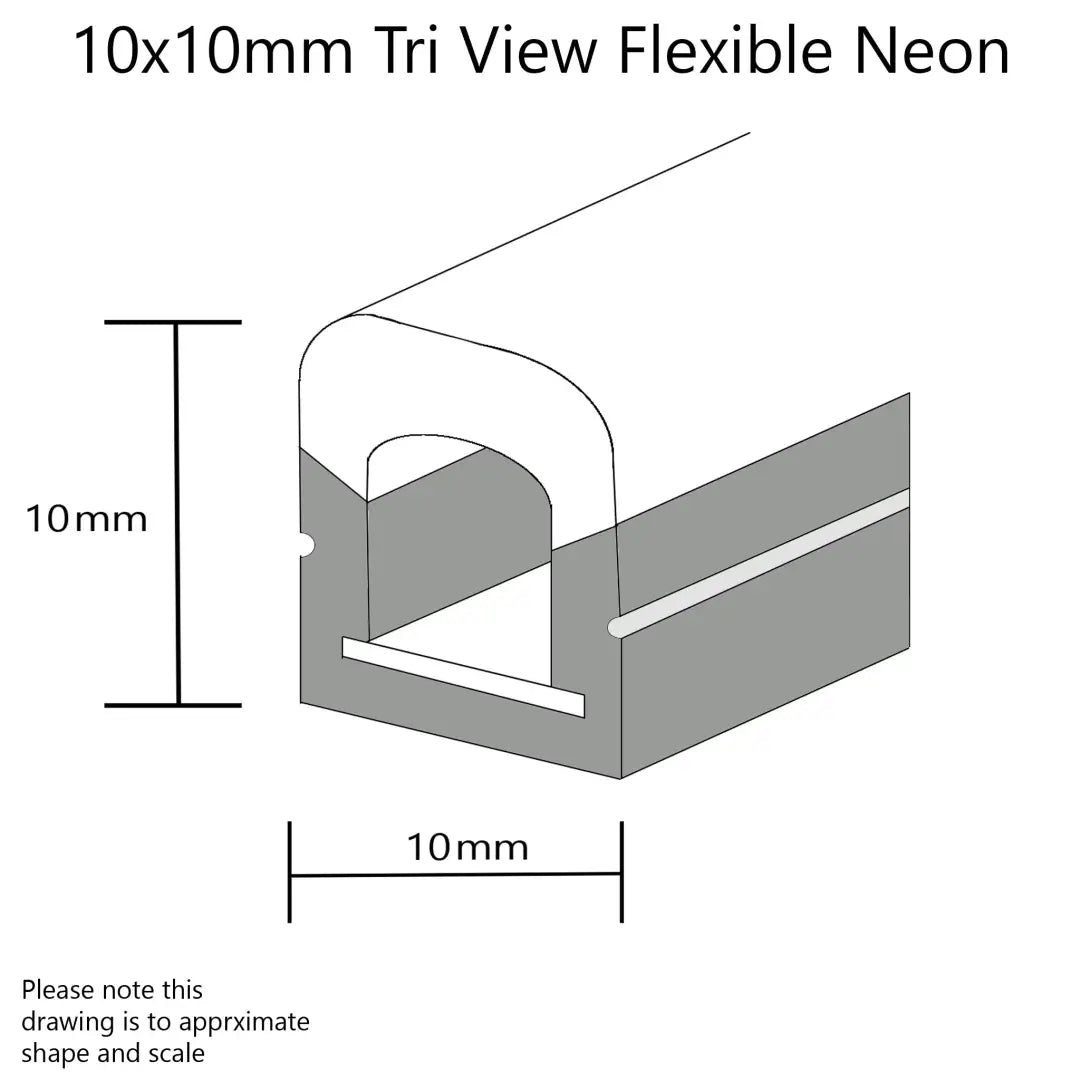

Flexible Neon Dimensions (H x W Size)

 10mm x 10mm

Material

Silicone

Warranty

3 years

Max Run Lengths



Single Feed

10 meters @ 24V DC

Double Feed

20 meters @ 24V DC

Lumen Maintenance (approx.)

50,000 hours L70 @25°celsuis

35,000 hours L70 @50°celsuis

Electrical



Voltage

24V DC

Rated Current (A/m)

0.34

Power Consumption

8W/m

Colour

Red

Lumens per Meter (LM/M)

200 LM/M

Physical



Available Lengths

Per Meter

LED Qty/m

120LED/m

Dimmable

Yes

Cutting Intervals

50mm

Light Surface

120°

Minimum Bend Diameter

100mm (Vertical Bending Only)

Temperature Ranges



Installation

0°to 50°C

Operating

-40°to 55°C

Humidity

0-95% non-condensing

Safety



IP Rating

Ip67 with appropriately rated accessories

CRI

RA>90

Warranty

3 Years

Features

Anti Yellowing, Flame Resistant, UV Resistant, Solvent Resistant, Saltwater Resistant, IK08 Security, Dirt Resistant,

Certifications

Strictly according to the testing standard of CE & ROHS

The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.

For further details, please read the data sheet.
