Our 8x16mm Flexible Neon LED Strip is a premium product designed for durability and versatility, perfect for neon signs, architectural strips, product lighting, and more. Here’s everything you need to know about this high-quality commercial grade lighting solution:
Product Highlights:
- Commercial Grade Quality: Built to last, ideal for a variety of applications including neon signs, architectural strips, and product lighting.
- Power Requirements: This 12v neon strip requires a 12v LED Driver, available for purchase in our store. Once connected, it can be plugged into a standard Australian outlet.

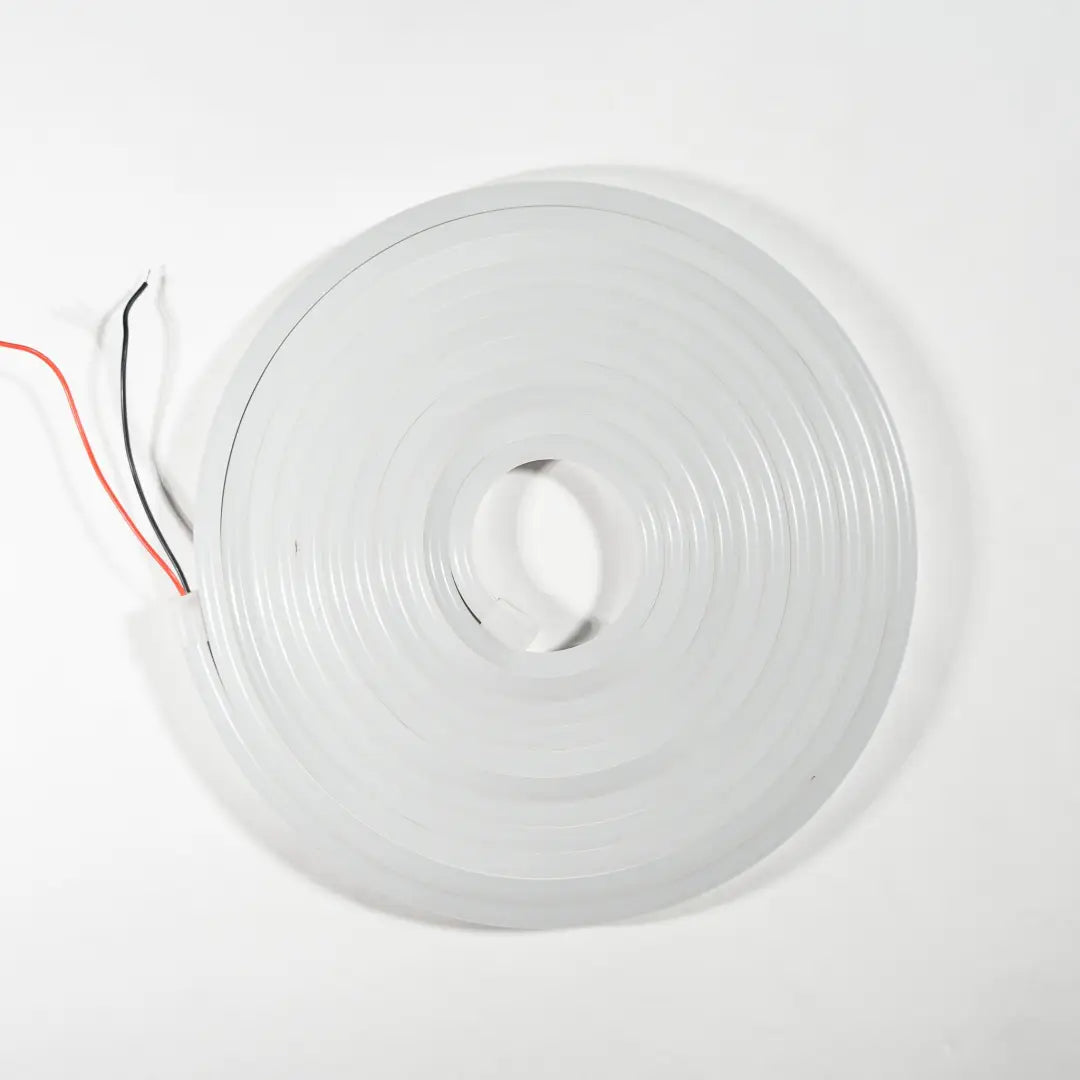

- 5m Packs: The pack comes with 1 soldered end with 10cm of wire and also comes with 2 end caps.
- We also offer neon by the meter
- Max Run Length: Single feed (power from one side) supports up to 5m. Double feed (power from both sides) extends up to 10m.
- Weather Resistant: IP67 rated, ensuring durability in various weather conditions.
- Customisable Cutting: Small cutting intervals of 1cm make it perfect for custom projects.
- Long-Lasting LEDs: With an estimated lifespan of 25,000 hours, you can enjoy long-term illumination.
- Please read Spec Sheets below
- LED Driver Specifications:
- 0m - 12m: Mean Well ELG 12V / 150W
- 12.1m - 19m: Mean Well ELG 12V / 200W
- 19.3m - 27m: Mean Well HLG 12V / 320W (These numbers account for 20% spare capacity and do not include voltage drop considerations.)
- Extension Cable Wire Needed (please know for longer runs there will be voltage drop which will dim the neon):
- Up to 1m: Cable Clear 2 Core 24AWG
- Up to 3m: Cable Clear 2 Core 22AWG
- Up to 5m: Cable Clear 2 Core 20AWG
- Up to 10m: Cable Clear 2 Core 18AWG
- Up to 15m: Black PVC 2 Core 16AWG
Installation Instructions:
- Extension Cable: Order the appropriate length of extension cable to connect between the neon led strip and the LED driver.
- Connecting to LED Driver: Attach the extended cable to the LED driver using WAGO connectors (included with pre-soldered ends). The wires are clearly marked for safe and easy connection, suitable for extra low voltage.
- Mounting: Secure the neon strip using mounting channels/clips, routed channels, double-sided tape, or silicone glue.
- Powering Up: Plug the LED driver into a wall outlet to light up your neon strip.
Please note, Flexible Neon is not responsible for any issues arising from the installation process. This guide reflects our recommended installation method for the Flexible Neon LED Strip.
Product Description:
Our 8x16 Flex Neon in Pure White 6000K: a versatile and captivating lighting solution meticulously crafted to elevate a multitude of applications. With its precise cutting interval, this neon flex is tailor-made for crafting attention-grabbing signage that commands attention.
Engineered to excel in various settings, our Pure White 6000K Flex Neon radiates brilliance in interior linear lighting design, facade lighting, contour lighting, landscape lighting, residential lighting, and commercial lighting installations. Renowned for its flexibility and optimal brightness, it's a preferred choice among designers and architects seeking versatile and cost-effective lighting solutions.
Elevate your lighting projects with our 8x16 Flex Neon and immerse yourself in the perfect synergy of aesthetics and functionality. The crisp and luminous glow of Pure White 6000K, coupled with the flexibility of this neon flex, opens up endless possibilities for creative expression, allowing you to transform any space into a captivating masterpiece. Whether you're illuminating a storefront with the pristine allure of Pure White 6000K, accentuating architectural elements, or infusing a residential environment with an inviting ambience, our 8x16 Flex Neon stands ready to exceed your expectations.
Specs
|

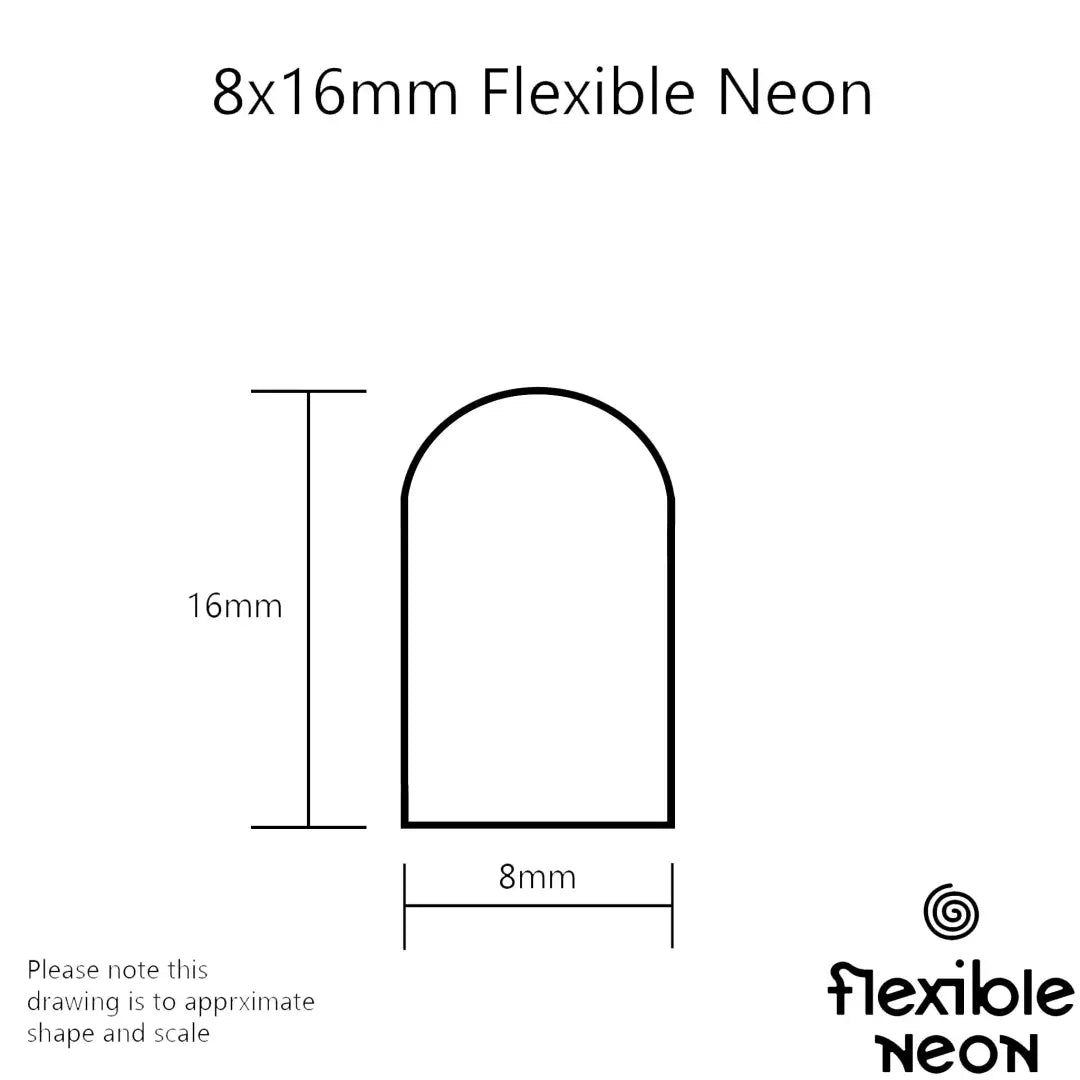

Flexible Neon Dimensions (W x H) |
8mm x 16mm |
|
Material |
Silicone |
|
Warranty |
2 years |
|
Max Run Lengths |
|
|
Single Feed |
5 meters @ 12V DC |
|
Double Feed |
10 meters @ 12V DC |
|
Lumen Maintenance (approx.) |
25,000 hours@45°celsuis |
|
Electrical |
|
|
Voltage |
12V DC |
|
Rated Current (A/m) |
0.83 |
|
Power Consumption |
8-10W/m (High Brightness) |
|
Physical |
|
|
Available Lengths |
Per Meter | 5m |
|
LED Qty/m |
100LED/m |
|
Dimmable |
Yes |
|
Cutting Intervals |
10mm |
|
Light Surface |
Round Fixture 160° |
|
Minimum Bend Diameter |
30mm (Horizontal Bending Only) |
|
Temperature Ranges |
|
|
Installation |
0°to 60°C |
|
Operating |
-25°to 60°C |
|
Humidity |
0-95% non-condensing |
|
Safety |
|
|
IP Rating |
Ip67 with appropriately rated accessories |
|
CRI |
RA>80 |
|
Warranty |
2 Years |
|
Features |
Flame Resistant, UV Resistant, Solvent Resistant, Saltwater Resistant, IK08 Security |
|
Certifications |
Strictly according to the testing standard of CE, ROHS, REACH and UL. |
The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.
For further details, please read the data sheet.
