Our 8x10x16mm Flexible Neon LED Strip is the perfect budget-friendly option for those seeking high-quality, versatile lighting solutions. Made of durable PVC, this strip is ideal for neon signs, architectural strips, product lighting, and more. Here’s everything you need to know about this economical yet reliable lighting option:
Product Highlights:
- Commercial Grade Quality: Built to last, ideal for a variety of applications including neon signs, architectural strips, and product lighting.
- Power Requirements: This 12v neon strip requires a 12v LED Driver, available for purchase in our store. Once connected, it can be plugged into a standard Australian outlet.
- Convenient Pre-Soldered Ends: Purchasing per meter? opt for pre-soldered ends and end caps for easy connection to the LED driver.
- Max Run Length: Single feed (power from one side) supports up to 5m. Double feed (power from both sides) extends up to 10m.
- Weather Resistant: IP67 rated, ensuring durability in various weather conditions.
- Customisable Cutting: Small cutting intervals of 1cm make it perfect for custom projects.
- Long-Lasting LEDs: With an estimated lifespan of 25,000 hours, you can enjoy long-term illumination.
- Please read Spec Sheets below
- LED Driver Specifications:
- 0m - 9.6m: Mean Well ELG 12V / 150W
- 9.7m - 15.3m: Mean Well ELG 12V / 200W
- 15.4m - 21.1m: Mean Well HLG 12V / 320W (These numbers account for 20% spare capacity and do not include voltage drop considerations.)
- Extension Cable Wire Needed (please know for longer runs there will be voltage drop which will dim the neon):
- Up to 1m: Cable Clear 2 Core 24AWG
- Up to 3m: Cable Clear 2 Core 22AWG
- Up to 5m: Cable Clear 2 Core 20AWG
- Up to 10m: Cable Clear 2 Core 18AWG
- Up to 15m: Black PVC 2 Core 16AWG
Installation Instructions:
- Soldering/purchasing pre-soldered end: Solder the neon ends and use silicone glue for attaching end caps. Alternatively, opt for pre-soldered ends for a hassle-free connection.
- Extension Cable: Order the appropriate length of extension cable to connect between the neon led strip and the LED driver.
- Connecting to LED Driver: Attach the extended cable to the LED driver using WAGO connectors (included with pre-soldered ends). The wires are clearly marked for safe and easy connection, suitable for extra low voltage.
- Mounting: Secure the neon strip using mounting channels/clips, routed channels, double-sided tape, or silicone glue.
- Powering Up: Plug the LED driver into a wall outlet to light up your neon strip.
Please note, Flexible Neon is not responsible for any issues arising from the installation process. This guide reflects our recommended installation method for the Flexible Neon LED Strip.
Product Description:
Specs
|

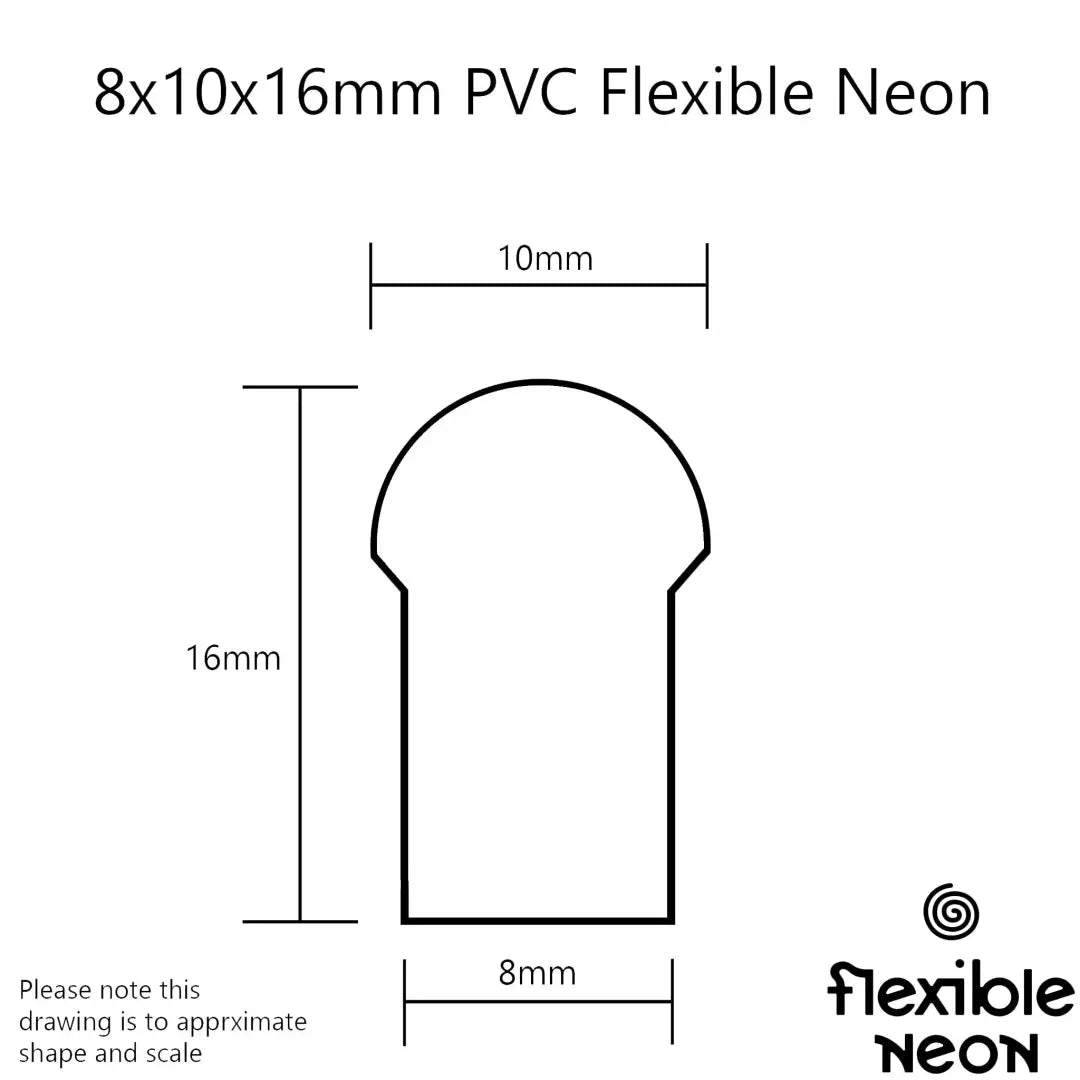

Flexible Neon Dimensions (L x Dome Size x H) |
8mm x 10mm x 16mm |
|
Material |
PVC |
|
Warranty |
1 years |
|
Max Run Lengths |
|
|
Single Feed |
5 meters @ 12V DC |
|
Double Feed |
10 meters @ 12V DC |
|
Lumen Maintenance (approx.) |
25,000 hours@45°celsuis |
|
Electrical |
|
|
Voltage |
12V DC |
|
Rated Current (A/m) |
0.83 |
|
Power Consumption |
11W/m (High Brightness) |
|
Physical |
|
|
Available Lengths |
Per Meter | 5m |
|
LED Qty/m |
120LED/m |
|
Dimmable |
Yes |
|
Cutting Intervals |
25mm |
|
Light Surface |
Round Fixture 270° |
|
Minimum Bend Diameter |
30mm (Horizontal Bending Only) |
|
Temperature Ranges |
|
|
Installation |
0°to 60°C |
|
Operating |
-25°to 60°C |
|
Humidity |
0-95% non-condensing |
|
Safety |
|
|
IP Rating |
Ip65 with appropriately rated accessories |
|
CRI |
RA>80 |
|
Features |
Flame Resistant, Solvent Resistant, Saltwater Resistant, IK08 Security |
|
Certifications |
Strictly according to the testing standard of CE, ROHS, REACH and UL. |
The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.
For further details, please read the data sheet.
