Product Description:

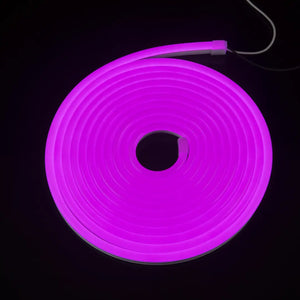

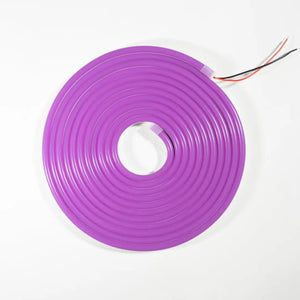

Our 8x16 Flex Neon in Jacaranda Purple: a versatile and captivating lighting solution meticulously crafted to elevate various applications. With its small cutting interval, it's tailor-made for creating attention-grabbing signage that demands attention and infuses spaces with a vibrant pop of purple.

Embracing the rich hue of Jacaranda Purple, our Flex Neon exudes elegance and sophistication, making it perfect for a myriad of settings. Whether it's illuminating interior spaces with linear precision, enhancing architectural elements, or adding a touch of vibrancy to commercial environments, its adaptability knows no bounds. Renowned for its flexibility and luminosity, our Flex Neon stands as a preferred choice for designers and architects seeking dynamic and cost-effective lighting solutions.

Elevate your lighting project with our 8x16 Flex Neon and immerse yourself in the perfect balance of aesthetics and functionality. Its radiant glow and flexible nature allow for endless creative possibilities, enabling you to transform any space into a visually captivating masterpiece. Whether you're adorning a storefront with the striking allure of Jacaranda Purple, highlighting architectural features, or infusing a sense of warmth into a residential ambience, our 8x16 Flex Neon is the quintessential choice.



Please Note: Our Neon Flex is custom-cut to your desired length, with the quantity representing the meters you need. Kindly be aware that due to the cutting process, there may be a tolerance of ± 25mm in the length. We strive to provide the best quality, but please understand that slight variations may occur. Thank you for your understanding and for choosing our customisable Neon Flex lighting solution.



Specs

Flexible Neon Dimensions (W x H)

8mm x 16mm

Material

Silicone

Warranty

2 years

Max Run Lengths



Single Feed

5 meters @ 12V DC

Double Feed

10 meters @ 12V DC

Lumen Maintenance (approx.)

25,000 hours@45°celsuis

Electrical



Voltage

12V DC

Power Consumption

8-10W/m (High Brightness)

Physical



Available Lengths

Per Meter | 5m

LED Qty/m

100LED/m

Dimmable

Yes

Cutting Intervals

10mm

Light Surface

Round Fixture 160°

Minimum Bend Diameter

30mm (Horizontal Bending Only)

Temperature Ranges



Installation

0°to 60°C

Operating

-25°to 60°C

Humidity

0-95% non-condensing

Safety



IP Rating

Ip67 with appropriately rated accessories

CRI

RA>80

Warranty

2 Years

Features

Flame Resistant, UV Resistant, Solvent Resistant, Saltwater Resistant, IK08 Security

Certifications

Strictly according to the testing standard of CE, ROHS, REACH and UL.

The above data are typical values. Due to tolerances in the production process, characteristics of electronic components, and other factors, the test parameters will have an error of ±10%.

For further details, please read the data sheet.
